GINTOOYUN 2 in 1 Combo M.2 NGFF B-key and mSATA SSD to SATA 3.0 Adapter.M.2 SATA(B/B+M Key NGFF) and mSATA SSD to 2.5 Inch SATA III Converter with 7mm Case Enclosure

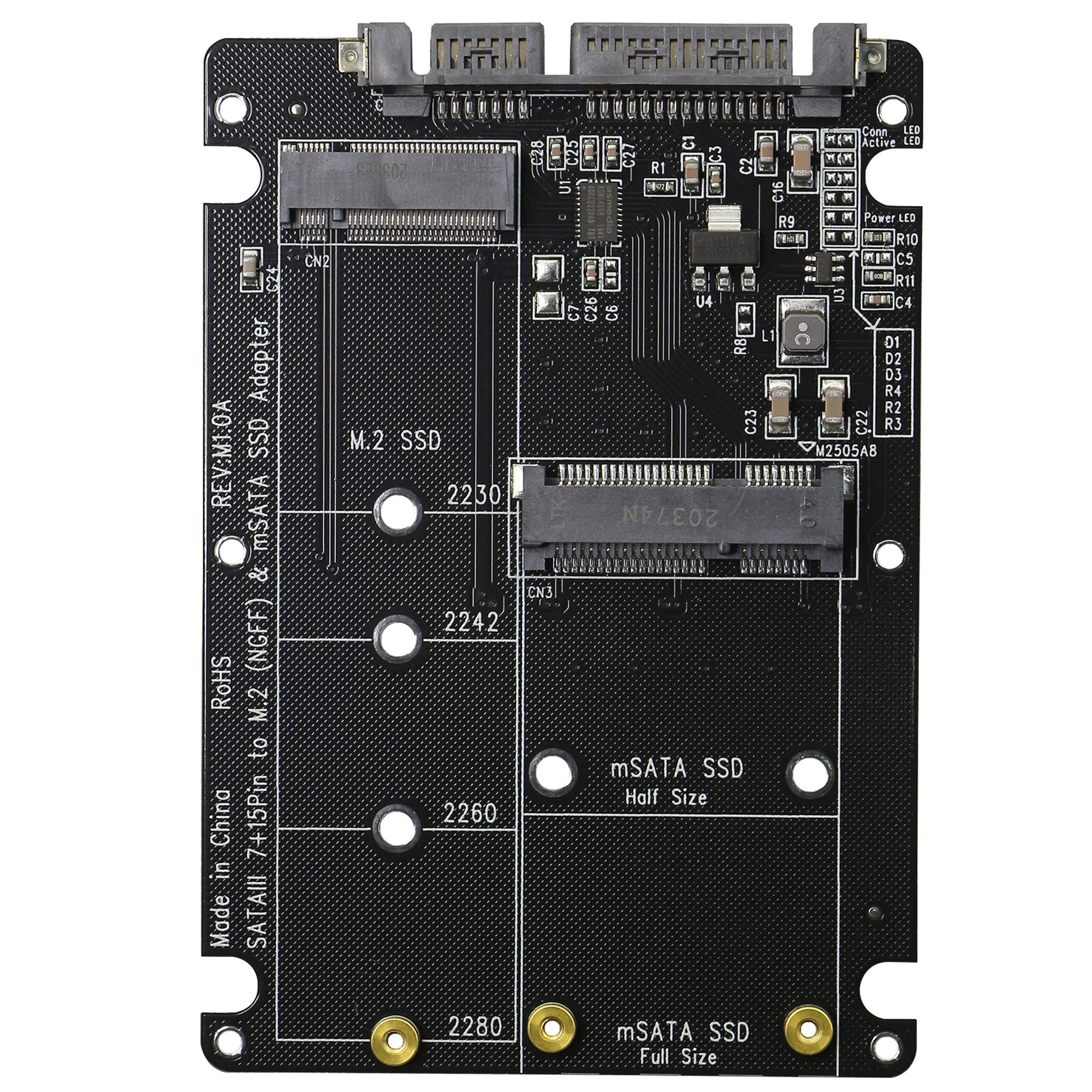

• 2 IN 1:SATA M.2 /mSATA to 2.5" Hard Drive Adapter is an easy way to save and turn your old M.2 SATA(NGFF) or mSATA drive into a portable 2.5" hard drive.

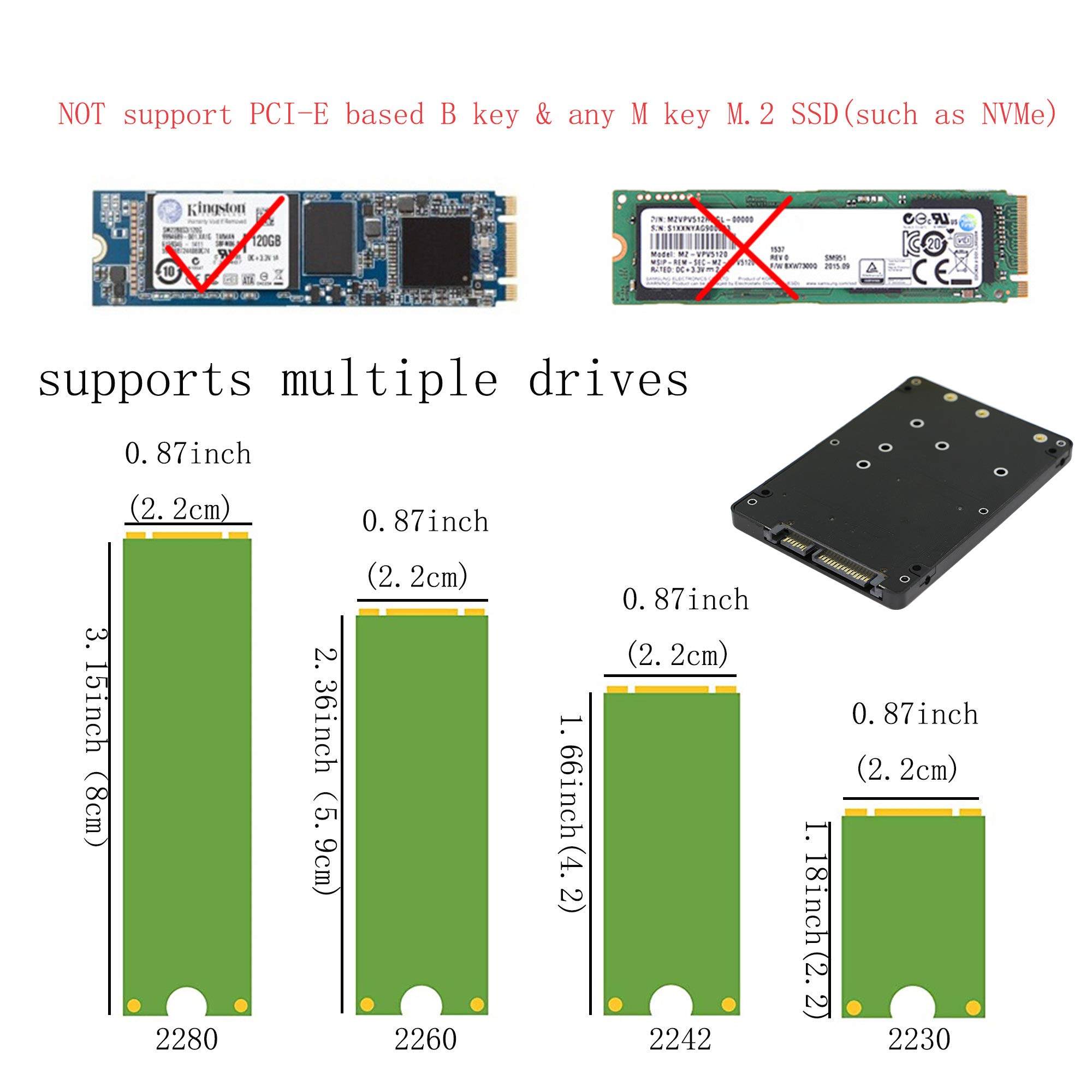

• M.2 NGFF B-key & mSATA SSD to SATA 3.0 Adapter Support half size 26.8mm and full size 50.95mm mSATA SSD; Support NGFF M.2 SATA SSD ( 2230 2242 2260 2280) with Key B & Key B+M;
• M.2 SATA(B/B+M Key NGFF) and mSATA SSD to 2.5-Inch SATA III Converter Support Hi-Speed SATA3/ 6Gbps mass storage interface. Support SATA Reversion 3.2 2. Compatible with PCI Express M.2 Spec.Version 1.0
• The adapter only work for B-key or B/M-key socket NGFF SSD, cannot work for M-key socket
• the MSATA and NGFF SSD cannot work at same time. Insert both M.2 & mSATA SSD on the PCBA,M.2/NGFF SSD is the first priority. mSATA won't work.

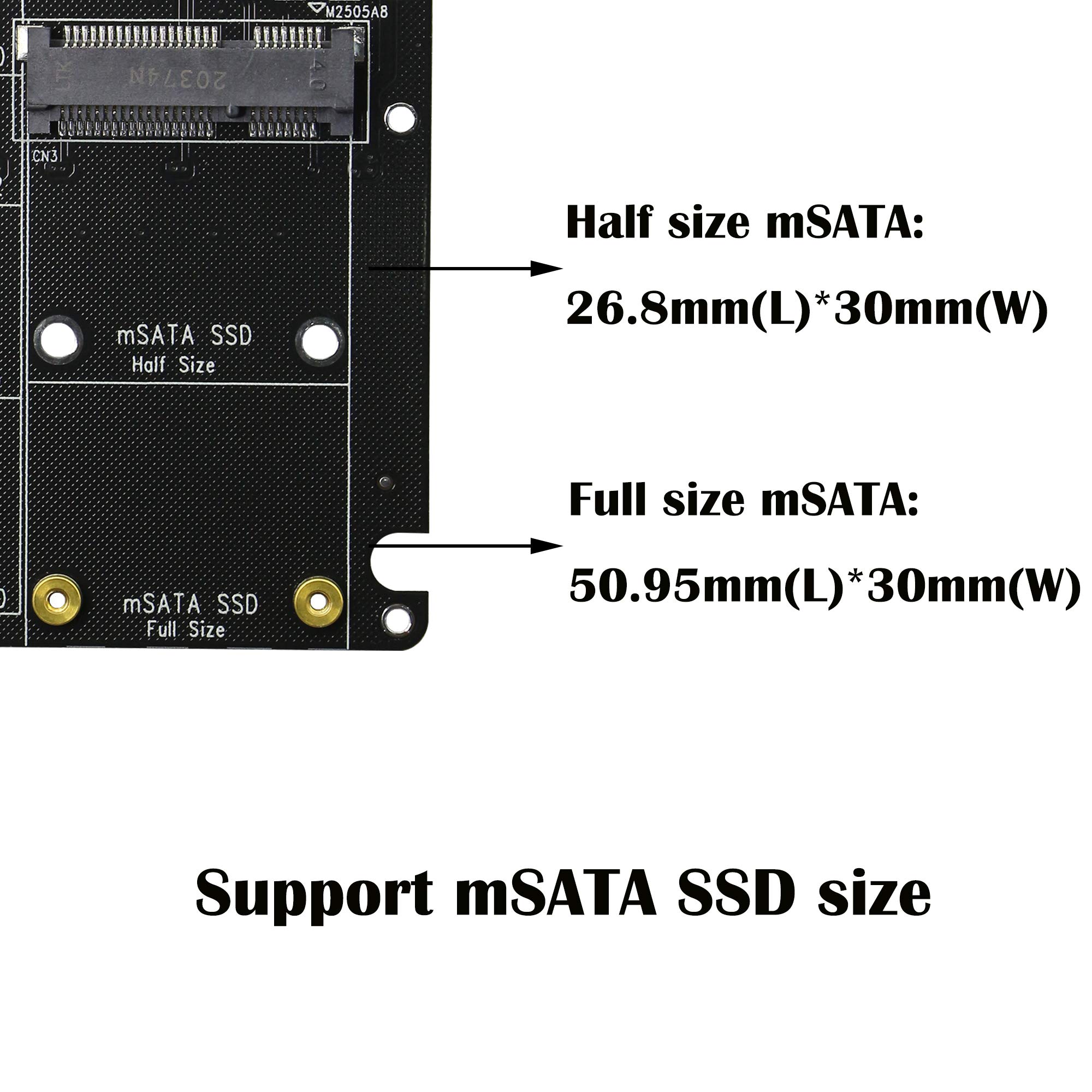

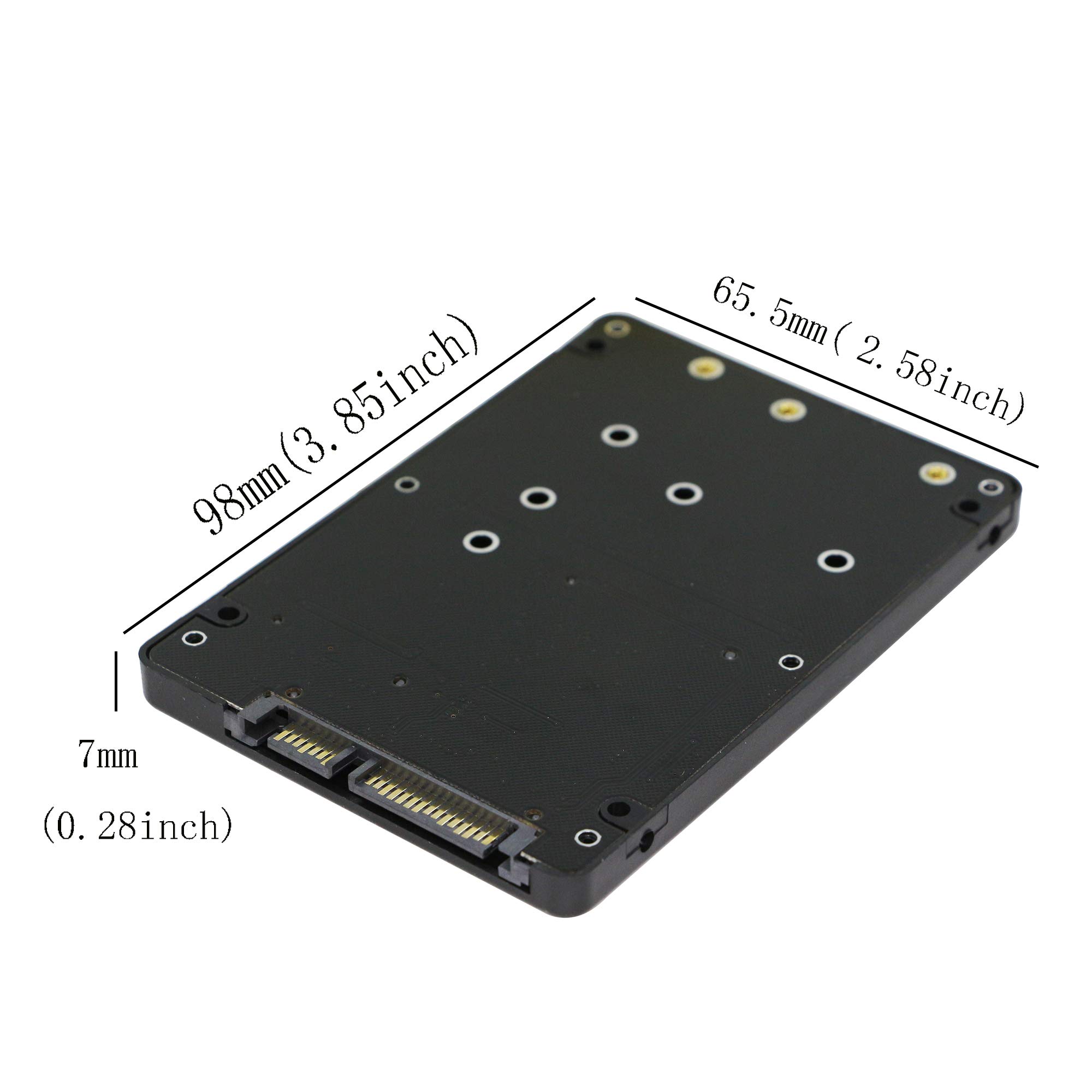

1. Appearance size of 2.5"SATA SSD shell: 98*65.5MM 2. M.2(NGFF)& mSATA to SATAⅢ module 3. When M.2 and mSATA SSD are installed in this adapter card at the same time, M.2 SSD will be detected first, and mSATA SSD will not work specification 1. Support SATA Reversion 3.2 2. Compatible with PCI Express M.2 Spec.Version 1.0 3. PWM synchronous buck converter power IC 4. Provide a maximum current of 3 amperes 5. Short circuit protection 6. Instantaneous surge current protection 7. Electrostatic protection HBM (Human Body Mode)/2KV Support M.2 (NGFF) SSD specification size Type 2280-D2-B-M: 80mm(L)*22mm(W) Type 2260-D2-B-M: 60mm(L)*22mm(W) Type 2242-D2-B-M: 42mm(L)*22mm(W) Type 2230-D2-B-M: 30mm(L)*22mm(W) Support mSATA SSD size Half size mSATA: 26.8mm(L)*30mm(W) Full size mSATA:50.95mm(L)*30mm(W) Note: 1. the MSATA and NGFF SSD cannot work at same time. 2.The adapter only work for B-key or B/M-key socket NGFF SSD, cannot work for M-key socket.
