IBest 2.9inch E-paper Module 296x128 Resolution 3.3V/5V Two-Color E-Ink Display Module epaper Screen SPI Interface for Raspberry Pi/Arduino/Nucleo Support Partial Refresh

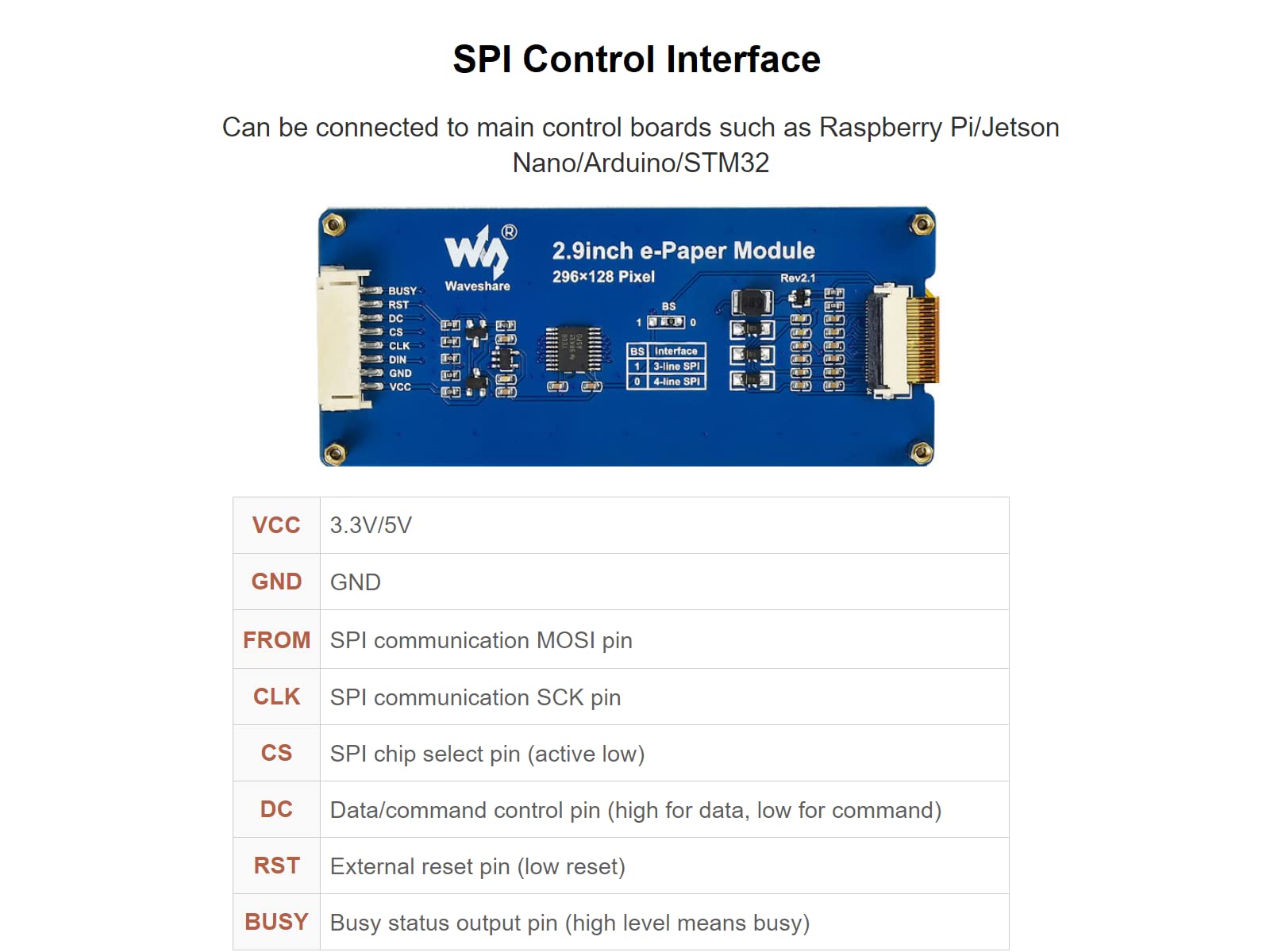

• SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
• Ultra low power consumption, basically power is only required for refreshing

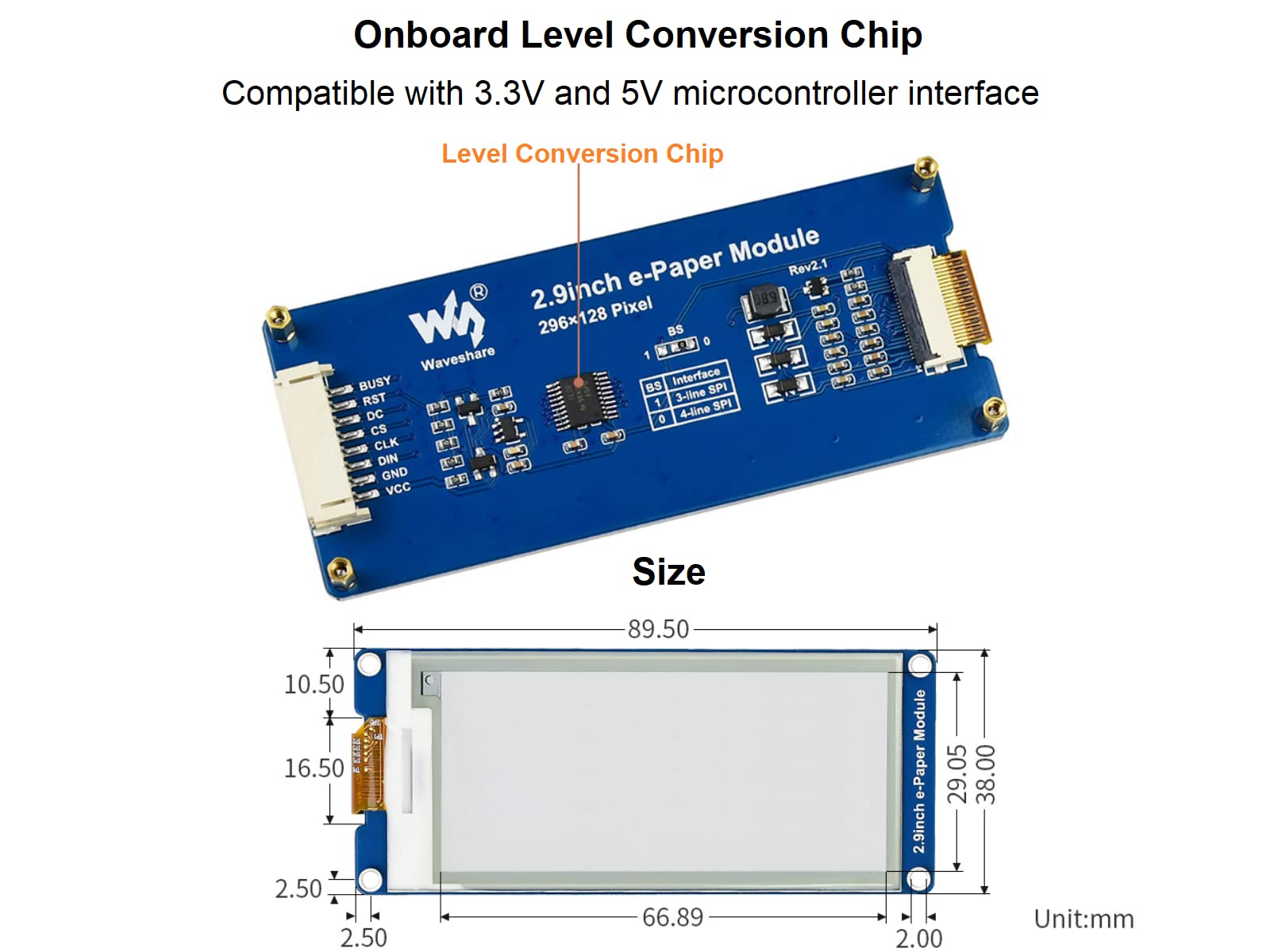

• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
• No backlight, keeps displaying last content for a long time even when power down

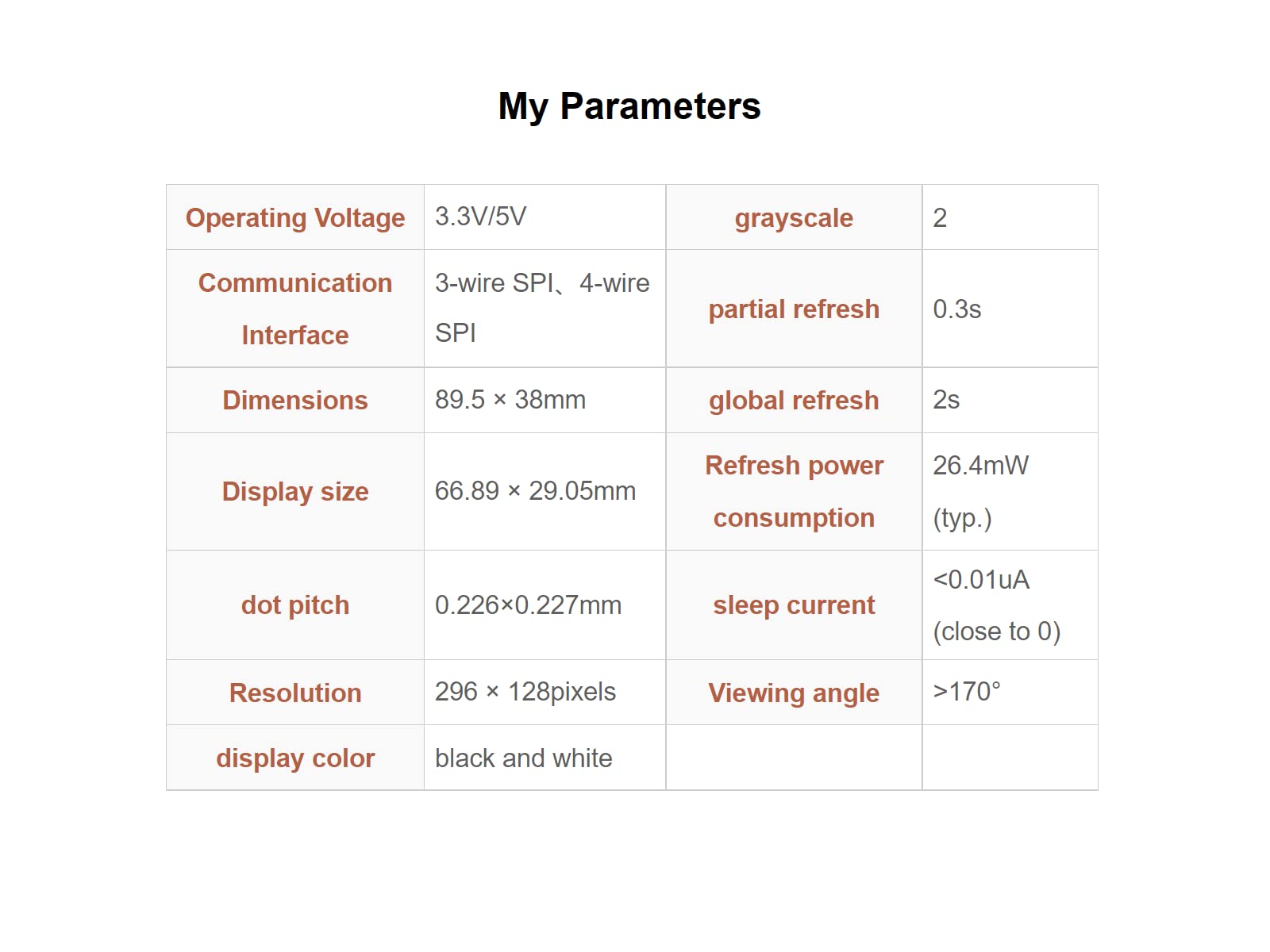

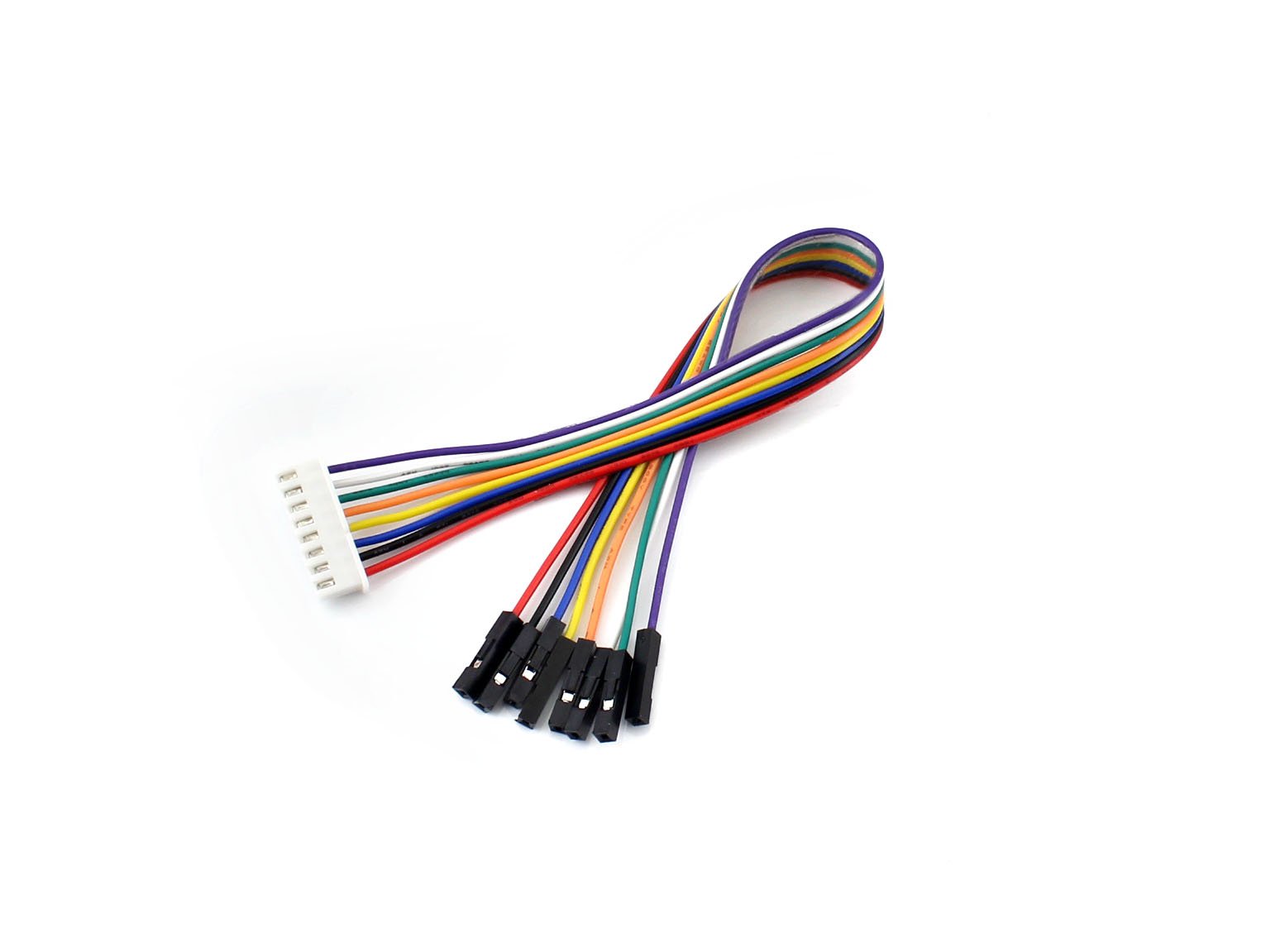

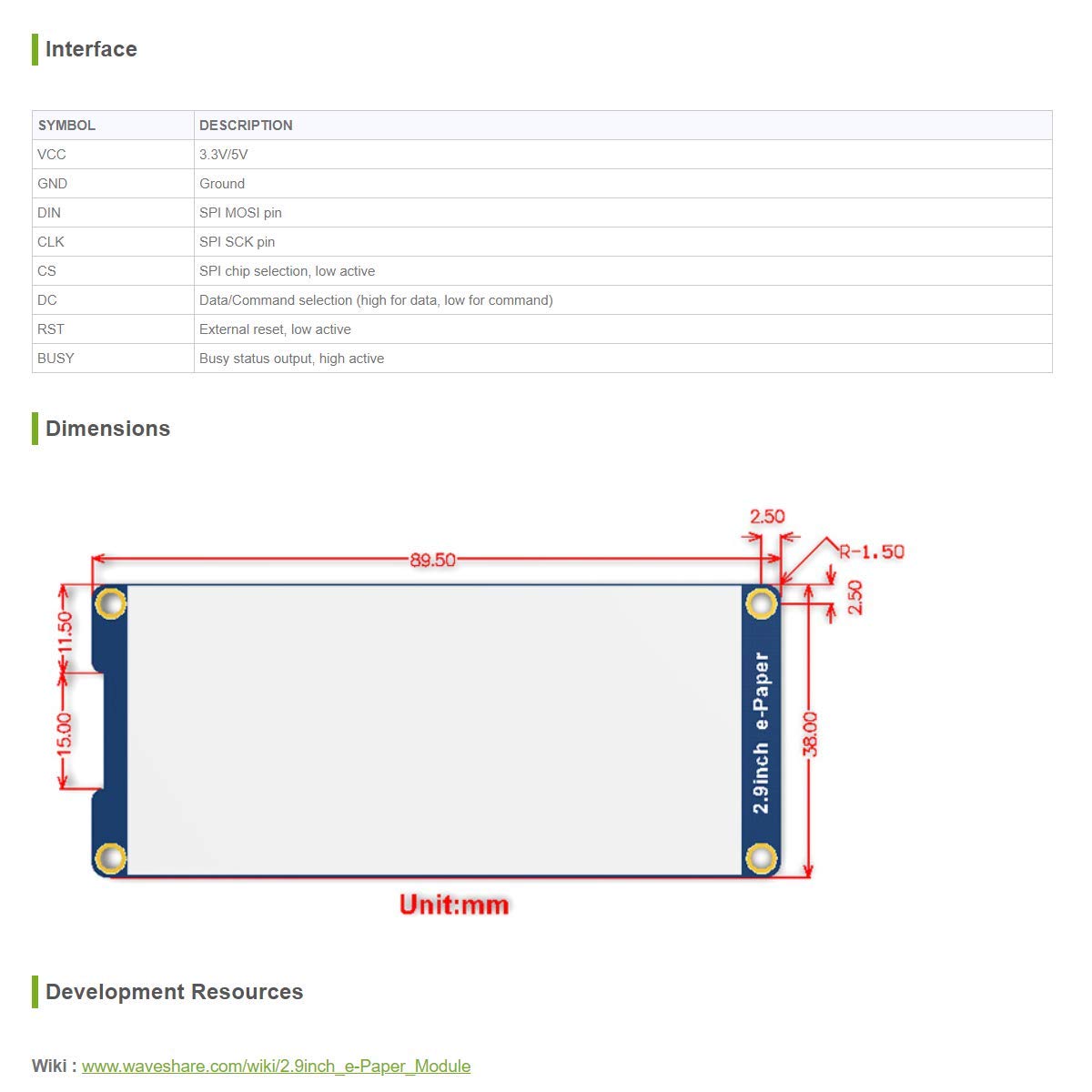

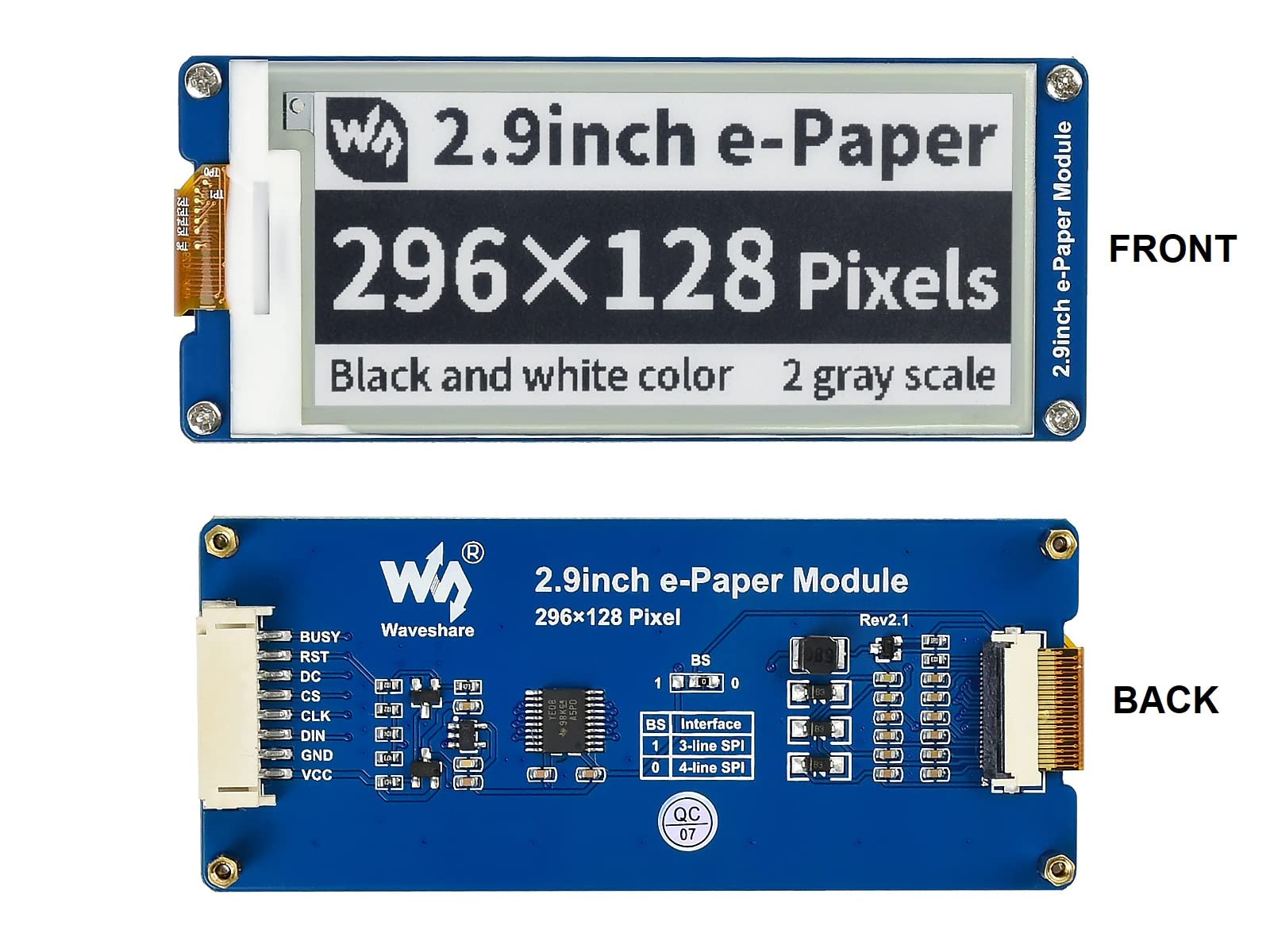

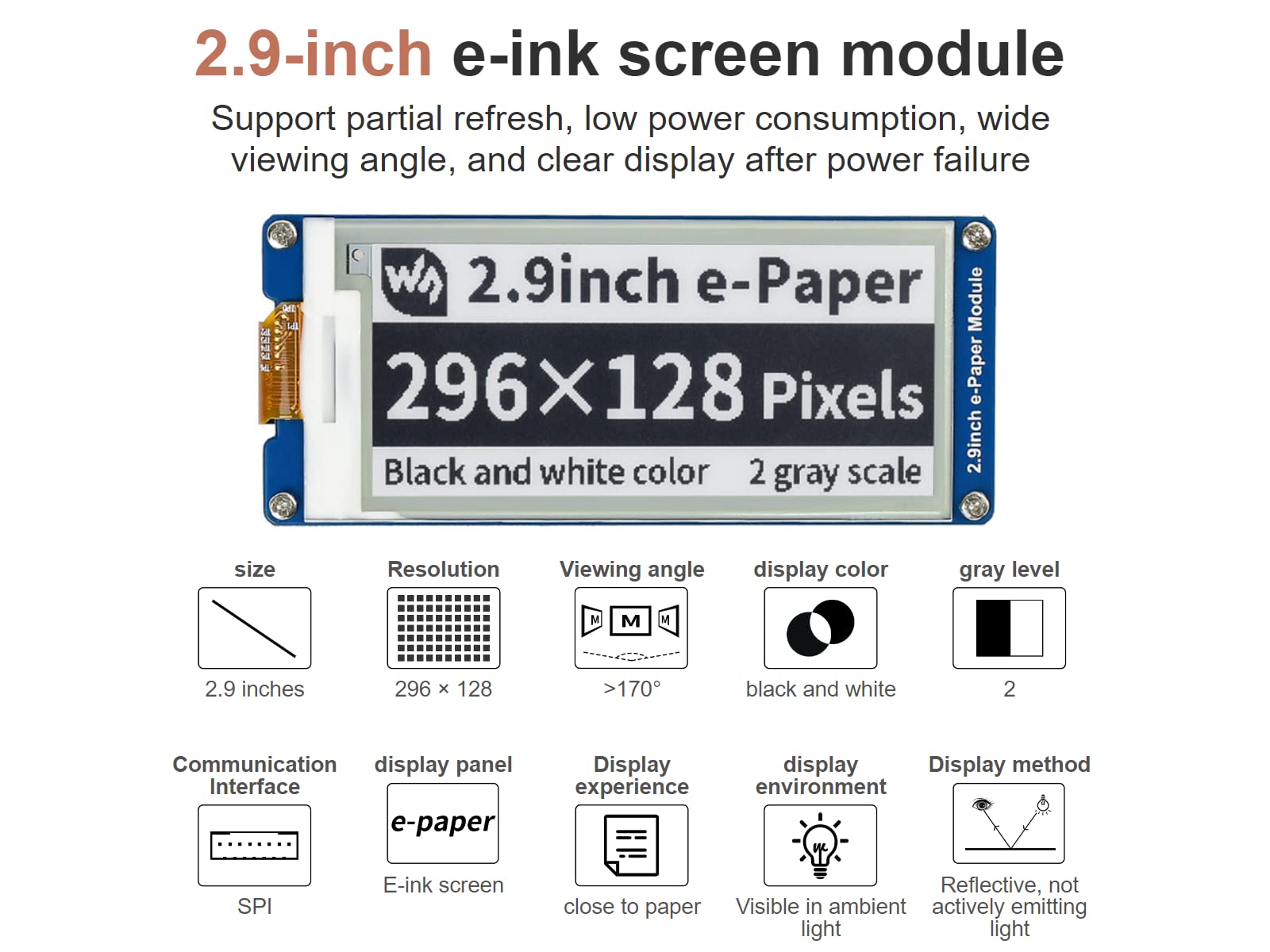

Overview This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32). Specifications: Operating voltage: 3.3 V/5 V. Interface: 3-wire SPI, 4-wire SPI Outline dimension: 89.5 mm × 38 mm Display size: 67 mm × 29.1 mm. Dot pitch: 0.138 × 0.138 Resolution: 296 × 128 Display colour: black, white Grey level: 2 Partial refresh time: 0.3s Full refresh time: 2s Refresh power: 26.4 mW (typ.) Standby power: <0.017mW. Viewing angle: >170°. Package Content 2.9 inch e-paper module x1 PH2.0 20 cm 8 Pin x1 Note: 1. If the e-paper has ghosting problem after working for some days, please set the e-paper to sleep mode or disconnect it if you needn't refresh the e-paper but need to power on your development board or Raspberry Pi for long time. Otherwise, the voltage of panel keeps high and it will damage the panel. 2.More resources if you need, please contact us via Amazon message firstly to get.
