IBest 2.7inch E-paper Display Module 264x176 Resolution 3.3V/5V Two-Color E-Ink Display epaper Screen HAT for Raspberry Pi/Jetson Nano/Arduino/Nucleo Support Partial Refresh,SPI Interface

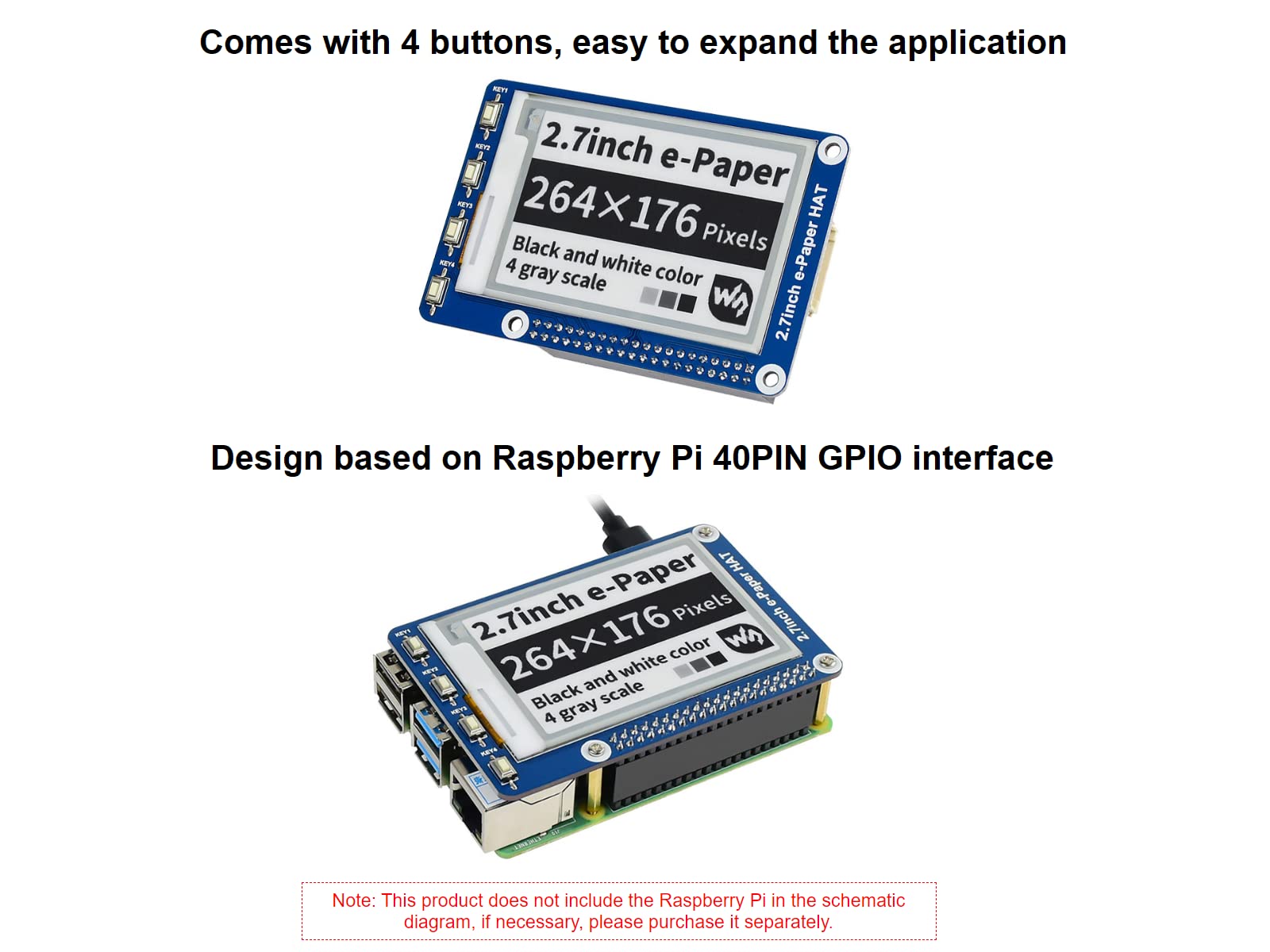

• Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W

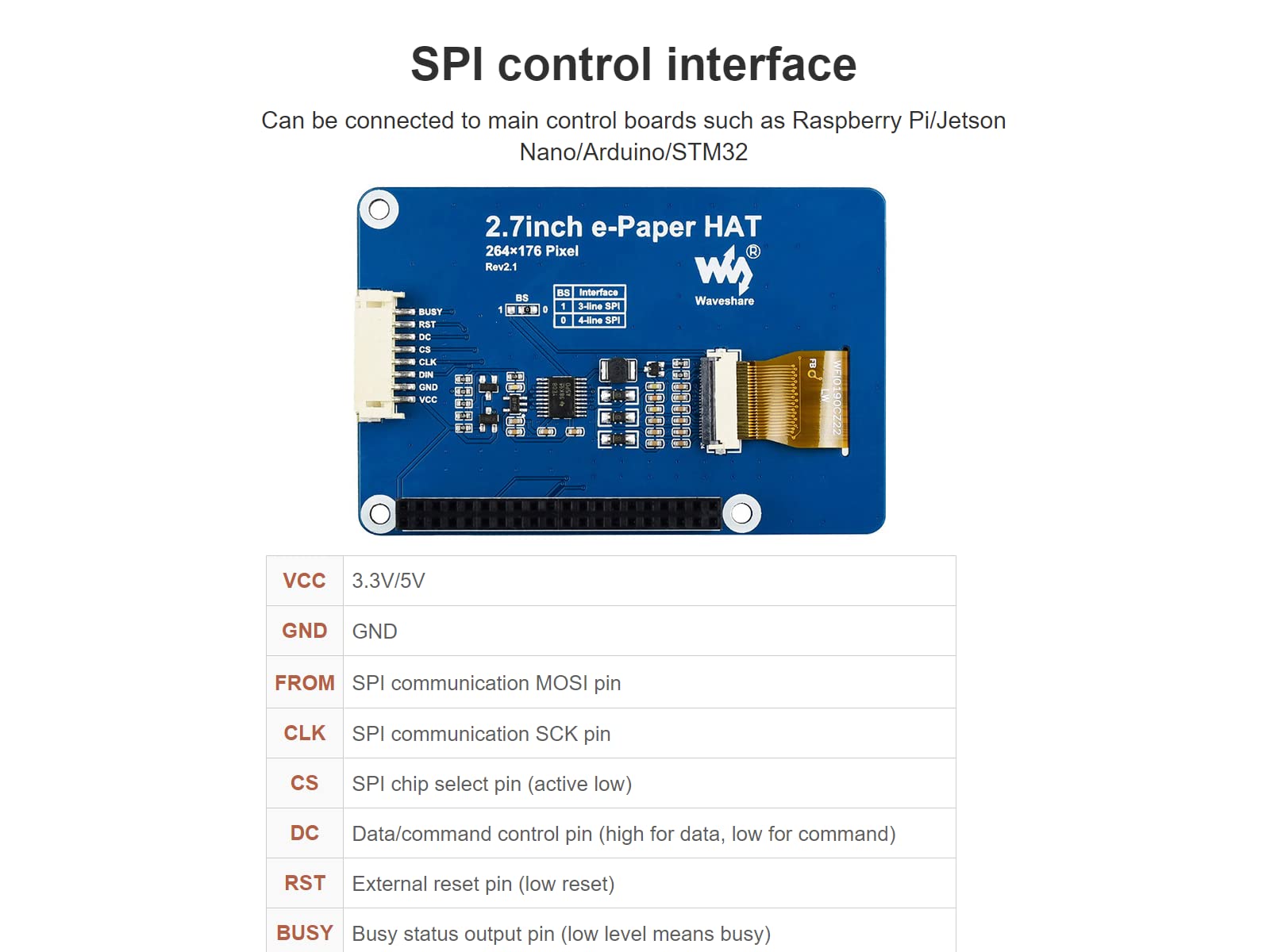

• SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.

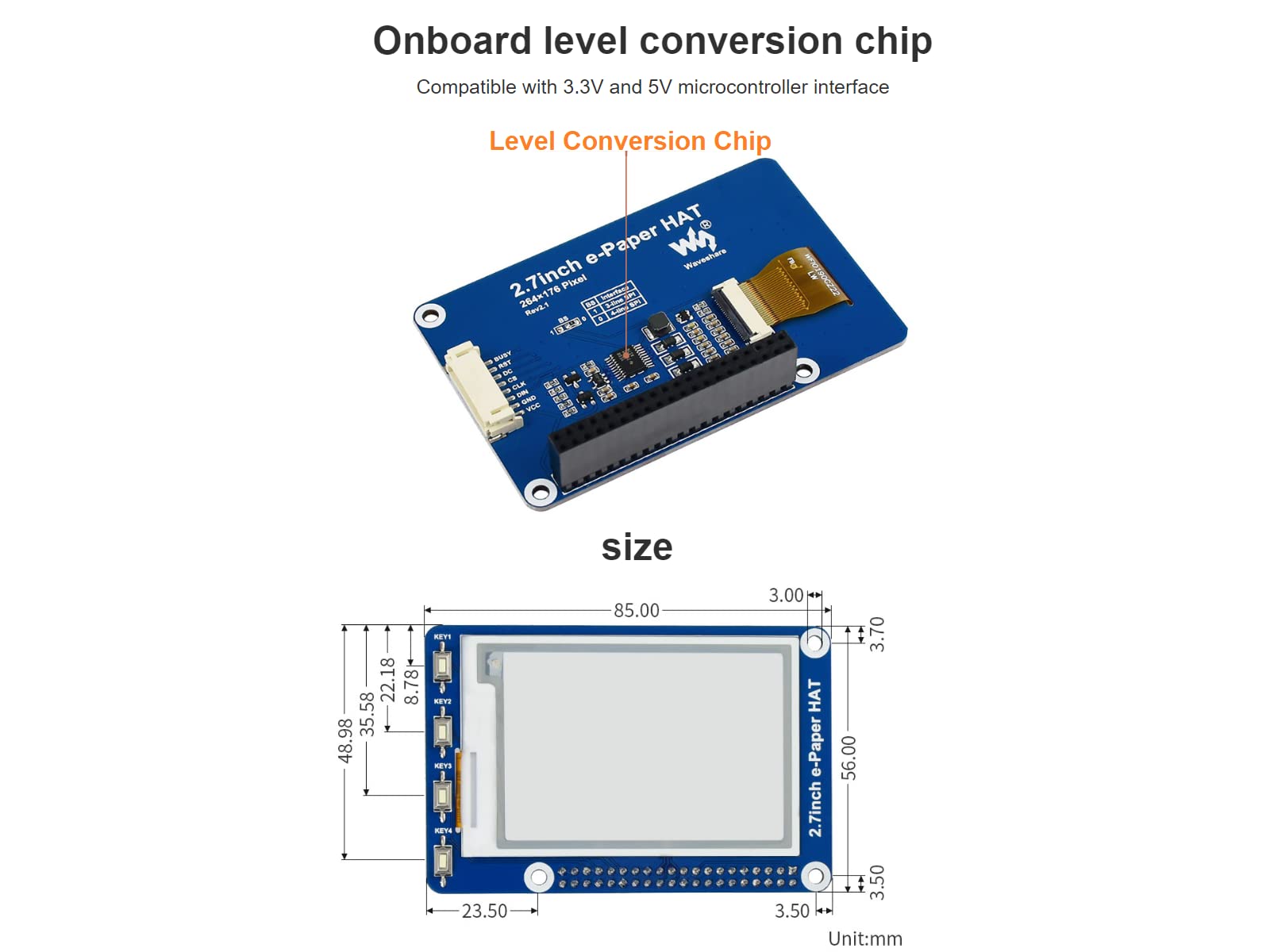

• Onboard voltage translator, compatible with 3.3V/5V MCUs,Onboard 4x Keys
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32
• Ultra low power consumption, basically power is only required for refreshing,no backlight, keeps displaying last content for a long time even when power down

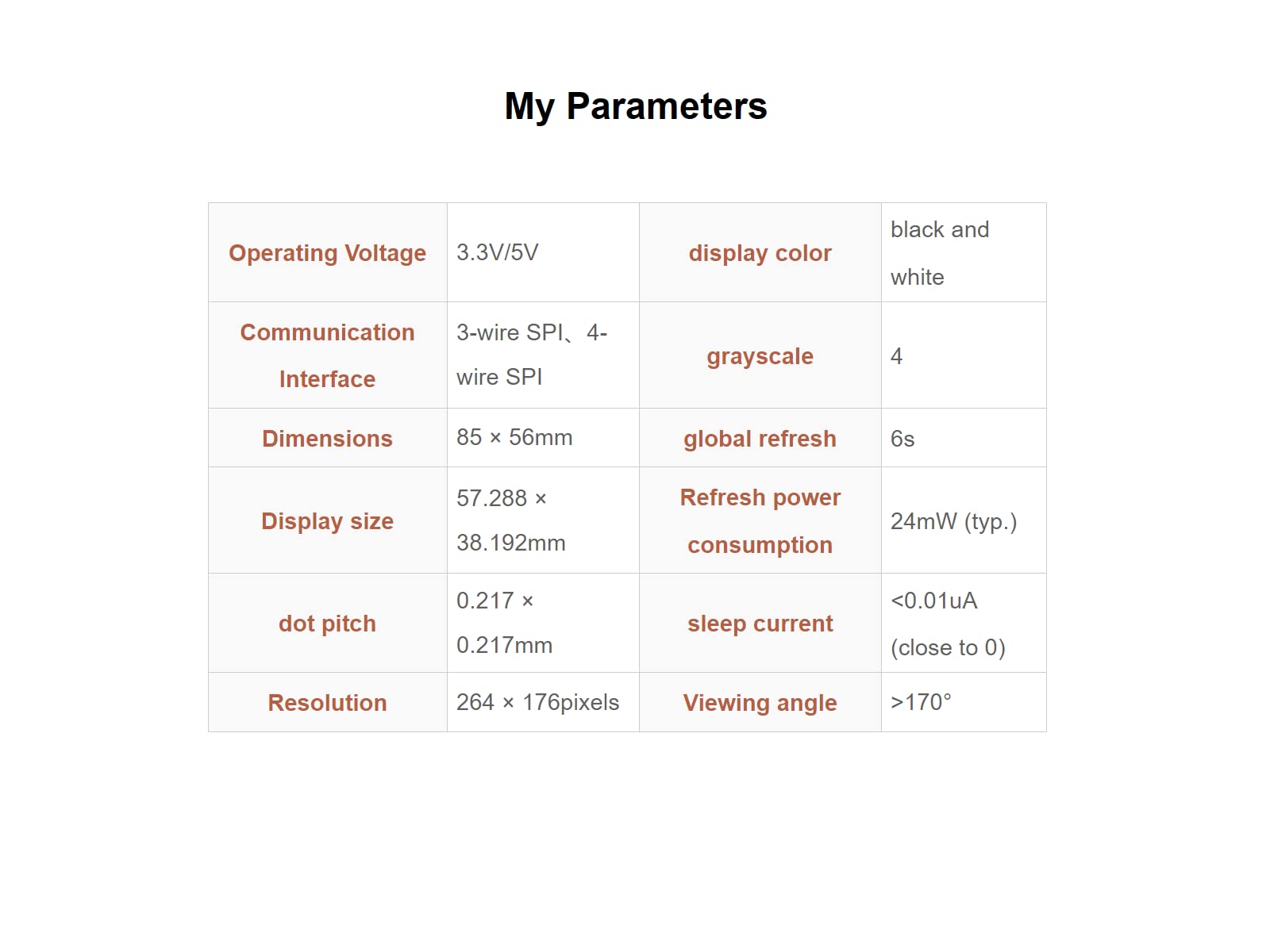

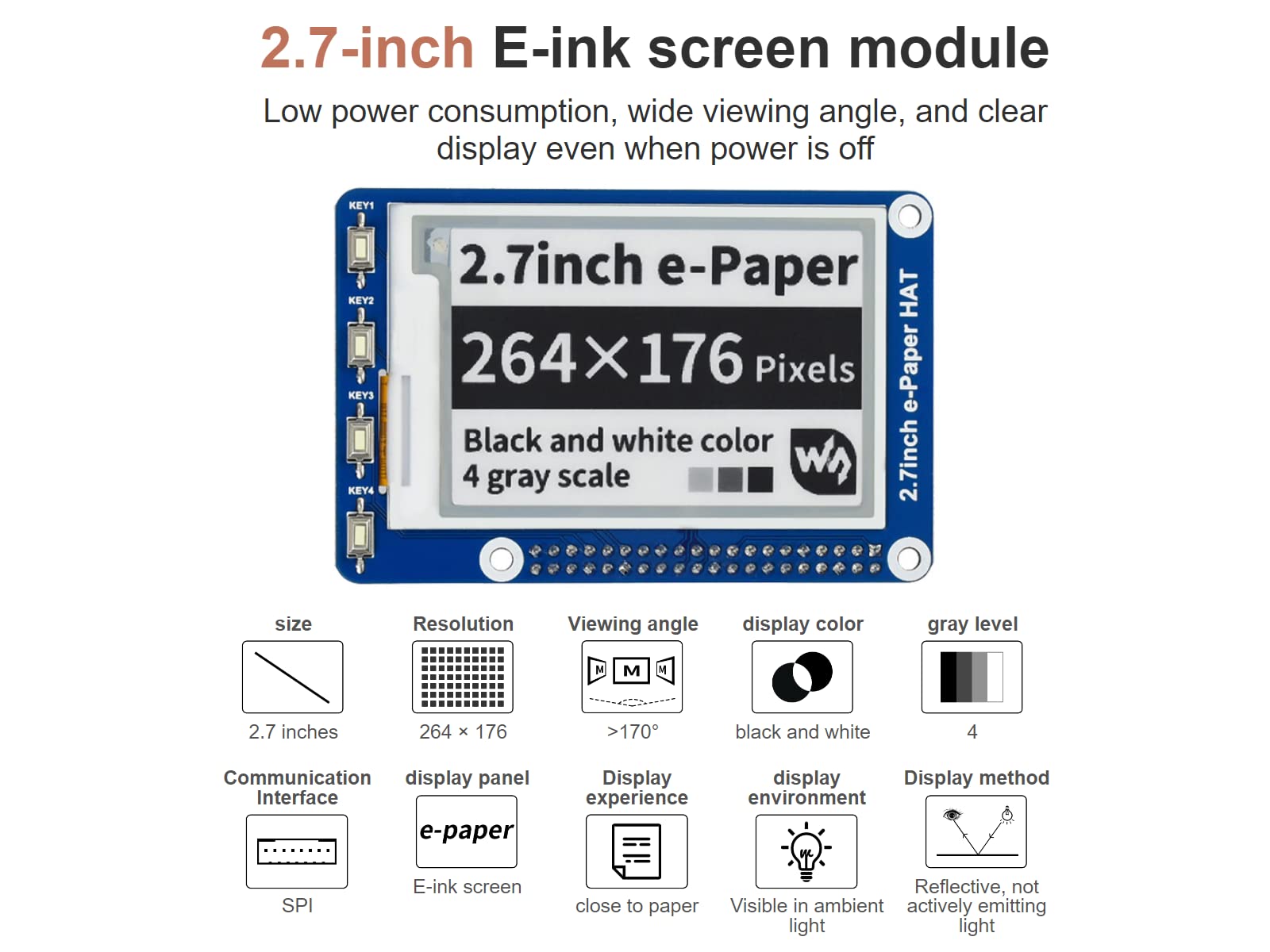

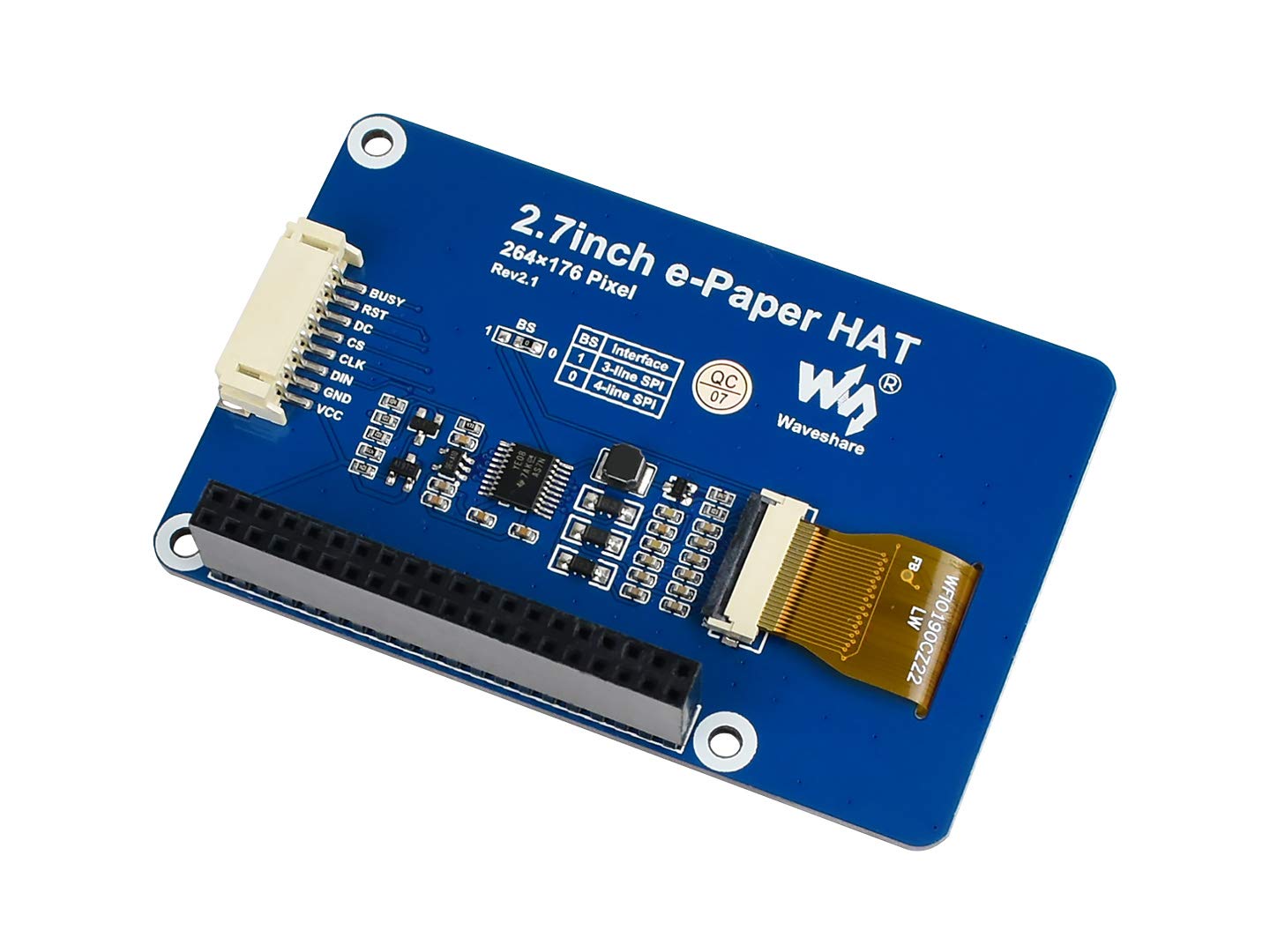

Overview This is an E-Ink display HAT for Raspberry Pi, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W Onboard 4x Keys SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32). Specifications: Operating voltage: 3.3 V/5 V. Interface: 3-wire SPI, 4-wire SPI Outline dimension: 85 mm × 56 mm Display size: 57.3 mm × 38.2 mm. Dot pitch: 0.217 × 0.217 Resolution: 264 × 176 Display colour: black, white Grey level: 2 Full refresh time: 6s Refresh power: 24 mW (typ.) Standby power: <0.017mW. Viewing angle: >70° Package Content 2.7 inch e-paper hat x1 RPi screws pack (2 pieces) x2 PH2.0 20 cm 8 Pin x1 Note: 1. If the colour of e-Paper look a little black or grey, please try to change the value of Vcom on demo codes. 2.More resources if you need, please contact us via Amazon message firstly to get.
