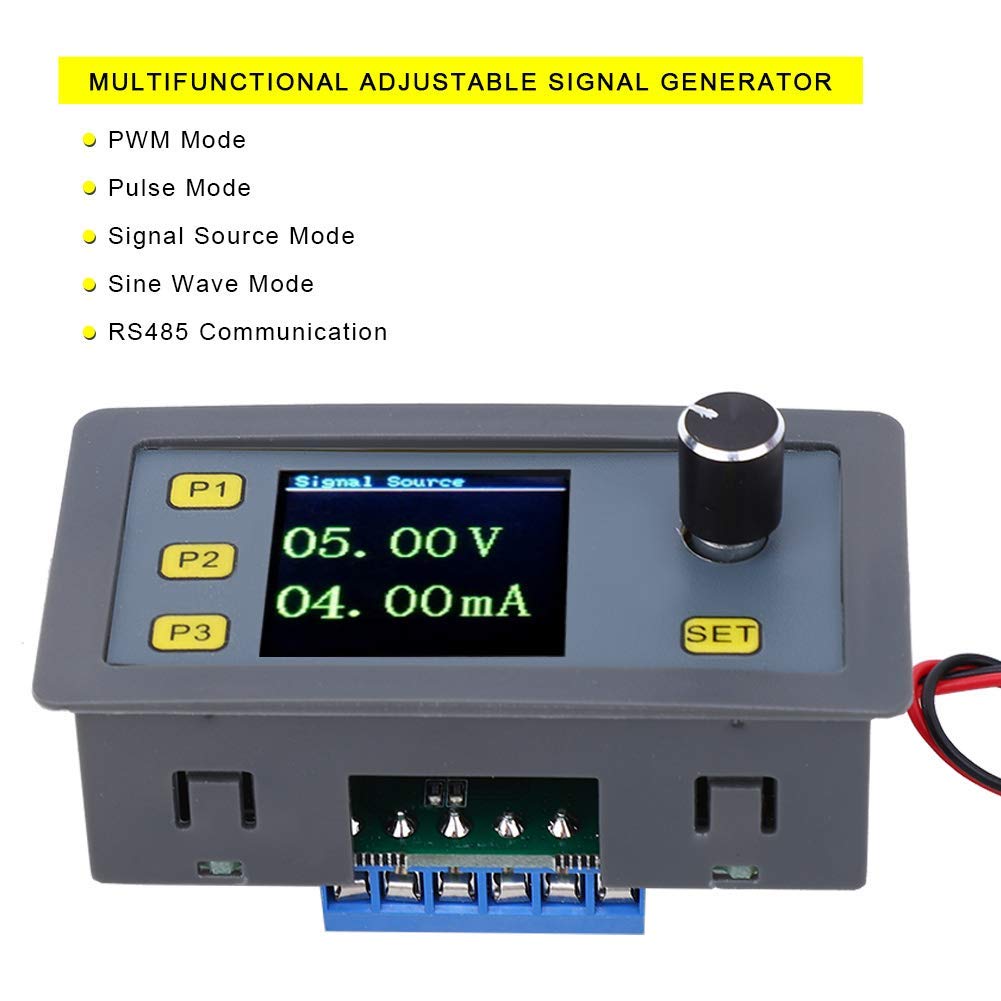

Jectse Generator Module,1-1000Hz 4-20Ma 2-10V Multifunctional Adjustable Generator, Pwm, Pulse, Source, Sine Wave, Support Rs485 Modbus Communication

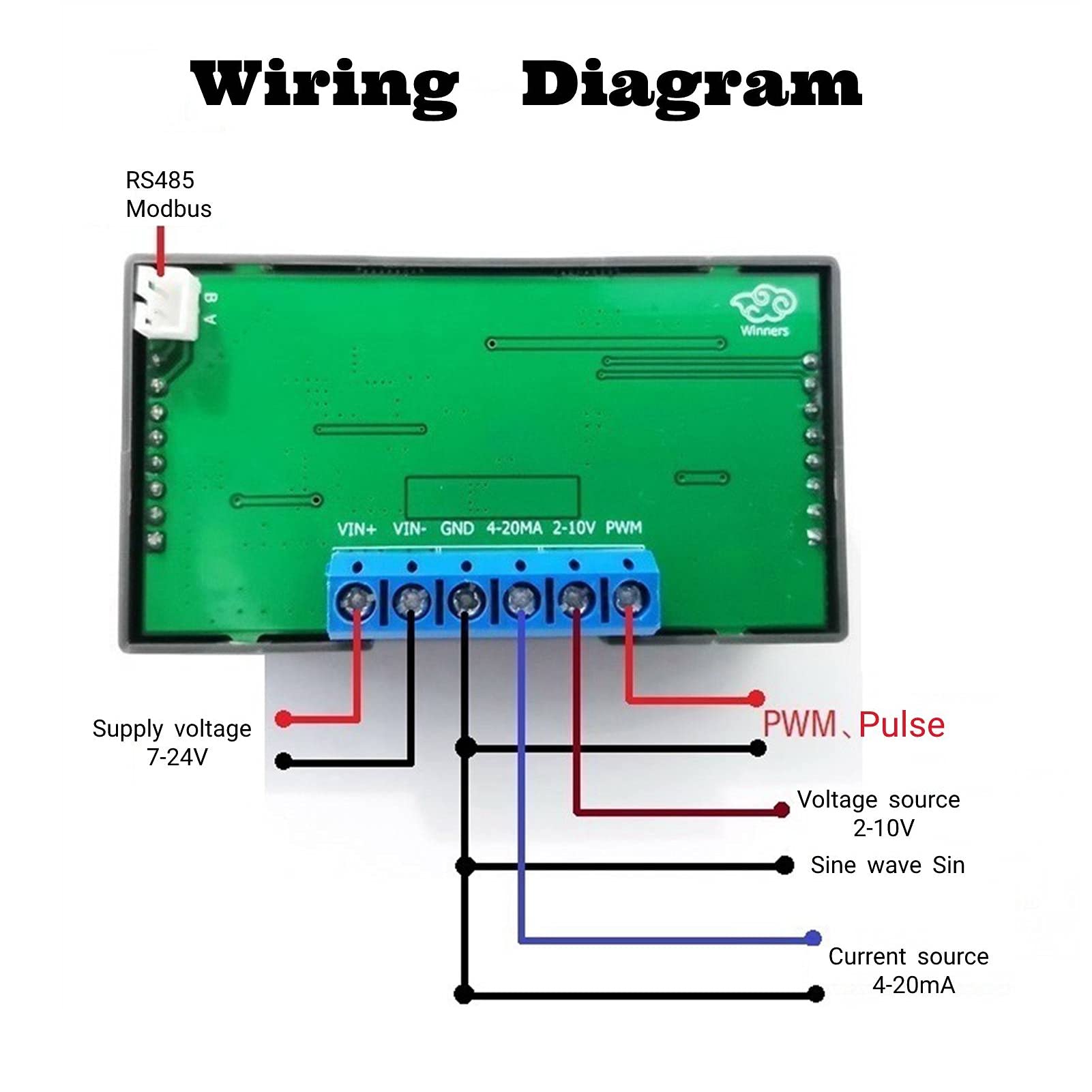

• WITH RS485 COMMUNICATION INTERFACE Generator Module with RS485 communication interface, you can use the host computer software to set up or collect data.The module can also communicate with computer, PLC, DCS, intelligent instrument and other equipment.
• PWM MODE :Adjustable PWM Pulse Module,voltage, frequency, duty cycle are adjustable, accuracy up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100%.
• PULSE MODE :Initial delay time T0: 0-60S, high level time T1: 0-60S, low level time T2: 0-60S, pulse number PulseNun: 1-60000
• SOURCE MODE&SINE MODE Source Mode: Voltage source 2-10V, current source 4-20mA；Sine Mode: 1-1000Hz

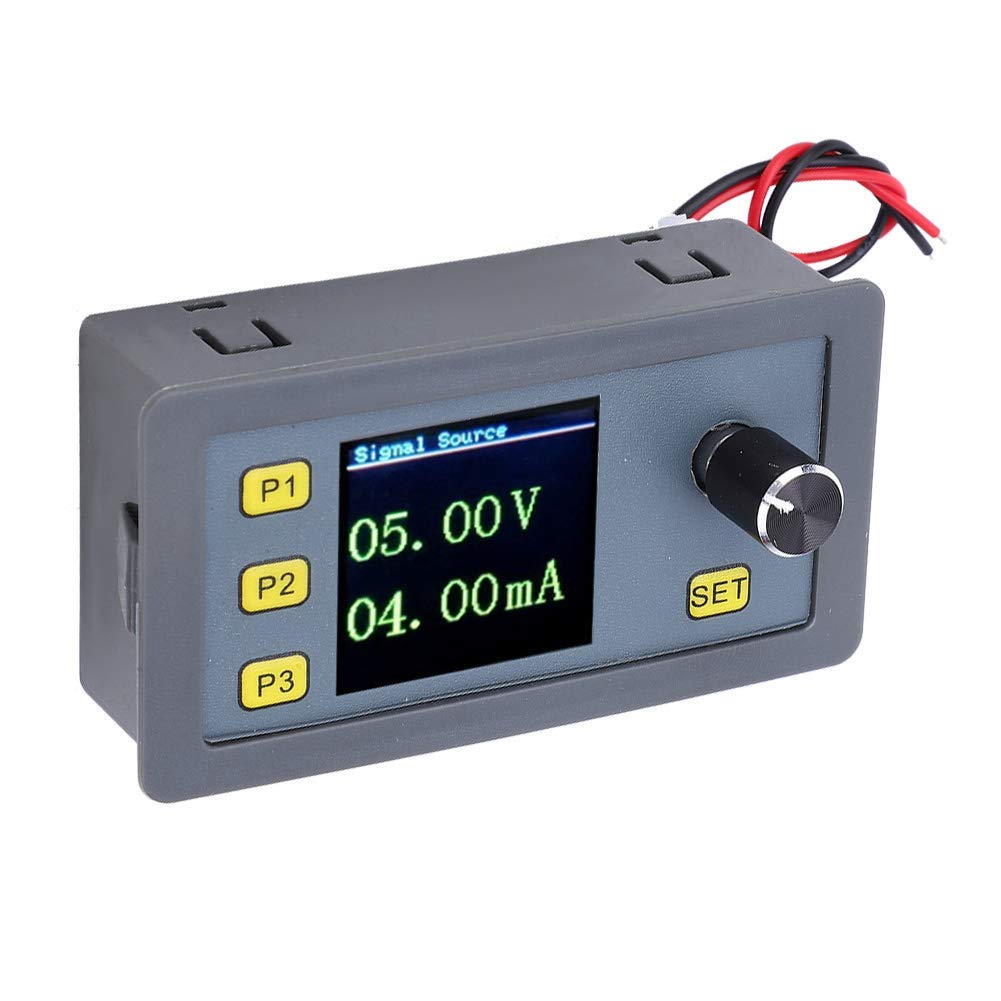

• HIGH QUALITY :Sine Generator Module,strong load capacity, output current up to 30mA.Clear display screen, concise control panel layout.

2-10V Generator Module，1-1000Hz PWM Pulse Adjustable Module，4-20mA Generator Sine Generator Module Feature: ★★★★★【WITH RS485 COMMUNICATION INTERFACE】Signal Generator Module with RS485 communication interface, you can use the host computer software to set up or collect data.The module can also communicate with computer, PLC, DCS, intelligent instrument and other equipment. ★★★★★【PWM MODE】Adjustable PWM Pulse Module,voltage, frequency, duty cycle are adjustable, accuracy up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100%. ★★★★★【PULSE MODE】Initial delay time T0: 0-60S, high level time T1: 0-60S, low level time T2: 0-60S, pulse number PulseNun: 1-60000 ★★★★★【SIGNAL SOURCE MODE&SINE MODE】Signal Source Mode: Voltage source 2-10V, current source 4-20mA Sine Mode: 1-1000Hz ★★★★★【HIGH QUALITY】Sine Generator Module,strong load capacity, output current up to 30mA.Clear display screen, concise control panel layout. Specification: Item Type: Generator Module Model: WSFG-06 Supply Voltage: 7-24V Product Function: PWM Mode, Pulse Mode, Source Mode, Sine Mode PWM Mode: Voltage, frequency, duty cycle are adjustable, accuracy up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100% Pulse Mode: Initial delay time T0: 0-60S, high level time T1: 0-60S, low level time T2: 0-60S, pulse number PulseNun: 1-60000 Signal Source Mode: Voltage source 2-10V, current source 4-20mA Sine Mode: 1-1000Hz Signal Load Capacity: Output current up to 30mA (Note: This product outputs source, can not directly drive the high power load) Ambient Temperature: -10-+70°C Module Size: Approx. 79 x 43 x 41mm / 3.11 x 1.69 x 1.61in Opening Size: Approx. 76 x 39mm / 2.99 x 1.54in Package List: 1 x Generator
