1STec Heavy Duty BT Droprire Triangular Wall Bracket 22 with circle loop + Overhead dead end clamp for Telephone Cable Garden Catenary Wire Suspension Turnbuckle Installation in Concrete Masonry

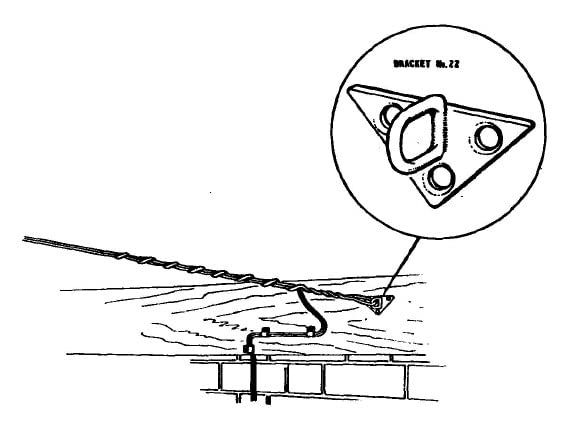

• DROPWIRE BRACKET No. 22 - This welded loop on triangular bracket is used in conjunction with the supplied dropwire clamp when terminating or supporting all sizes of dropwire cables on buildings and poles.

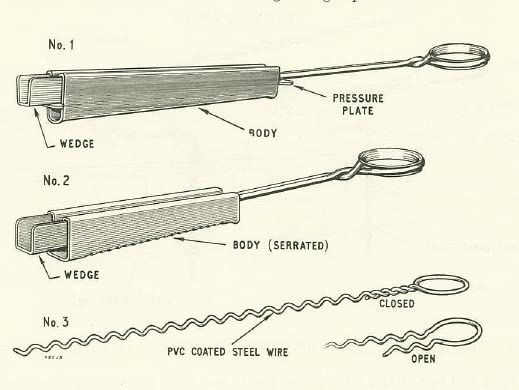

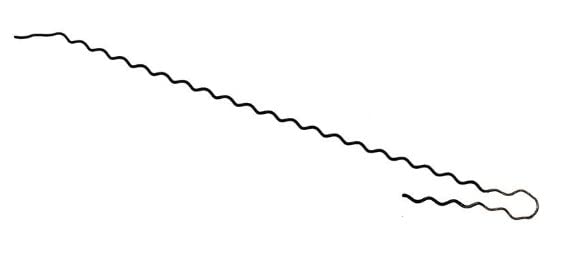

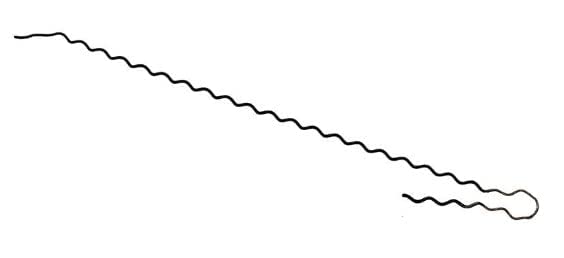

• CURLY WURLY PIGTAIL CLAMP - These clamps are coated with PVC with a non-slip additive. The pigtail end is twisted back on to the main helix to form a closed eye when fitted to the dropwire 22 bracket
• NON SLIP CABLE CLAMP - InstalI these by wrapping the wire around the cable, not the cable around the wire. Start just after the closed pigtail and work towards the end by spiralling around your cable
• PREVENTS CABLE DAMAGE - This clamping soilution prevents damage to your cable from the continuous friction on the termination point when the cable is swaying in the wind against its own weight
• TECHNICAL INFORMATION - (W)60mm x (L)84mm Fixing Holes 8mm, Loop Diameter 20mm, Galvanised Steel with 3 x Countersunk Screw holes, Screw size No. 12 x 1.5" wood screws or longer for wooden eaves

Introducing the 1STec Heavy Duty BT Droprire Triangular Wall Bracket 22, a robust and durable solution for supporting and terminating dropwire cables on buildings and poles. This welded loop bracket, when used with the supplied dropwire clamp, is designed to prevent damage to your cables from continuous friction at the termination point. The curly wurly pigtail clamp, coated with PVC and a non-slip additive, ensures a secure fit to the dropwire 22 bracket. The non-slip cable clamp is installed by wrapping the wire around the cable, not the cable around the wire, providing a secure and damage-free grip. The bracket is made of galvanized steel and features three countersunk screw holes for easy installation. The product dimensions are (W)60mm x (L)84mm with fixing holes of 8mm diameter. The loop diameter is 20mm. The package includes No. 12 x 1.5'' wood screws or longer for wooden eaves. This product is suitable for all sizes of dropwire cables and is an essential tool for any telecommunications installation project.
