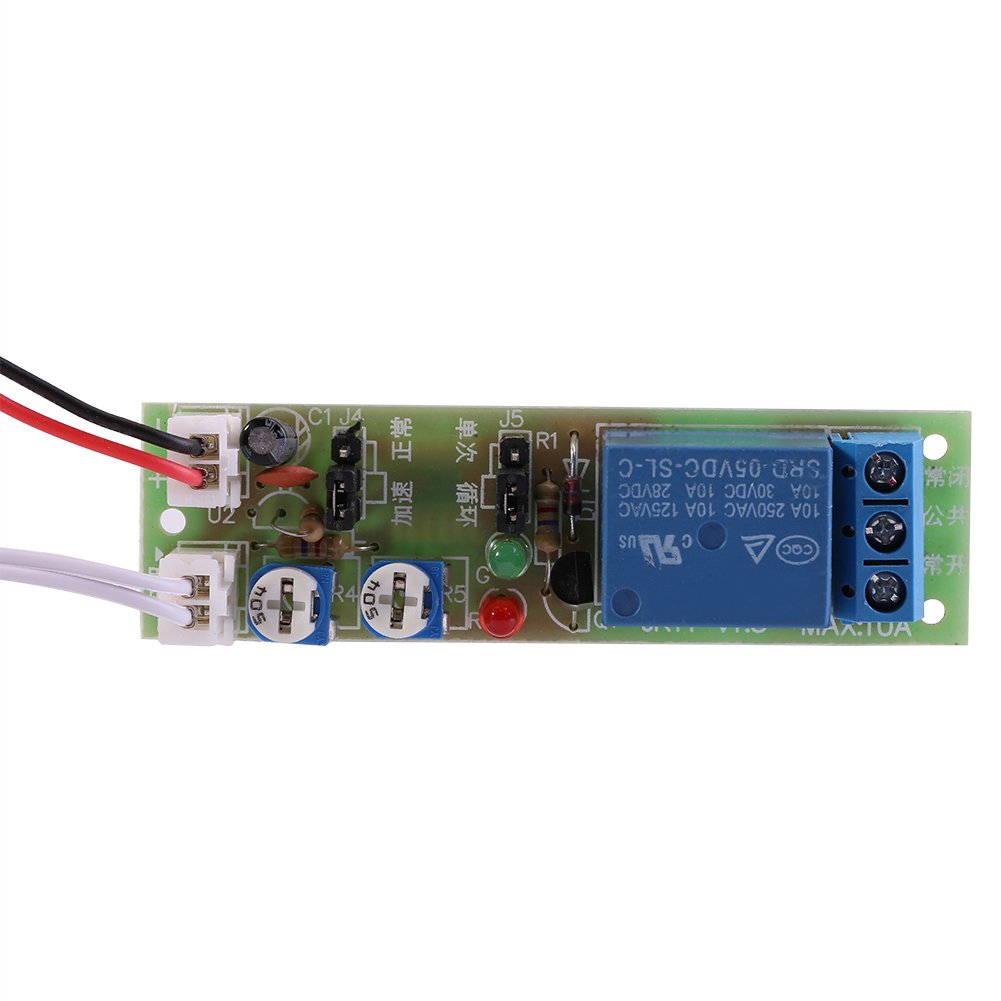

1pcs Adjustable Timer Switch Delay Cycle Timer On/Off DC 5V / 12V / 24V 0-15min / 0-60min(DC5V, 0-60min)

• It is a timer relay module with high precision performance, stable and reliable
• There is a wide time interval that you can set, both in time and out of time are adjustable
• Widely used on time operation equipment, machine repetitive test circuit, fish tank intermittent pump, etc
• Supports 2 modes, mon mode (one-time) and loop mode, and you can simply switch modes by adjusting the jumper
• It is great for controlling alternating stroke or repetitive switching on and off for burn-in testing of equipment and products

Technical specifications: Type: DC5V, 0-15min / DC5V, 0-60min / DC12V, 0-15min / DC12V, 0-60min / DC24V, 0-15min (Optional) Max Load Capacity: 10A250VAC, 10A30VDC Size: 70 * 20mm / 2.75 * 0.78" Time error: <2% T1 (the relay activates the delay), T2 (the relay turns off the delay) Mode once (Jumper OP3): 1. The Power module, when the relay is activated is activated, delay T1 and the relay disconnected. 2. When the delay process is activated, again activated, it will immediately stop the delay. Cycle Mode (Jumper OP4): 1. The Power-on module, when the relay is turned on, delay T1 and the relay is disconnected, delay T2, the relay turns on again. Such a cycle. T1 and T2 are set by two adjustable resistors, respectively. 2. When the delay process is activated, again activated, it will immediately stop the delay. How to quickly set the time: Time can be set quickly by measuring the voltage (Uc) of the resistor. Take a 5V 15min module as an example. If Uc = 2V, time = 2V / 5V * 15min = 6min. Package includes: 1 x Timer Relay Module
