1pcs Adjustable Timer Switch Delay Cycle Timer On/Off Timer DC 5V / 12V / 24V 0-15min / 0-60min(DC24V, 0-15min)

• It is a timing relay module with high precision performance, stable and reliable

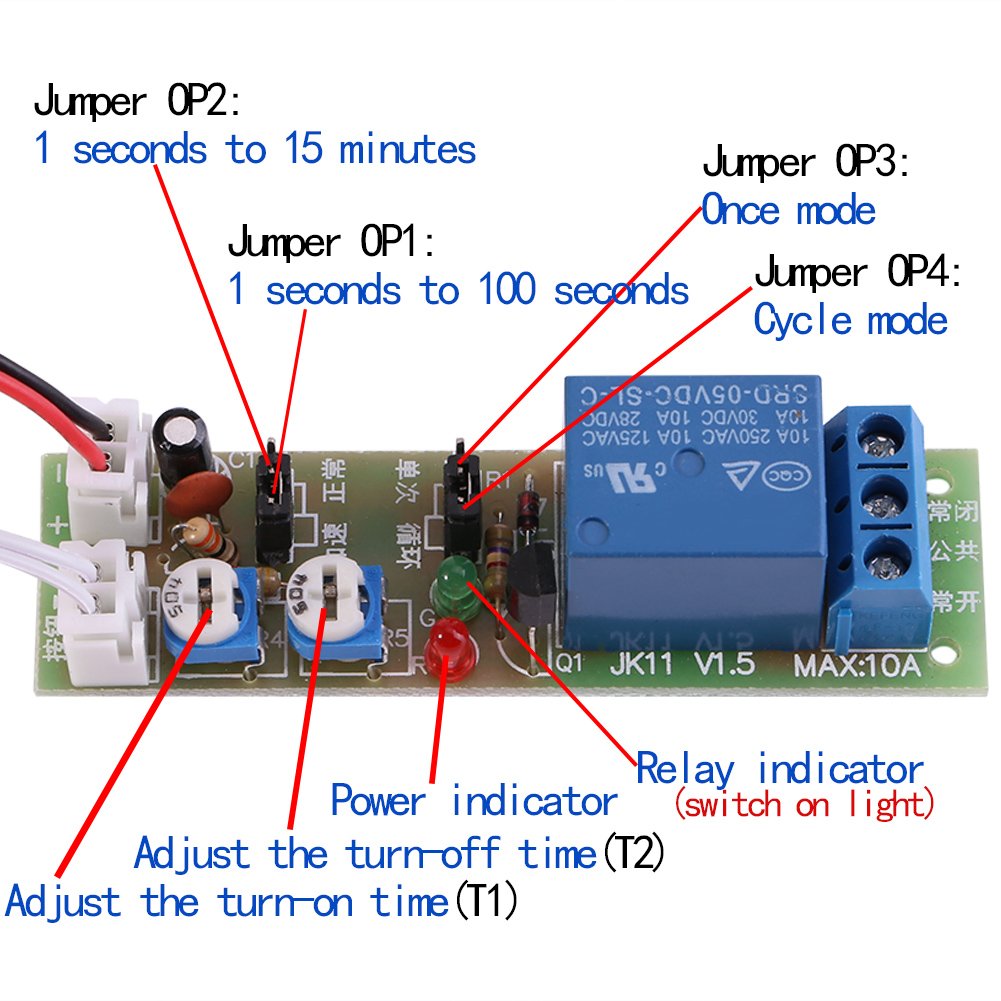

• Supports 2 modes, mon mode (one-time) and cycle mode, and you can simply change mode by adjusting the jumper
• There is a wide range of time that you can set, both in time and out of time are adjustable
• It is great for controlling alternating stroke or repetitive switching on and off for equipment and product burn-in testing
• Widely used on equipment for time operation, machine repetitive test circuit, fish tank intermittent pump, etc

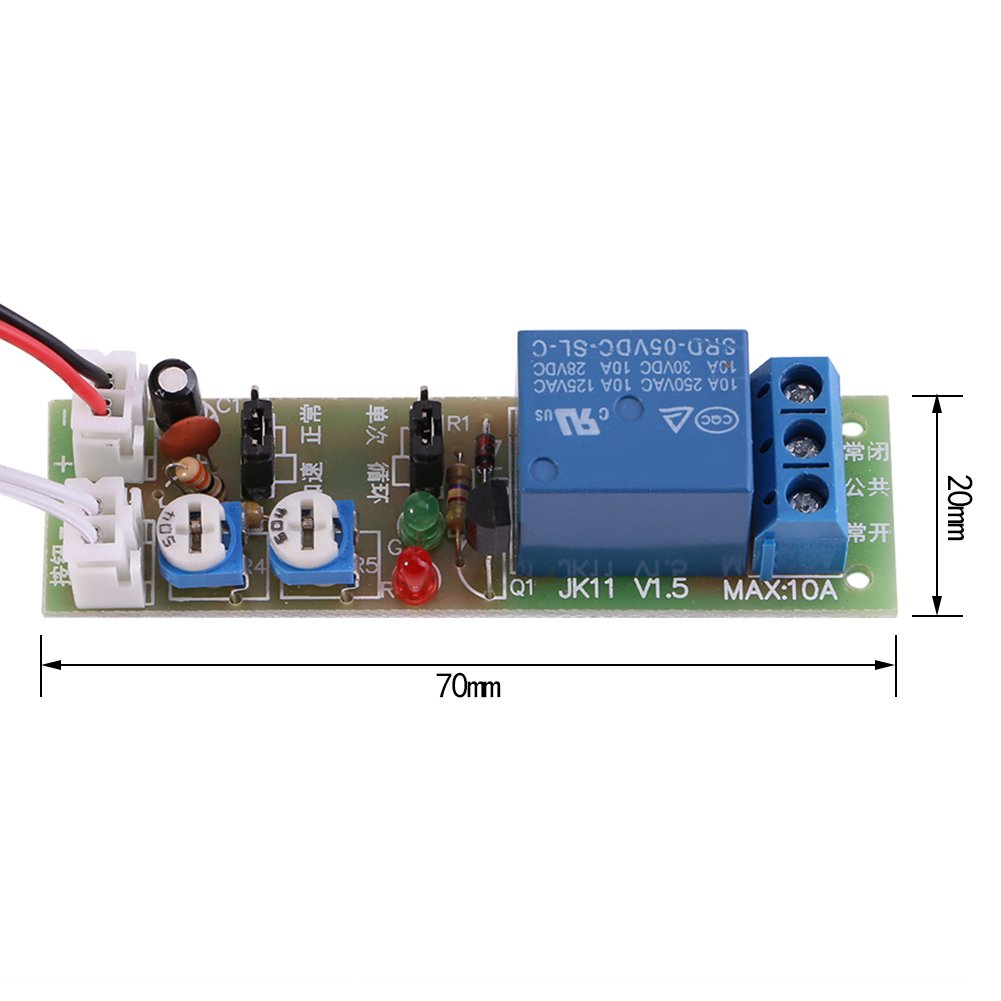

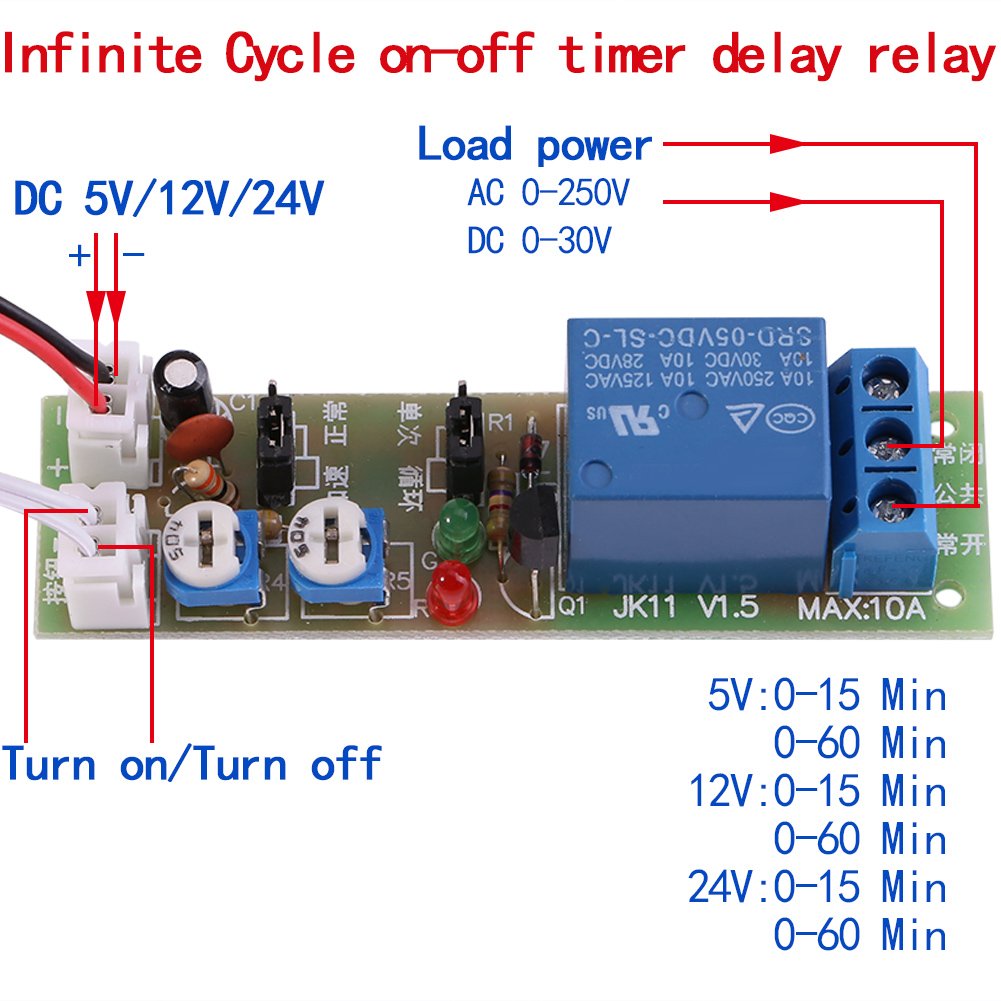

Specifications: Type: DC5V, 0-15min / DC5V, 0-60min / DC12V, 0-15min / DC12V, 0-60min / DC24V, 0-15min (Optional) Max Load Capacity: 10A250VAC, 10A30VDC Size: 70 * 20mm / 2.75 * 0.78" Time error: <2% T1 (the relay activates delay), T2 (the relay disables delay) One-time mode (Jumper OP3): 1. The Power module, when the relay is activated, delay T1 and the relay disconnected. 2. When the delay process is triggered, it will immediately stop the delay. Cycle Mode (Jumper OP4): 1. The Power-on module, when the relay is turned on, delay T1 and the relay is disconnected, delay T2, the relay turns on again. Such a cycle. T1 and T2 are set by two adjustable resistors, respectively. 2. When the delay process is triggered, it will immediately stop the delay. How to quickly set the time: The time can be set quickly by measuring the voltage (Uc) of the resistor. Take a 5V 15min module as an example. If Uc = 2V, time = 2V / 5V * 15min = 6min. Package includes: 1 x Timer relay module
