1pc Network Ethernet Relay Control Controller Module Board LAN WAN Network WEB Server with RJ 45 Interface + 16 Channel Relay for Smart Home Remote Control

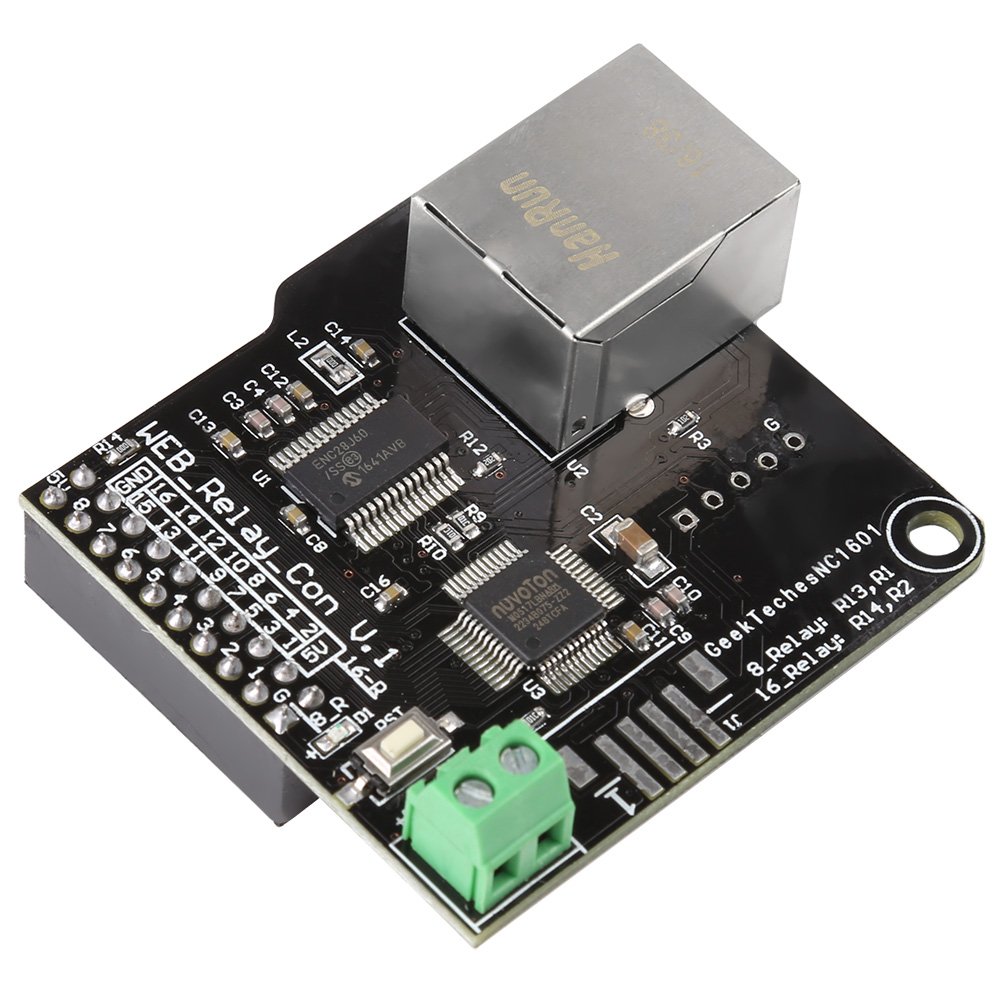

• This is an Ethernet Controller board which could be compatible with the 16-channel relay
• Using the controller module and the 16-channel relay, you could control up to 16 devices remotely on LAN or WAN
• The Ethernet controller board has integrated the web server, when you are in office, you just need to open the page on your computer, pad or smart phone, and then control your devices like lights, air-conditioning or refrigerator at your home
• You can feel to enjoy the remote controlling of your other devices with the Ethernet controller board
• RJ45 interface, via RJ45 telecommunications connection for network control

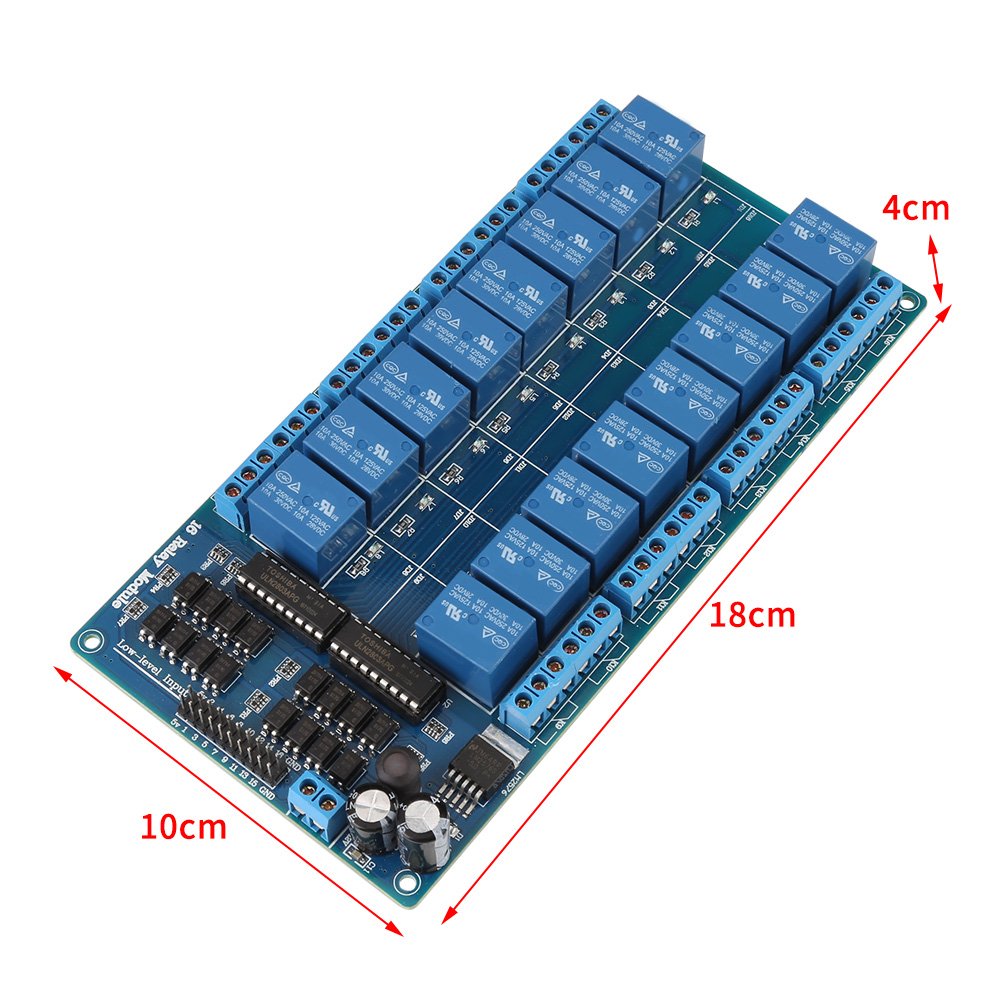

This is an Ethernet controller board with 16-channel relay integrated. You can realize remotely controlling 16 smart home devices at the same time, avoiding complicated wiring processes and saving time to accomplish your goal. It's fitted with RJ45 interface, via RJ45 telecommunications connection for network control. Supply module detailed information, application program demo. Unique dual connect control, corresponding with trait, local as server, accept client control when connect to remote server as client. Specifications: Relay Size: 18*10*2cm/7.08*3.93*0.79" Default IP: 192.168.1.4 prot:30000 http://192.168.1.4/30000 (You could change the default IP address) HTTP Comment: http://192.168.1.4/30000/00 : Relay-01 OFF http://192.168.1.4/30000/01 : Relay-01 ON http://192.168.1.4/30000/02 : Relay-02 OFF http://192.168.1.4/30000/03 : Relay-02 ON http://192.168.1.4/30000/04 : Relay-03 OFF http://192.168.1.4/30000/05 : Relay-03 ON ... http://192.168.1.4/30000/30 : Relay-16 OFF http://192.168.1.4/30000/31 : Relay-16 ON http://192.168.1.4/30000/41 : Enter http://192.168.1.4/30000/40 : Exit http://192.168.1.4/30000/42 : Page http://192.168.1.4/30000/43 : Page Package Includes: 1 x Ethernet Control Module with 16-Channel relay
