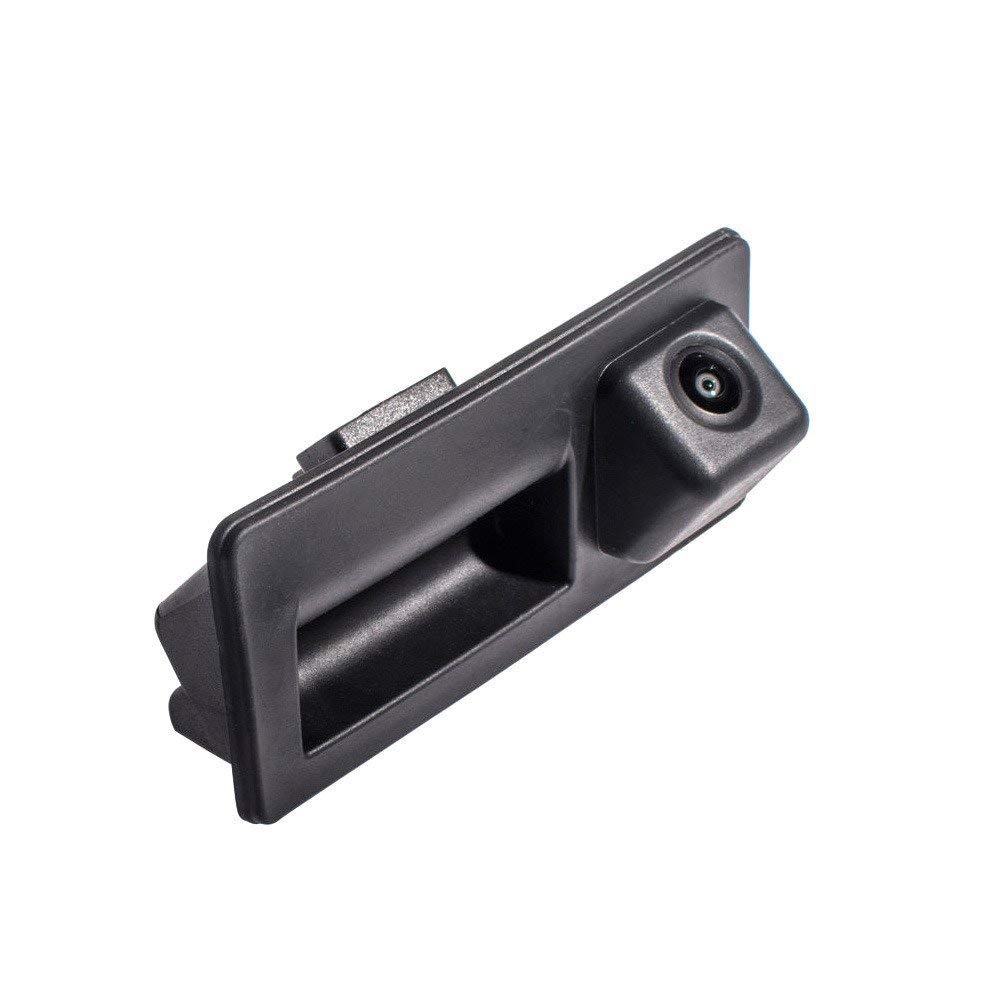

170 degree Car Trunk Handle Backup Camera Rear View HD Camera parking camera for Audi A4 A5 S5 Q5 for VW for Tiguan for Golf for Touran for Jetta Sharan Touareg

• 170° high sensitive color CMOS camera with physically adjustable angle helps providing clear wide field of vision behind the vehicle Diagonal angles: 120 ~ 170 degrees, Horizontal angle: 135 degrees, License plate mount, simple and durable to use
• 480 TV lines, Effective pixels: 728x512 pixels, Professional exterior IP67 waterproof, weatherproof and anti-fog Car Rearview Back System, System: NTSC (Only NTSC Format)
• Compatible with: Audi A4 B8 Avant 2011, VW Tiguan BJ 2008, 2013, 2015, Tiguan 5N facelift for VW Golf VI Estate from 2010, VW Golf 6 Plus 2014, Golf Plus BJ 2007, Golf Plus BJ 2011, Golf Plus BJ 2013,VW Jetta 2011, 2012, VW Sharan BJ 2011, Sharan BJ 2013, VW Touran 2011, 2012, 2013, 2014, 1T2, 1T3 Bj 2011, VW Touareg 2011, VW Lavida, VW Sagitar, VW T5 facelift
• Remarks: Please check that there is Chinch/RCA connection on the radio, otherwise it will not fit. It does not fit on original VW radio with Navi as VW RSN 315 or RSN 510.

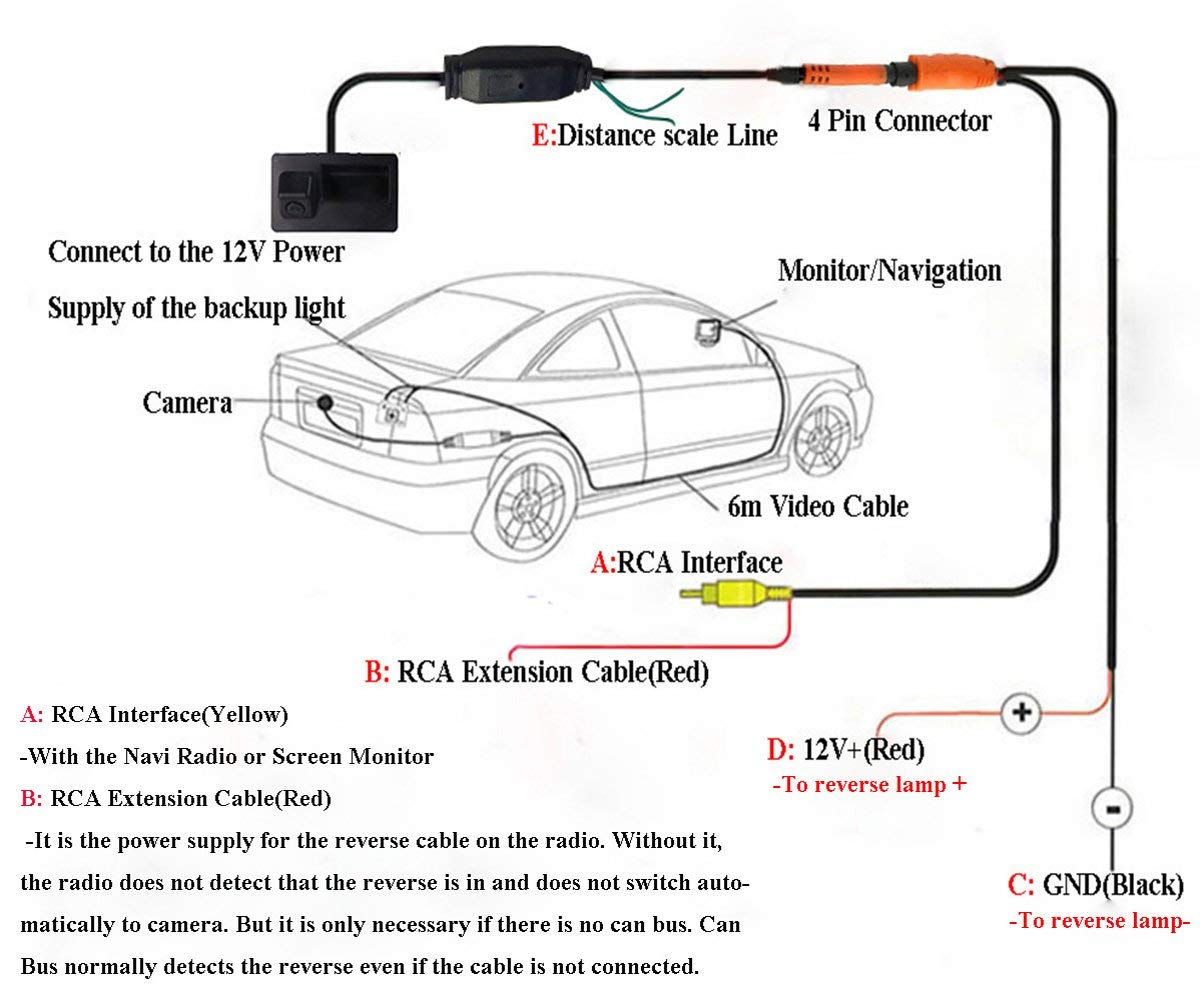

• If you take the camera's power from the rear lamp and you do not have an image while the engine is running, you need a signal filter. Because there is no "clean" 12V at the camera. As an alternative, you can also take a 12V vehicle relay and take the 12V from another source (e.g., cigarette lighter) and as a switching voltage stop from the backlight).

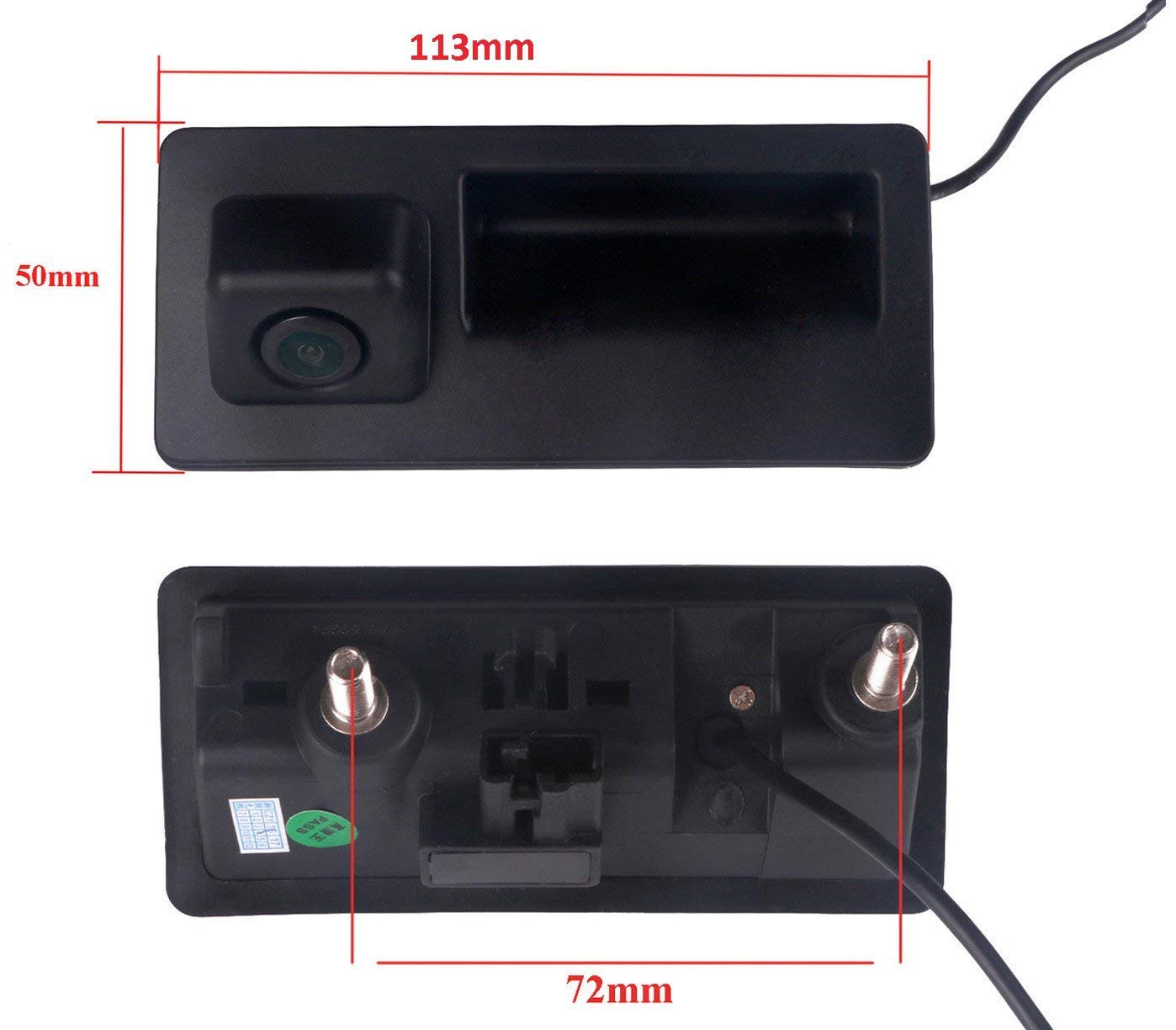

Remarks: 1. Dimensions: 113 x 50 mm. With the dimensions of the handle, you would have to see if they are the same as your handle. Please simply measure it. 2. Please check that there is RCA connection on the radio, otherwise it will not fit. It does not fit original VW radio with navigation system, e.g. VW RSN 315 or RSN 510. 3. Please cut the two tied green cables to show the distance lines when parking. Description: - Sensor: CMOS sensor with night vision. - Horizontal resolution (TVL): 480TVL - Effective pixels: 728 x 512 pixels. - System: NTSC (NTSC only. Format). - Viewing angle: 120 ~ 170 degrees. - Horizontal viewing angle: 135 degrees. - IP67 waterproof. - Minimum illumination: 0.5 Lux / F1.2 - Standard AV signal output. - Suitable for car 12 V mains - Video cable: 6 m length Not compatible with: For Golf 5 Variant. For VW Caddy year of manufacture 2018. For Golf Plus 2005 For Audi 4. For Passat 3c 2007 For Golf 6 variant For Audi A5 B8 Coupé BJ. 2013 For Audi A6 4F estate. For VW Touran 2007. For Skoda Octavia 1Z5. Suitable for: For Audi A4 B8 Avant 2011. For VW Tiguan year 2008, 2013, 2015, Tiguan 5N facelift. For VW Golf VI Variant from 2010, VW Golf 6 Plus year of manufacture 2014, Golf Plus year 2011, Golf Plus 2009, Golf Plus year 2013, For VW Jetta 2011, 2012. For VW for Passat from 2011, 1/2007 Variant, 3c Variant 2010, Variant 3c B7 2011, B7 BJ 2012, Estate Year 2012, Estate Year 2010, Variant 3c 06/2008 For VW Sharan year 2011, Sharan year 2013. For VW Touran 2011, 2012, 2013, 2014, 1T3 year 2011. For VW Touareg 2011. For VW Lavida. For VW Sagitar. For VW Caddy Maxi 4 (SA). For VW Seat Alhambra 7N. Package contents: - 1 x rear view camera. - 1 x power cable. - 1 x video cable. - 1 x user manual
