KATSU Heavy Duty Bead Roller Rotary Swaging Machine Swager Metal Rolling Former Metalworking Tool with 6 Dies, for Beading Crimping Metal Sheet Up to 0.8mm Thickness 165146

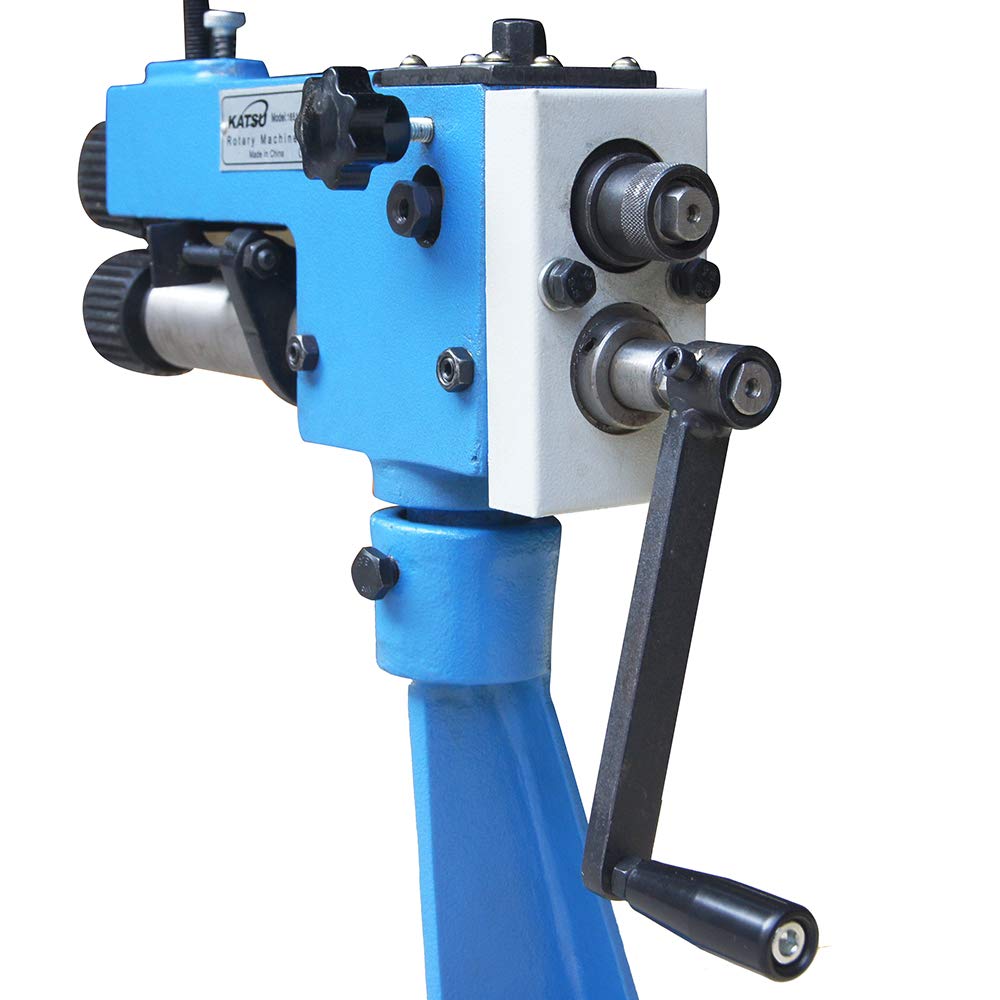

• Hand operated and will form sheet metal up to 22 Gauge
• Cast iron construction

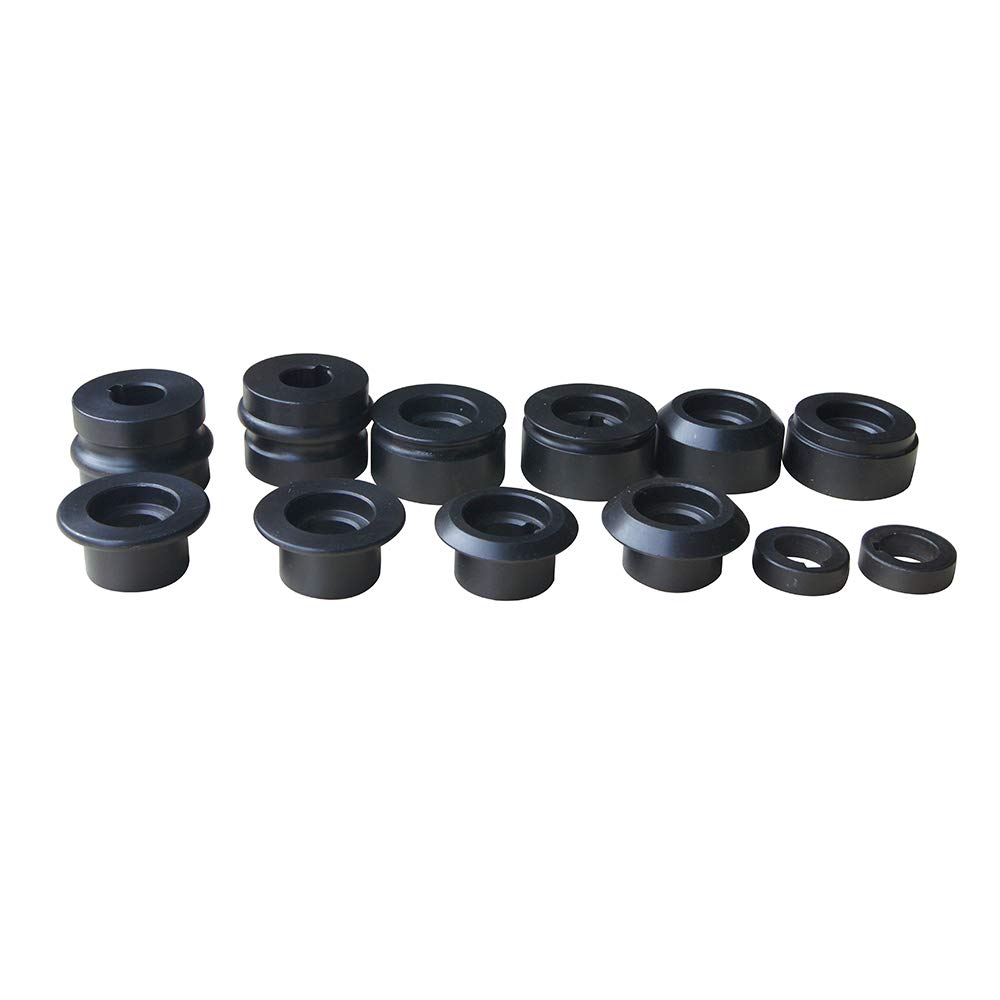

• Six die set are included

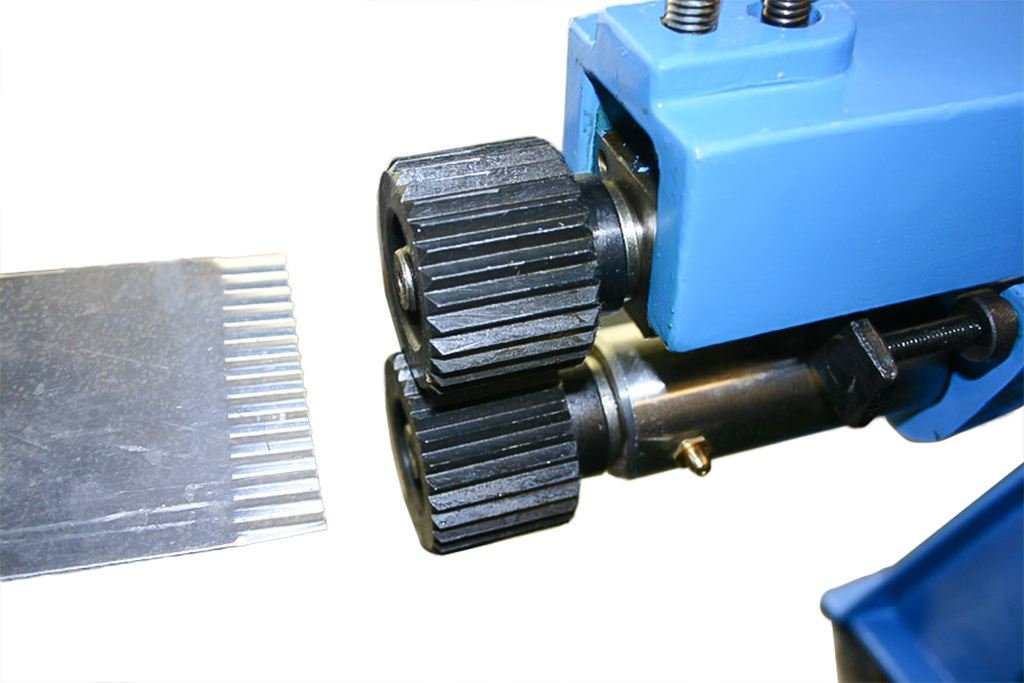

• Large and small turning, burring, wiring, ogee beading, and crimping.
• We issue VAT invoice with each purchase

Working Capacity: 0.8mm/22Ga Throat Depth: 177mm Packing:50x45x16cm GW: 24KG Rotary machine is hand operated and will form sheet metal up to 22 Gauge / 0.30” thickness mil steel (or equivalent). The Rotary machine is constructed of cast iron and steel ensuring minimum deflection of the workpiece during forming operations. Six die set are included, allowing the following operations to be per-formed: large and small turning, burring, wiring, ogee beading, and crimping. Below is an equivalency chart for use when working with materials other than mild steel. EQUIVALENCY CHART Mild steel .030” Stainless steel .020” SAE 1050 cold-rolled steel .024” Aluminum .055” Soft brass .046” 1/2 Hard brass .030” Annealed phosphor bronze .034” Soft copper .046” Hard copper .034”
