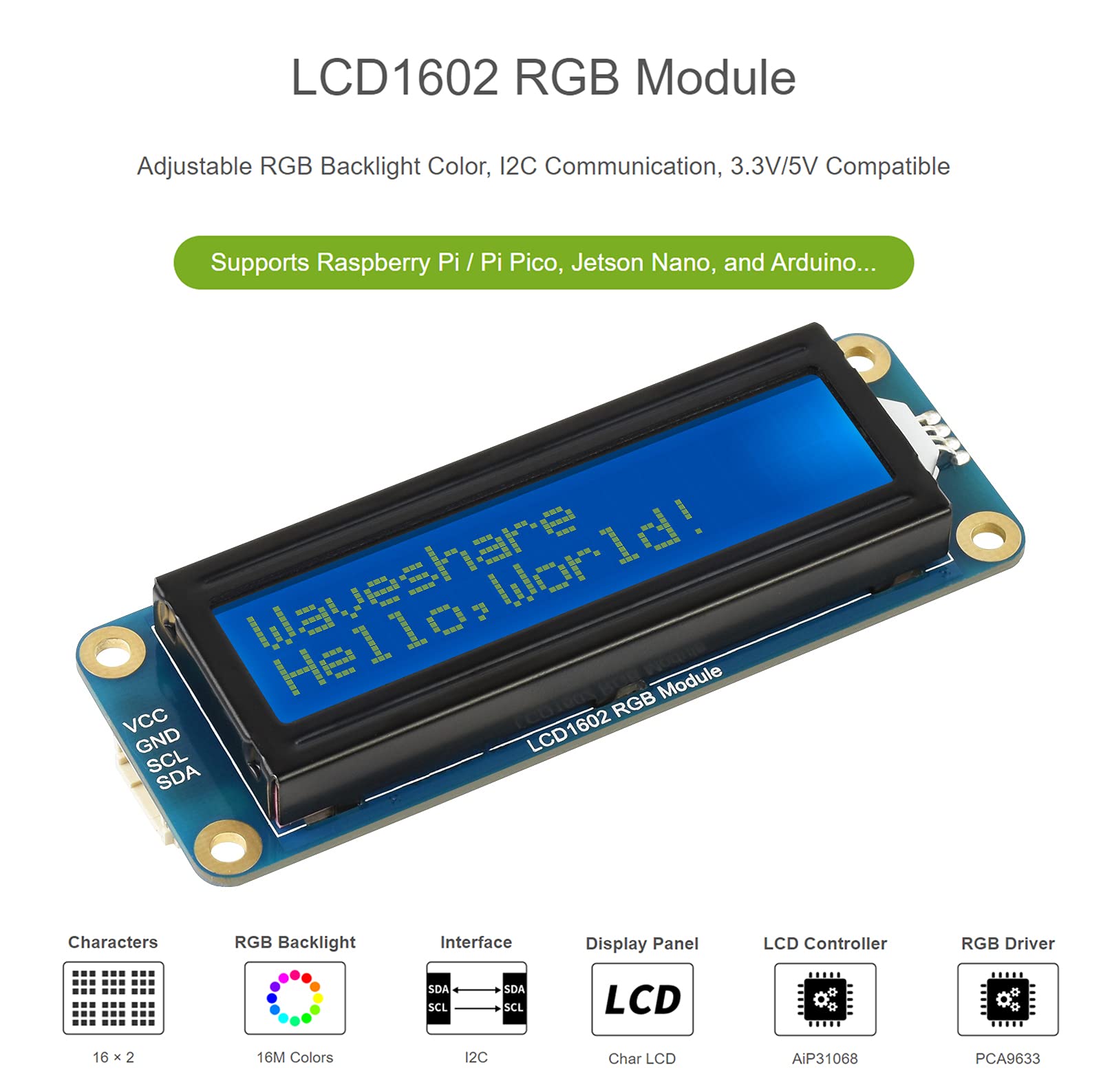

1602 LCD Display RGB Module 16x2 Characters 16M Colors RGB Backlight LCD Module, I2C Bus, 3.3V/5V Compatible, for Raspberry Pi/Pi Pico, Jetson Nano Arduino

• 【LCD1602 RGB Module】Incorporates character LCD panel LCD1602, onboard AiP31068L LCD driver chip and PCA9633 RGB control chip, supports Raspberry Pi / Pi Pico, Jetson Nano, and Arduino
• 【16x2 Characters 1602 LCD】Incorporates character LCD panel LCD1602, can display up to 16 X 2 characters, support screen scrolling, cursor movement and other functions

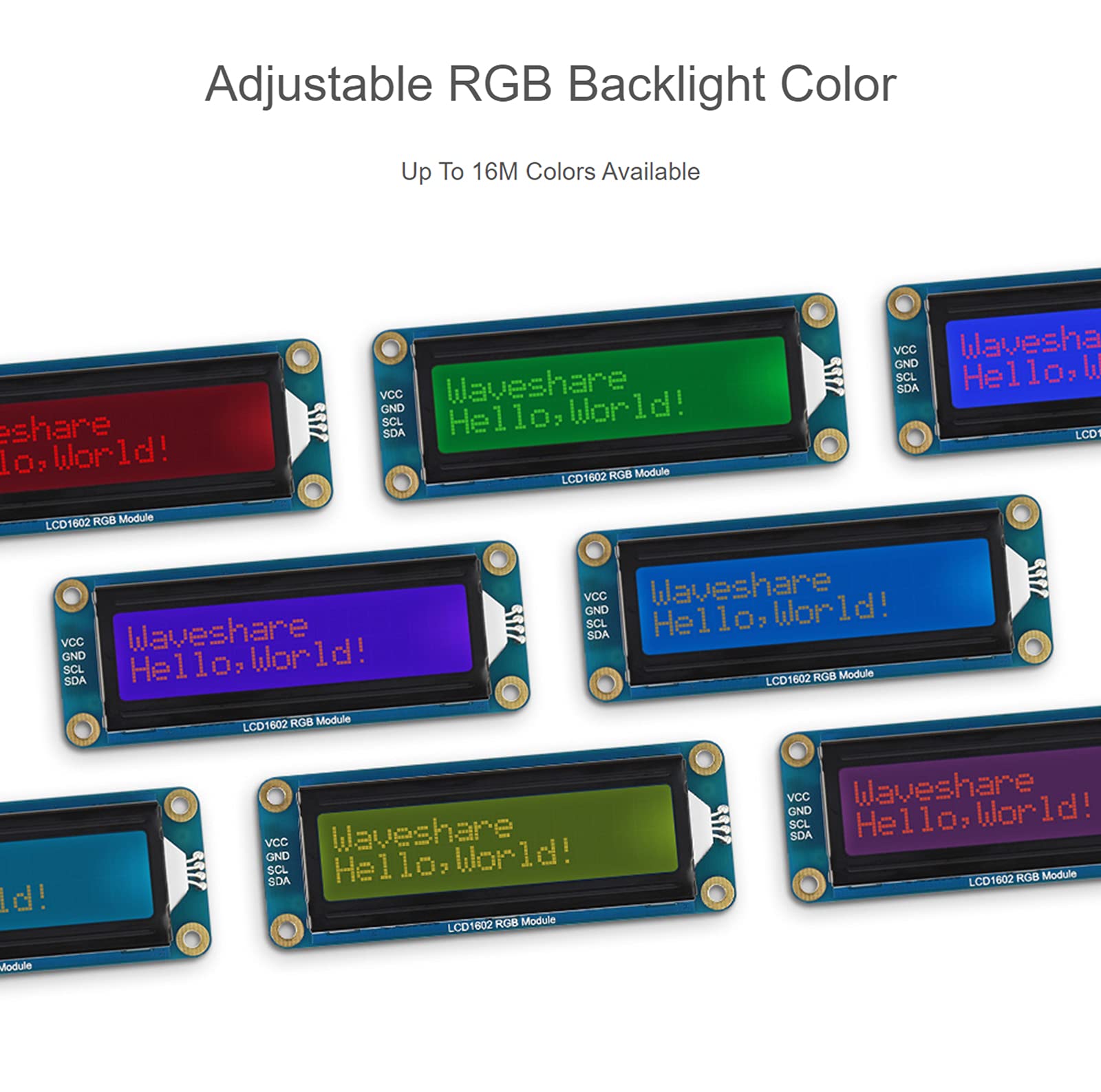

• 【Adjustable RGB Backlight Color】Up to 16M (2563) backlight colors available

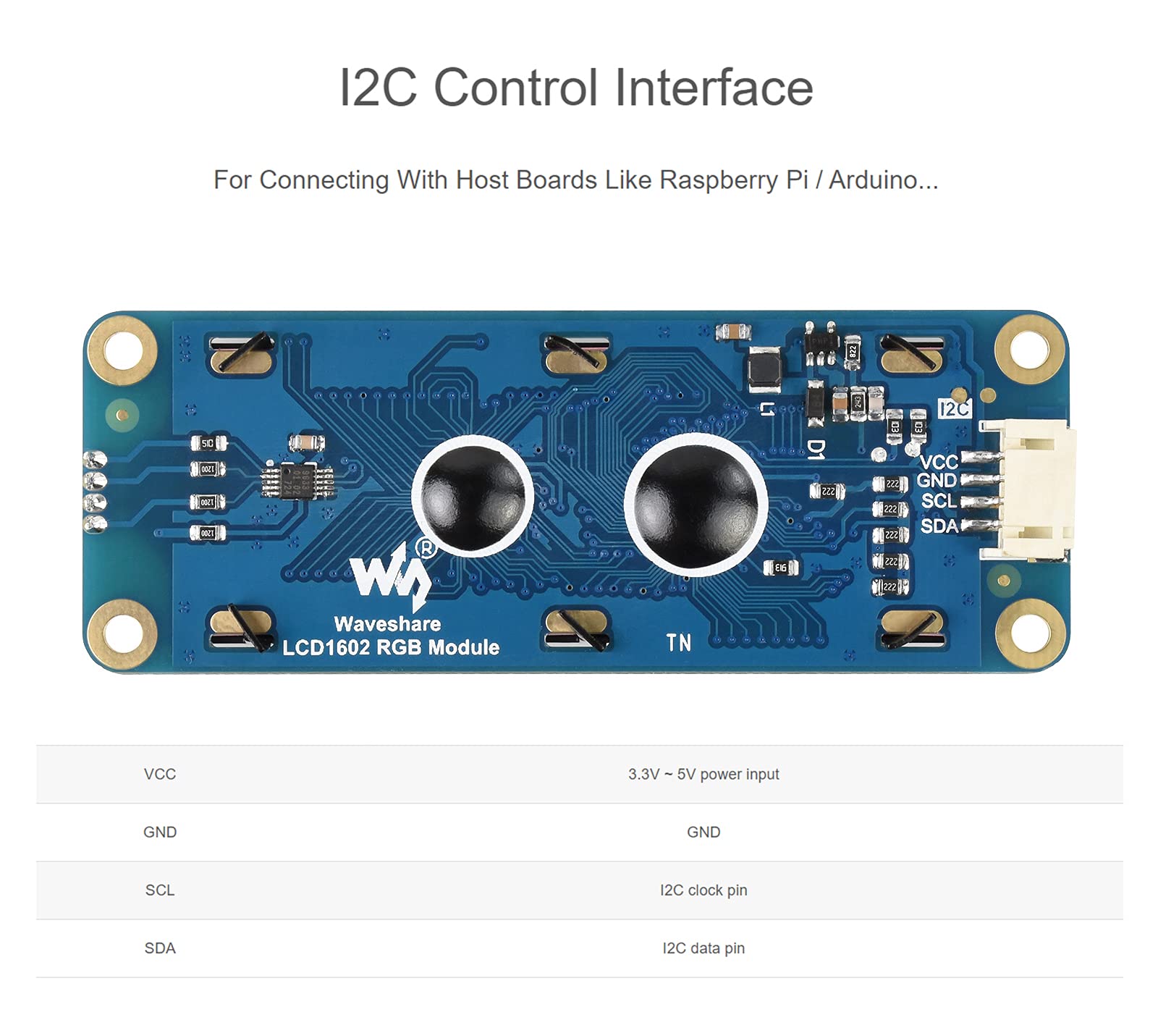

• 【I2C Control Interface】Only two signal pins are required, saving the IO resource, for connecting with host boards like Raspberry Pi / Arduino

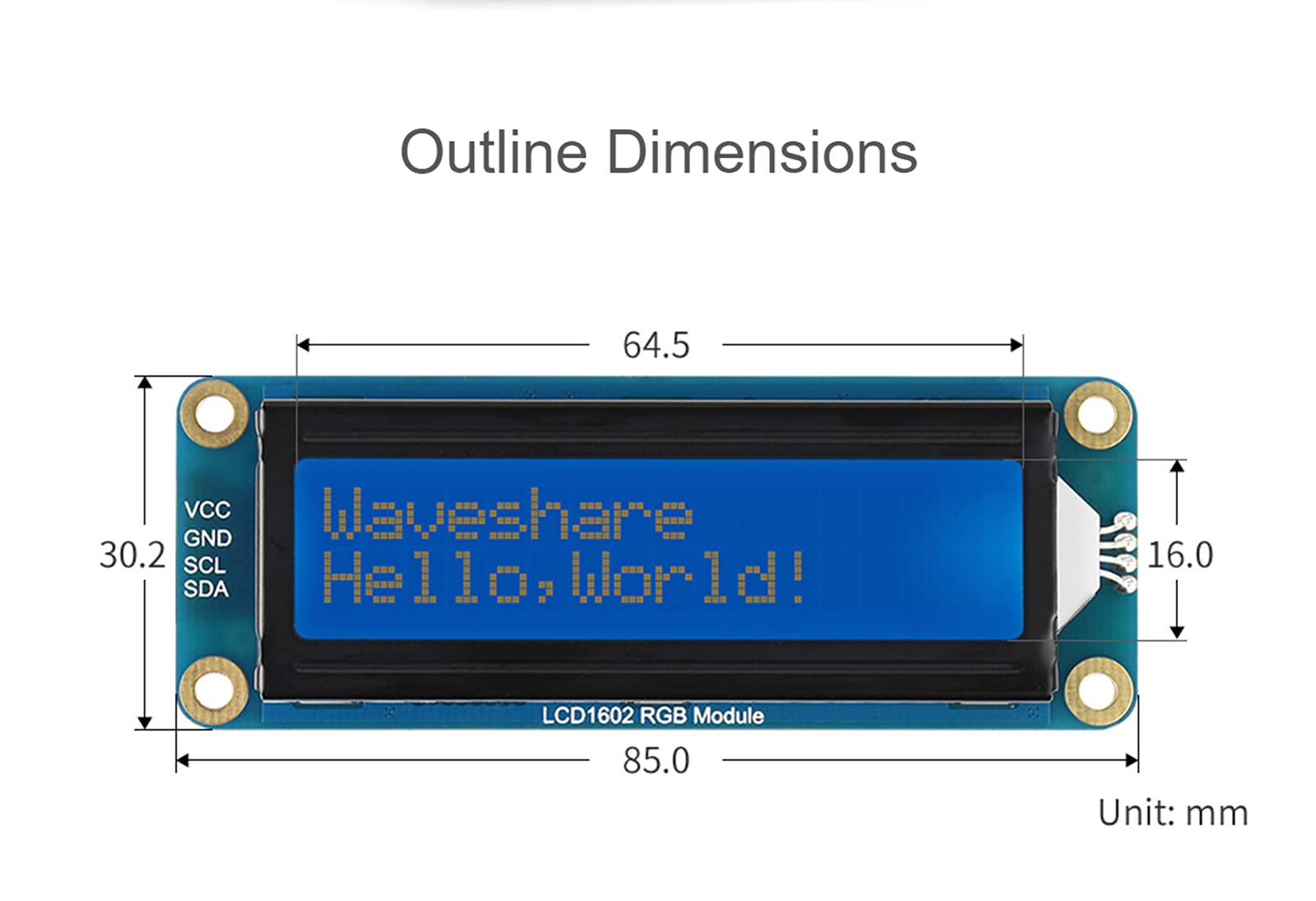

• 【3.3V/5V Compatible】Compatible with 3.3V/5V operating voltage, Dimension: 87.0 × 32.0 × 13.0mm

Overview LCD1602 RGB Module, 16x2 Characters LCD, Adjustable RGB Backlight Color, I2C Communication, 3.3V/5V Compatible, Supports Raspberry Pi / Pi Pico, Jetson Nano, and Arduino Features 1. Incorporates character LCD panel LCD1602 2. Adjustable RGB backlight color, up to 16M (2563) backlight colors in theory 3. Can display up to 16 X 2 characters, support screen scrolling, cursor movement and other functions 4. Onboard AiP31068L LCD driver chip, PCA9633 RGB control chip 5. I2C control interface, only two signal pins are required, saving the IO resource 6. Compatible with 3.3V/5V operating voltage 7. Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples) Specification Operating voltage: 3.3V/5V Interface: I2C LCD type: character LCD Controller: AiP31068L PCA9633DP2 Display 64.5 x 16.0 mm Dimension: 87.0 × 32.0 × 13.0mm Operating current: 26mA (5V), 13mA (3.3V) Development Resources https://www.waveshare.com/wiki/LCD1602_RGB_Module?Amazon Package Content LCD1602 RGB Module x1 PH2.0 4PIN wire x1
