15A Quick Connect Battery Connectors - Modular Power Connectors with Quick Disconnect

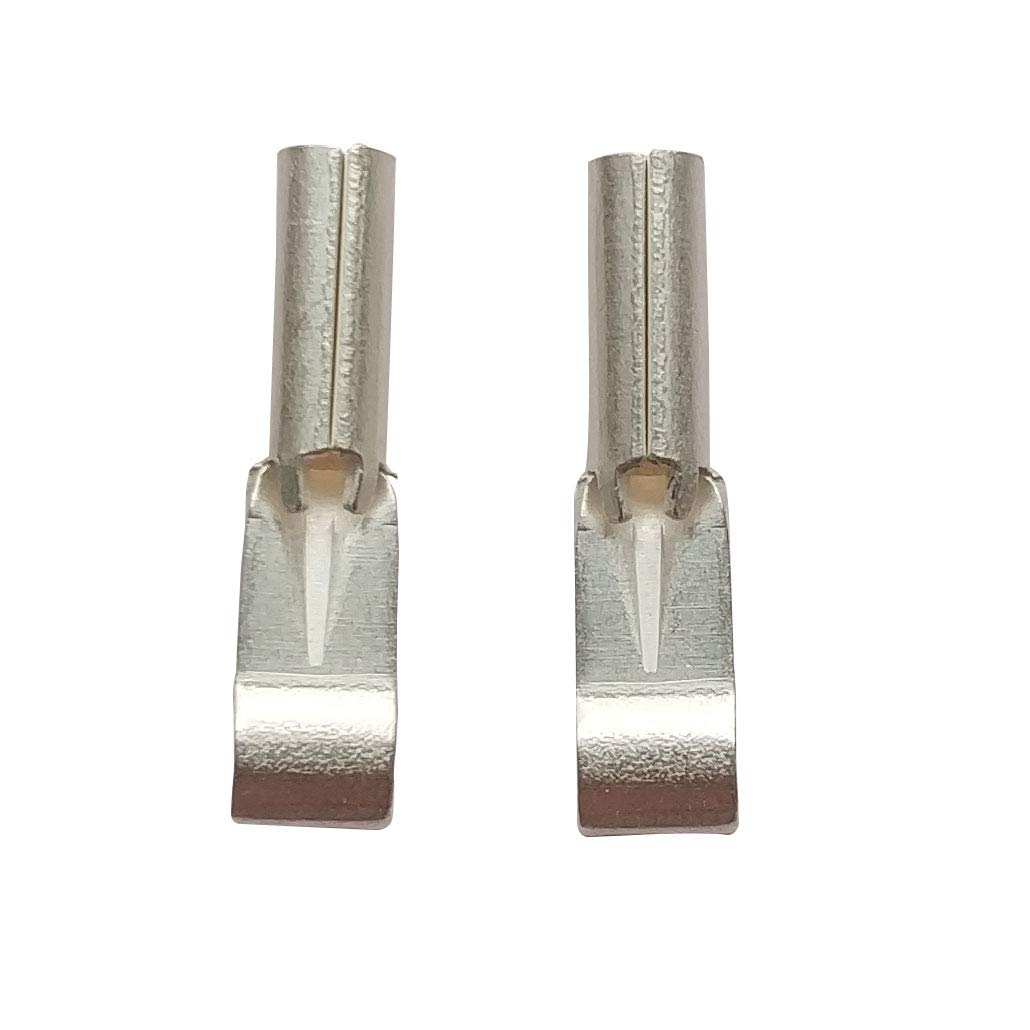

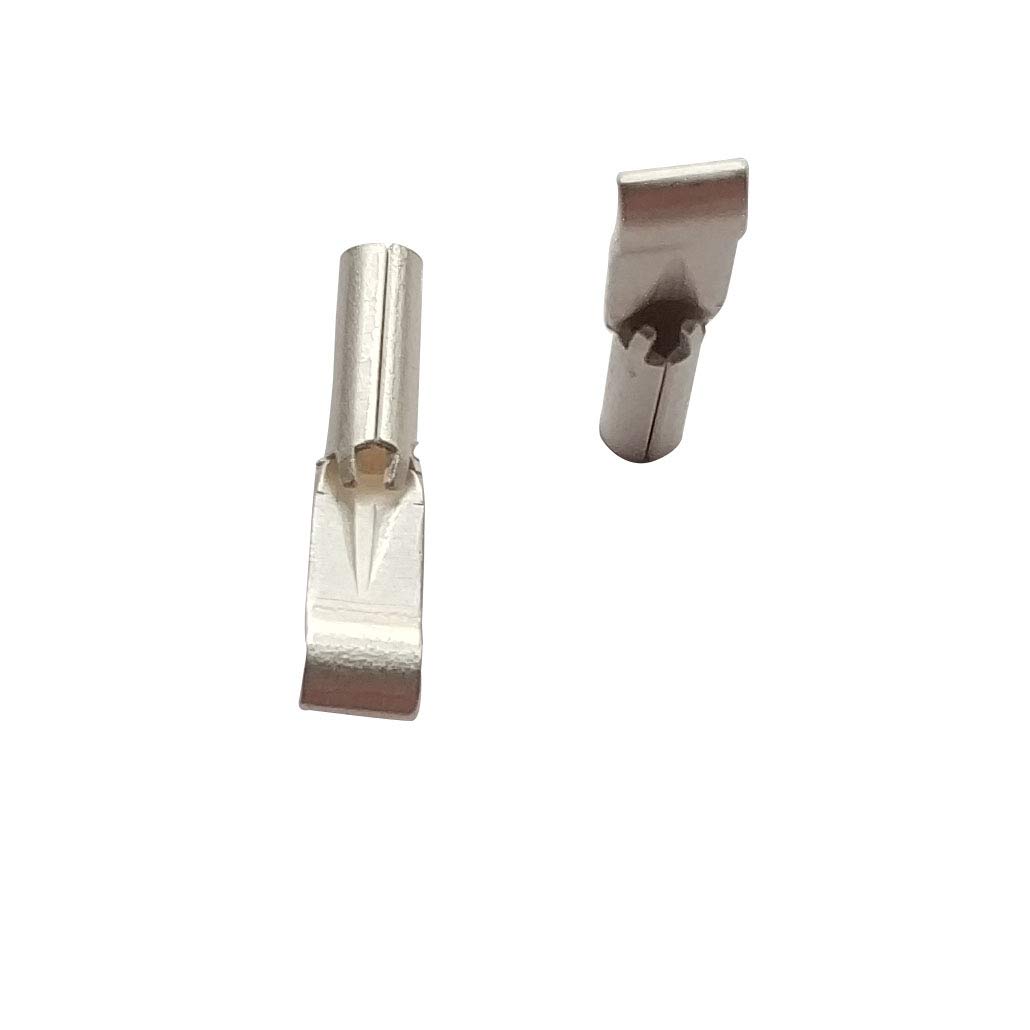

• Package Includes: everything shown in the first photo. Contact Material: Silver-plated Copper. Rated Current (amps): 15 A. Rated Voltage (Volts): 600 V.
• Suitable for cables from 0.5 mm² -1.3 mm² (20-16 AWG). Medium contact resistance (micro ohm): <500. Insulation resistant to test voltage (Volts AC / DC): 2200 V. Contact retention force (lbf): 25 lbf.
• No charge (contact/disconnection cycles): 10000. Under Load (Hot Plug 250 cycles @ 120 V). Average insertion force (lbs): 3-5lbf. Operating Temperature: -20 °C to 105 °C. Flammability Class of shell material: UL 94-V0.

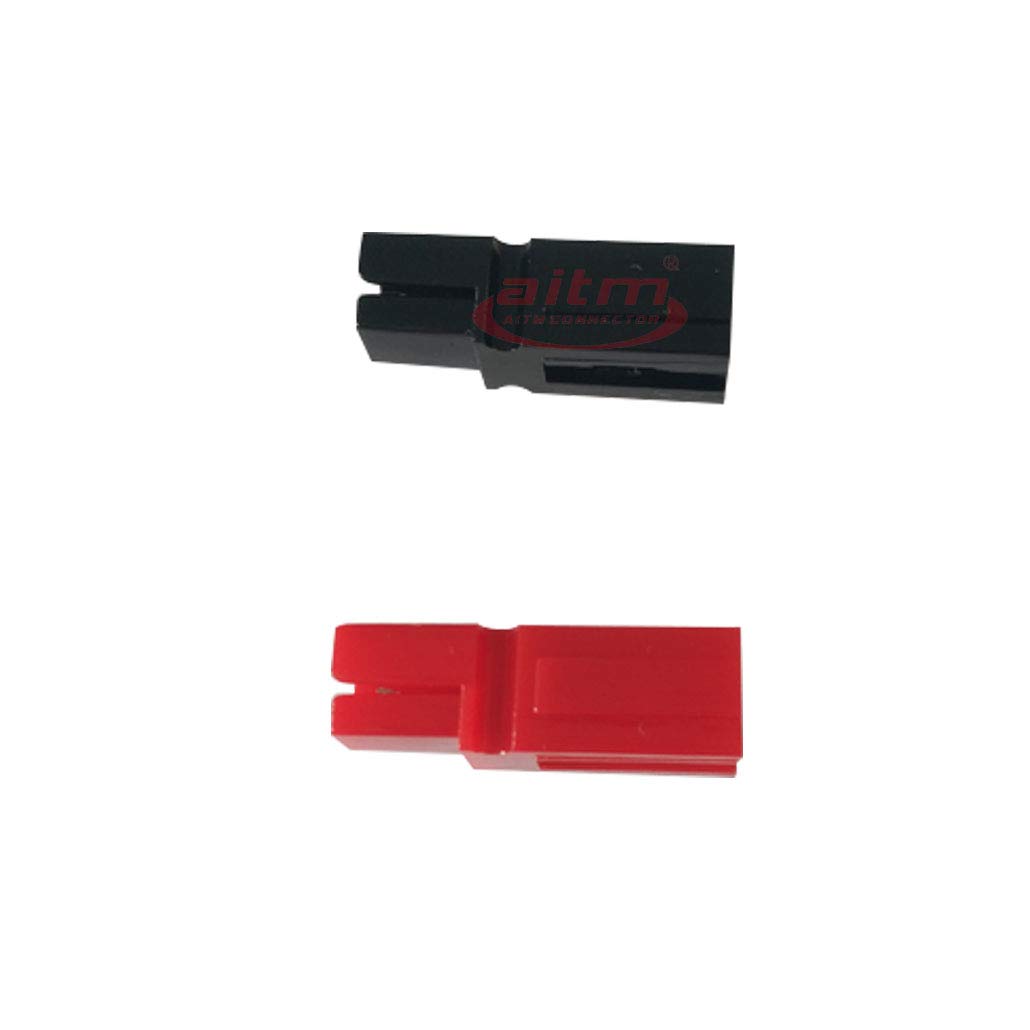

• Flat wiping contact system. Minimal contact resistance at high current. The wiping action cleans the contact surface during connection/disconnection. Coloured Modular enclosures provide a visual identification of compatible connectors.

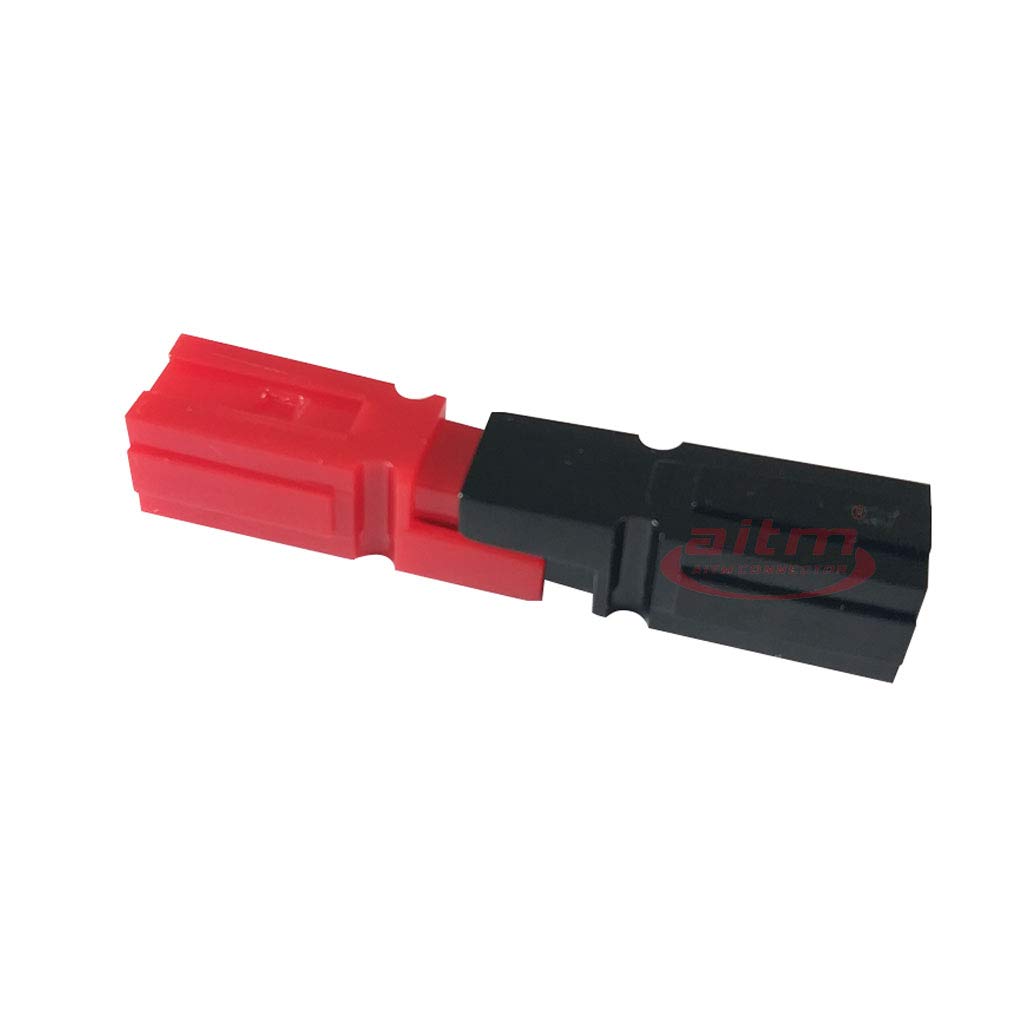

• Moulded dovetail tips. Keyed connectors. Assembly to prevent connection errors. With similar configurations. Designed without gender, making for quick & easy assembly and reducing the number of pieces you have to store.

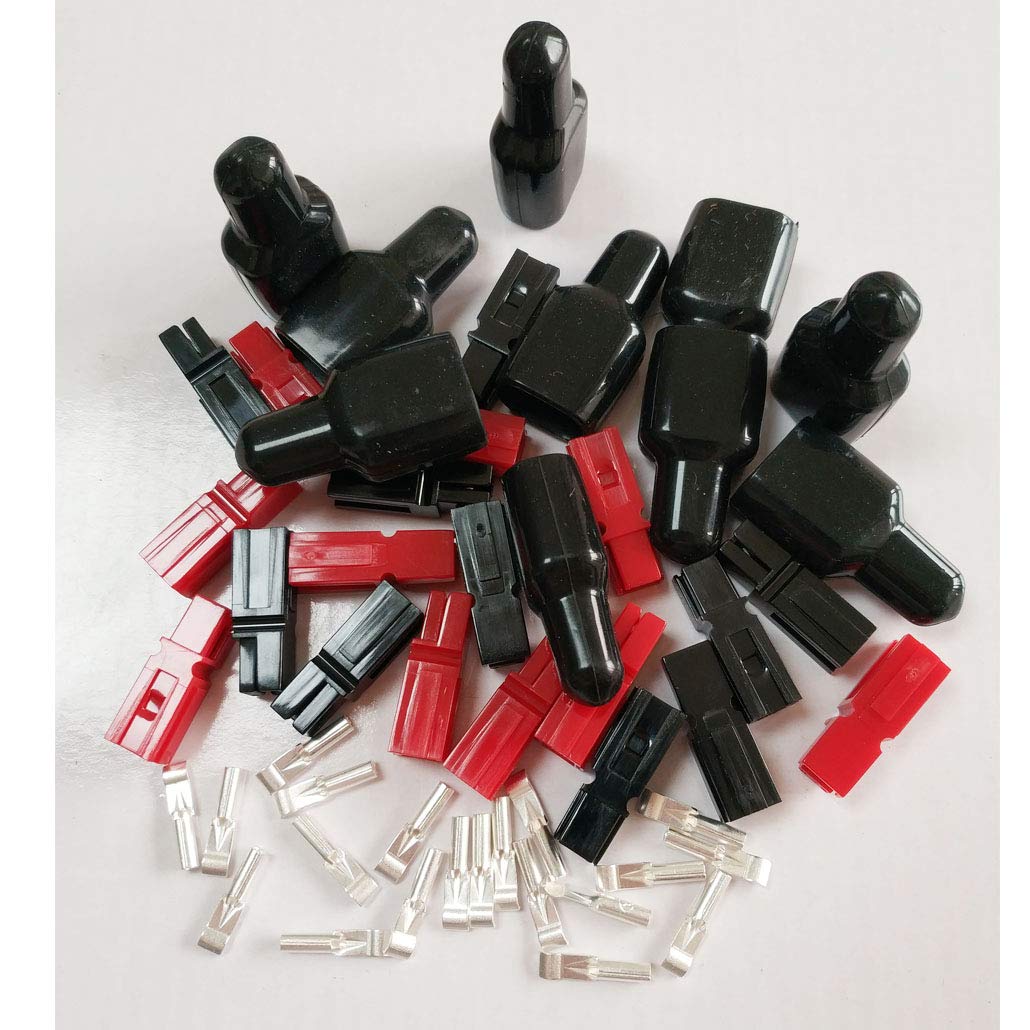

Package includes: If you want to choose the quantity 10: there are 10pcs of red cases, 10pcs of black cases, 20pcs of silver-plated copper contacts. 10pcs of PVC cases. If you want to choose the quantity 20: there are 20pcs of red cases, 20pcs of black cases, 40pcs of silver-plated copper contacts, 20pcs of PVC covers. If you want to choose the quantity 30: there are 30pcs of red cases, 30pcs of black cases, 60pcs of silver-plated copper contacts, 30pcs of PVC covers. If you want to choose the quantity 50: there are 50pcs of red cases, 50pcs of black cases, 100pcs of silver-plated copper contacts, 50pcs of PVC covers.
