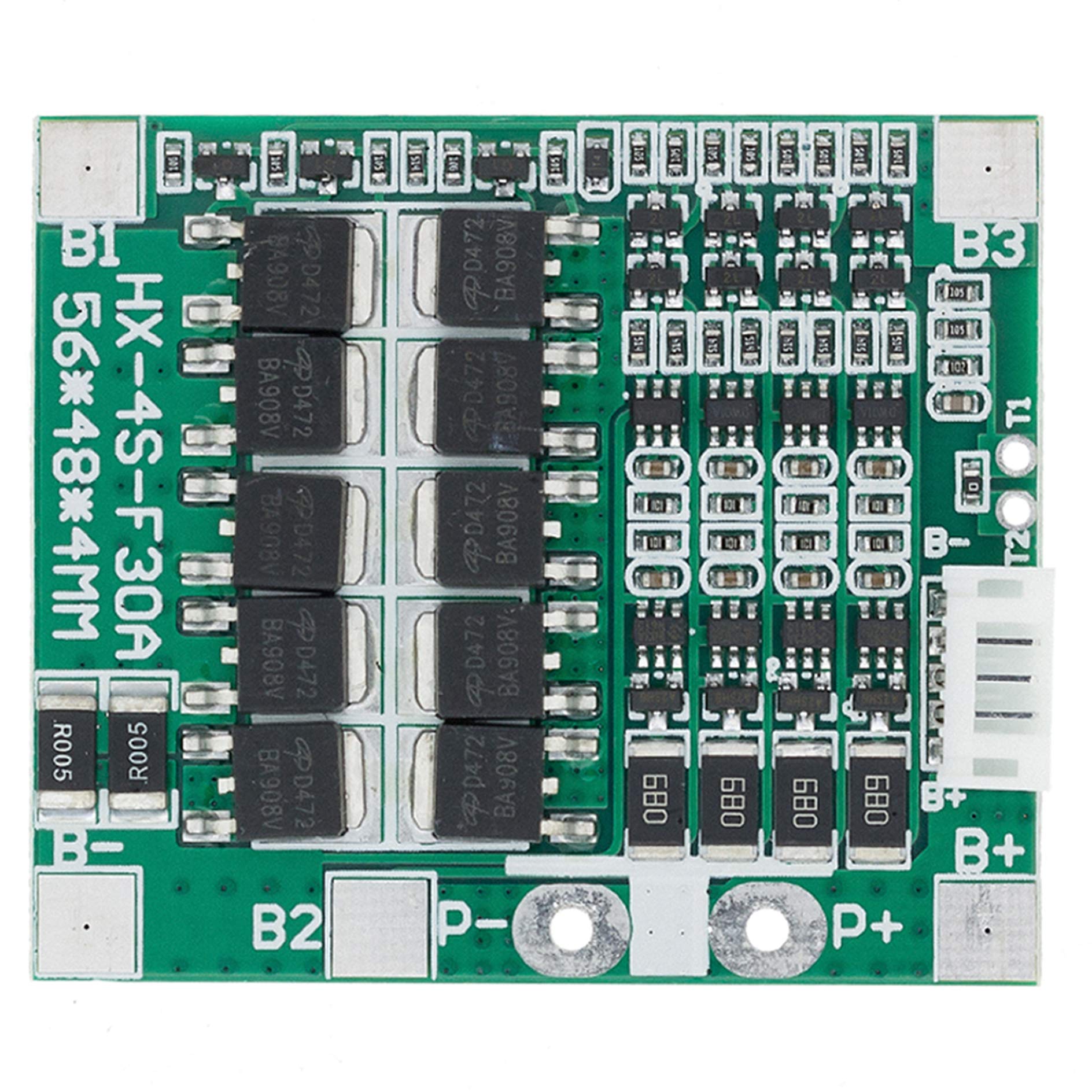

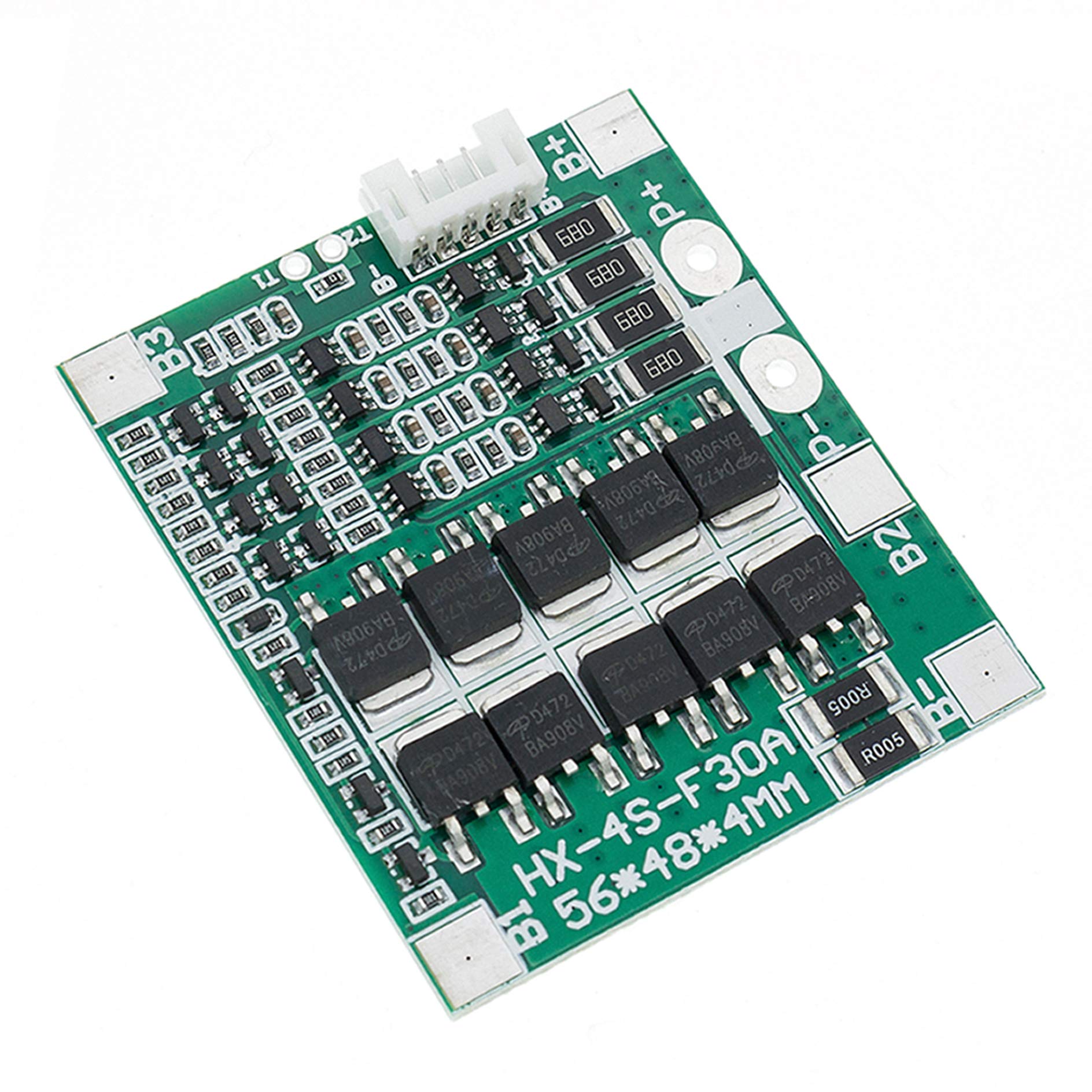

14.8V 4S 30A 18650 Lithium Battery BMS PCB Integrated Circuits Protection Board

• Over charge detection voltage: 4.28+ 0.05 V
• Over charging voltage: 4.08 ¡À 0.1
• Over discharge voltage: 2.55¡À0.08
• Over charge detection delay time 0.1s
• Working current: 30A

Specifications Over charge detection voltage: 4.28+ 0.05 V Over charging voltage: 4.08 ¡À 0.1 Over discharge voltage: 2.55¡À0.08 Over charge detection delay time 0.1s Temperature range£º 30/+80¡æ Balanced current: 60¡À5 mA Working current: 30A Over current: 75¡À5A Short circuit protection function: there is, disconnect the load can be self recovery. Size:56*45*3mm Main function: Over charge protection, over discharge protection function, short circuit protection function, over current protection function, balance. Interface definition: Charging port of the plate and the discharge port is the same, both positive and B connecting battery" ", P charging port and port on the negative electrode; B , N , P pads are all over the hole, the hole diameter of the pad is 3.5mm; The battery charging detection interface with DC output in the form of needle. Do the same mouth when the N is not wiring.
