13A Double USB Socket UK, Glass Panel with USB-A & USB-C 3.1A

• Safe Charging for Your Family — Built-in child safety shutters prevent accidental insertion, while the integrated earth wire delivers enhanced protection beyond standard UK sockets. Charge two devices simultaneously via 3.1A USB-A and USB-C ports — no more bulky adapters cluttering your wall.

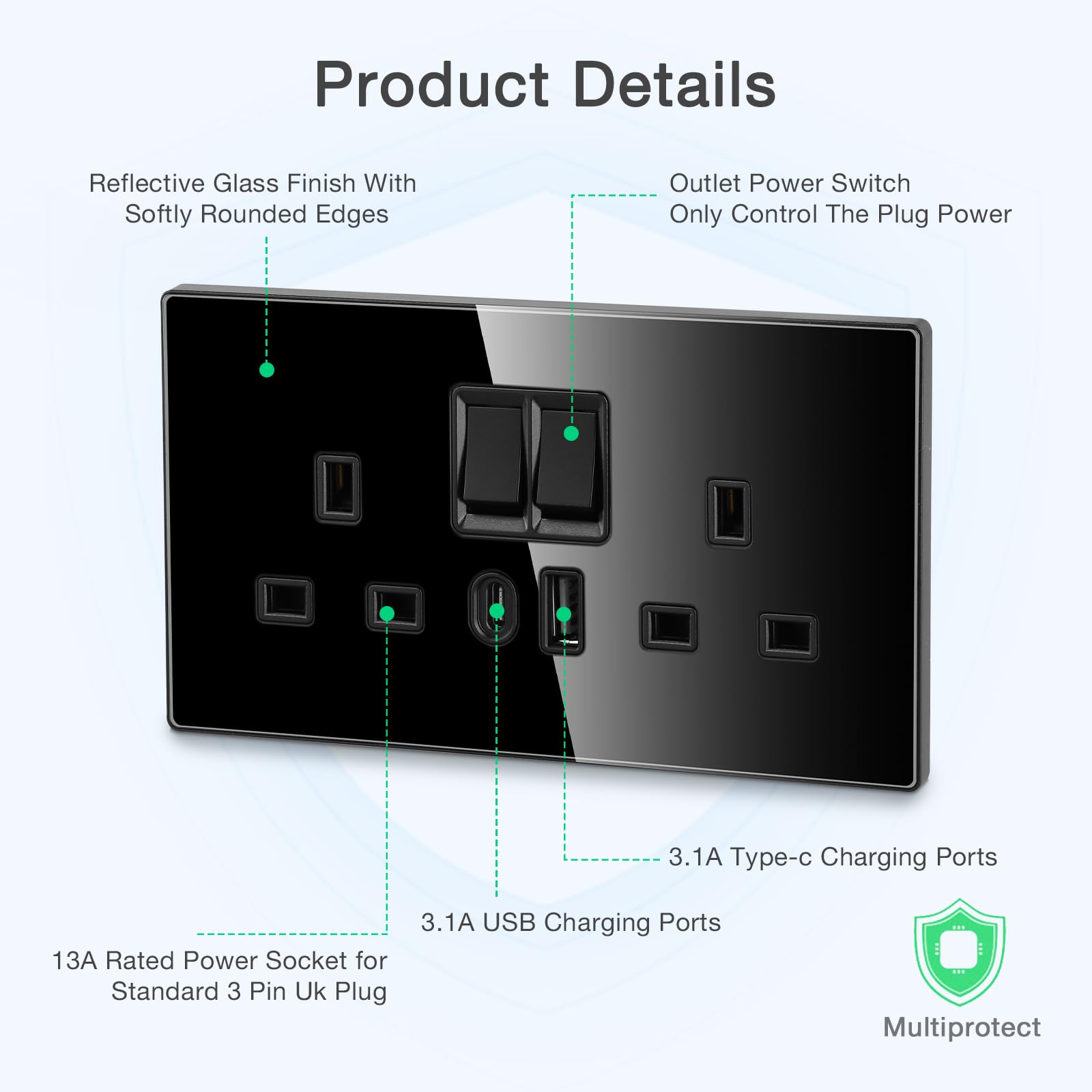

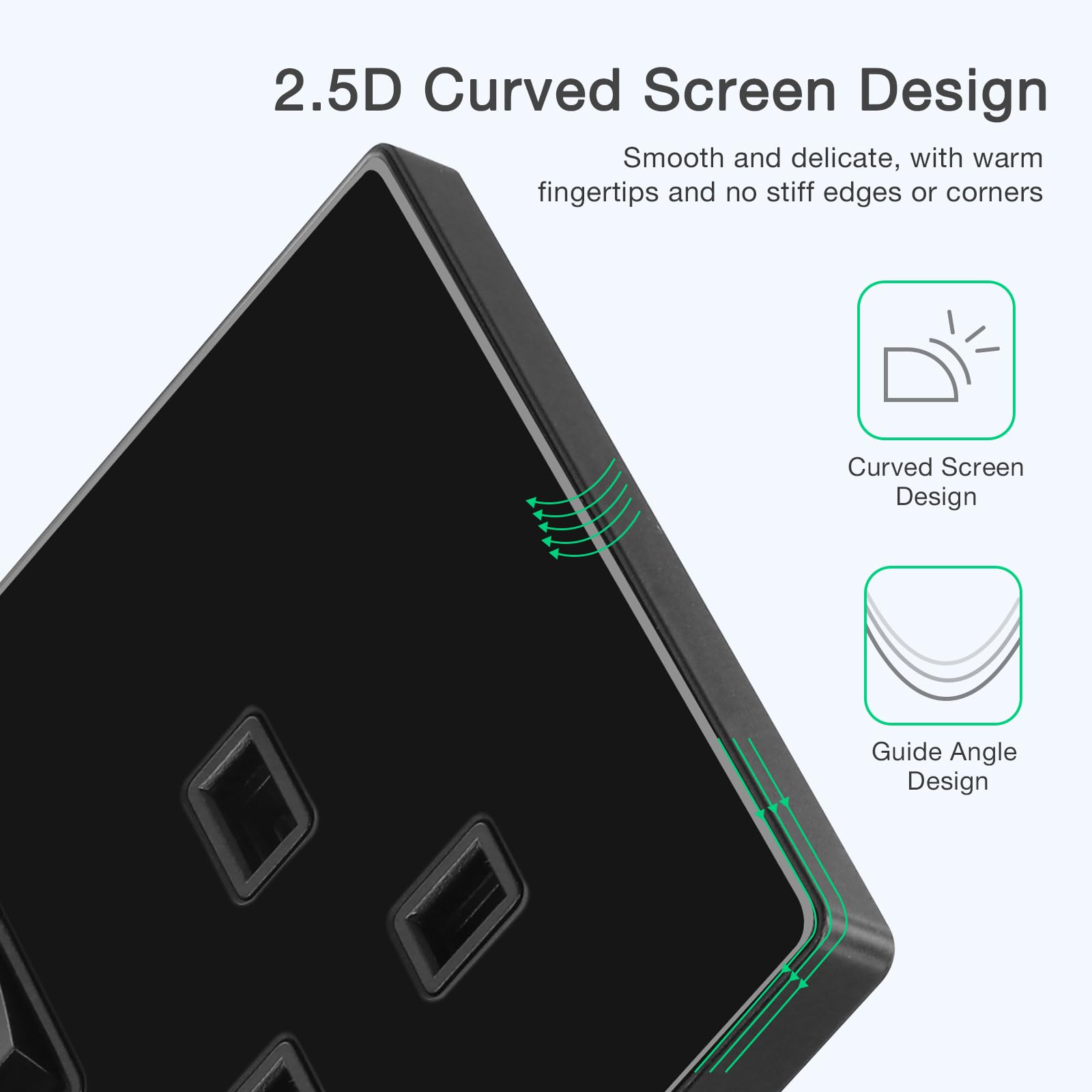

• 2.5D Curved Glass Panel — Style That Lasts — Smooth, rounded edges deliver a premium feel and a seamless look on any wall. The reflective glass finish resists fingerprints and wipes clean in seconds — your sockets stay as beautiful as the day you installed them.
• Perfect Fit for UK Homes — Easy Retrofit — Standard 13A double socket with a 35mm back box requirement fits most UK wall boxes. The built-in earth wire simplifies installation — no complex rewiring needed. Ideal for bedrooms, living rooms, kitchens, and offices where USB charging is most needed.

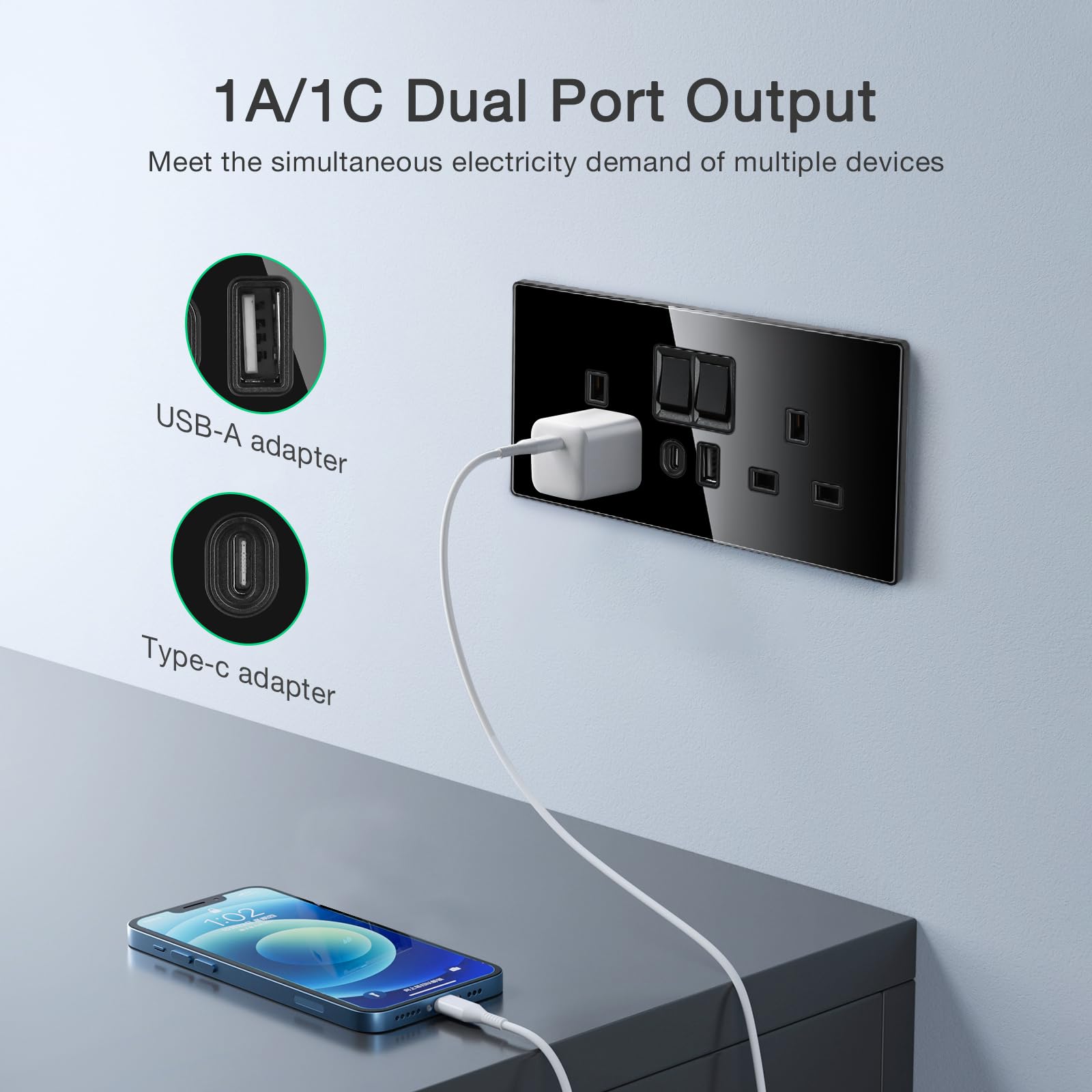

• Dual USB Ports — Smart Power for Two Devices — One USB-A and one USB-C port deliver a combined 3.1A output, powering two devices simultaneously at optimal speed. No more fighting over charging sockets — charge your phone and tablet, or power a smart speaker and e-reader, all from one wall plate.
• Built to British Standards — Your Reliable Choice — Compliant with BS1363 and SASO 2203 standards, with a 13A rated power output for all standard UK 3-pin plugs. Backed by Multiprotect safety technology. Whether you're renovating, upgrading, or simply refreshing your home, choose the socket that works as hard as you do.

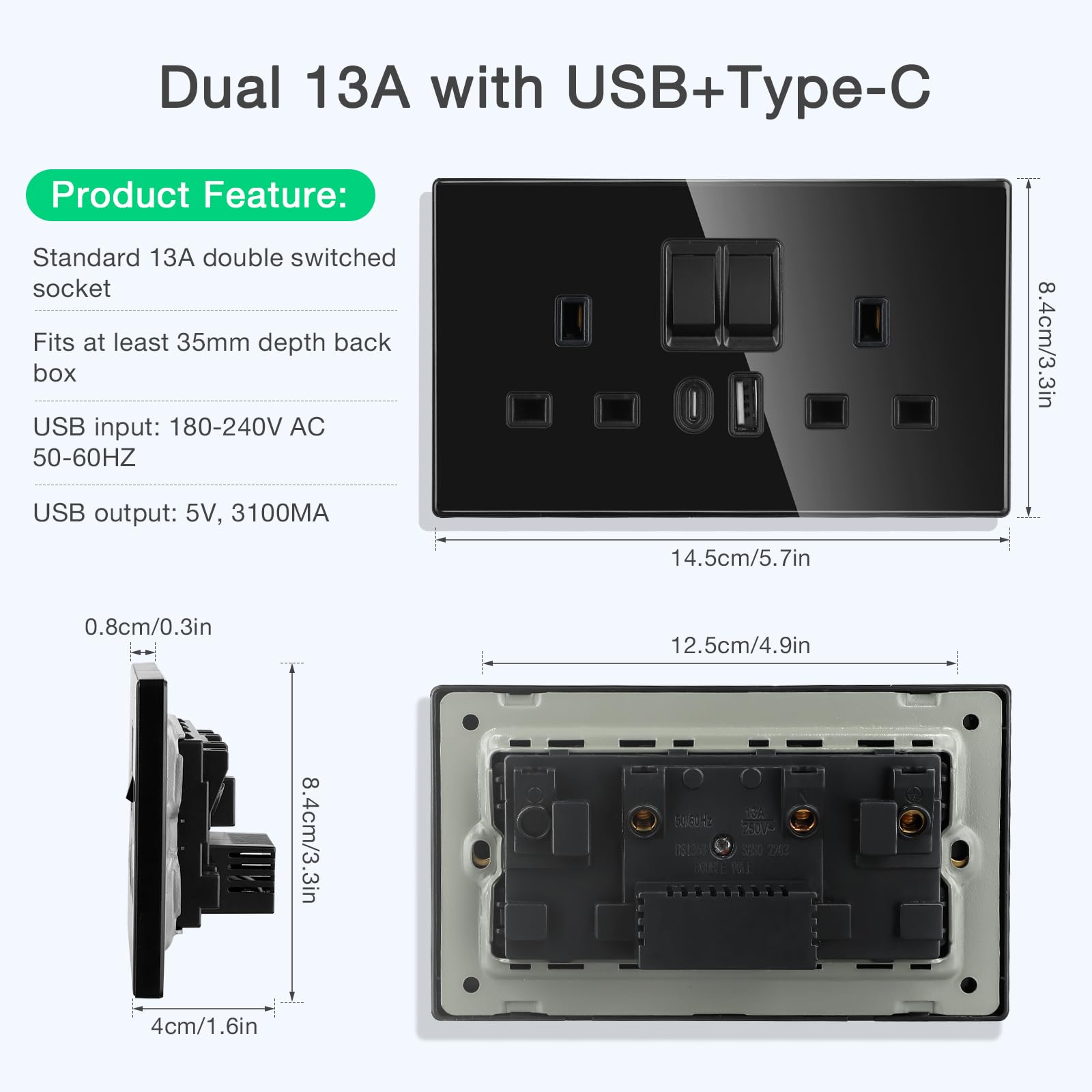

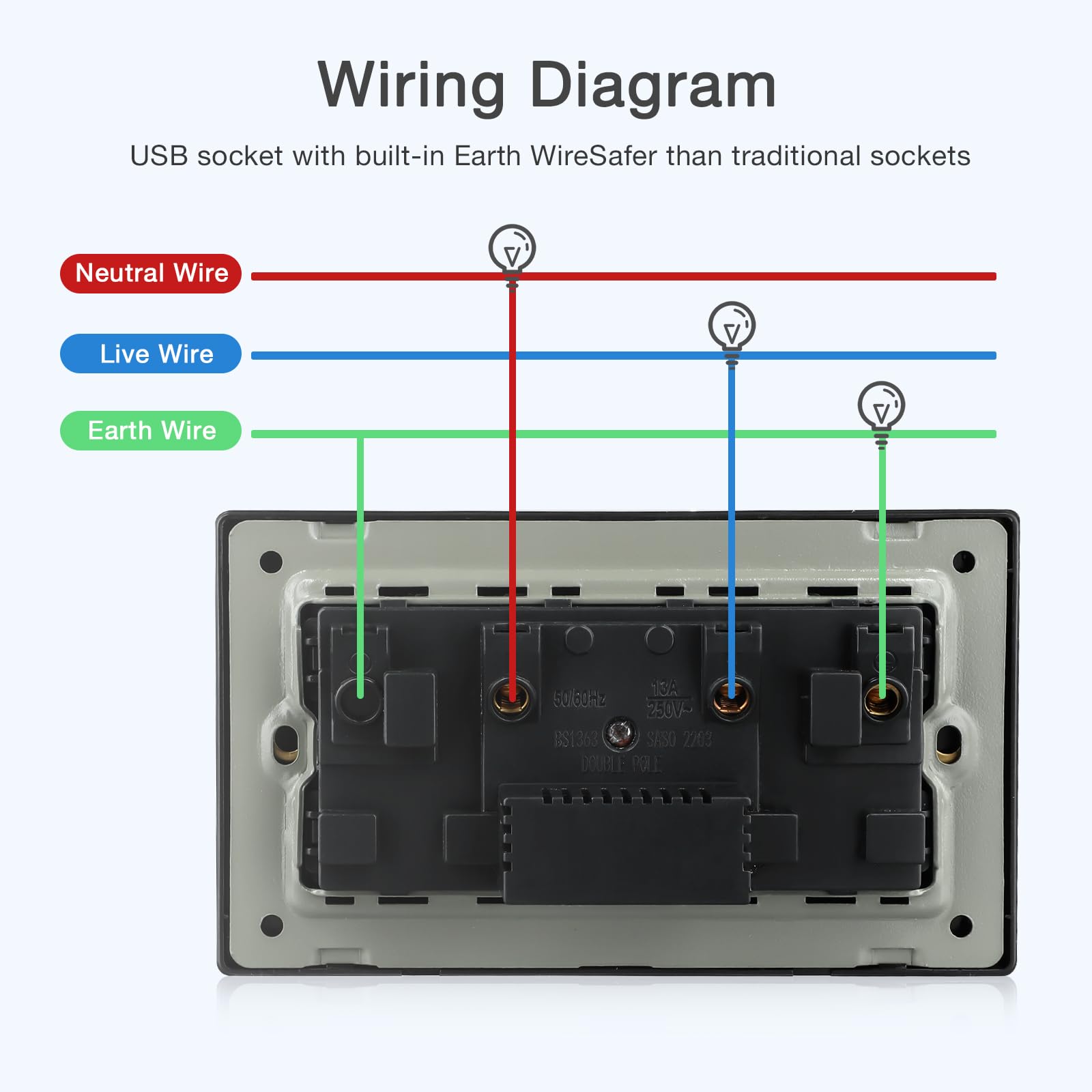

Product Description I. Product Specifications Item Specification Product Name Dual 13A USB + Type‑C Glass Panel Socket Socket Type Double 13A switched socket Rated Voltage 180‑240V AC, 50/60Hz Rated Current 13A Total USB Output 5V, 3100mA (3.1A) Type‑C Port Output 3.1A USB‑A Port Output 3.1A Compliance Standards BS1363, SASO 2203 Switch Type Double pole switch Product Dimensions 14.5cm × 8.4cm × 4cm (L × W × D) Minimum Back Box Depth ≥35mm Panel Material Glass panel with 2.5D curved edge design II. Package Contents No. Item Quantity 1 Dual 13A USB + Type‑C Glass Panel Socket Unit 1 pc 2 Mounting Screws Supplied 3 Instruction Manual 1 copy Note: This is a standard UK 13A double socket, compatible with UK 3‑pin plugs. The USB section features one USB‑A and one Type‑C port, allowing simultaneous charging of two devices. III. Installation Instructions Step 1 – Power Off Before installation, always turn off the mains supply or disconnect the circuit breaker in the consumer unit. If replacing an existing socket, remove the old unit and disconnect all wiring. Step 2 – Wiring Connect the wires according to the wiring diagram on the rear of the socket: L (Live) — connect to the Live terminal N (Neutral) — connect to the Neutral terminal ⏚ (Earth) — connect to the Earth terminal This socket features a built‑in earth wire design for enhanced safety. Ensure all terminal screws are tightened securely and no bare wire is exposed. Step 3 – Fix the Panel Push the socket unit into the back box (minimum depth 35mm), making sure no wires are trapped. Secure the panel to the back box using the supplied mounting screws. Step 4 – Power‑On Test After installation, restore mains power. It is recommended to use a socket tester to verify correct wiring. Once confirmed, the socket is ready for use: AC Socket: Plug in standard UK 3‑pin appliances, controlled by the built‑in switch. USB Charging: Connect your USB‑A or Type‑C cable to the respective port to charge smartphones, tablets, and other compatible devices. IV. Safety Warnings & Precautions ⚠️ Important Safety Notes Must be installed by a qualified person — Installation should be carried out by a competent electrician in accordance with the latest IET Wiring Regulations (BS 7671) and building codes. If in doubt, consult a professional electrician. Always isolate power before installation — Turn off the mains supply or disconnect the relevant circuit breaker before starting any electrical work. Must be earthed — This product must be properly earthed. Ensure the earth connection is secure. Indoor use only — This socket is designed for indoor installation only. Do not use a Megger (insulation tester) on the USB circuit — Testing the USB charging circuit with a Megger will damage the USB charging electronics. USB output sharing — The total USB output is 3.1A (3100mA), which can be delivered from a single port or shared between both ports. Actual charging speed depends on the connected device's compatibility. Comply with wiring colour codes — Ensure wiring colours conform to current IET regulations. Use the correct cable type and size. Regular inspection — Periodically check the socket and USB ports for proper operation. If any abnormality is detected, discontinue use immediately and have the unit inspected by a qualified technician.
