12x Cat.8.1 Keystone Cat8 Jack RJ45 Socket Module 2000 MHz 40 Gbit Fully Shielded Tool-Free STP RJ-45 Coupling Network Cable Insert for Patch Panel Installation Cable Patch Panel Ethernet Connection

• Keystone module Cat.8.1 40 GB - LSA terminal to RJ45 socket "8P8C" signal transmission max 2000 MHz STP full shielding shockproof zinc pressure housing

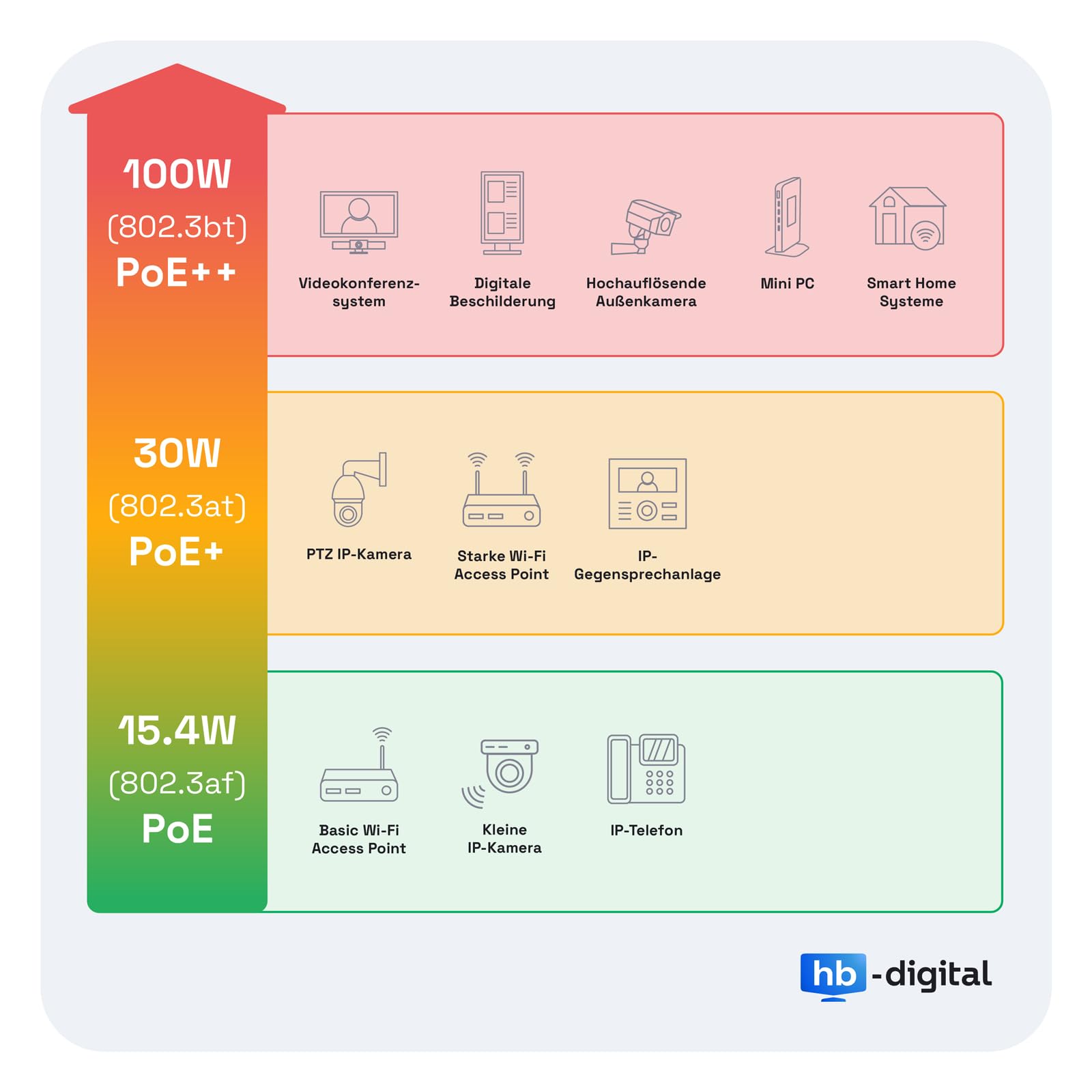

• Suitable for: PoE plus, AWG 22 to AWG 24, CAT 8.1 / 7a / 7 / 6a / 6, T568A, T568B

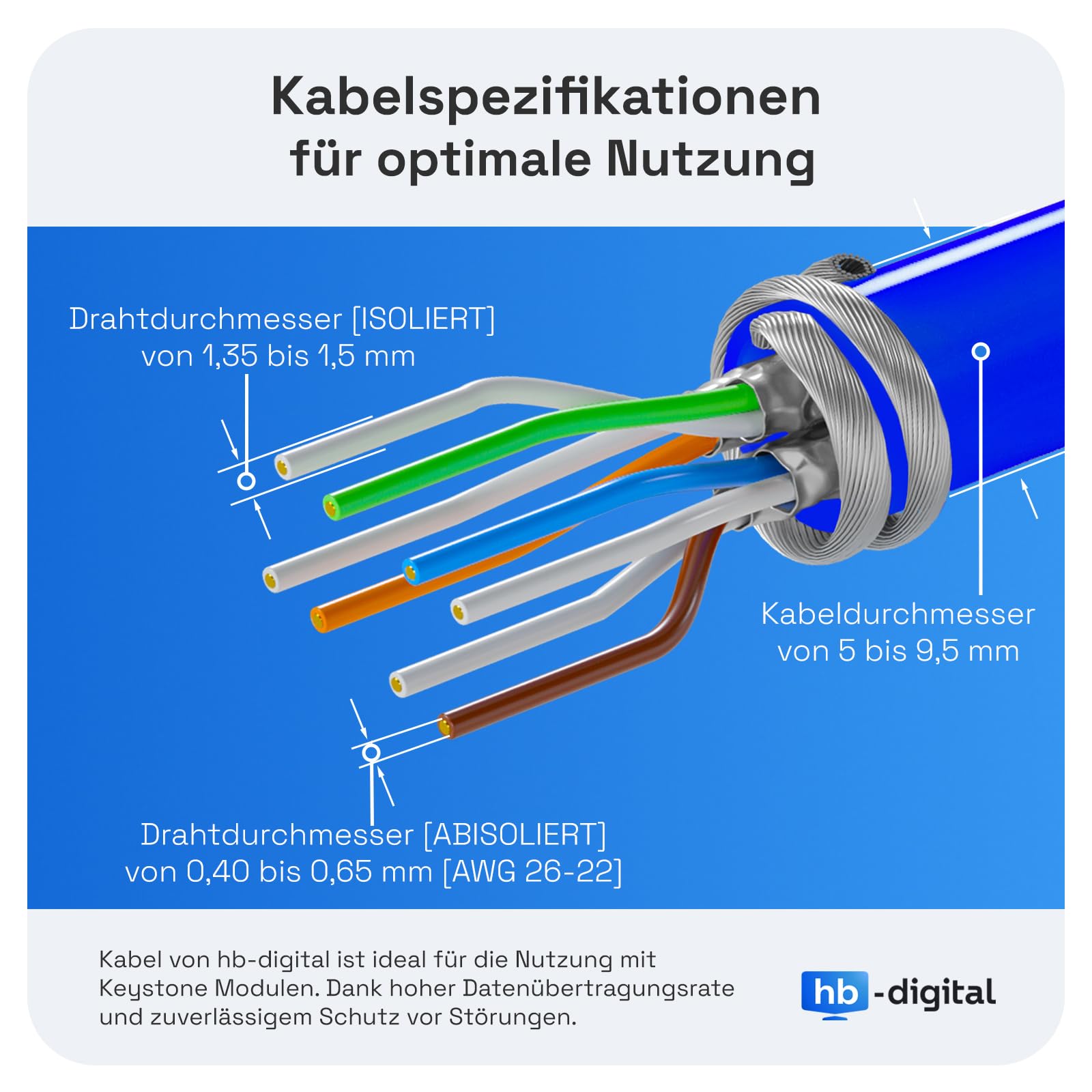

• For cable diameters of 7.0 - 9.5 mm. For wire diameters from 0.4 to 0.76 mm

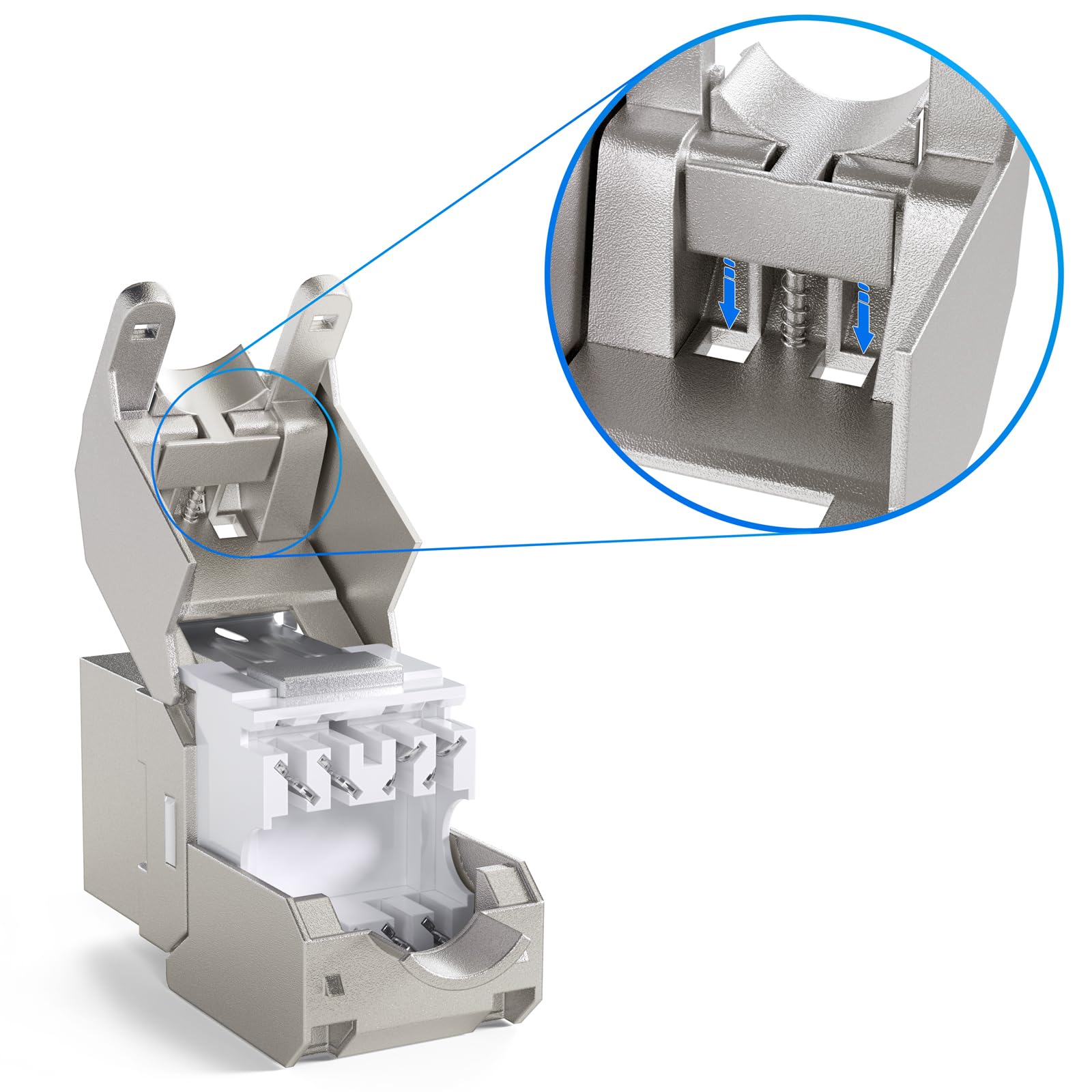

• Tool-free installation. Easy installation on cat installation cable and network cable

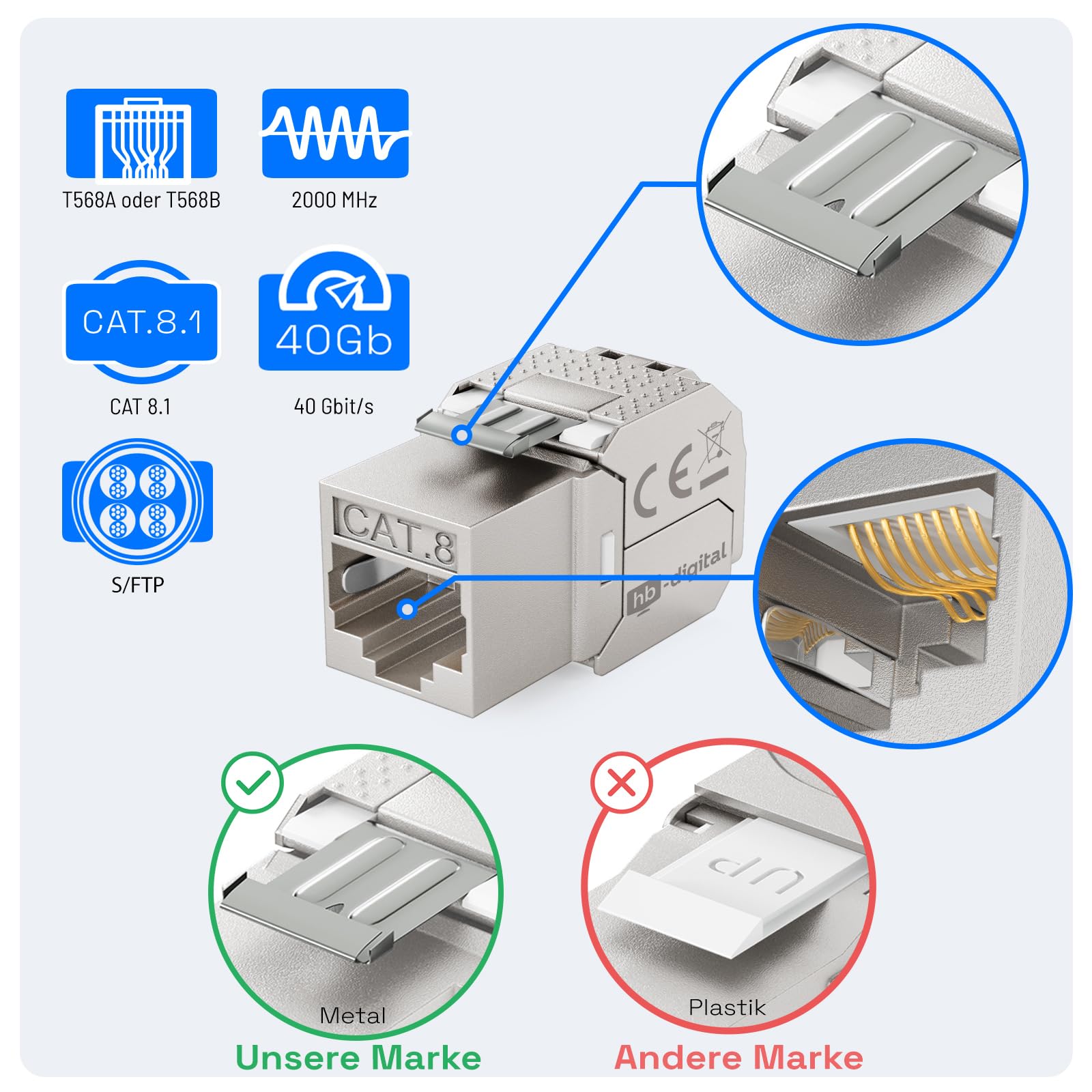

• Category 8 Class 1 Keystone Modules Contact material: nickel-plated, gold-plated pins 50µ

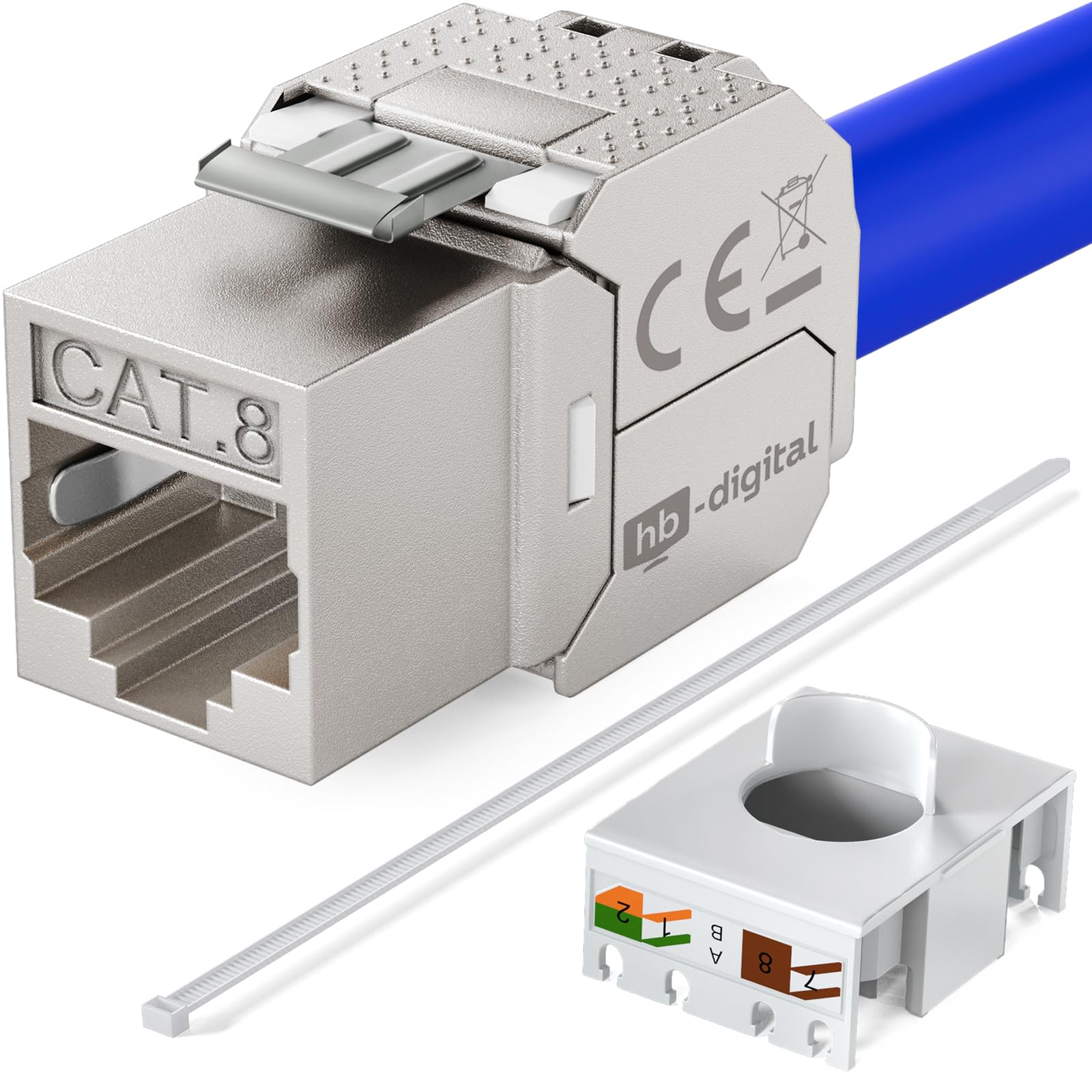

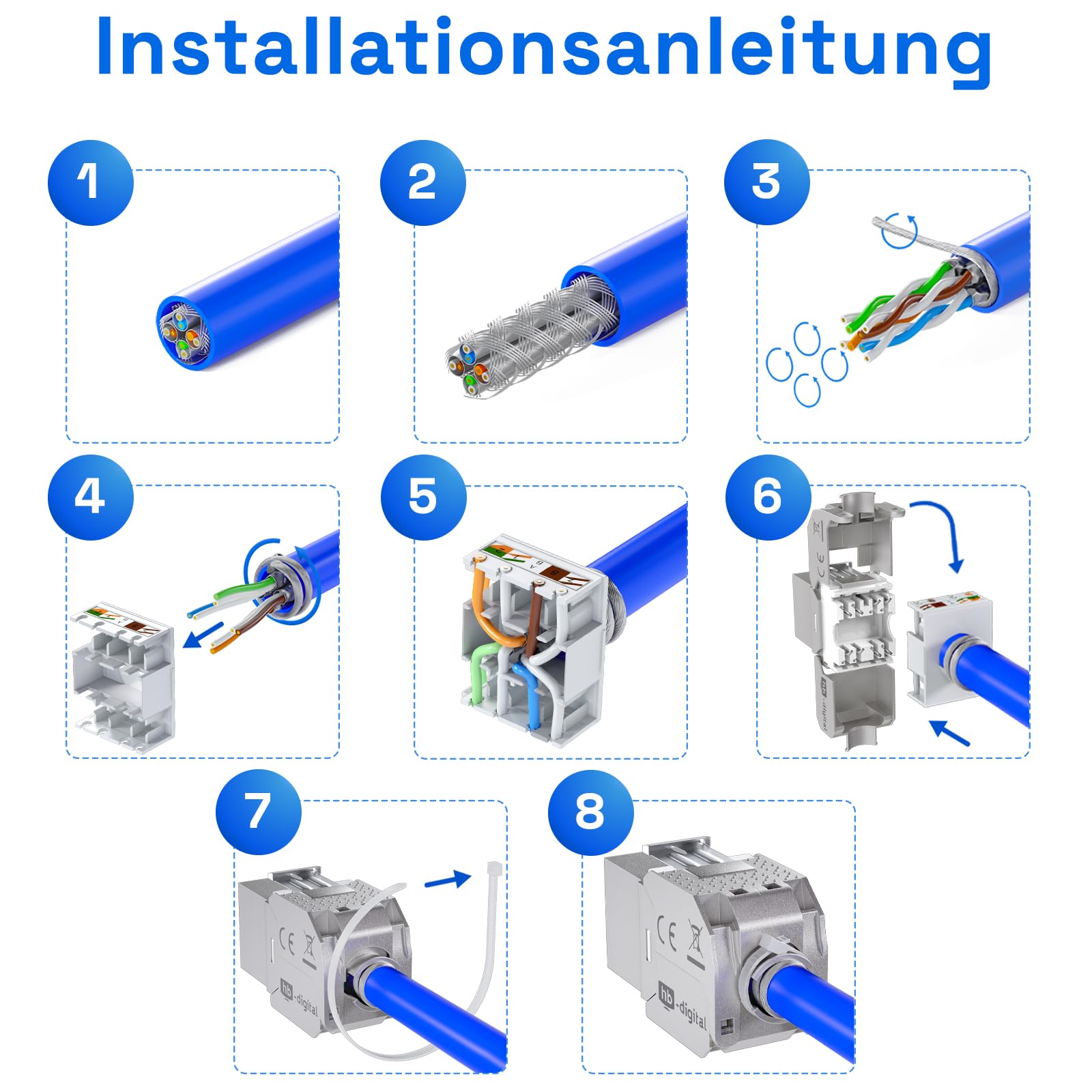

Keystone RJ45 module CAT 8.1 - or simply network socket for connecting RJ45 connectors, used for mounting network cables. The socket does not require any tools, simply strip the wire, place the wires of the twisted pair on the corresponding marked fields and lock the module. The keystone module RJ45 CAT 8.1 has a bandwidth of up to 2000 MHz. It is also compatible with the network cables of the previous categories such as CAT 7a, CAT 7, CAT 6a, CAT 6 and CAT 5e with T568A, T568B connection standard. AWG 22 to AWG 26, solid and stranded conductor network cable standard. The dimensions of the keystone modules all follow a standard which allows them to be mounted completely in the provided brackets. Technical data: Connections: cutting terminal (LSA) to RJ-45 female Suitable for solid conductor AWG 26 to AWG 22 Suitable for stranded conductors AWG 27 to AWG 22 For wire diameters from 0.4 to 0.76 mm. For cable diameters of 7.0 - 9.5 mm. Case material: zinc alloy Shielding class: STP Gold-plated contacts 50µ. Suitable for: PoE plus, CAT 8.1, CAT 6a, T568A, T568B According to FLUKE DSX-8000. Box contents: Keystone Module RJ45 Threading aid cable ties
