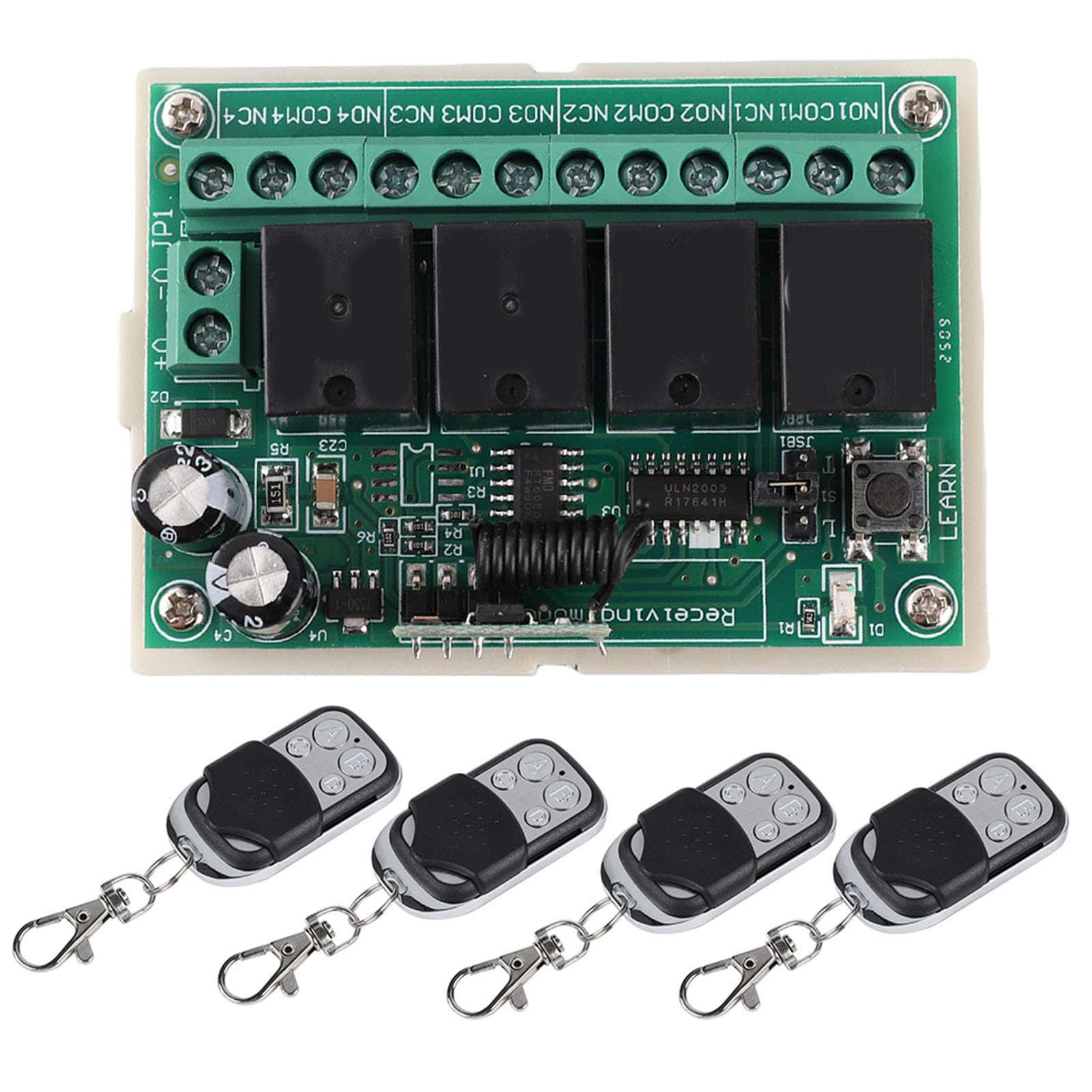

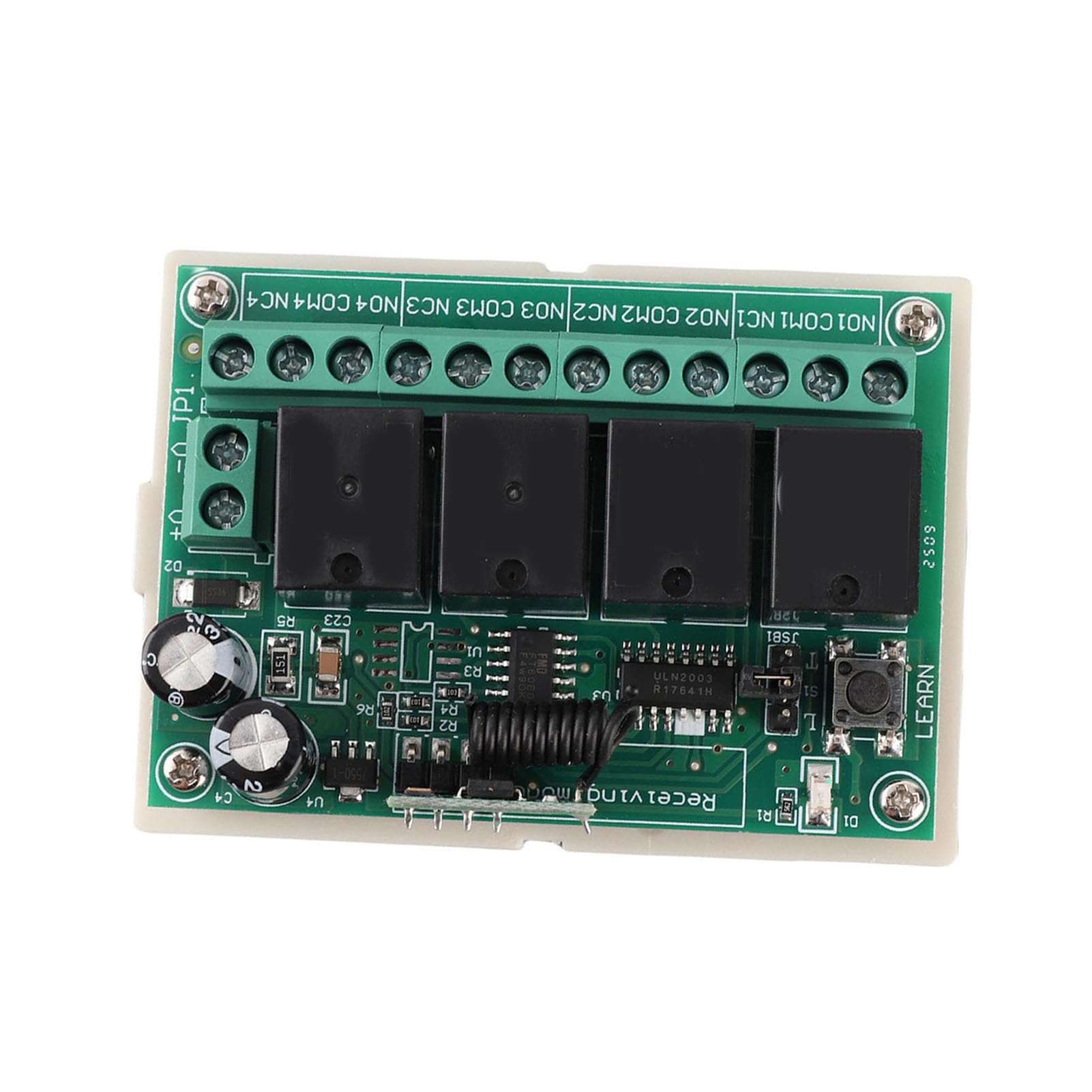

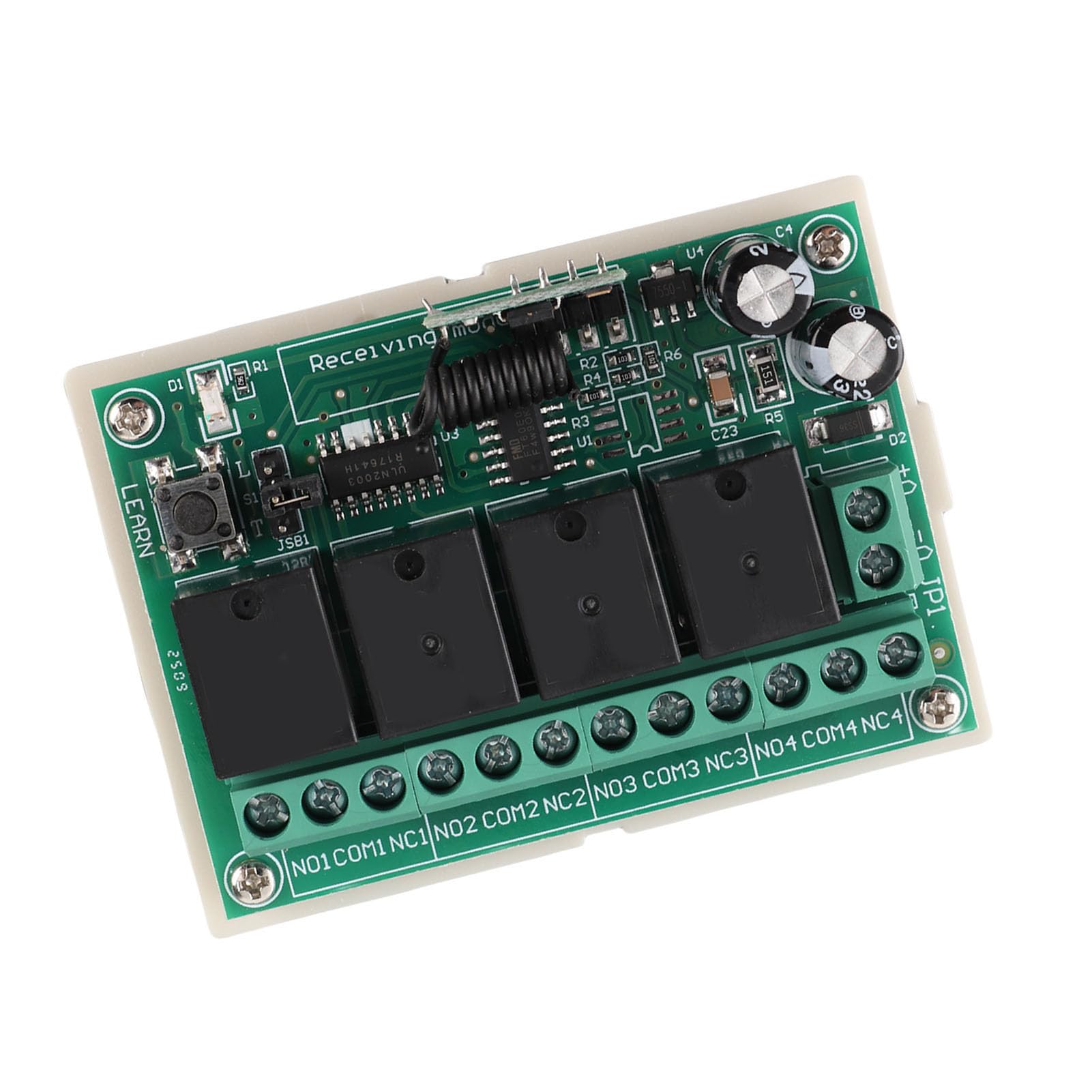

12V Wireless Relay Switch 433MHz Universal 4-Channel 4 Transmitter & 1 Receiver wireless remote control for Motor, DIY Function, Home Use & More

• Wide scope of application - Applicable to all fields, wireless remote control, etc.
• High receiving sensitivity - Remote control distance of up to 50 meters to more than 100 meters
• Controls thousands of watts of electrical appliances and equipment with high-capacity relays
• The jumper cap can be used to change the way of working. Non-lockable and latched and interlocked outputs
• Multi-functional 4-way remote control switch - Quad passive output.(Non-lockable and latched and interlocked outputs)

Features: Multi-functional 4-way remote control switch - Quad passive output.(Non-lockable and latched and interlocked outputs) The jumper cap can be used to change the way of working. Non-lockable and latched and interlocked outputs High receiving sensitivity - Remote control distance of up to 50 meters to more than 100 meters Controls thousands of watts of electrical appliances and equipment with high-capacity relays Using wireless coding technology - The switch does not interfere with each other Wide scope of application - Applicable to all fields, wireless remote control, etc. Simple operation and convenient to use. Specification: Type: Multi-functional 4-way Remote Control Switch Product model: KG1204-A Working voltage: DC 12V Quiescent current: 6mA Total load power: 10A Working frequency: 433MHz Load power: 1000W Receive sensitivity: -105dbm Frequency deviation: ±0.2MHz Coding method: learning type Working mode: jog, self-lock, interlock Modulation method: ASK Remote control distance: 100M (empty and no interference) Weight: Approx. 185g PCBA size: Approx. 4.8 * 6.8 * 1.8cm / 1.9 * 2.7 * 0.7in Shell size: Approx. 7.6 * 5.6 * 3cm / 3 * 2.2 * 1.2in Package list: 1 * Receiver 4 * Remote Controls Note: Please allow slight error due to manual measurement. Thanks for your kind understanding.
