12V Force 750N Stroke 150-700mm Linear Actuator Lift Electric Motor Bracket DC Electric Push Rod Motor(400mm)

• 【 BUILT-IN TRAVEL SWITCH】Quiet clean and energy efficient operation. Accurately positions the load at variable and repeatable locations within the full stroke. By changing the length of the lever arm, the stroke can be increased or increased.

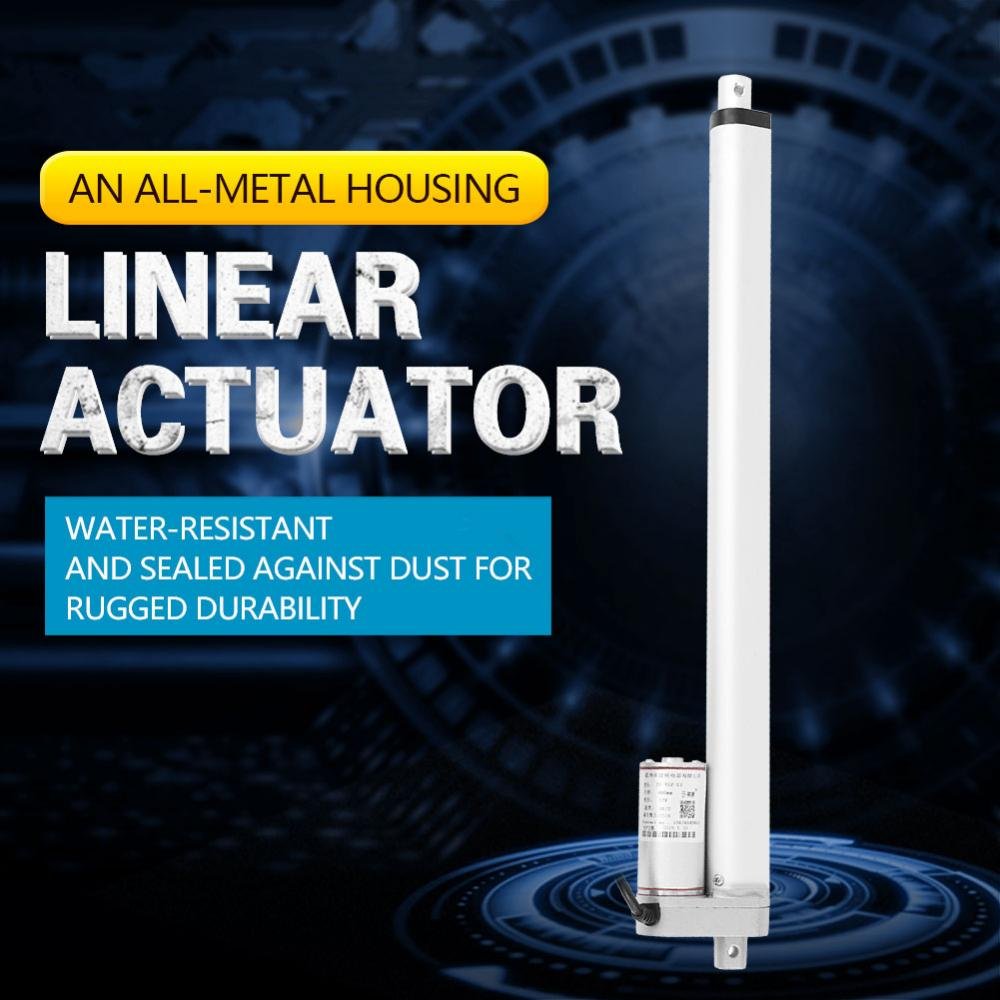

• 【MATERIAL】An all-metal housing and is water-resistant and sealed against dust for rugged durability, the bottom noise design, noise level is lower than 65.
• 【SAFE AND STABLE】Reliable performance, sensitive action stable running. When the telescopic rod reaches the apex, it will stop automatically, ensuring that the motor will not burn.
• 【MULTIPLE CONTROLS】Can be equipped with wired or remote control. It can be used in a variety of simple or complex processes as a mechanical machine for remote control, centralized control or automatic control.
• 【APPLICATION SCENE】Main uses: automotive, electric sofa, electric stand lifting rod, industrial electric lifting system, camera frame, head camera, wedding system.

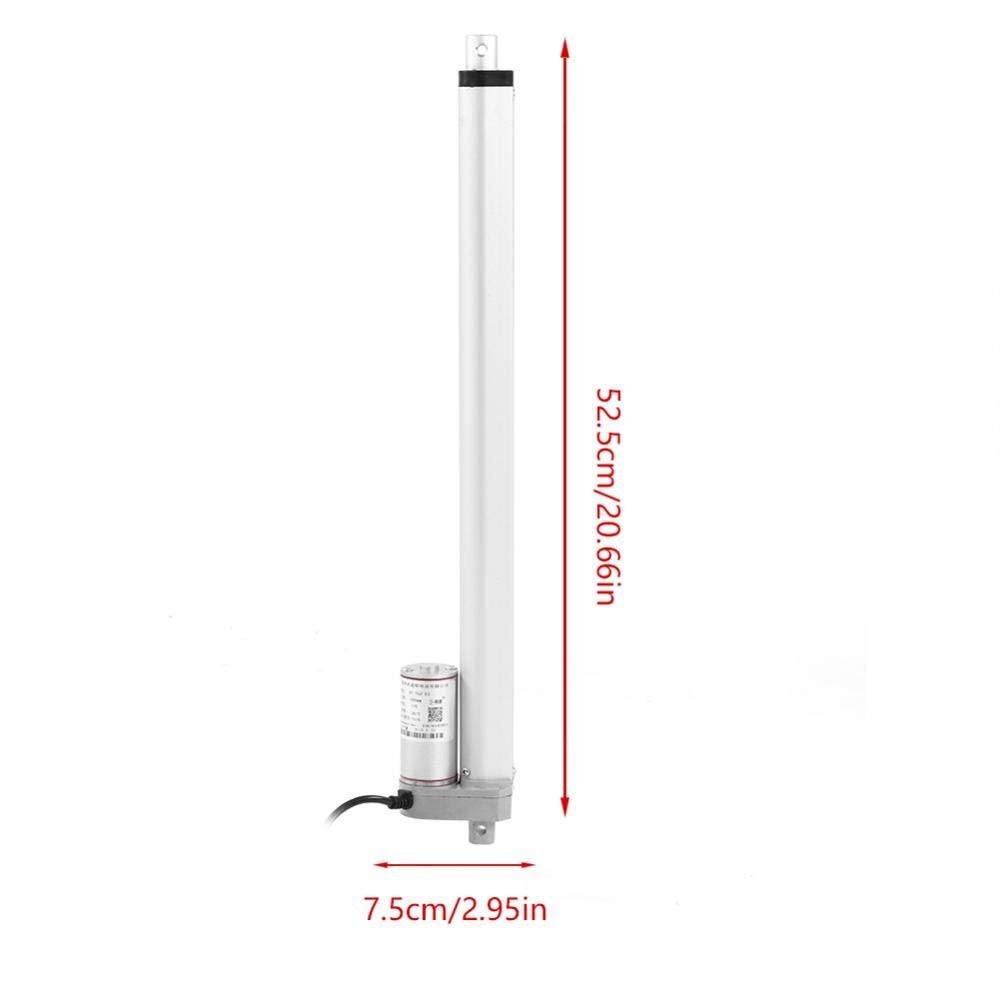

Specifications: Material: Metal Rated Voltage: DC 12V Optional Stroke Length: 150mm, 200mm, 300mm, 350mm, 400mm, 450mm, 700mm Speed: 10mm/s Max Push Load: 750N Connection mode: Elongation: Positive pole to black line, negative pole to red line. Shorten: Positive pole to red line, negative pole to black line. Weight: 909-1879g Size (Approx.) Stroke Length 150mm 200mm 300mm 350mm 400mm 450mm 700mm Total Length 275mm 325mm 425mm 475mm 525mm 575mm 825mm Width 75mm 75mm 75mm 75mm 75mm 75mm 75mm Package Included: 1 x Linear Actuator Note: Only linear actuator, no other stuff included.
