12V-24V 4Pin Reversing Backup Rear View System 7" TFT LCD HD Monitor with Sun Shade Bracket +2x 18LEDs IR Night Vision Waterproof Reverse Camera for RV/Bus/Trailer/Truck

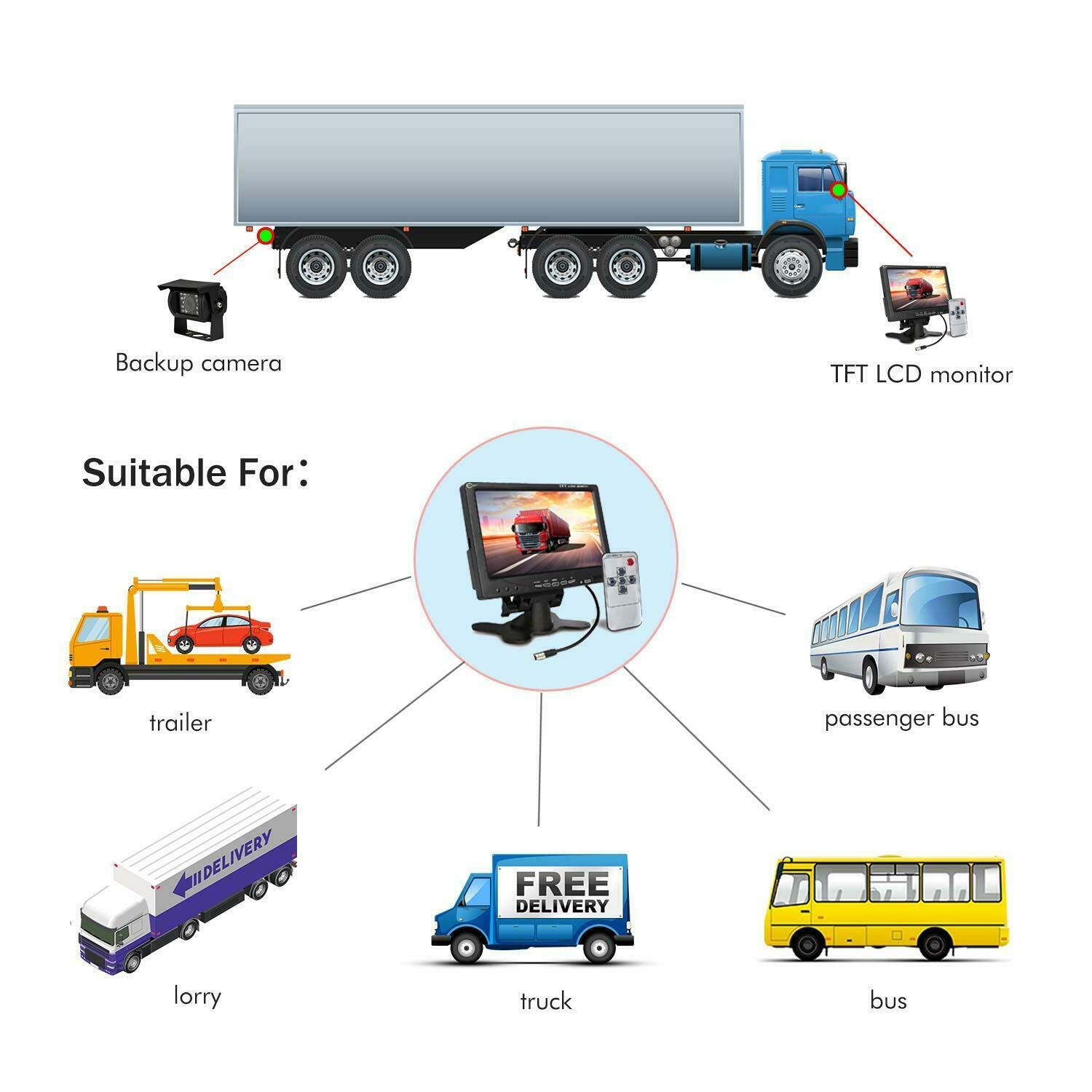

• * 12V-24V 4Pin Reversing Cameras System: 7" TFT LCD Monitor + Heavy Duty Night Vision Rear View Camera +4Pin power cable with a waterproof aerospace-type connector, can be used for Vehicle / Truck / Van / Caravan / Trailers / Camps / Boat, You can make it work full time.

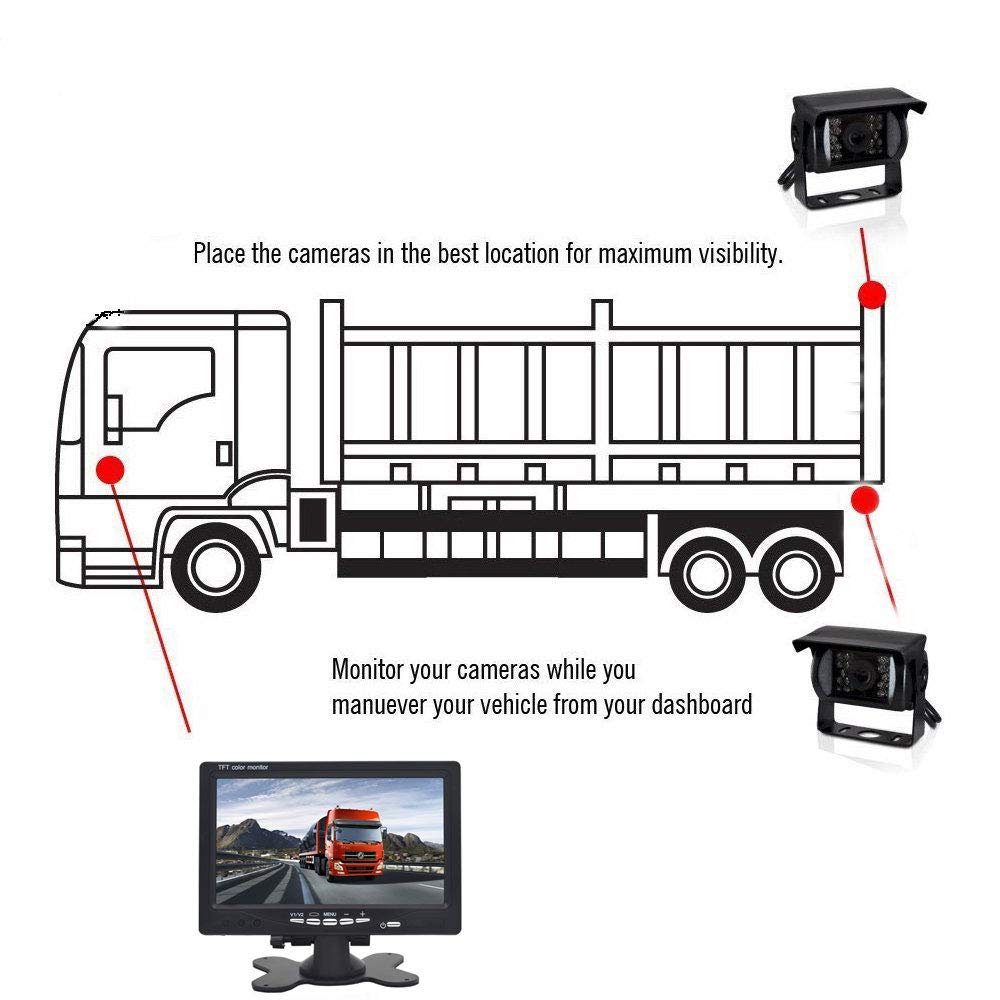

• * Simple installation: run the video cable directly from the monitor to the camera, Hard wired connection guarantees safe and clear and stable reversing image, you won't have a chance that the connection gets loose during driving, It's very outstanding device for car reverse system

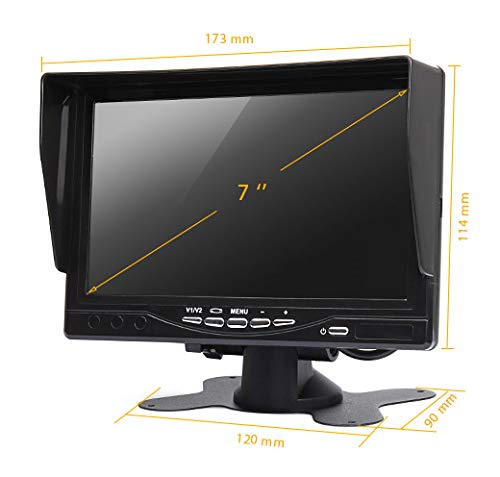

• * 7 inch TFT LCD Wide Screen Car Rear View Monitor: has 2 Channel Video Input, high resolution image, full color display and low power consumption, adjustable brightness, contrast and color.

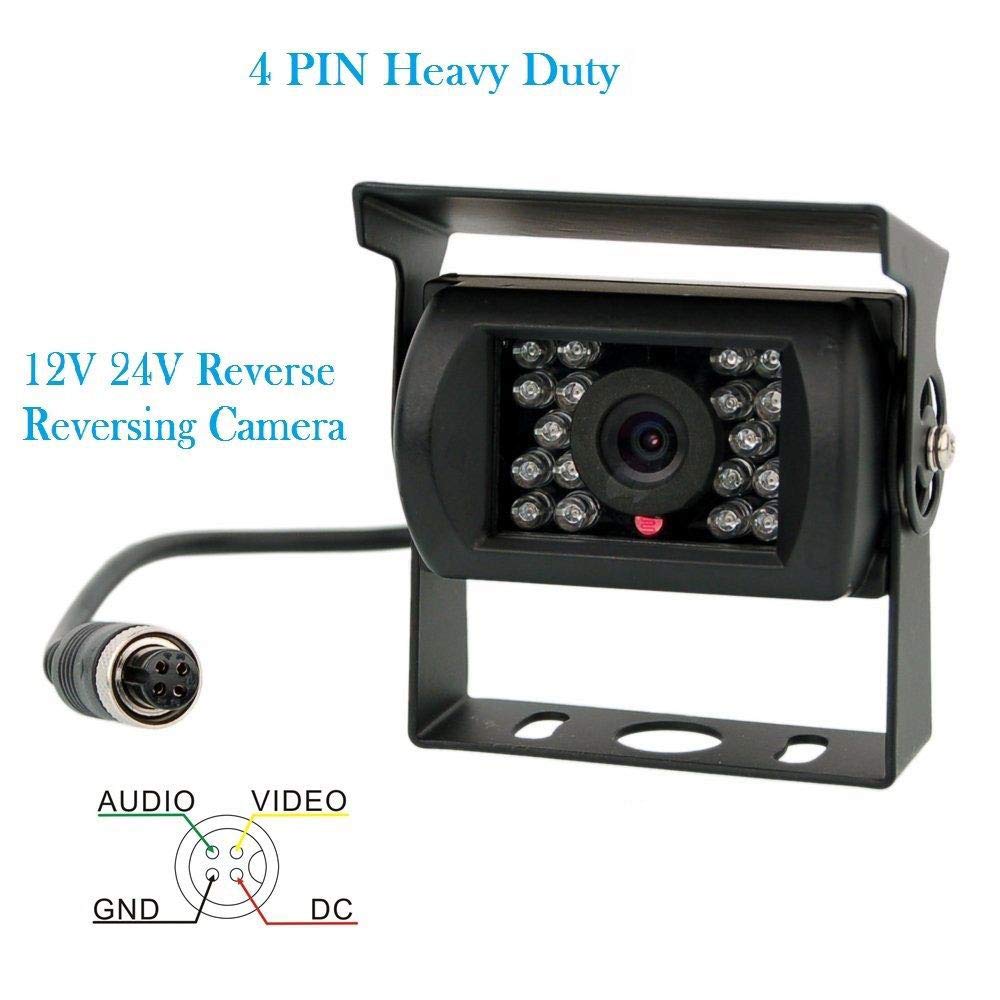

• * Waterproof Reverse Camera with 120° wide view angle, 18 IR LED Night Vision Metal heavy Duty car rear view camera, Waterproof camera body with a sun-visor and metal bracket, can view the blind spots, Easy to mount on any flat surface of the vehicle, it help your view still clearly at night or in bad weather.
• * Extended Aviation 4 Pins Connector Cord: Strong anti-interference, more close connection, easy to install. Special thick hardwire can shield vehicle's circuit interference better than normal AV cable.

Specification Camera: ◆Style: 4 PIN ◆Image Device: 1/4 Inch Color CMOS ◆Effective Pixels: 628x586pixles/PAL; 510X496pixels/NTSC ◆TV System: PAL/NTSC ◆Minimum Illumination: 0.1Lux / F1.2 (IR ON) ◆Horizontal Resolutions: 420 TV lines ◆Video Output: 1.0vp-p 75Ohm ◆Gamma Consumption: 0.45 ◆Lens angle: 120deg ◆White Balance: Auto ◆Lens angle: 3.6mm(92deg)/2.8mm(120deg) ◆S/N Ratio: More than 48db ◆Video output: RCA connector, 1.0V p-p 75ohm ◆Size: 60.5(L)*27.5(W)*31.6(D)mm ◆Power Supply: DC 12V-24V ◆Weatherproof/Waterproof Camera, can be used both in car and home, No Parking line. ◆18 LED light. Monitor: ◆LCD: 7 inch TFT LCD Screen ◆Resolution: 800(W) X 480 (H) ◆Video System: NTSC/PAL ◆Power: = 3W ◆Environment Humidity: 10% ~ 90% ◆Operating temperature: -20 ~ 60 degree Celsius ◆Storage temperature: -40 ~ 85 degree Celsius ◆Consumption: 7W ◆Power Supply: DC +12V-24V Package Contains 2 x 4Pin 18LEDS Night Vision Waterproof Car Rearview Camera 2 x 15M 4Pin Cable 1 x 4Pin 7" TFT LCD HD Monitor 1 x Holder 1 x Convert Cable 1 x Manual
