12V 100A 3Series Board with Balancing for 18650 26650 Li-ion LiFePO4 Battery Pack

• USED FOR-- Designed for 3 series 12V LiFePO4 batteries, comes with 5P-250mm wire for convenient use
• Multiple protective functions including overcharge protection, overdischarge protection, overcurrent and short circuit protection
• Balance function ensures each battery cell being fully charged at the same time
• Can be used to avoid explosion, fire and damage of your battery pack, safe for use
• Can be used to avoid explosion, fire and damage of your battery pack, safe for use

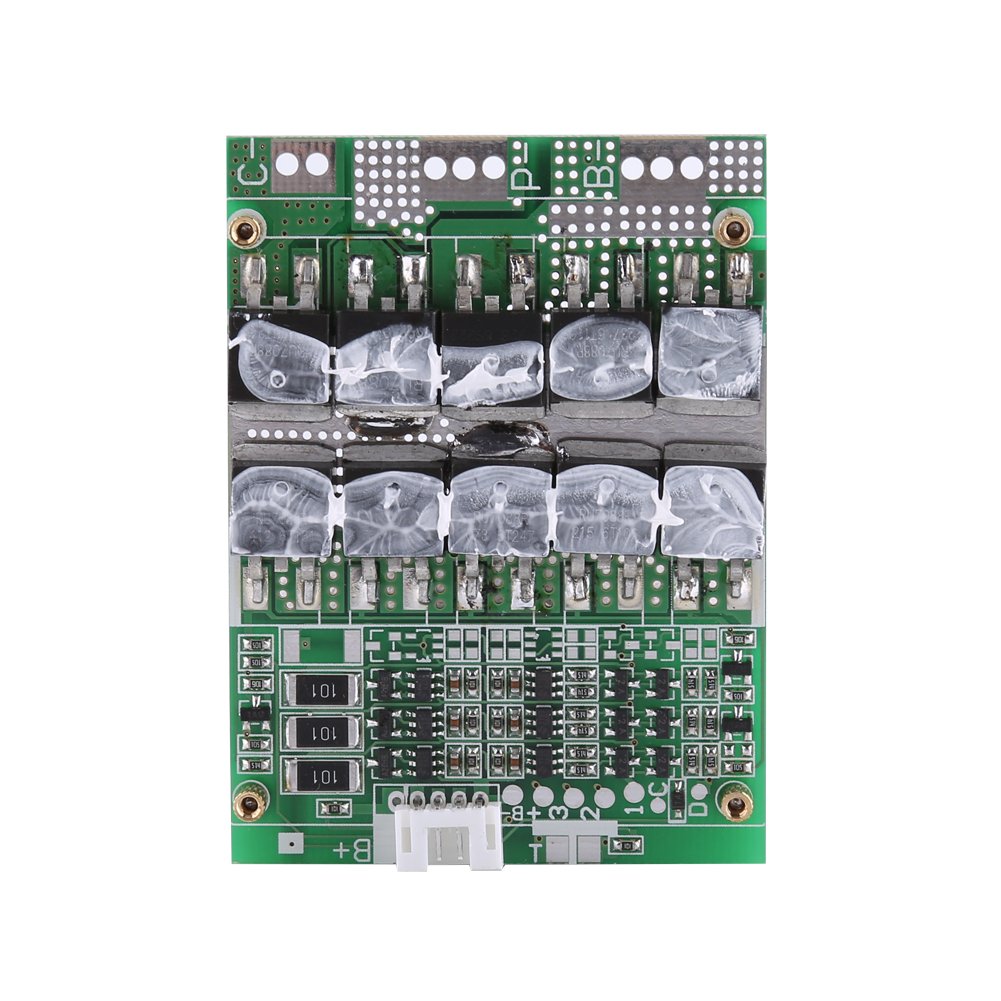

This product is a battery board which is designed for 3 series 12V LiFePO4 batteries. And the board is equipped with multiple protective functions including overcharge protection, overdischarge protection, overcurrent and short circuit protection, so you can use it safely. Moreover, the balance function the board equipped ensures that each battery cell can be fully charged at the same time. Specifications: Continuous Discharging Current: 100A(MAX) Instantaneous Discharge Current: 150A Charging Voltage: 12.6V Charging Current: 10A(MAX) Over-charge Detect: 4.28±0.05V Protect Delay: 0.5S Over-charge release: 4.08±0.1V Release Voltage: 4.20±0.05V Balance Current: 42±5mA Over-discharge Detect: 2.8±0.1V Over-discharge Detect delay: 0.1S Release Voltage: 3.0±0.1V Detect Voltage: 150mV Detect Delay: 9mS Current Detect: 200±10A Release Condition: Cut Load Protect Condition: Load Short Circuit Detect Delay: 250uS Inner Resistance: ≤25mΩ Working Current: ≤20uA Sleep Current (when Over-discharge): ≤10uA Working Temperature Range: -30/+80℃ Package Includes: 1×3S Battery Board
