120A Quick Connect Battery Connectors - Modular Power Connectors with Quick Disconnect

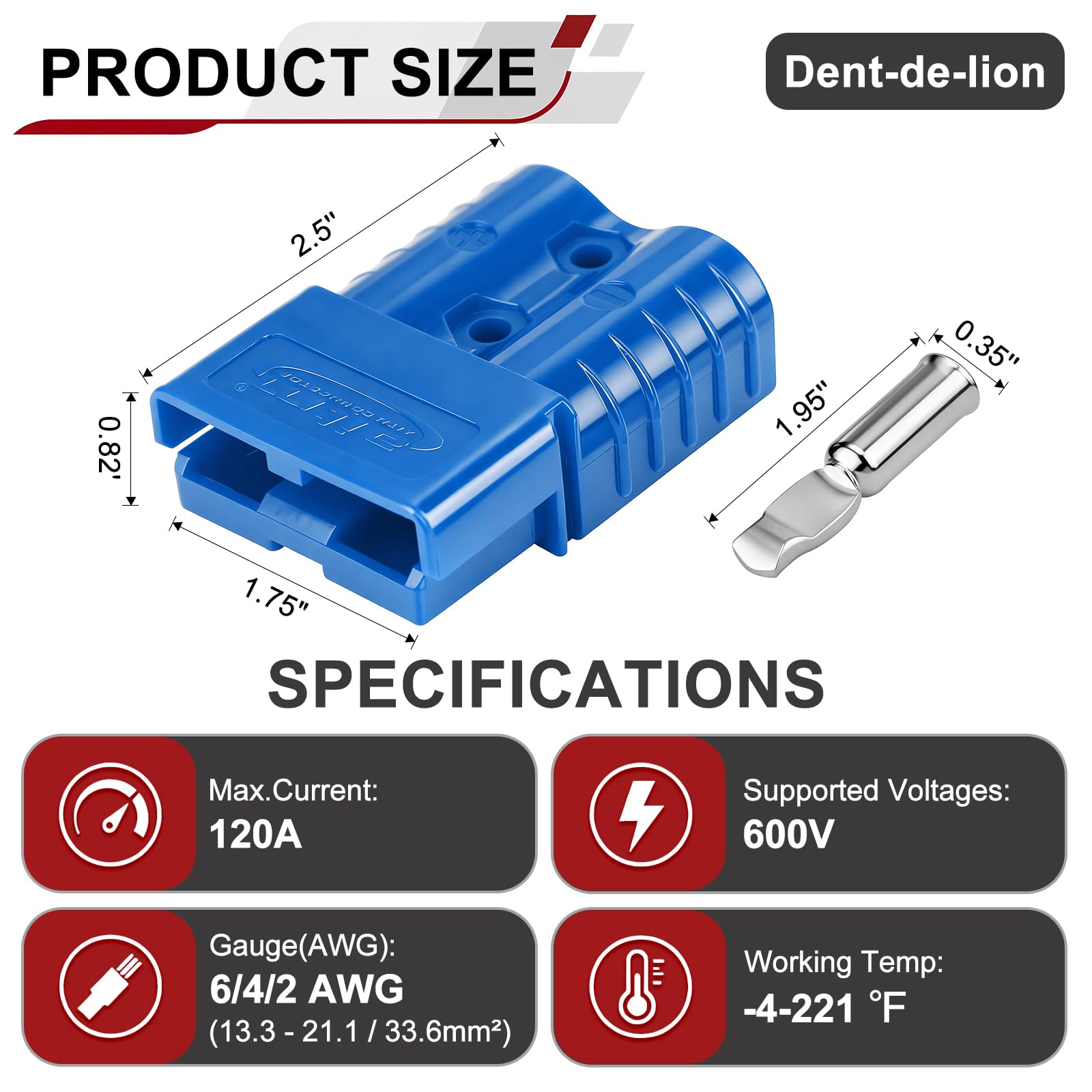

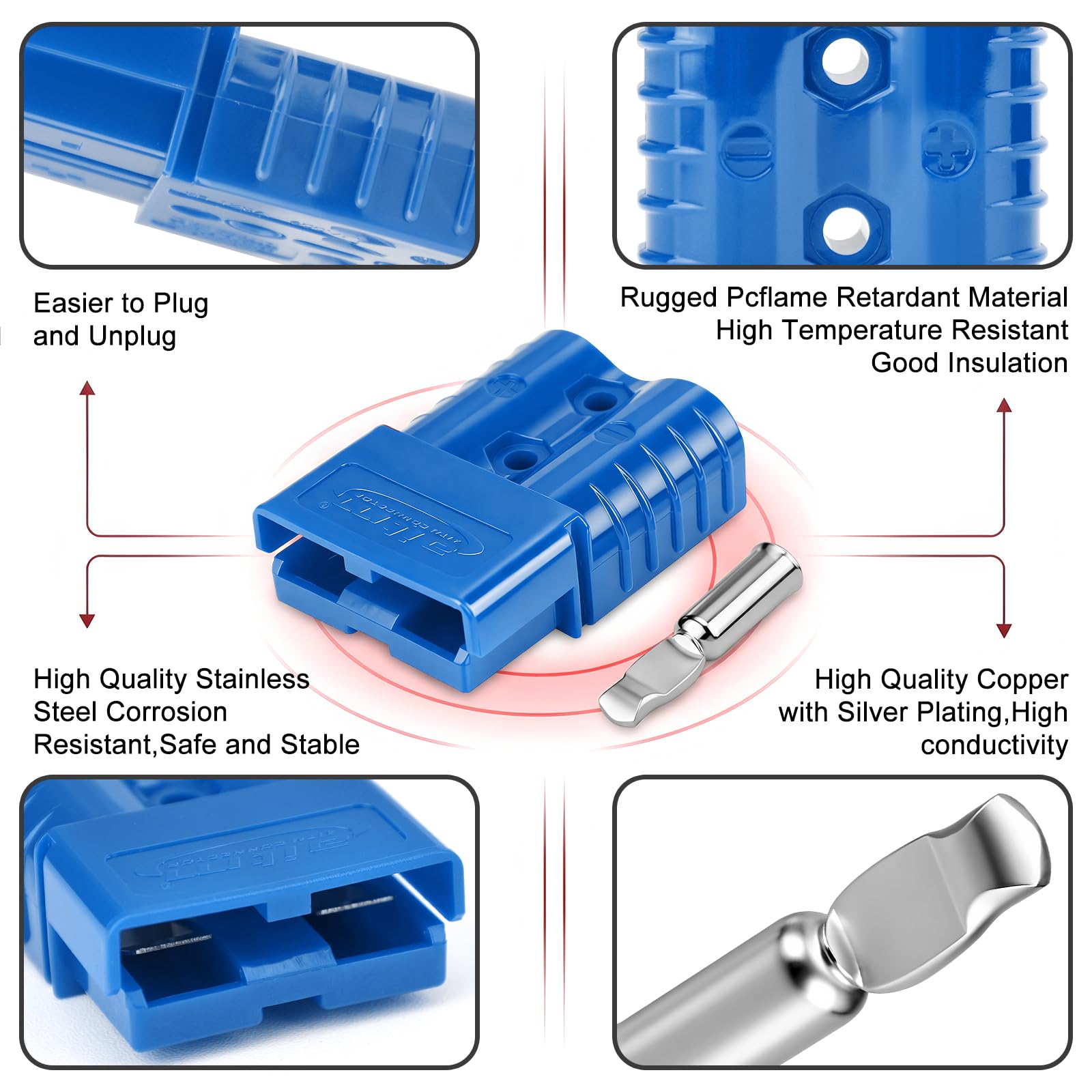

• Package includes: Everything shown in the first photo is included. Contact material: Silver-plated copper. Nominal current (Amperes): 120 A. Nominal voltage (Volts): 600 V. Contact gun wire size [AWG]: 2/4/6AWG (1 3.3 mm2 - 21.1 / 33.6 mm2). Medium contact resistance (micro ohm): 140. Insulation resistant to test voltage (AC / DC volts): 2200 V. Contact resistance force (lbf): 100 lbf.
• No charge (contact cycles/disconnection): at 10,000 under load (hot plug 250 cycles @ 120V). Medium insertion force (pounds): 20 lbf. Operating temperature °C: -20°C to 105°C. Flammability class of the housing material: UL 94-V0. Material: the product is made from good materials, continuity is perfect, resistant to environmental factors.
• Self-erasing makes the thrust needle surface clean, low contact resistance is reliable. The connector can be used in a powerful shock environment and with the quick action function in a large electric current.

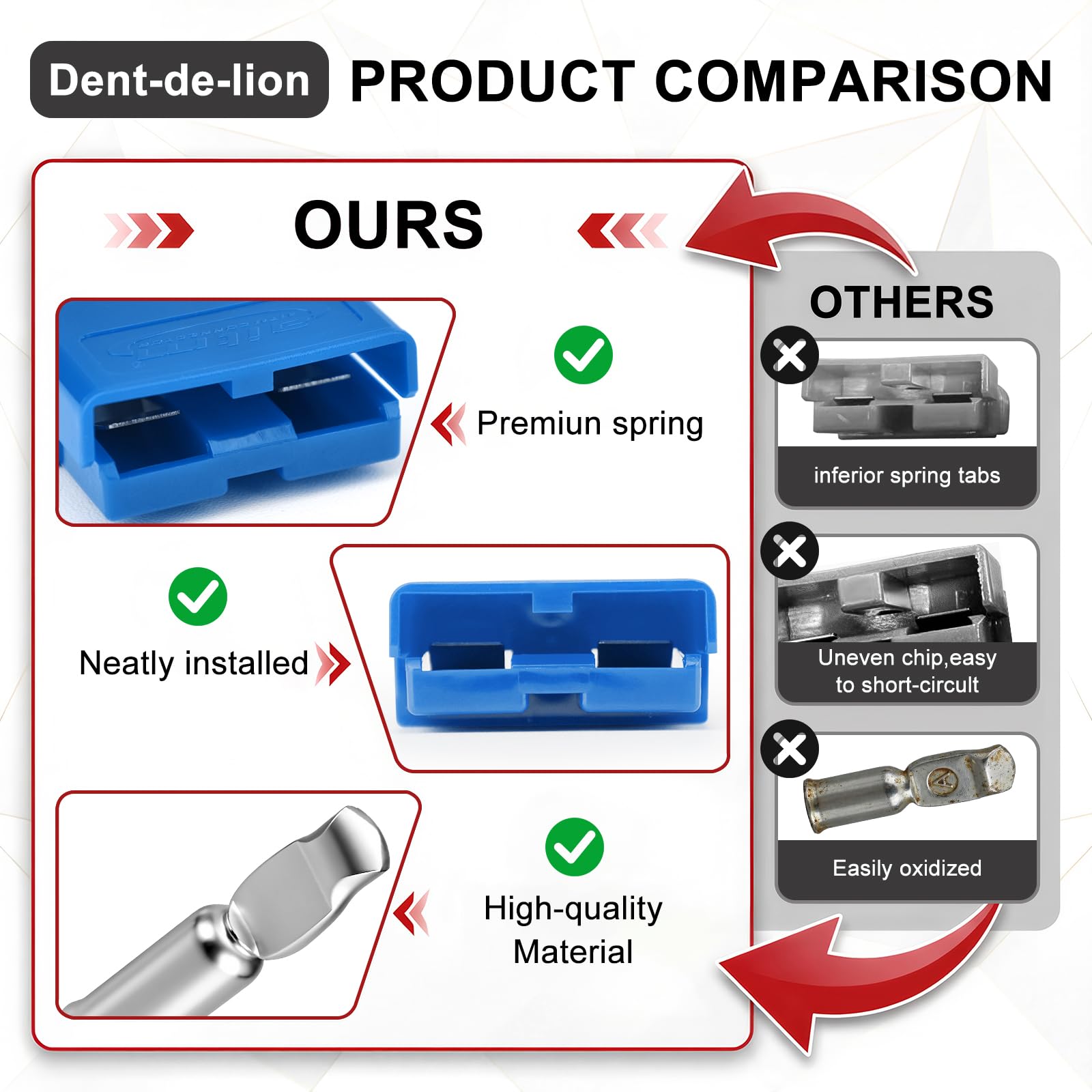

• The stainless steel shrapnel can ensure constant contact stress and remedies intermittent overload in case of frequent splitting and interruption.

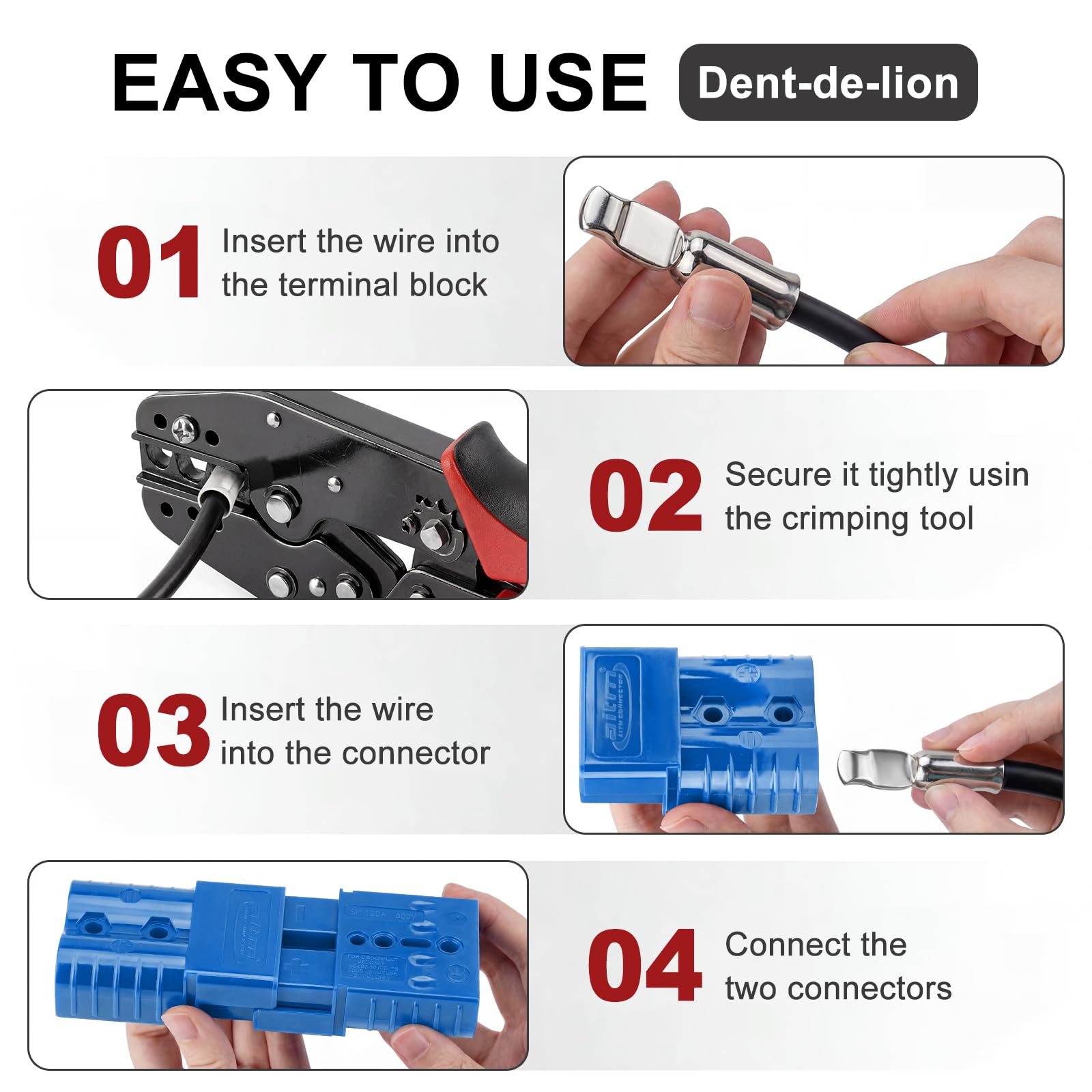

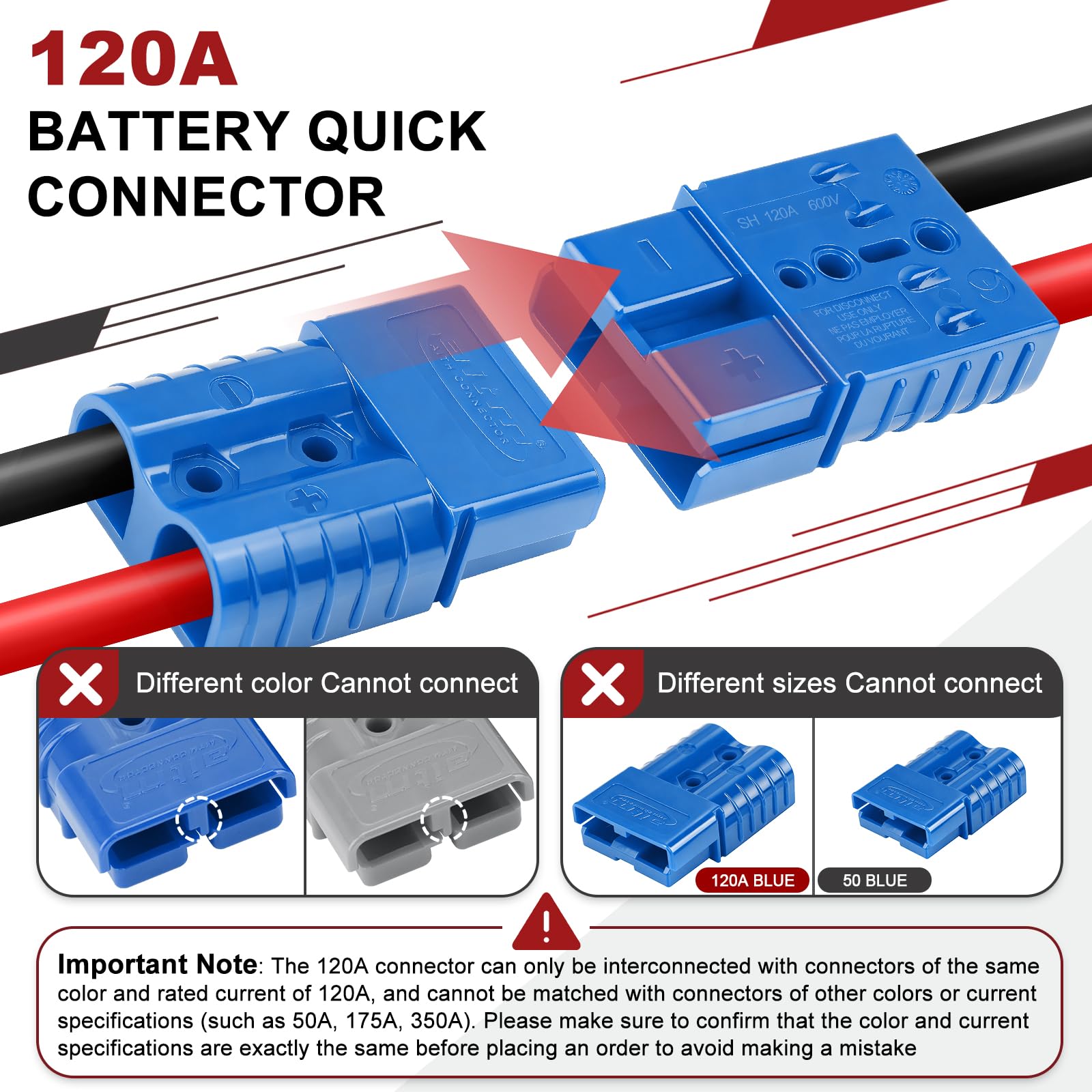

• Easy to use: Regardless of the plug or socket, insertion in the same colour is a pair, easy and quick to splice and interrupt.

Package includes: 4 x sockets, 8 x terminals.
