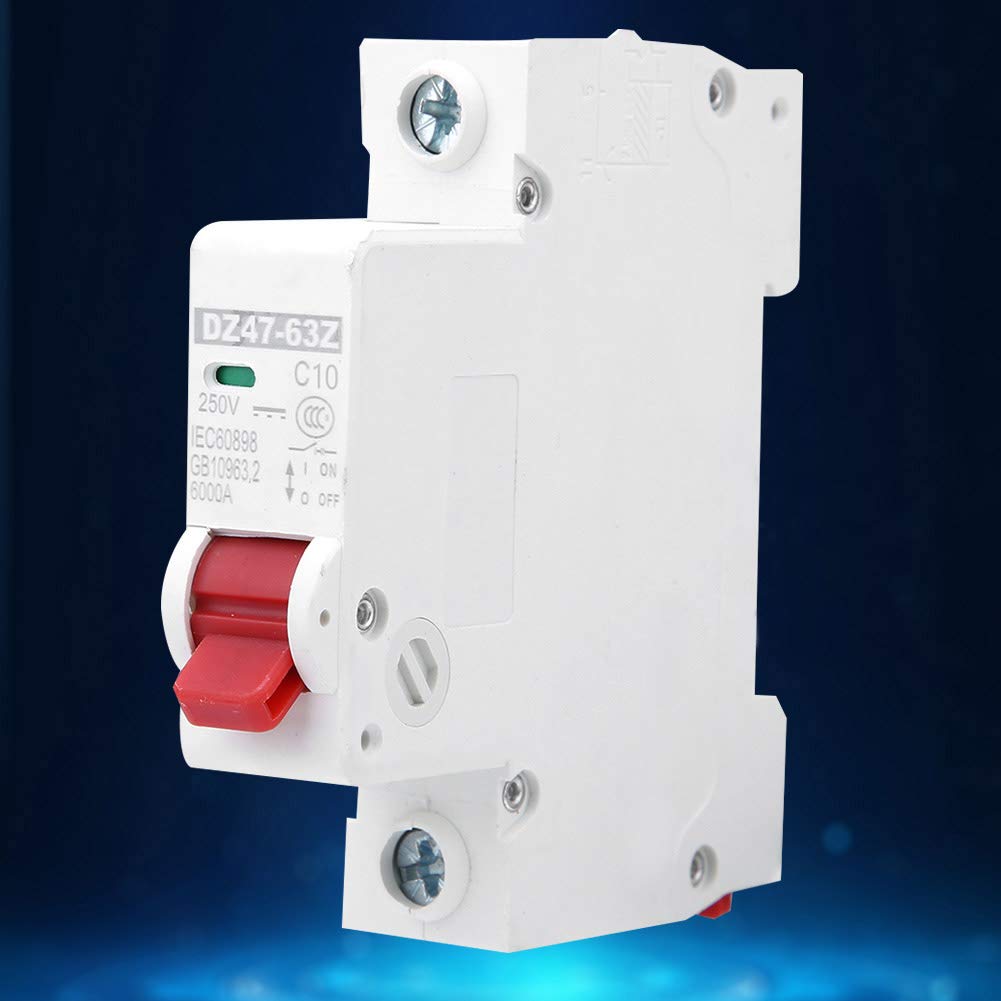

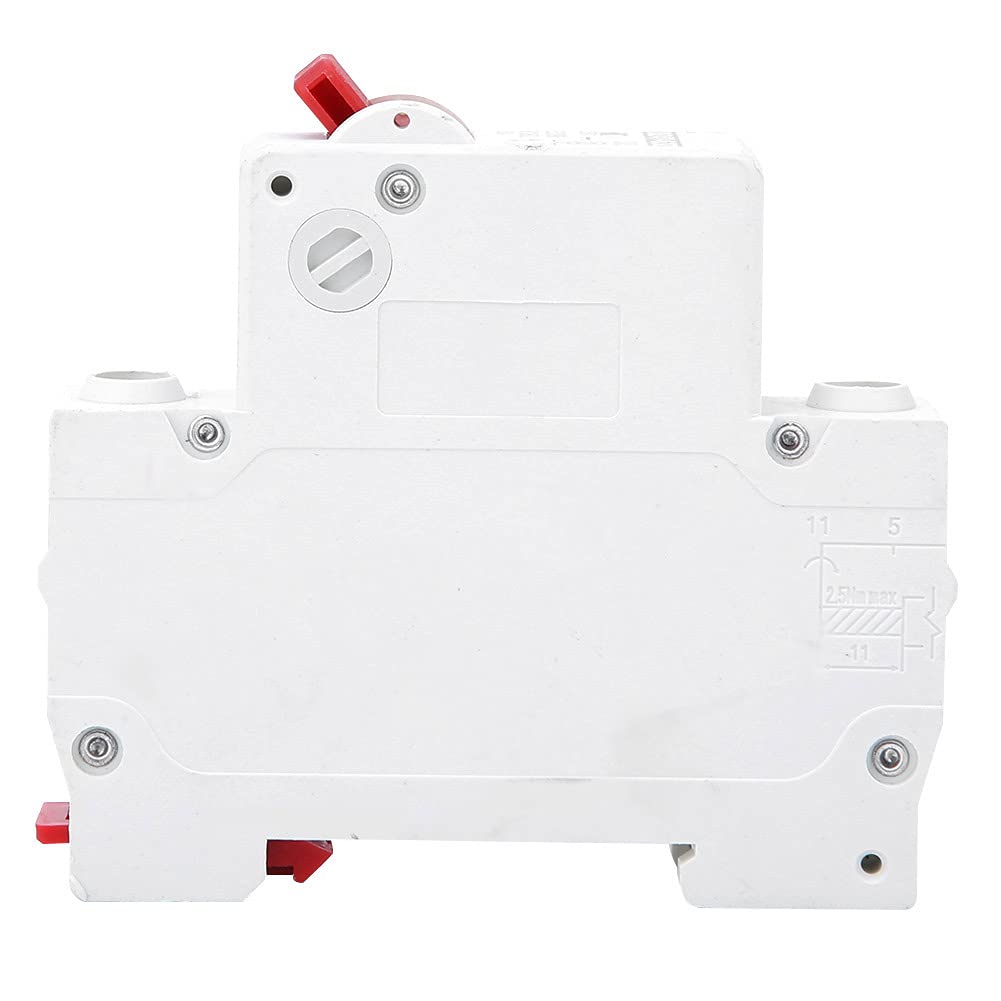

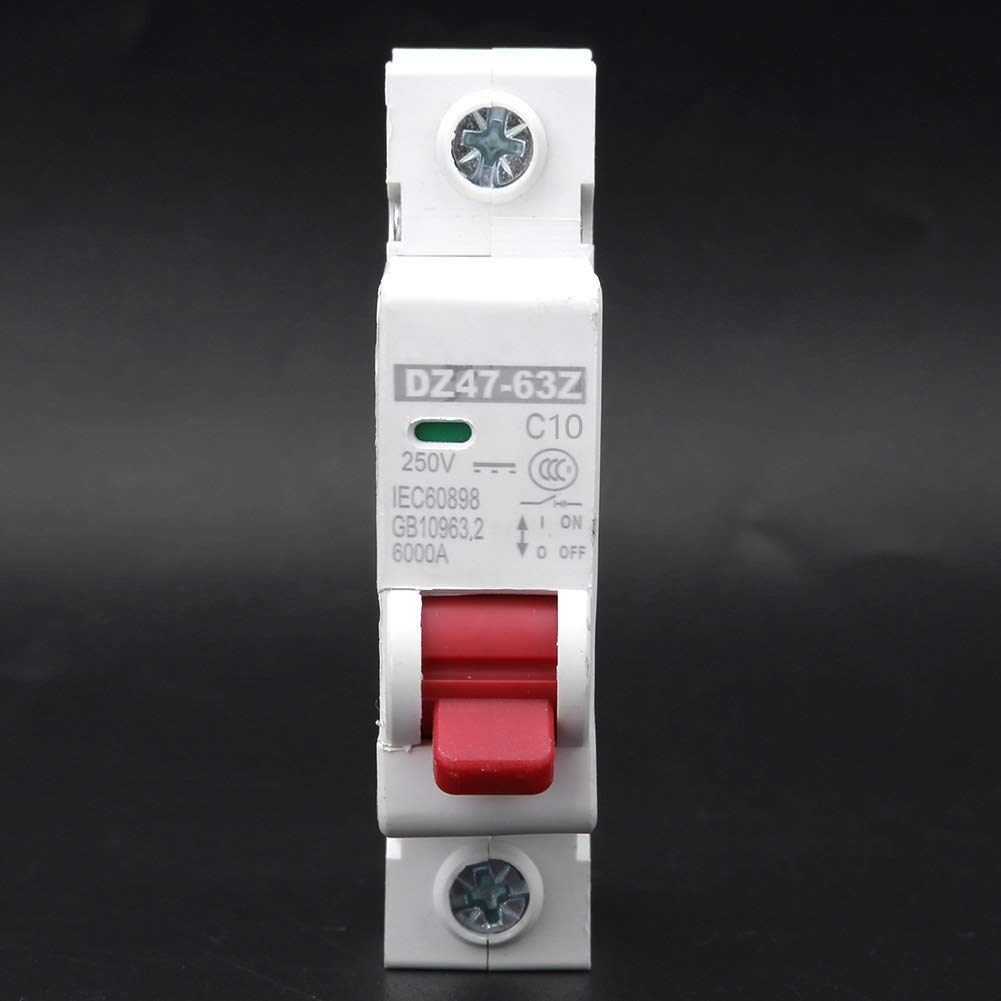

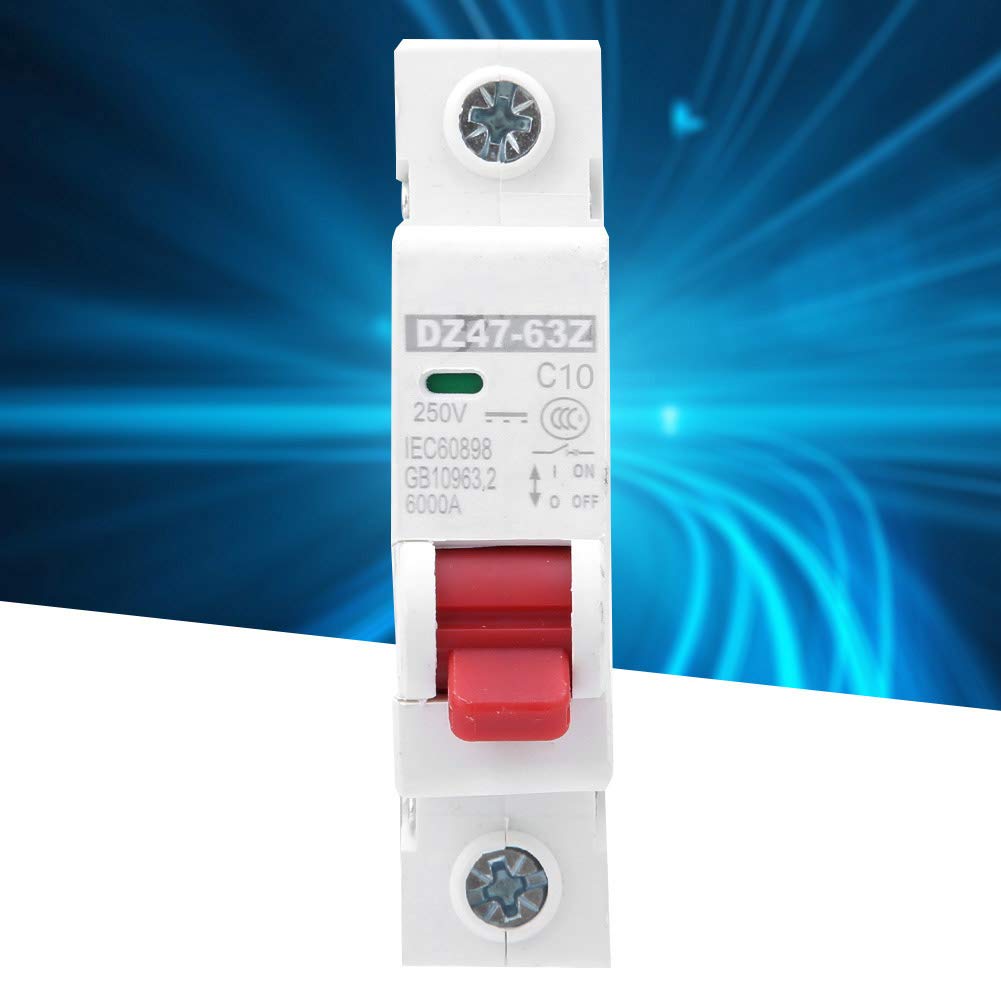

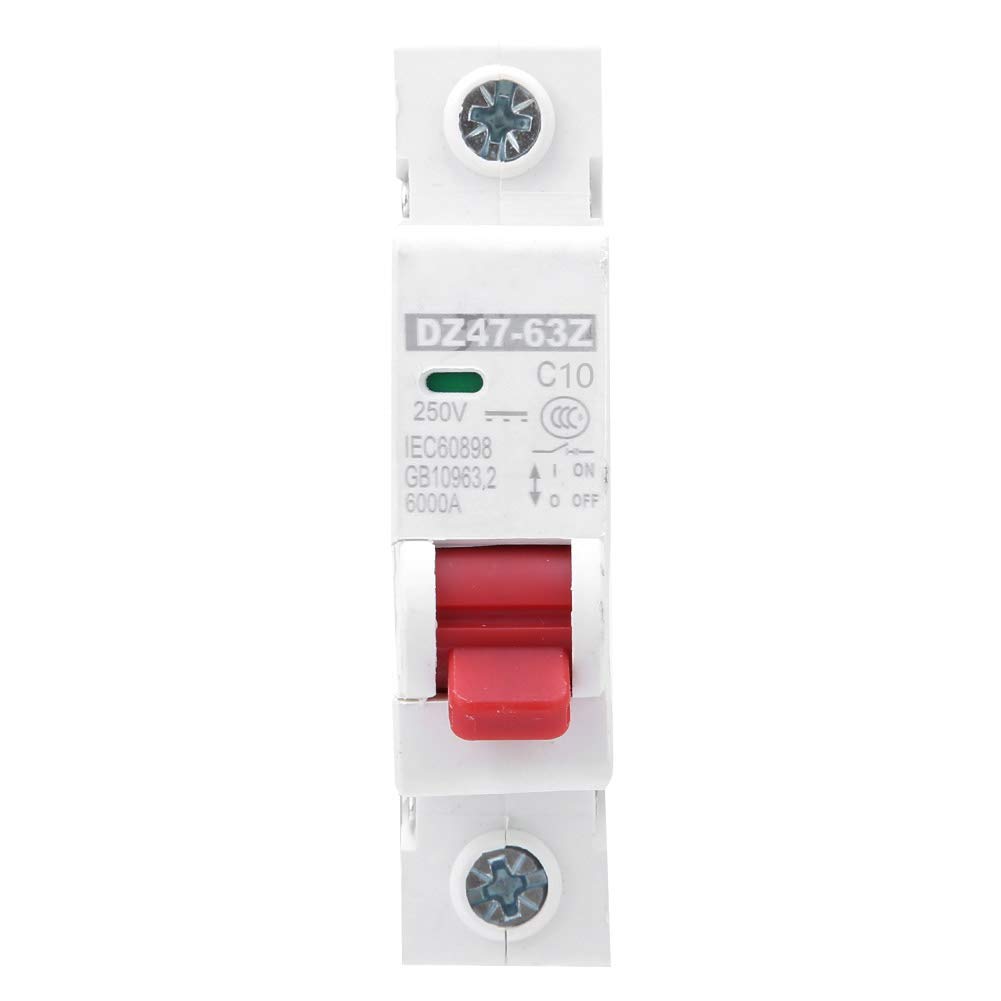

DC Miniature Circuit Breaker,12 Pcs DC 250V Miniature Circuit Breaker 1P Din Rail Mount Overload Protection Switch for Lighting Distribution Lines Solar PV System(10A)

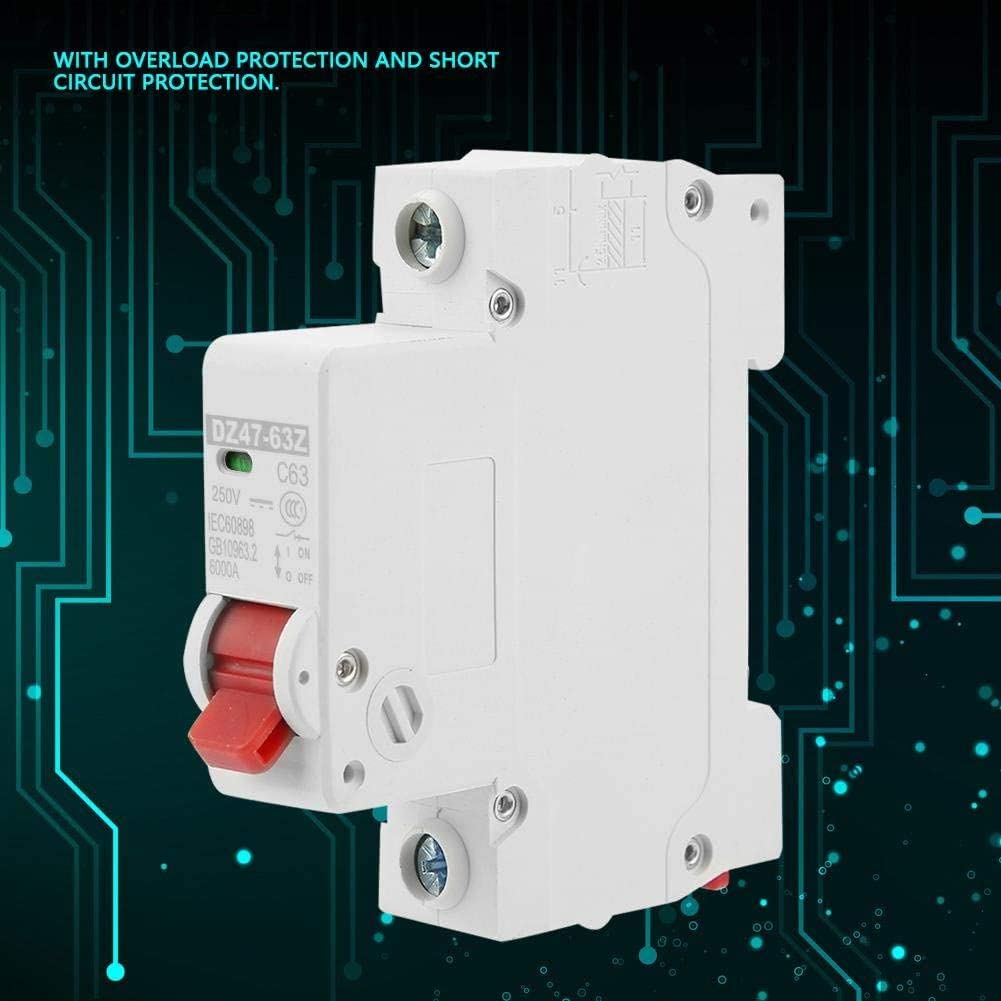

• MAIN FUNCTION: Circuit breakers can protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation. When the current in the circuit exceeds the rated value, it will automatically disconnect, which can better protect the electrical equipment and circuits in the home.
• PRODUCT PARAMETERS: Rated Voltage: DC250V, Current Shell Frame: 63A, Segmentation Ability: 6KA, 3C Rated Voltage Range: AC rated voltage 1500V, Optional Current: 10A, 16A, 20A, 32A, 40A, 63A, Mechanical Life: 20,000 times, Poles Number: 1P.

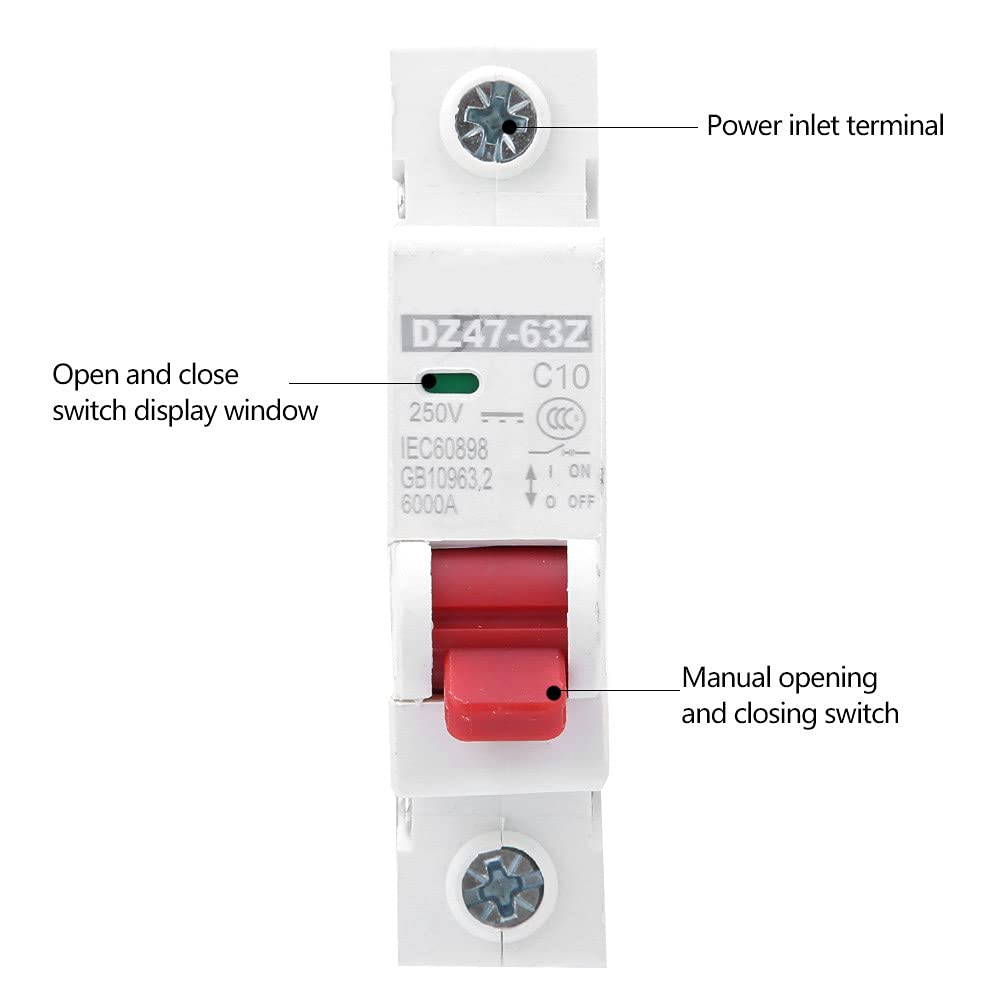

• UNIQUE DESIGN: This miniature circuit breaker adopts screw clamp and 35mm DIN rail installation, modular structure design. The electromagnetic trip system is adopted, which can trip immediately when the circuit is short-circuited to protect the safety of the circuit.

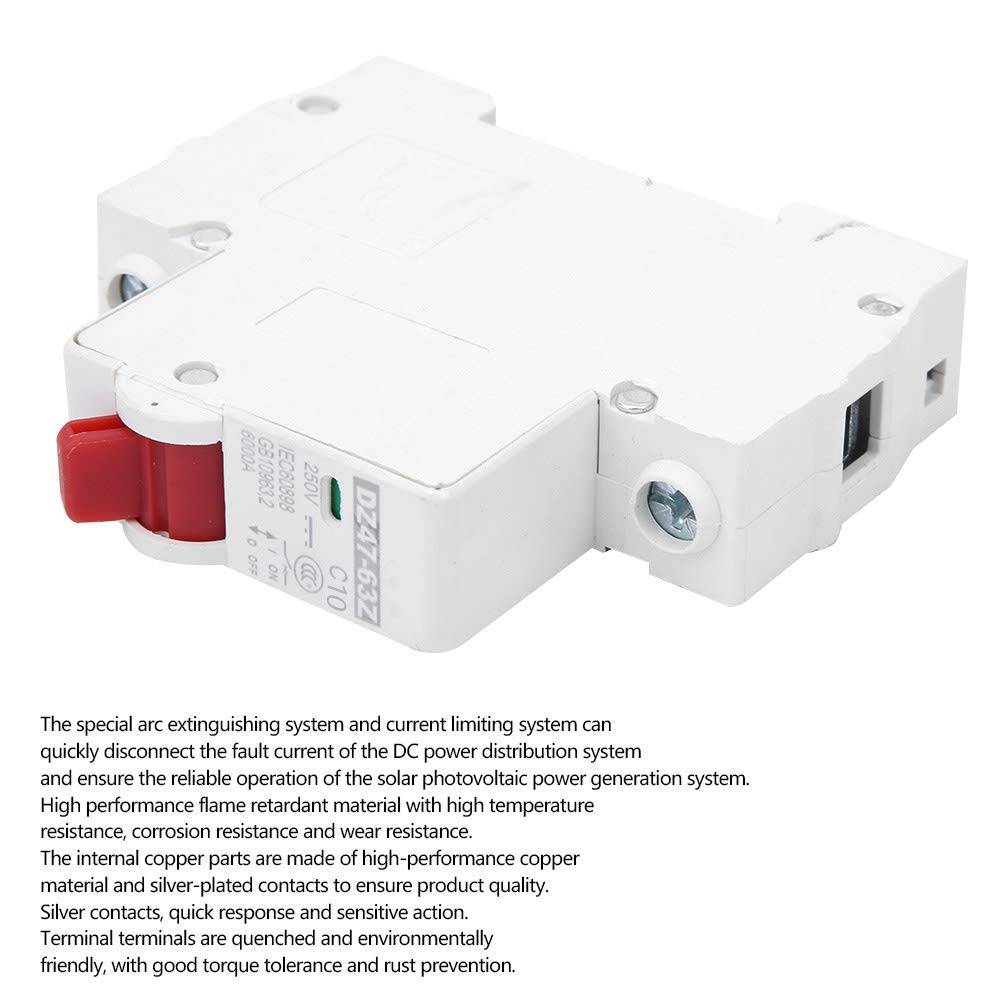

• DURABLE: The shell of the circuit breaker is made of flame-retardant material, which is resistant to high temperature, not easy to wear, and not easy to deform. The interior is made of copper, the contacts are silver plated, the tripping response is fast, the action is sensitive, the performance is stable, and the use is convenient.
• APPLICATION: Excellent performance circuit breaker device is used in power supply system, ship power supply system, solar photovoltaic system or other DC system. DC arc extinguishing is more difficult than AC. This kind of DC circuit breaker has an auxiliary arc extinguishing magnetic system, which is more efficient and practical.

Specification: Item Type: Circuit Breaker Model: DZ47-63Z Number of Poles: 1P Rated Voltage: DC250V Wiring Method: Front wiring Segmentation Ability: 6KA Current Shell Frame: 63A Mechanical Life: 20,000 times Arc Extinguishing Medium: Air 3C Rated Voltage Range: AC rated voltage 1500V Installation Method: Rail mounting Application Scenario: Secondary power distribution Scope of Application: Solar energy, small power generation system, combiner box and other communications, photovoltaic system and other DC systems Optional Current: 10A, 16A, 20A, 32A, 40A, 63A Package List: 12 x Circuit Breaker
