12 mm X 99 mm Sleeve Anchor with Hex Nut, Expansion Screw with Hexagonal Nut and Threaded Stud, Expanding Metal Wall Plug, Preassembled Wedge Anchors for Concrete Masonry, Brick Wall (Pack of 2)

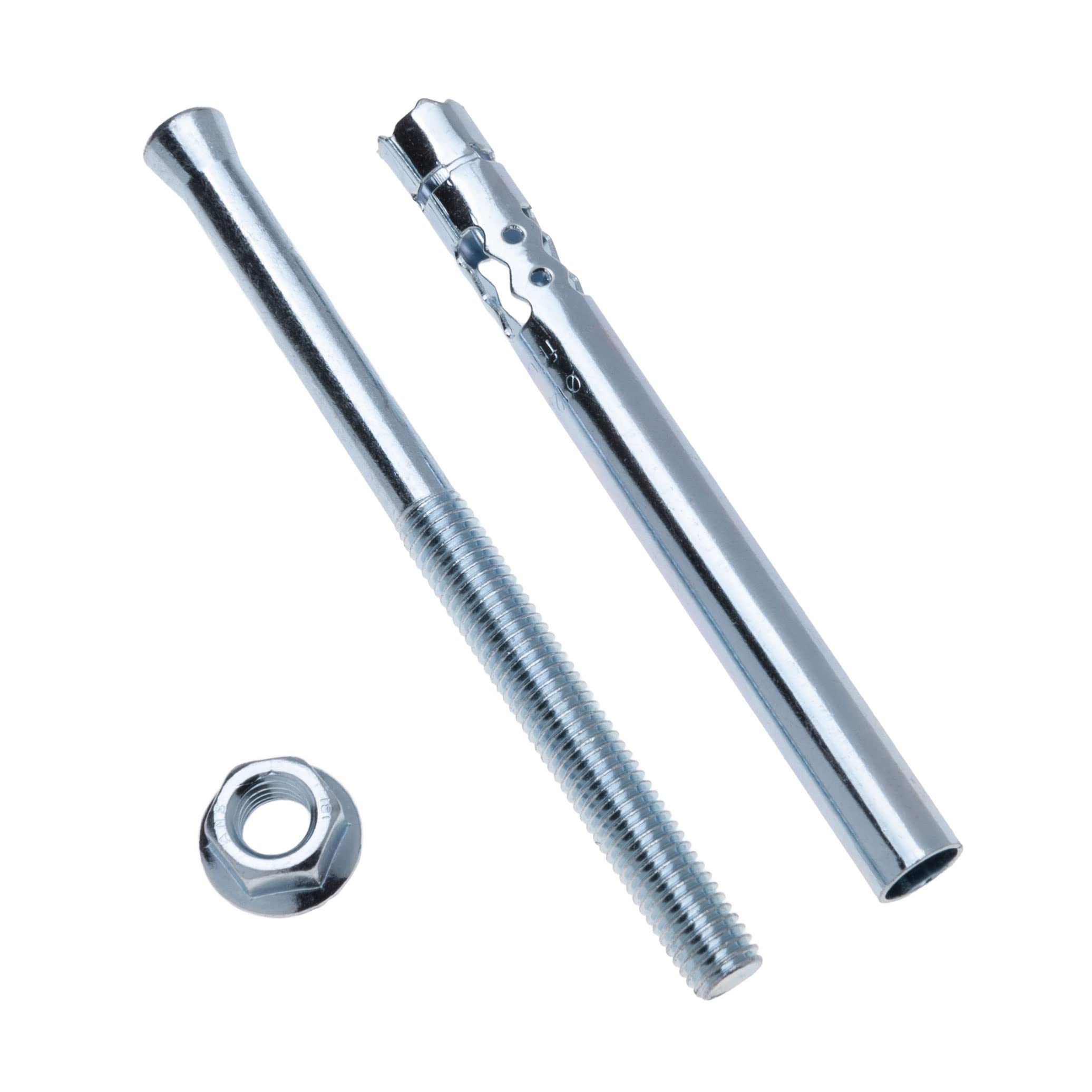

• SLEEVE ANCHORS: Allso known as wedge anchors Sleeve Anchors are pre-assembled single units that are used in pre-drilled holes. They comprise of a threaded stud with a flared cone shaped end, expandable metal sleeve and flange nut.
• KEY FEATURES: One piece, preassembled, threaded sleeve anchor diameter equals drilled hole size. Simple installation through object to be fastened. Variety of diameters & lengths to suit different applications. Low costs on supply and installation.
• INSTALLATION: 1) Drill hole in base material. 2) Clean out dust and drilling fragments .3) Insert anchor into hole and drive until nut and washer are flush with the material surface. 4) Set anchor bytightening to specified torque.

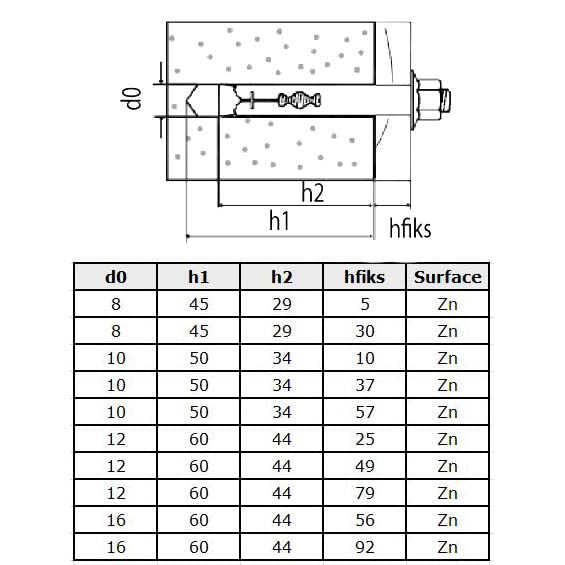

• DIMENSIONS: Plug 12x99mm, thread M10, Fixing thiknes 49mm, Hole 12mm, Zinc plated, Wrench 15
• WIDE APPLICATION: Ideally used in applications that requires a medium-duty anchor for fixing into concrete, solid masonry and brick. Typically used by contractors in the building, plumbing, electrical & carpentry trades. Commonly used for securing shelving, racking, brackets, hand rails, door frames, signage, satellite dishes, garage doors, ductwork, piping, electrical cabinets, timber & metal fixing to walls, floors etc.

Sleeve Anchors Bremick Sleeve Anchors are one piece, preassembled, torque controlled, mechanical anchors consisting of a threaded plow bolt with a coned end assembled with a pressed steel expansion sleeve. During setting the cone is drawn into the anchor sleeve which provides sufficient expansion force to provide a lock to the base material through a combination of friction and base material deformation. Pretension in the installed anchor is preserved by pre engineered deformations in the sleeve that are designed to crush during the installation process. Package contains: 2 pc Hex nut sleeve anchors
