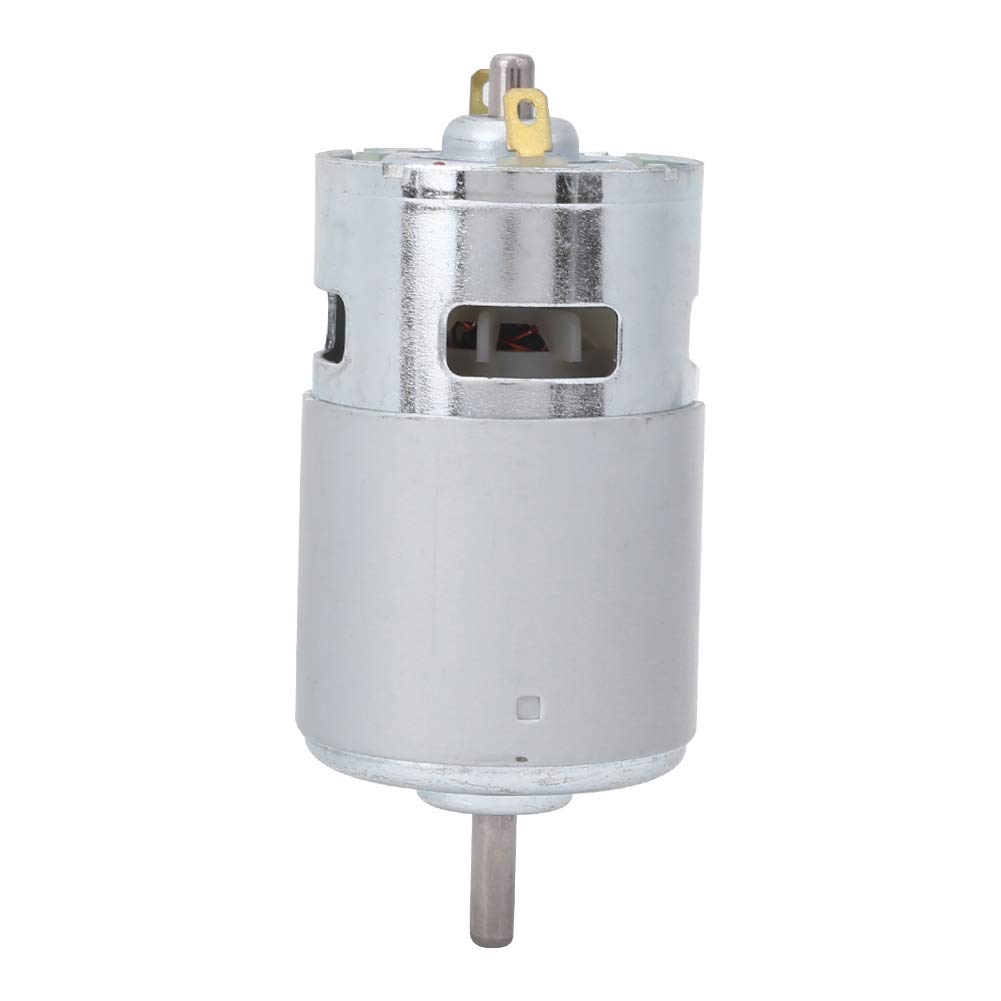

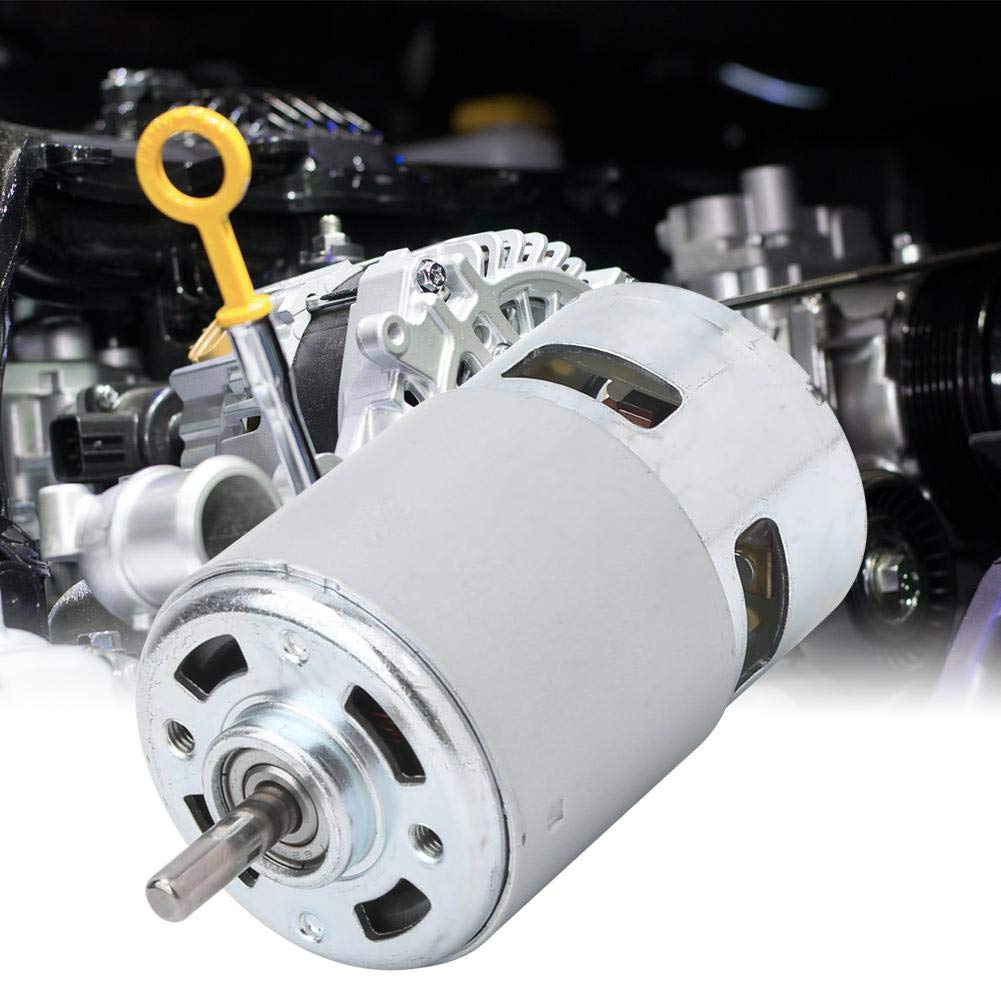

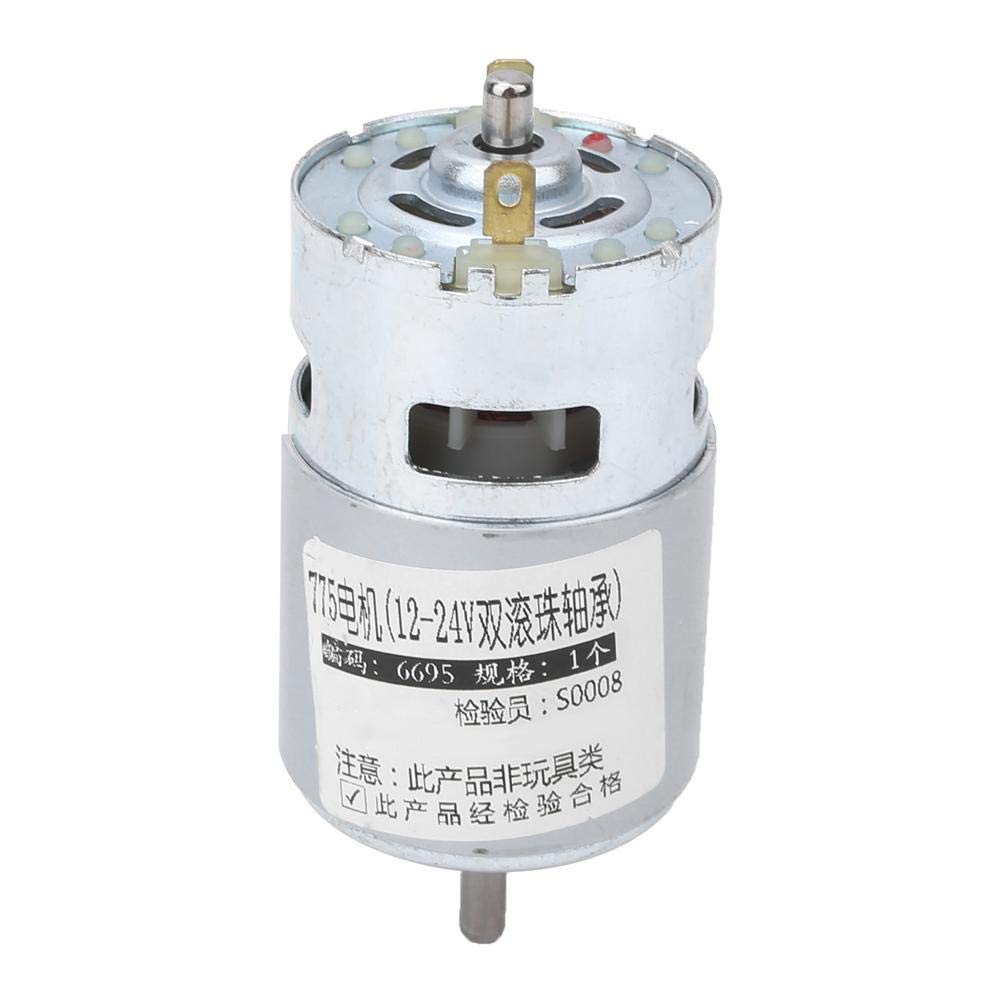

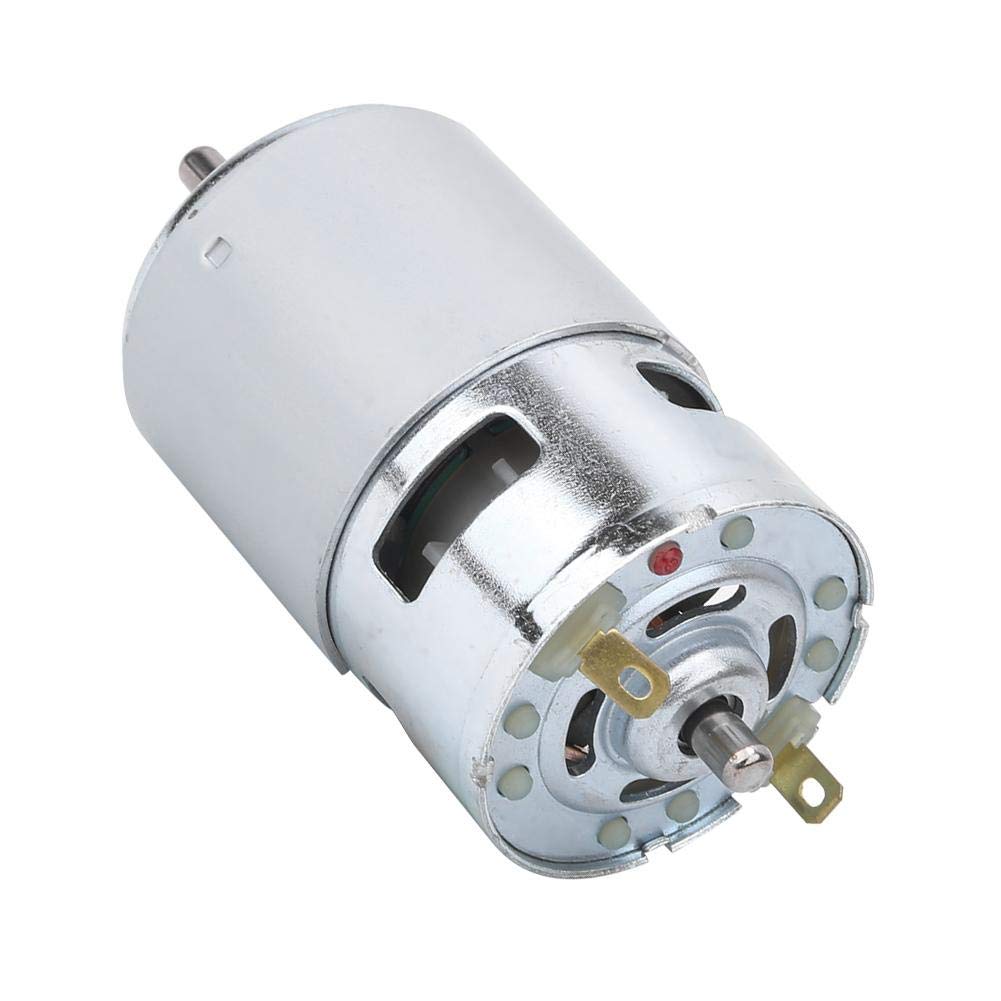

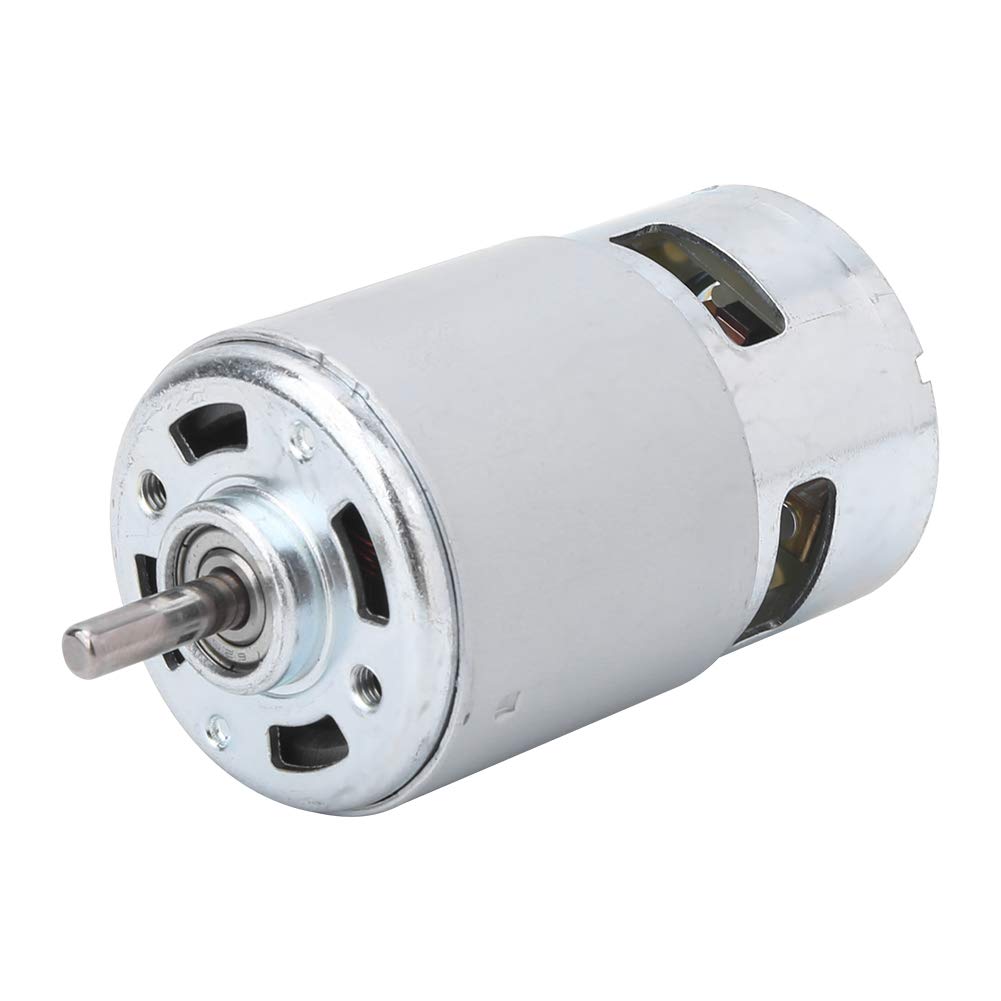

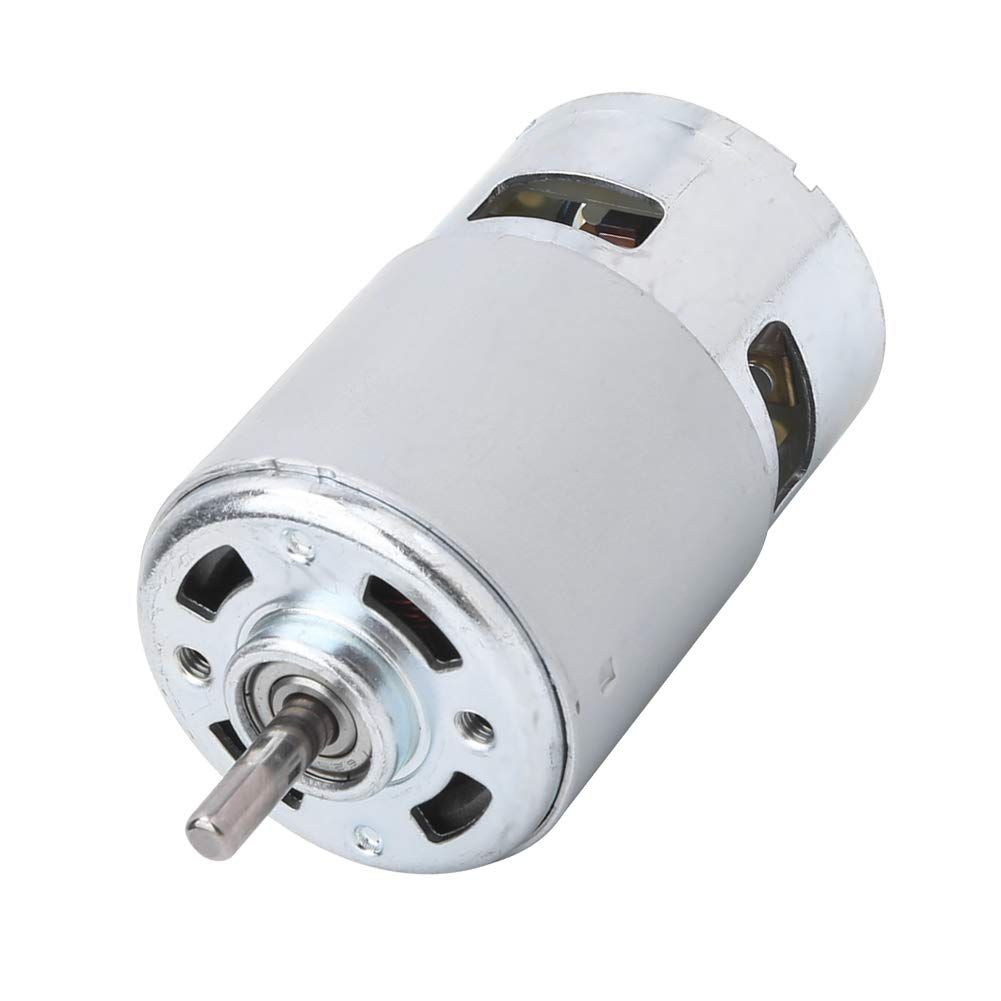

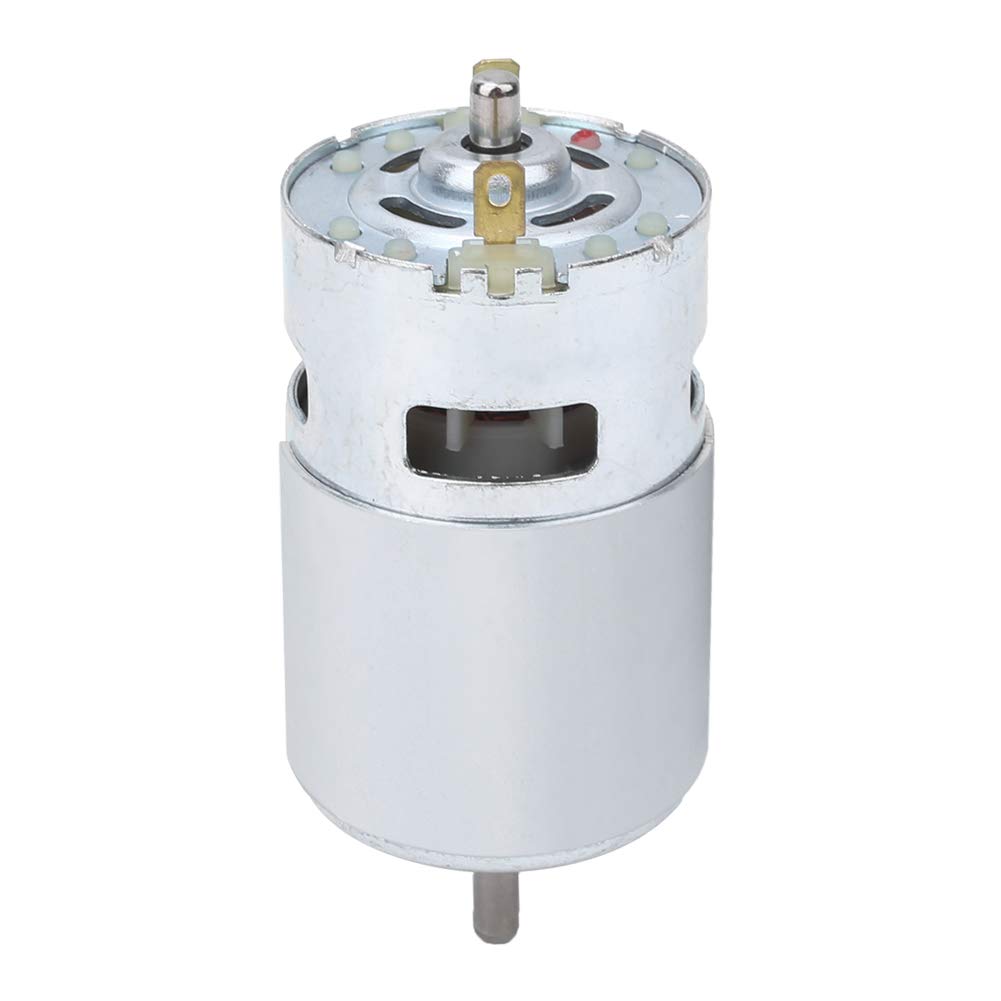

12-24V 775 DC Motor, Miniature Large High Speed Low Starting Current DC Motor with Double Ball Bearings at Both Front and Rear

• Excellent Features: High torque, high speed. Low starting current, stable and efficient. Metal case, rust and
• Operating Voltage:The operating voltage of this DC motor is 12-24V. Please pay attention to this number when you purchase.
• With Double Ball Bearing:This motor has double ball bearings at both front and rear, which makes this motor perform better.
• Premium Material: This DC motor is made of high quality materials. It is rugged and
• Intimate Tips:Motor shakes or revolves not smoothly after power-on. This is due to insufficient power supply. It is recommended to replace the larger power adapter.

Specification: Item Type: Motor Measured Parameters (for Reference): 12V: No-load current: 0.92A, Stall current: 2.6A, No load speed: 10000rpm, load speed: 8800rpm 24V: No-load current: 1.46A, Stall current: 2.9A, No load speed: 20000rpm, load speed: 17600rpm Motor Step Height: 4.5mm Motor Step Diameter: 17.5mm Output Shaft Length: 16mm (Shaft Length above the Step Level) Shaft Diameter: 5mm Motor Diameter: 42mm Motor Length: 66.5mm Motor Tail Step Height: Approx 4.5mm Motor Tail Shaft Length: Approx 6.5mm Mounting Hole Pitch: Approx 29mm Mounting Screw: M4 Screw FAQ: Motor shakes or revolves not smoothly after power-on. This is due to insufficient power supply. It is recommended to replace the larger power adapter. Package List: 1 x Motor
