110‑380V 16A Rotary Cam Switch,Changeover Switch,Universal Rotary Switch Positioning Type Electric Cam Switches for Electrical Switches

• Rotary switch: The universal rotary switch is exquisite in workmanship and adopts a cam switch, which is easier to operate, beautiful in appearance and flexible in handle.
• Stable: The switch works stably, adopts silver alloy contacts, and has good electrical conductivity.
• Material: Rotary Switch 100% brand new, made of high-quality PC flame retardant material, high temperature resistance.
• Convenience:Universal Rotary Switch easy to install, easy to use, good performance, small size, easy to carry and store.
• Safety:Selector Switch with strict quality control and quality assurance, it has passed many tests before leaving the factory and can be used with confidence.

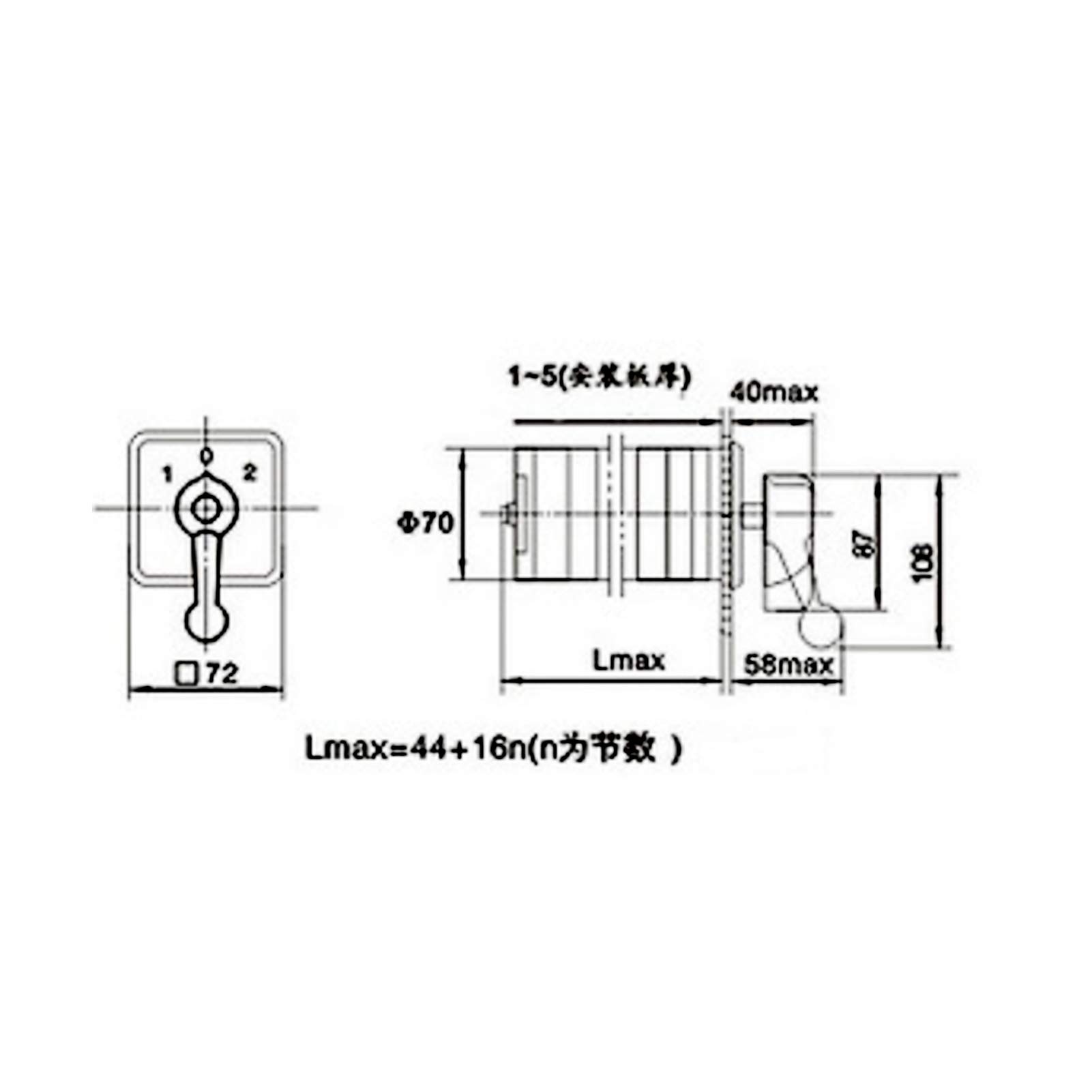

Specification: Item Type: Universal Rotary Switch Material: PC, silver alloy, copper Level: 1-0-2 Reset Method: Positioning type Rated Voltage (Ue): 110-380V Rated Insulation Voltage (Ui): 500V Conventional Heating Current (Ith): 16A Mechanical Life: 1 million times, operating frequency is 300 times/hour Uses: The product has a wide range of uses, which can be used as circuit control switches, test equipment switches, motor control switches, master control switches, and transfer switches for electric welding machines. Installation Size: Approx. 4mm / 0.2in 5.5mm / 0.2in 15mm / 0.6in 55mm / 2.2in Installation Board Thickness: Approx. 1 ~ 5mm / 0.04 ~ 0.2in Size: Approx. 1mm / 0.04in 2mm / 0.08in 70mm / 2.76in 72mm / 2.8in 40mm / 1.6in 87mm / 3.4in 108mm / 4.3in Package List: 1 x Universal Rotary Switch
