110-240V 16A Din Rail Timer Switch Relay Mechanical 24 Hours Programmable

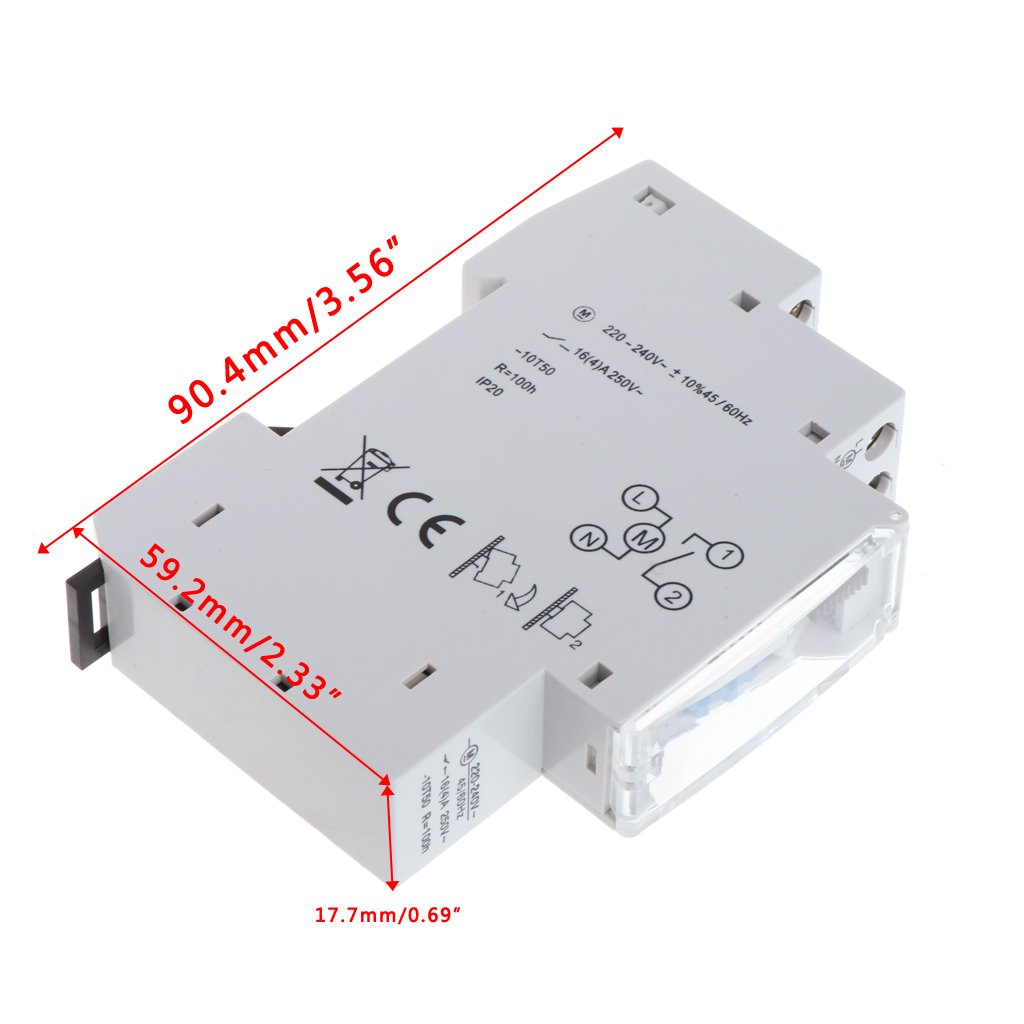

• ● Max Length: 90.4mm/3.56" .Width: 17.7mm/0.7".Height: 59.2mm/2.33"<br/>
• ● Working Temperature: -10℃ to +50℃.Storage Temperature: -25℃to +70℃.Drive Mode: Quartz Motor<br/>
• ● The switch is protected internally against interference by a safety device, however, partically strong electromagnetic fields may alter its operation.
• ● If the time switch is to be used in combination with other devises; it is necessary to verify that no parastic disturbances will be caused by the group.<br/>
• ● SUL180a can be widely used in the neon lights, water heaters, street lamps, staircase lights, aquaculture, garden watering, motors, advertising boxes, office automation and other civilian or industrial electricity needs time control of the occasion, according to the required time for automatic control.<br/>

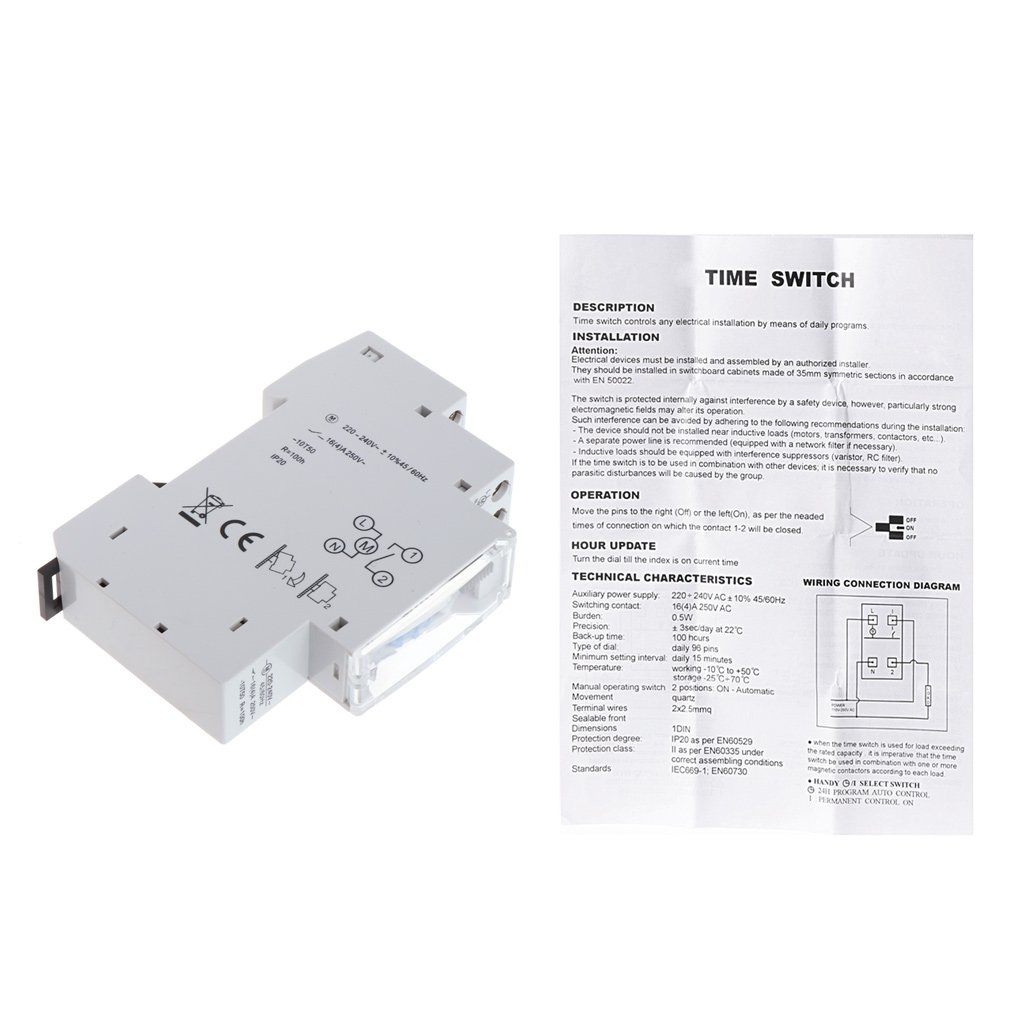

Descriptions Time switch controls any electrical installation by means of daily programs. Installation: Such interference can be avoided by adhering to the following recommendations during the installations: -The device should not be installed near inductive loads(motors, transformers, contactors,etc...). -A separate power line is recommended(equipped with a network filter if necessary). -Inductive loads should be equipped with interference suppressors(varistor, RC filter). Application: SUL180a can be widely used in the neon lights, water heaters, street lamps, staircase lights, aquaculture, garden watering, motors, advertising boxes, office automation and other civilian or industrial electricity needs time control of the occasion, according to the required time for automatic control. Specifications: Auxiliary Power Supply: 110-240V AC, 45/60Hz Switching Contact: 16(4) A 240V AC Burden: 0.5W Precision: ±3sec./24h at 22℃ Working Temperature: -10℃ to +50℃ Storage Temperature: -25℃to +70℃ Drive Mode: Quartz Motor Back-up Time: 100h Type of Dial: Daily 96 Pins Minimum Setting Interval: Daily 15 Minutes Manual Operating Switch: 2 Positions: ON-Automatic Dimensions: 1 Din Protection Degree: IP20 as per EN60529 Max Length: 90.4mm/3.56" .Width: 17.7mm/0.7".Height: 59.2mm/2.33" Quantity: 1 Set Package Contents: 1 x Time Switch 1 x User Manual
