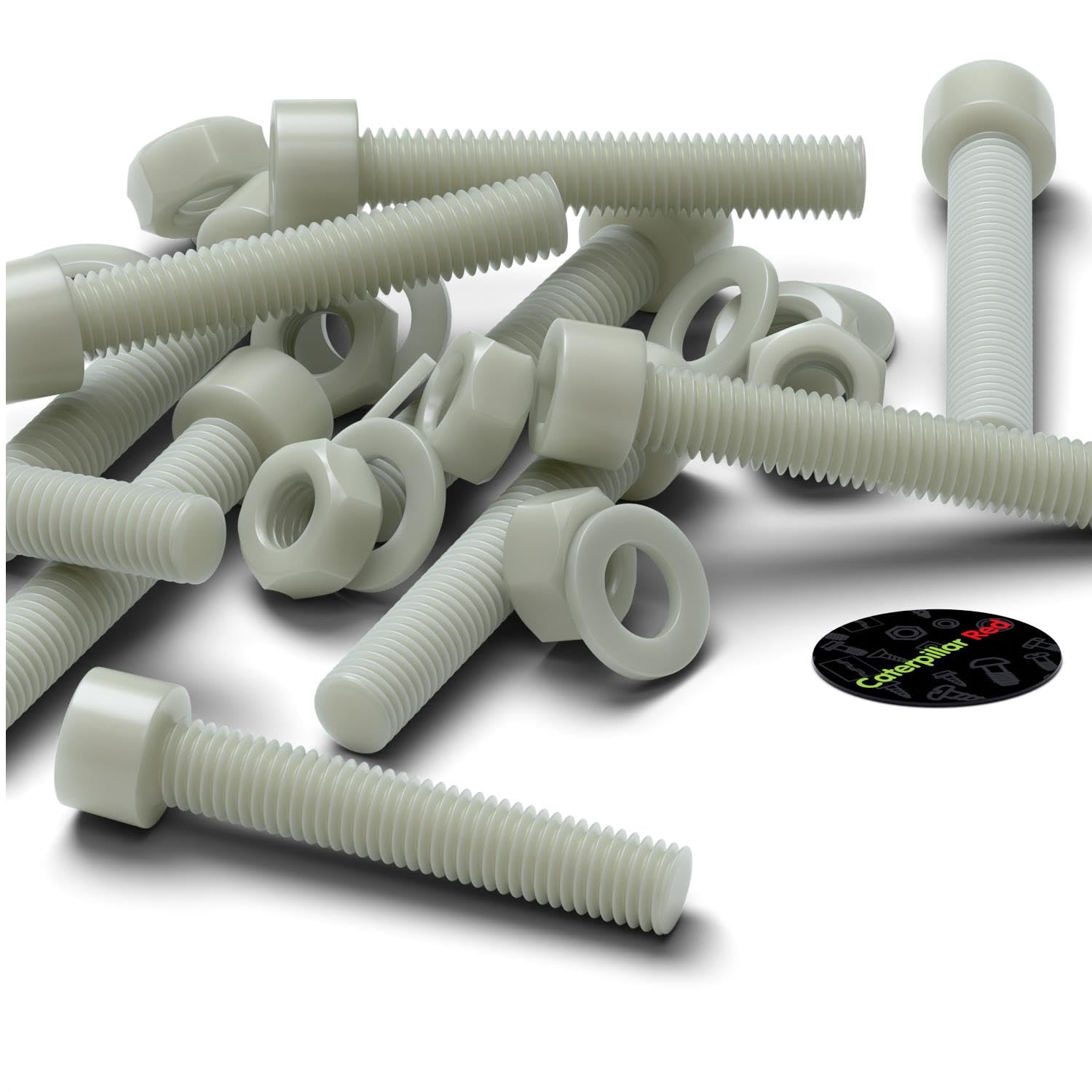

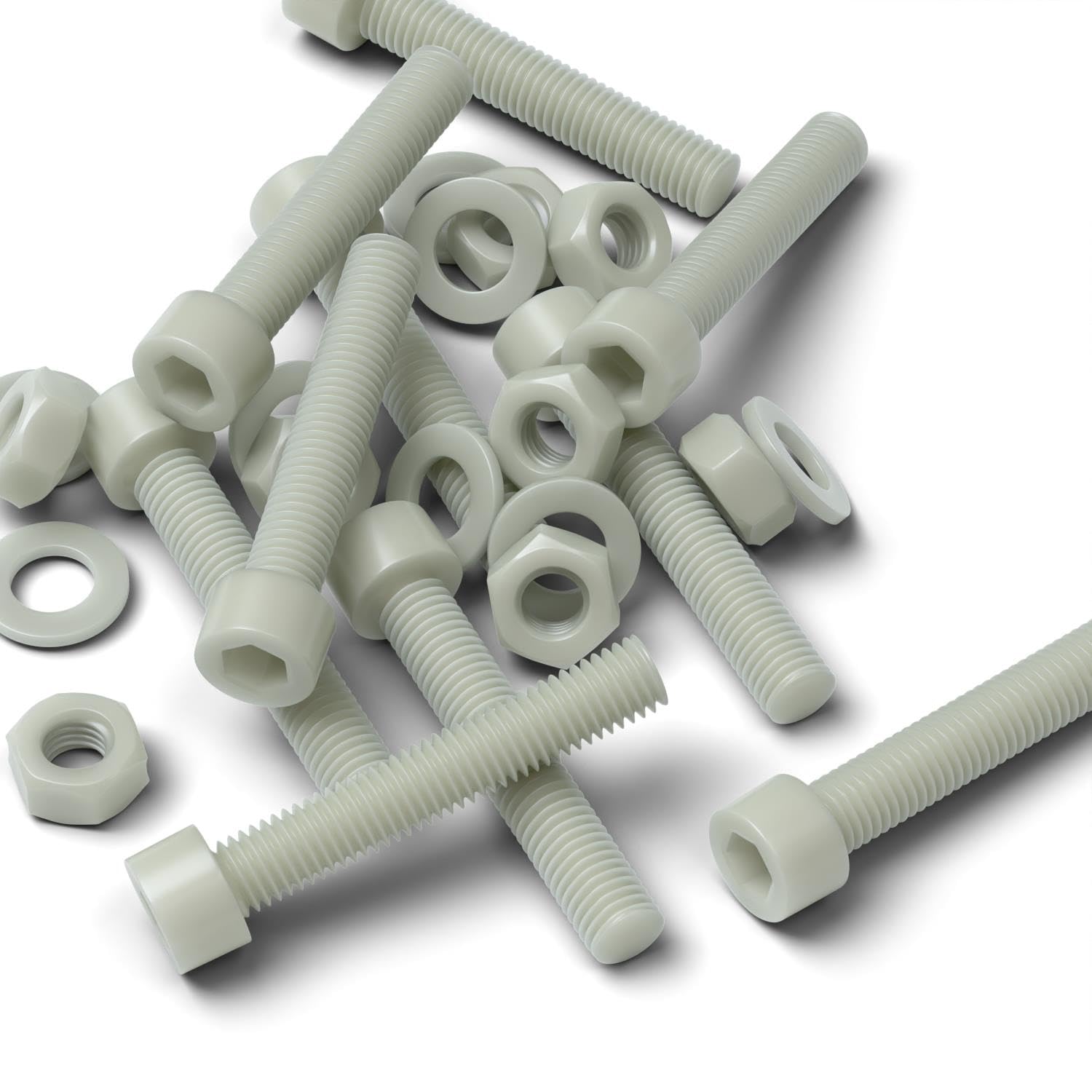

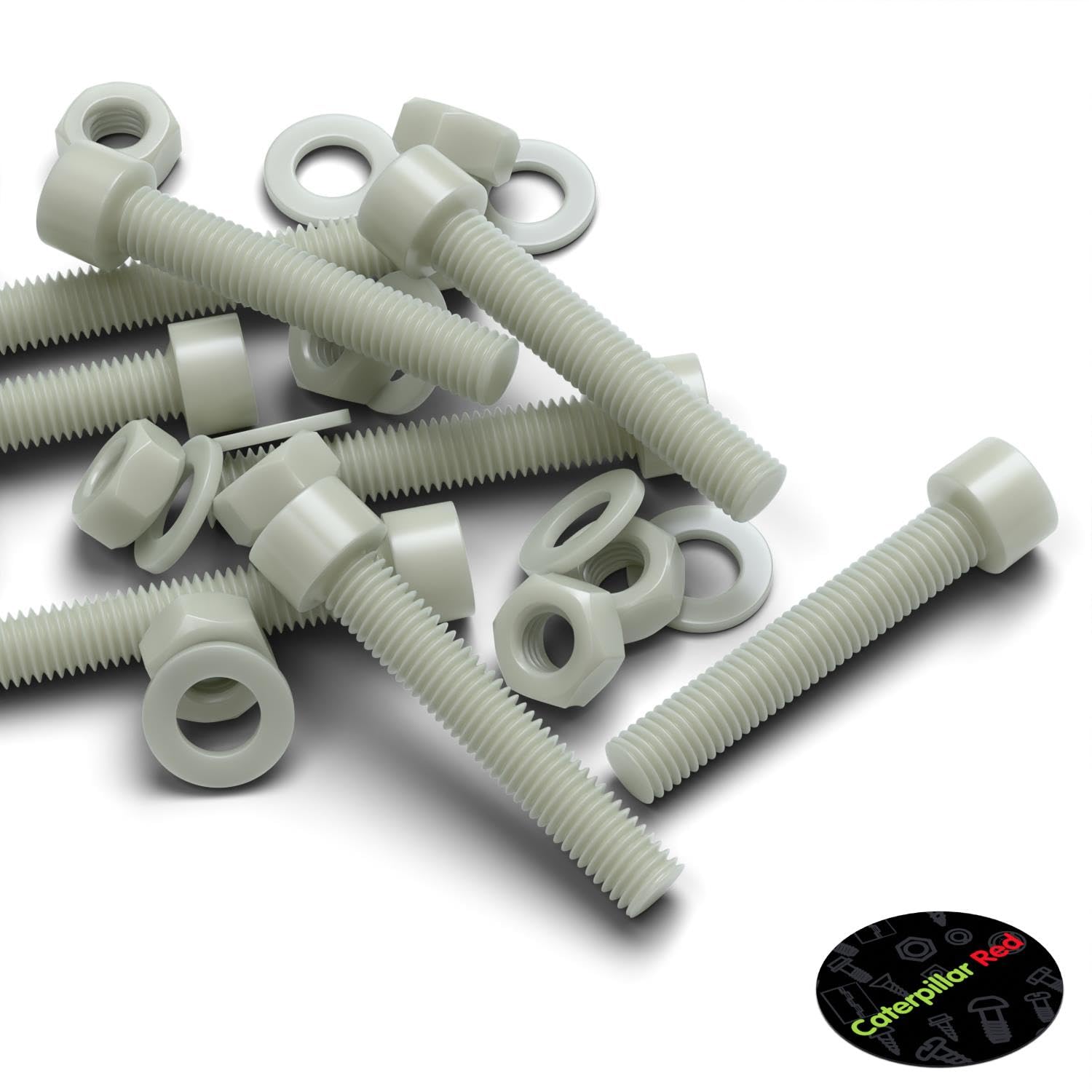

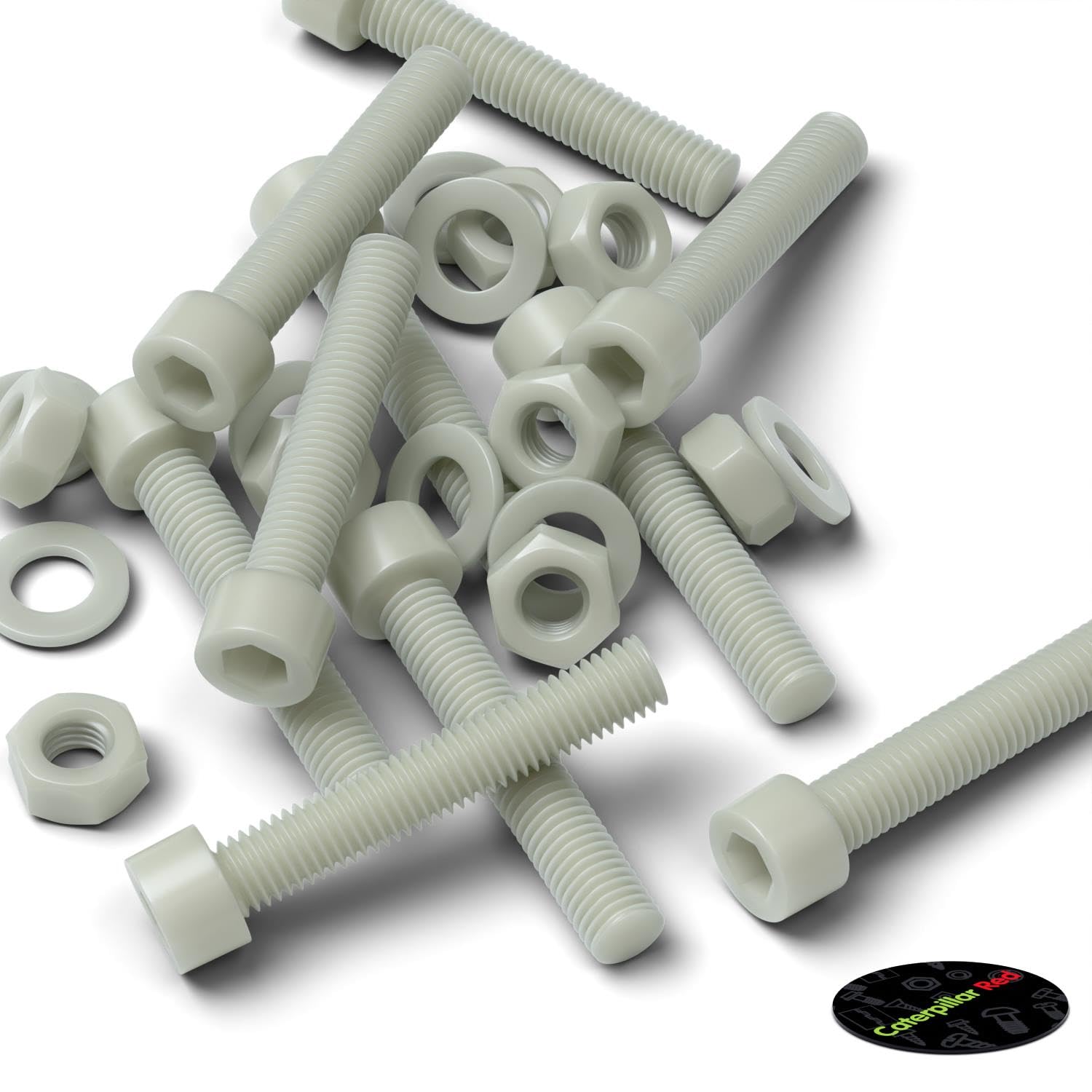

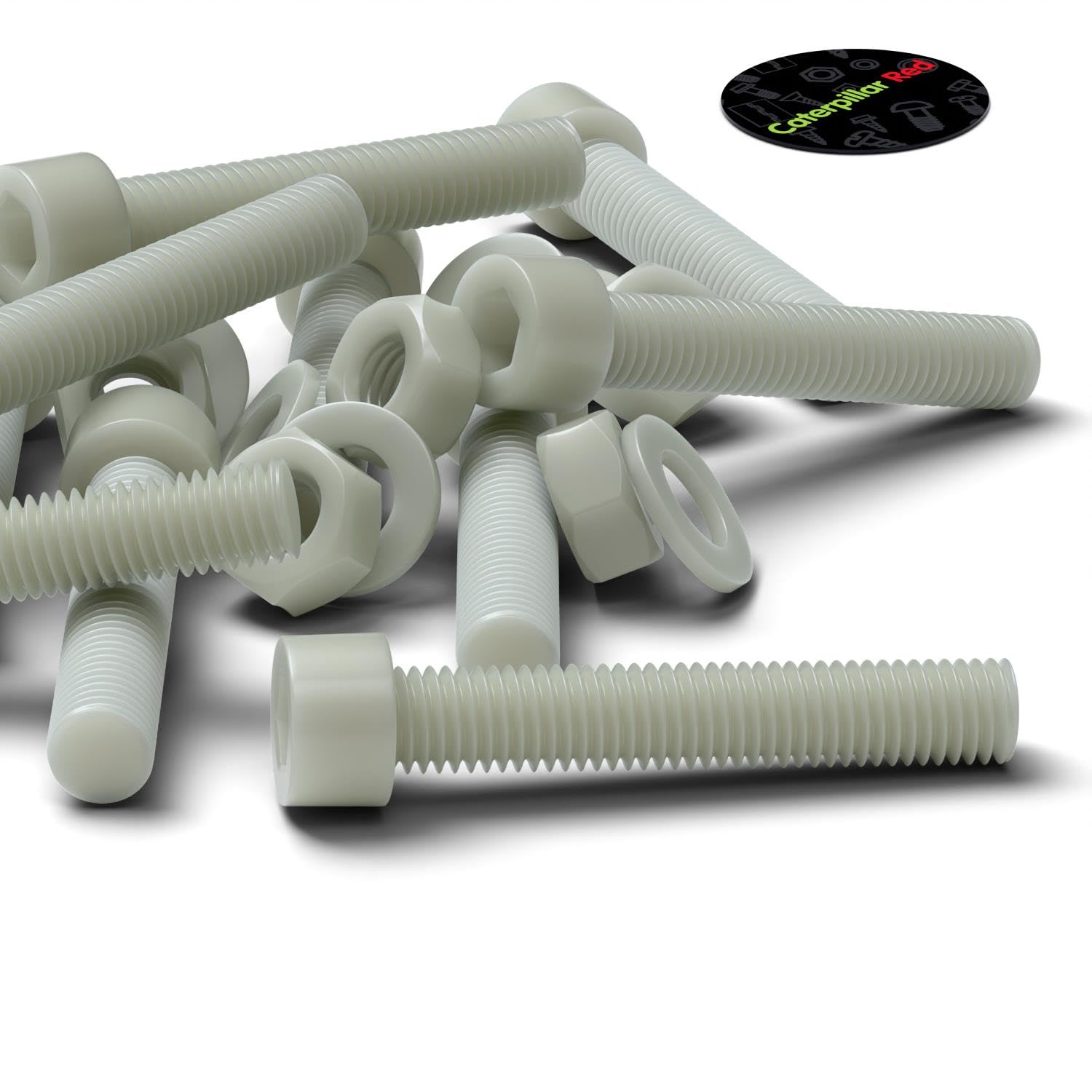

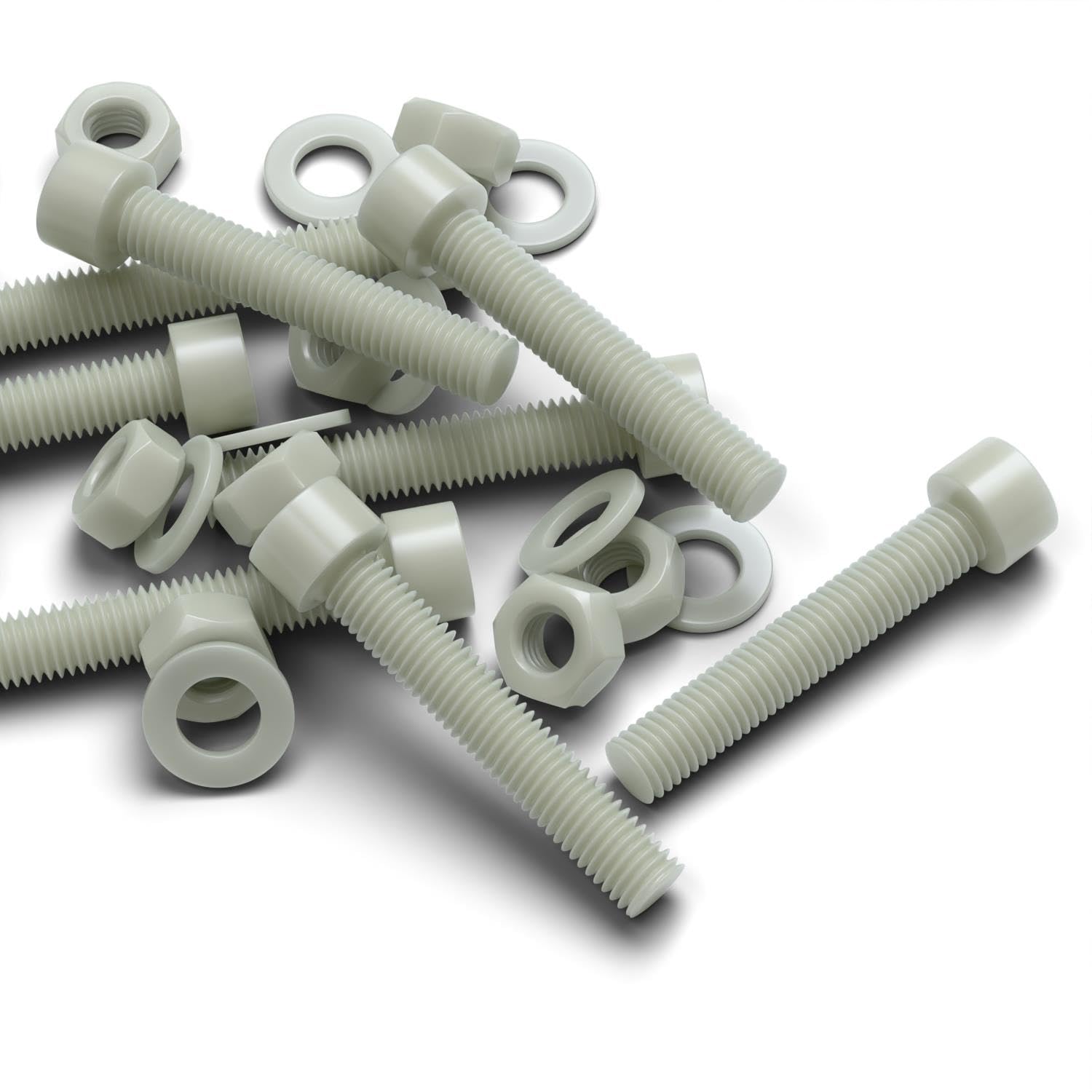

10x Glass Filled Reinforced Super Nylon Socket Head, M10 x 50mm, Plastic Nuts and Bolts, Washers, Hexagon.

• 10x Bolts, 10x Nuts, 10x Washers. Material: PA 66 / 50% GF. Type: Socket Head Bolts. Length: 50mm. Diameter: 10mm. Pitch: 1.5mm. SKU: 819.
• The addition of 50% glass fibers enhances the heat deflection temperature, enabling the material to perform reliably at elevated temperatures.
• Glass fibers improve tensile strength, stiffness, and impact resistance while reducing the material's susceptibility to creep under load.
• The composite also possesses superior hardness, surface durability, and wear resistance compared to PA66.
• Repeated removal and refitting possible with excellent resistance to stripping in high torque applications.

Please refer to the technical image for size details. All measurements are in millimetres/millimeters. || - Product Specifications - || Product_SKU: 819. Product_Type: Socket Head Bolts. Product_Size: M10 x 50mm. Product_Colour: Natural. Product_Quantity: 10 Pack. Product_Pitch (mm): 1.5mm. Product_Length (mm): 50mm. Product_Width (mm): 10mm. Product_Depth/Thickness (mm): 10mm. || - Reference Details - || Primary_Material: Nylon PA 66 / 50% Glass Fibre Reinforced. Secondary_Material: . Type_Reference: Socket Head Bolts. || Product_With_Tape?: . Product_With_Nib?: . Product_Vial_Accuracy: . || - Additional Specifications - || Nut Product Image Drawing References: Stock Code: CR06361PEEK Material: Polyether ether ketone Material Reference: PEEK/HN Head/Drive Type: Hexagon Nut size: M10 N (mm): M10 HN B: 15.87 mm HN H: 8.22 mm. || Bolt Product Image Drawing References: Stock Code: CR02340PA66+GF Socket Hex Head Bolt size: M10 x 50 D: 10 mm Pitch: 1.5 mm L: 50 mm HD: 16.0 mm HH: 9.82 mm HS: 8.1 mm. || - Additional Description - While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF (Glass Fibres) is superior to that of PA66, meaning that the composite can withstand higher temperatures before beginning to deform under load. The composite exhibits reduced moisture absorption, a significant improvement over PA66's susceptibility to moisture. Common applications include automotive components, industrial machinery and consumer goods where high strength and thermal resistance are required. Hex Bolts & Screws also known as plastic bolts, plastic screws, plastic bolt, plastic screw.. ||
