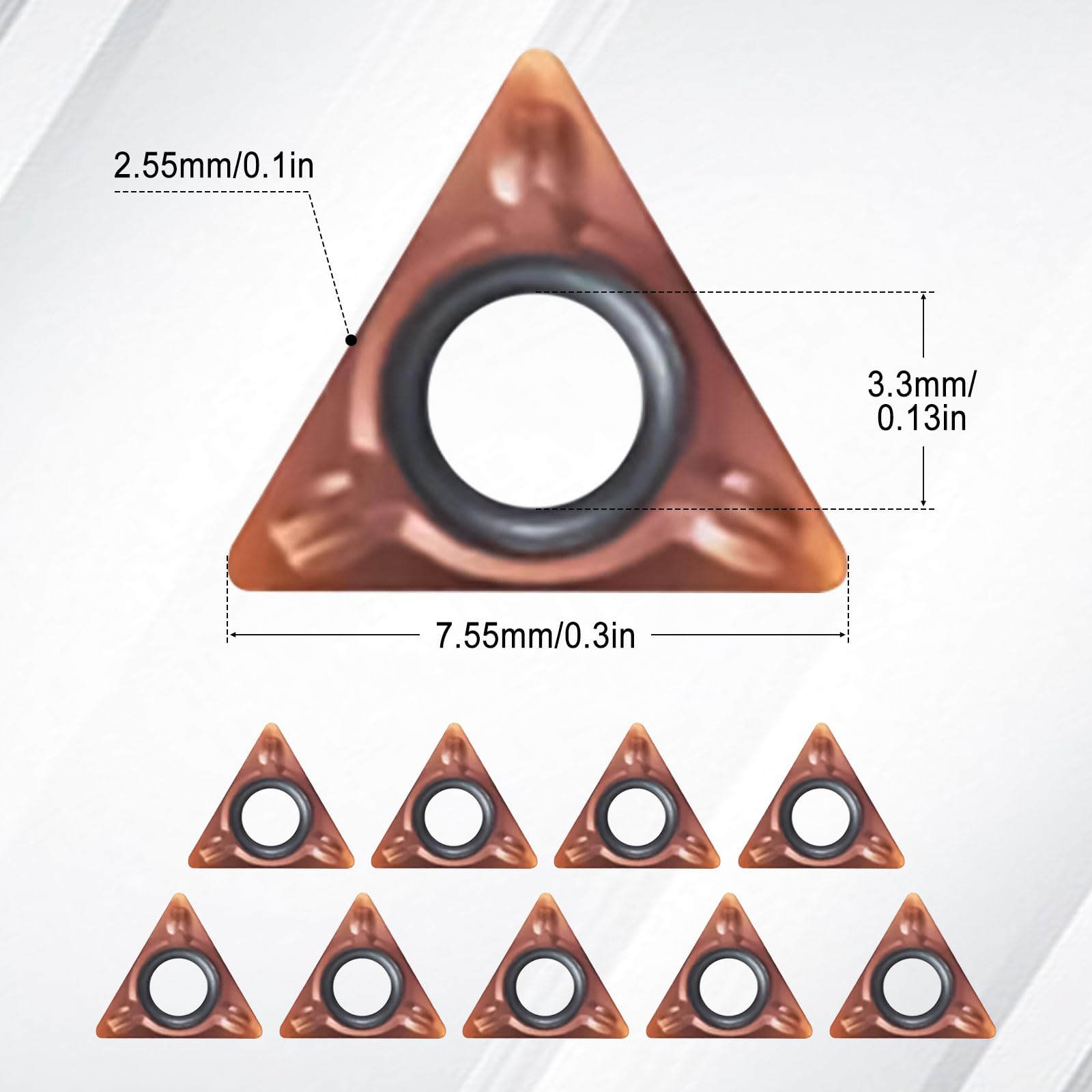

10pcs Triangle Cutter Heads for Pneumatic Chamfering Machine

• High Performance: Upgraded beveling grinder with high-quality bearings and blades for smoother deburring and chamfering. Triangular tungsten steel cutter heads, chamfer R-angle/C-angle, auxiliary bearing, strong and durable, smooth chamfering, no ripple, no noise, compact body, strong power, stable operation.
• Flexible Adjustable: The speed can reach 30000rpm, air intake connection: 1/4 Inch, and the depth is 0.1mm-0.9mm. The five gears can be freely adjusted to the appropriate air intake speed, which improves the life of the blade and is easy to operate and use.
• Easy Operation: This 45-degree mini chamfering machine air tools has a new lightweight design, small and exquisite, smooth cut, high efficiency, low vibration, smooth cutting. Easily operated with one hand.

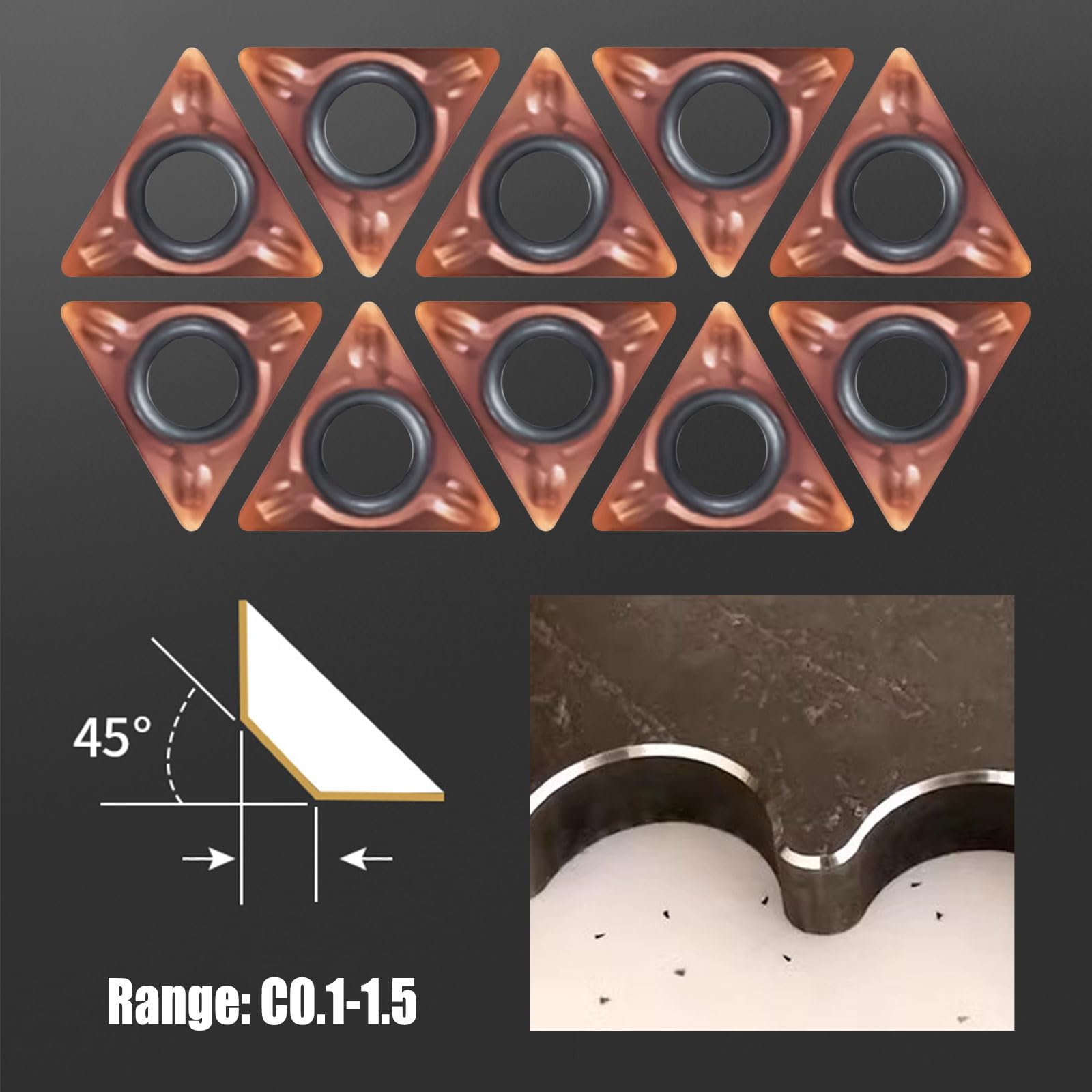

• Difference Between C & R Angle: C Angle blade is angular, mostly used for metal chamfering and R-angle blade is rounded and chamfered for woodworking.

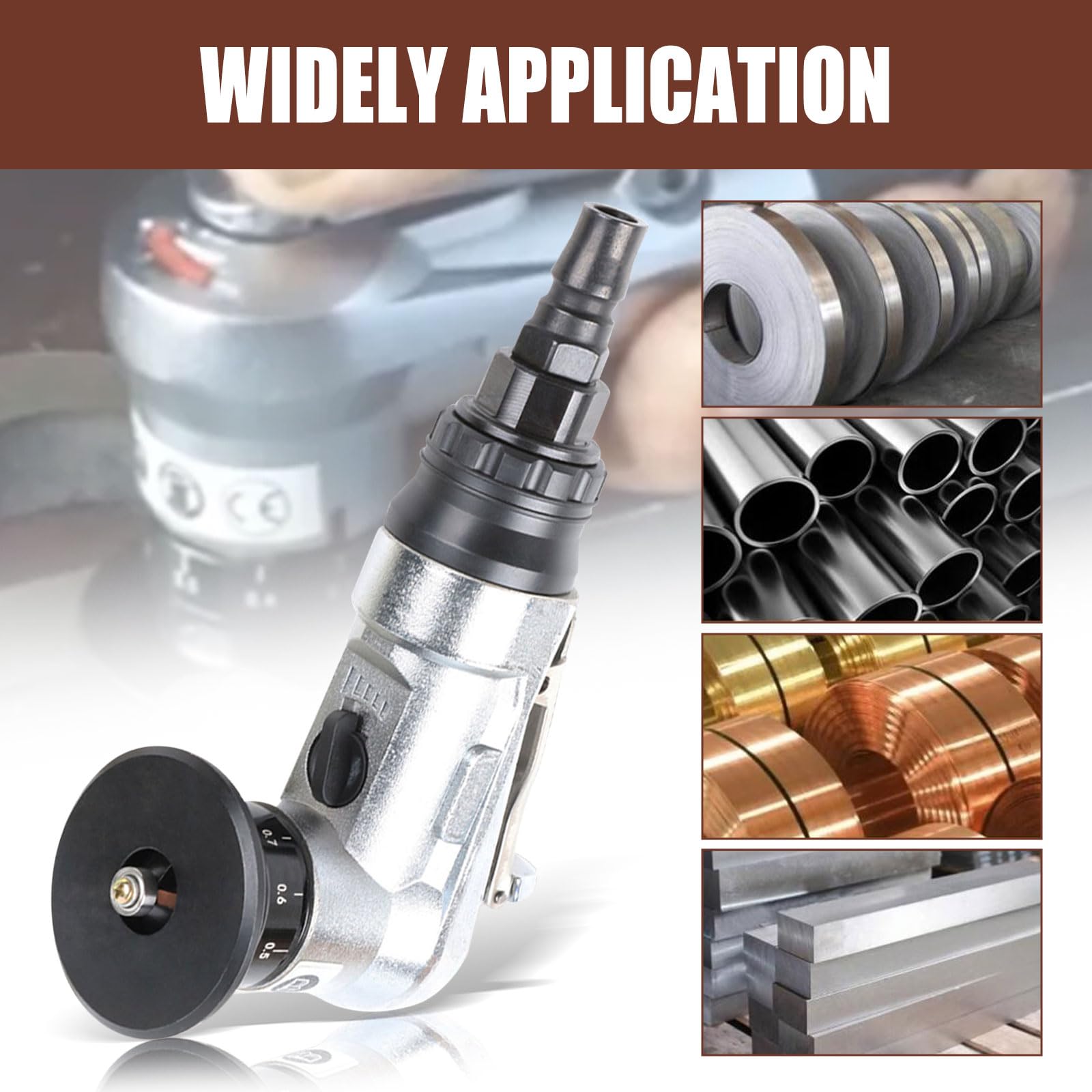

• Wide Application: This pneumatic chamfering machine can chamfer R/C angles, round holes, irregular edges, arcs, and straight edges on a variety of materials including steel, aluminum, copper, acrylic and wood.

Pneumatic Chamfering Tool Handheld, Mini Air-Powered Chamfering Machine Trimming, 30000 RPM 45° Arc Corner with 1/4 Inch Air Inlet for Trimming Chamfer Deburring Specification: Chamfering Hole Diameter≥8mm ARC Comor: R0.1-R1.5 Chamfering Ability: C0.1-C2 Rotational Speed: 30000RPM Working Pressure:0.4-0.6MPA Adjustable Depth: 0.1-0.9mm Chamfer Plate Thickness: >3mm Chamfer Range: ≤1.5mm Air Consumption: 0.4m³/minute Blind spot size = radius of the guide wheel R diameter greater than the radius of the guide wheel can be chamfered R diameter greater than the radius of the guide wheel can be chamfered lf the guide wheel of the chamfering machine is 8mm, the workpiece can be chamfered with an R-diameter greater than 4mm. R-diameter less than the radius of the guide wheel is a blind spot lf the guide wheel of the chamfering machine is 8mm, then the workpiece is blind in 2 directions at 4mm.
