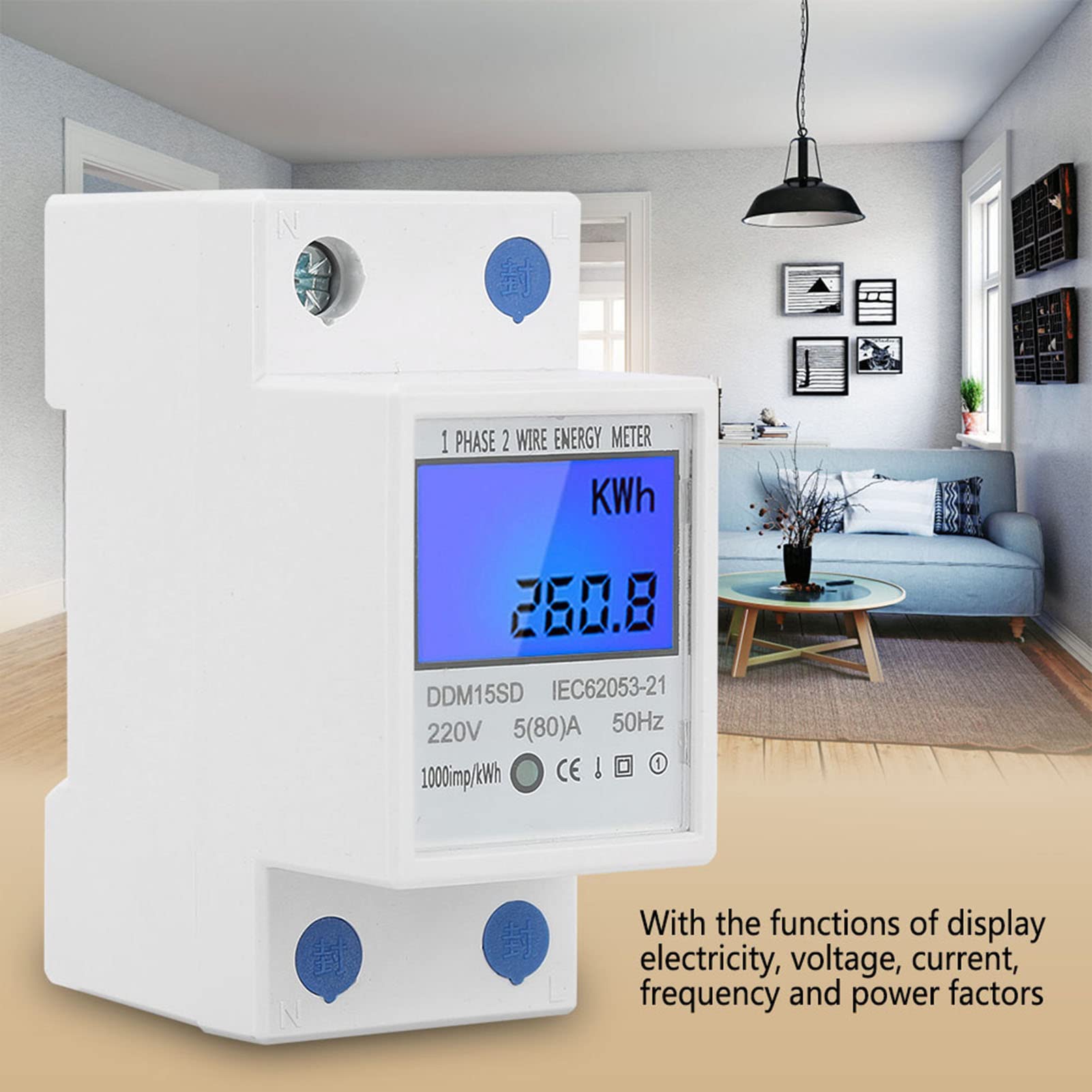

10Pcs Electric LCD Single Phase Energy Meter, DDM15SD Small 35mm Din Rail Type 17000W Home Meter Kwh Kilowatt Hour Backlight

• Standard 35mm DIN Rail Mounting Complies with DIN EN50022 for 35mm DIN rail installation, with a 17.5mm pole width meeting DIN43880 standards. Perfect for standard electrical cabinet mounting, ensuring universal compatibility with industrial and household electrical systems.
• LCD Backlight Digital Display, Anti-Tamper Design Equipped with an LCD backlight digital display for clear reading of electrical data even in low light. Features no reset button to avoid artificial data manipulation, ensuring the accuracy and authenticity of electricity consumption records for reliable electricity usage monitor.
• Embedded End Cover, Comprehensive Power Monitoring This electric meter accurately displays electricity, voltage, current, frequency and power in real time, with a red LED energy pulse signal for intuitive power consumption indication. The embedded end cover design enhances electrical insulation and sealing, effectively ensuring power supply safety during use.
• Compact & Easy to Install Boasts excellent reliability with a compact size, lightweight build and sleek appearance. Designed for hassle-free installation—no complex tools or professional operation required, suitable for quick mounting in electrical distribution boxes, workshops and residential areas.
• Stable Performance, Anti-Interference Adopts large-scale integrated circuits and precision SMT manufacturing technology, delivering strong electromagnetic interference resistance. Maintains stable and accurate data measurement even in complex electrical environments, ensuring long-term reliable operation of the electricity usage monitor.

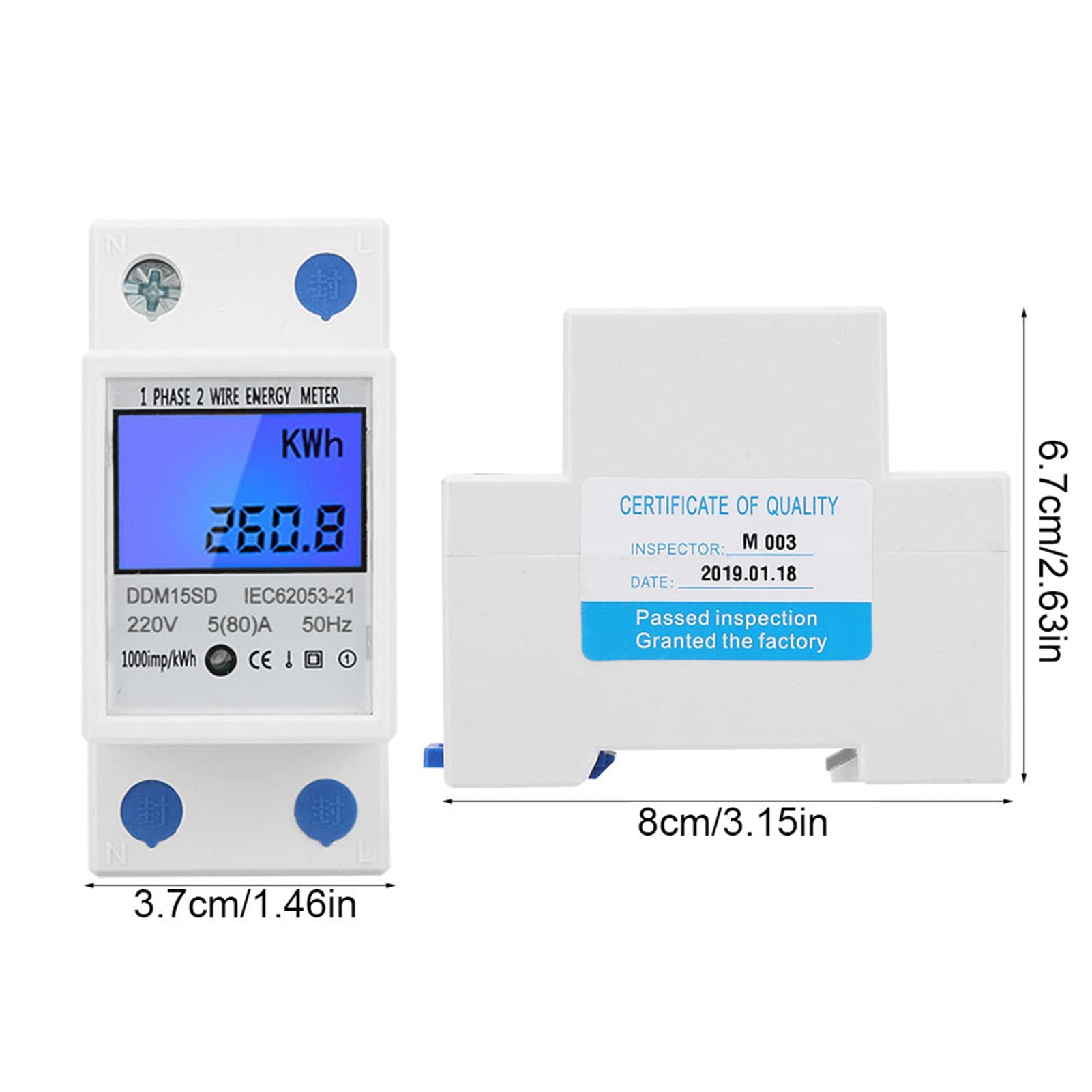

Specification: Material: Plastic Model: DDM15SD Accuracy: First Grade Reference Voltage: 220V/230V 50/60Hz Reference Current (Max. Current): 5(80)A Insulating Property: 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage Display: LCD Backlight Digital Display Installation: 35mm DIN Rail Wiring Method: Up-out and down-in/up-in and down-out Power: 17000W Environment Temperature: -20℃~+50℃ Pole Width: 17.5mm/0.7in Functions: Display electricity, voltage, current, frequency, power factors Package Size: Approx. 8.6 * 4.2 * 7.2cm/3.4 * 1.7 * 2.8in Weight: Approx. 127.8g Package list: 10 * Energy Meter Note: Do NOT has the reset function.
