10pcs AM312 Mini PIR Motion Sensor Module Pyroelectric Human Infrared IR Distance Detector
About this item
- 【AM312 Human Sensor Module】It is a digital intelligent automatic control product based on passive human infrared technology, with high sensitivity and reliability, widely used in all kinds of automatic sensor electrical equipment.
- 【Features】Enhanced anti-interference, internal digital signal processing, direct high and low level output.
- 【Widely Applications】Security Products, the human body sensors toys, the human body sensor lighting, industrial automation and control, etc.
- 【Specific Parameters】Working voltage: DC 2.7V - 12V; Static power consumption: <0.1mA; Delay time: 2 seconds, blocking time: 2 seconds; Trigger mode: repeatable; Sensing range: less than or equal to 100 degrees cone angle, 3 - 5 m (depend on the specific lens); Working temperature: -20 degrees Celsius to +60 degrees Celsius.
- 【Repeatable Trigger Mode】The induction output high level, in the delay time period, if there is a human body in its sensing range of activities, its output will remain high until the person leaves the delay, only to become low level (Ps: the induction module detects the human body's every activity will be automatically postponed after a delay time period, and the next activity time for the start of the delay time).
Product description

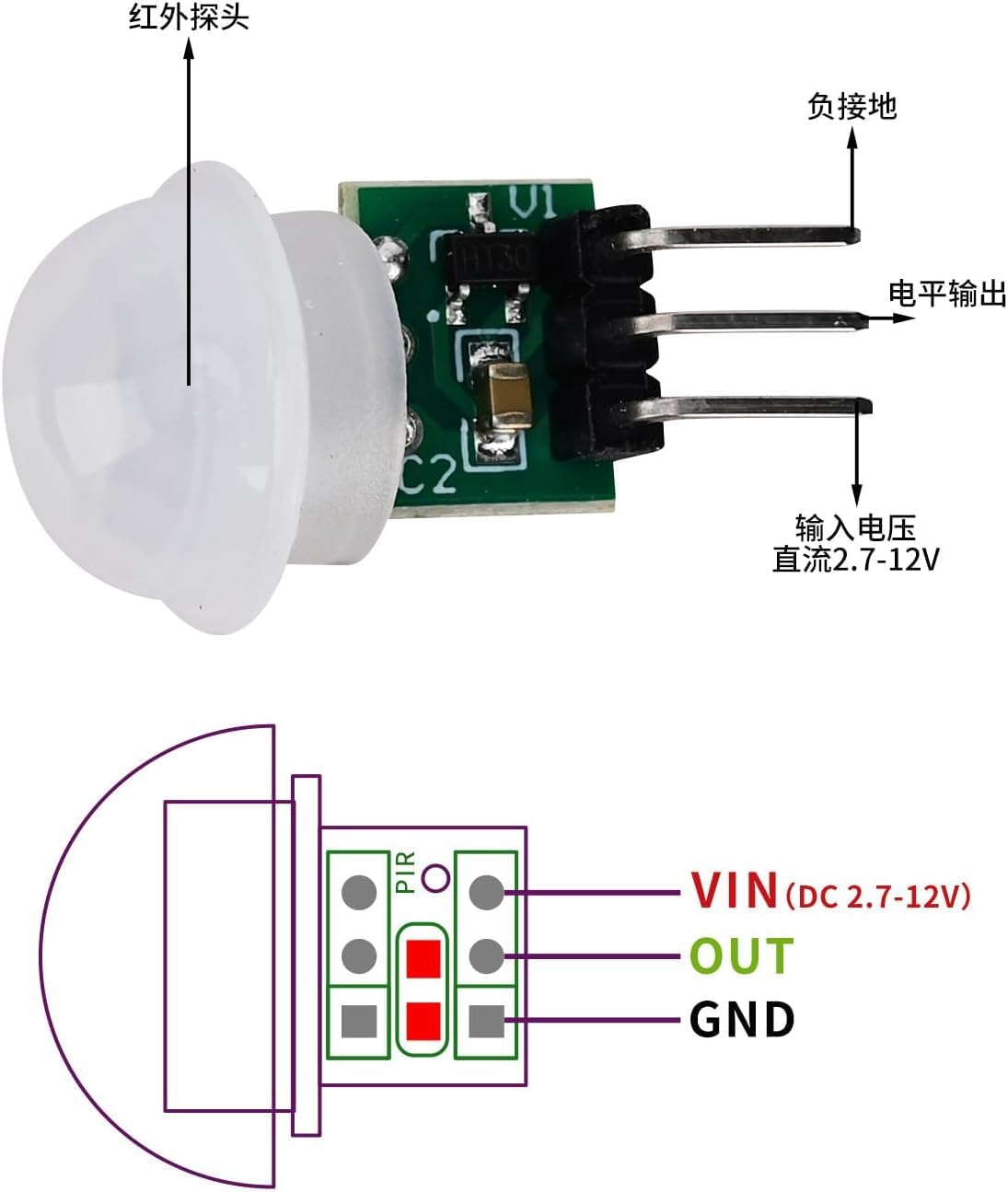

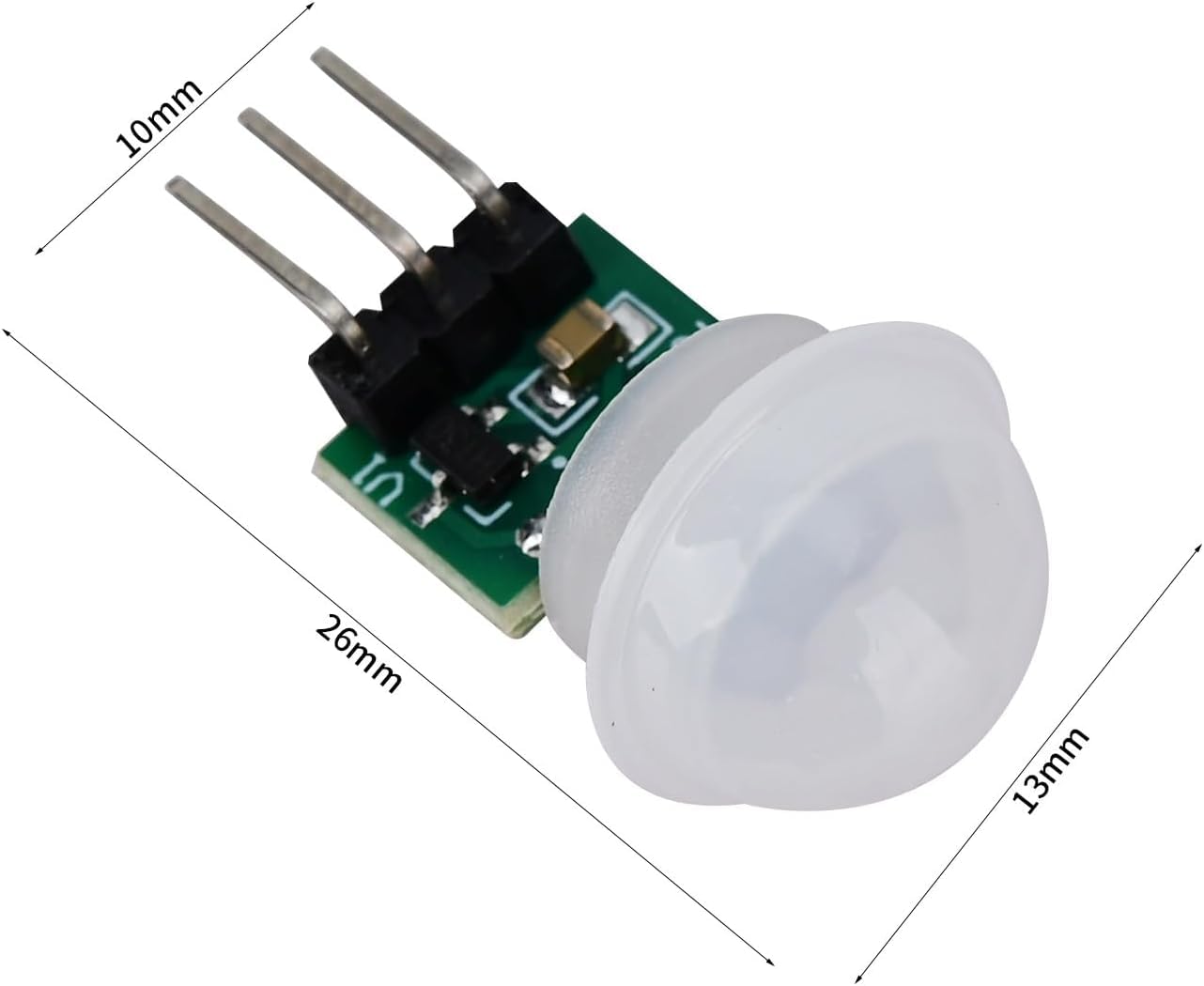

" Technical parameters 1. Working voltage: DC 2.7-12V 2. Static power consumption: <0.1mA 3. Delay time: 2 seconds 4. Blocking time: 2 seconds 5. Trigger mode: repeatable 6. Sensing range: ≤100 degree cone angle, 3-5 meters; (depending on the specific lens) 7. Working temperature: -20 - +60 °C 8.PCB dimensions: 10mm*8mm 9. Module lens: small lens Package Includes 10x AM312 Human Sensing Module(HC-SR312) "
Product details
