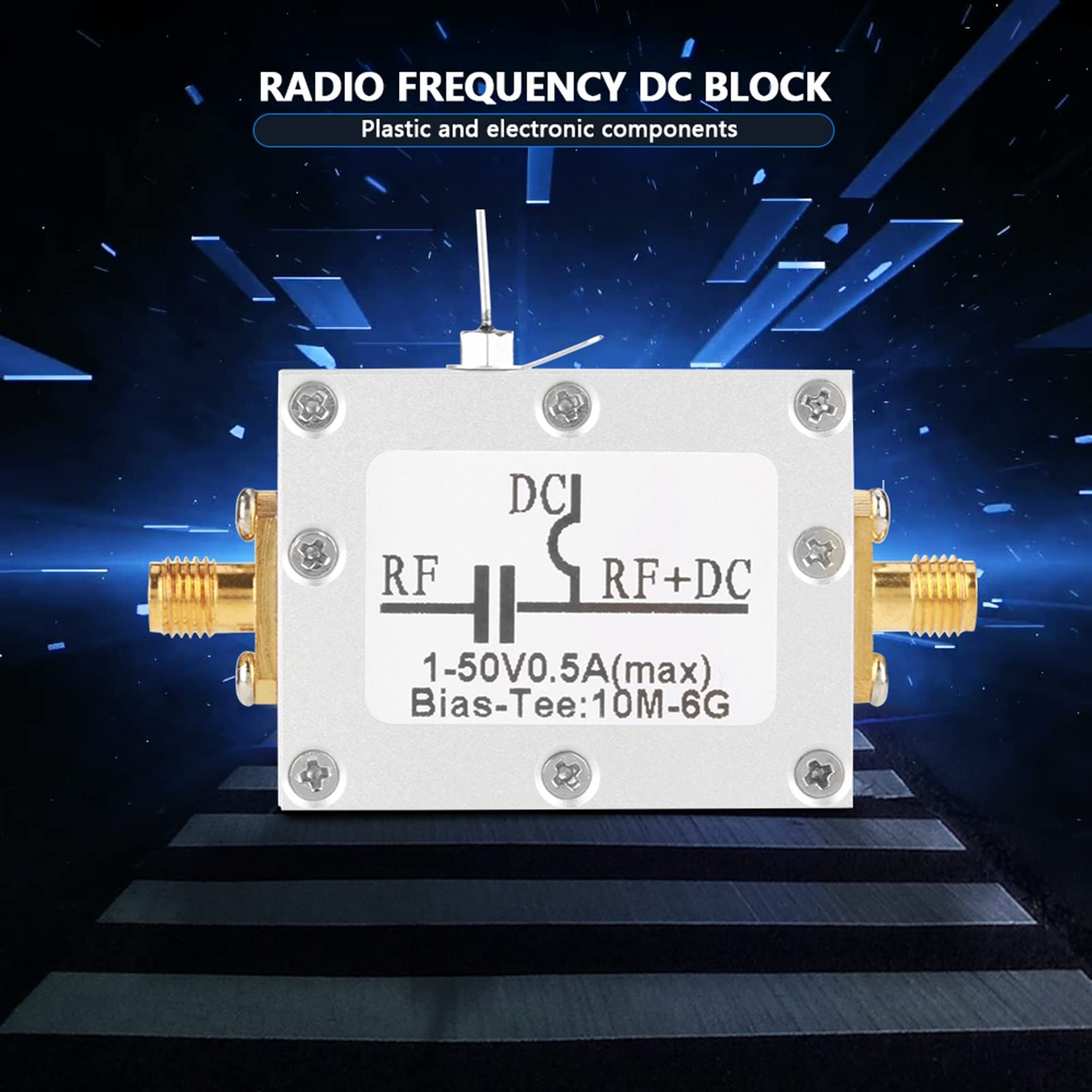

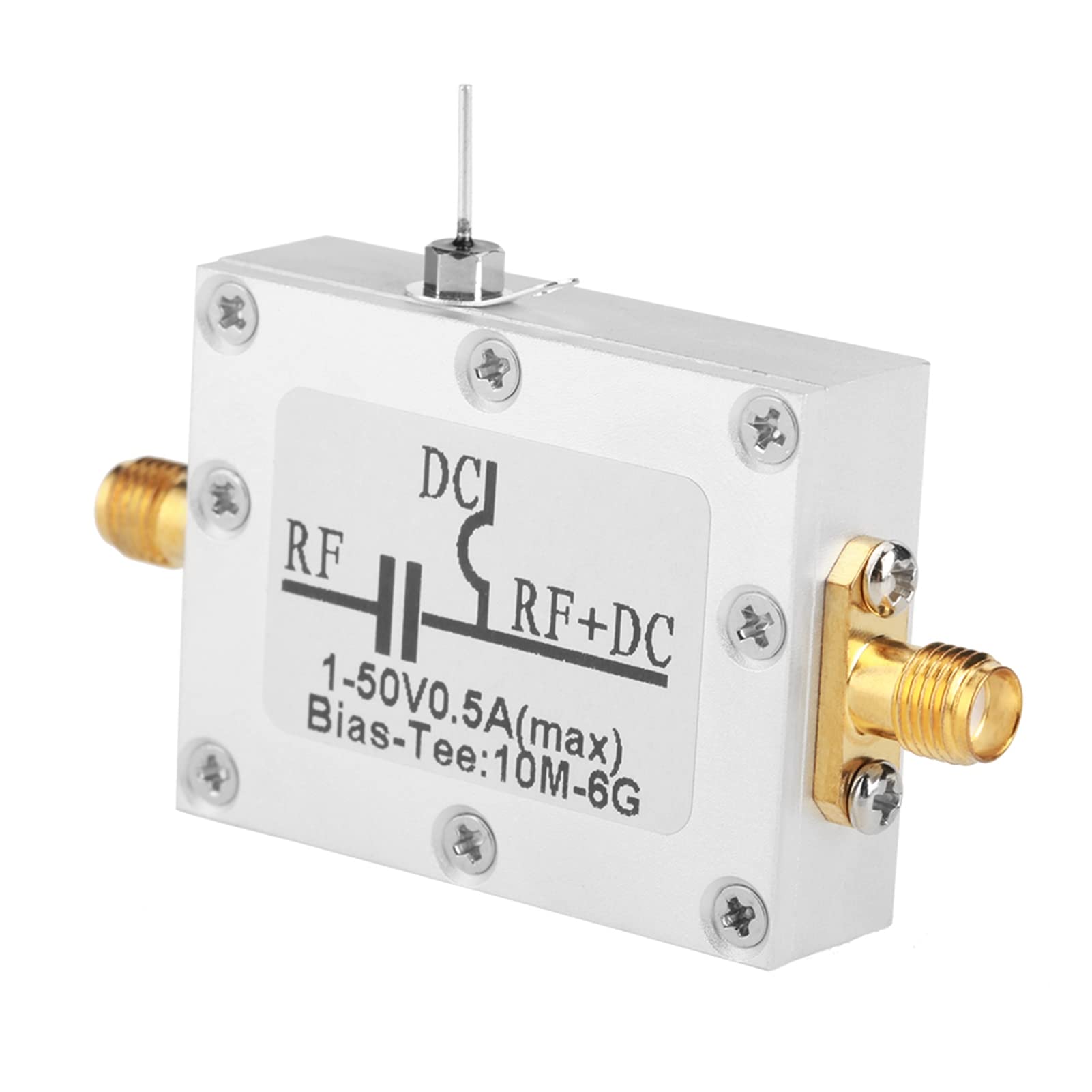

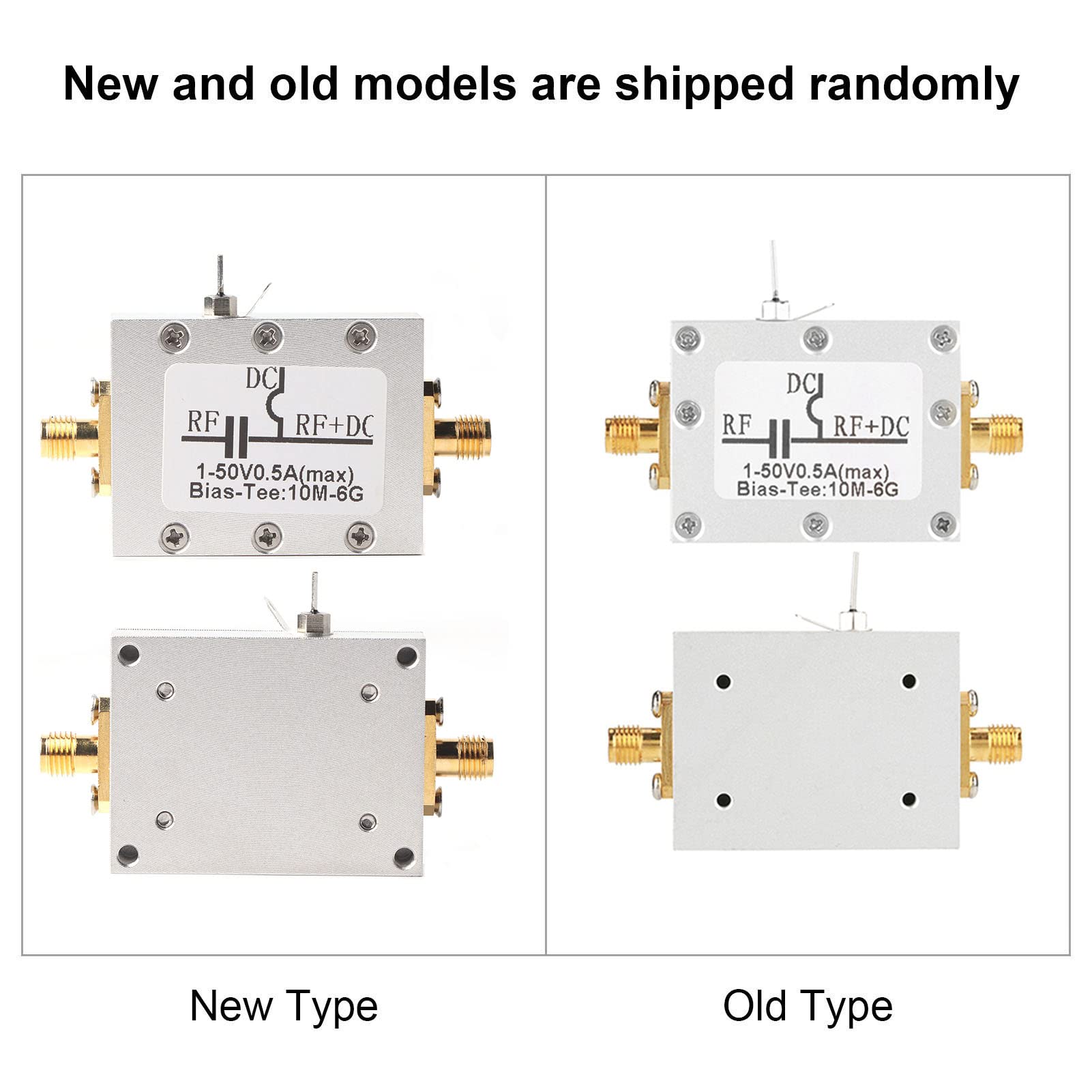

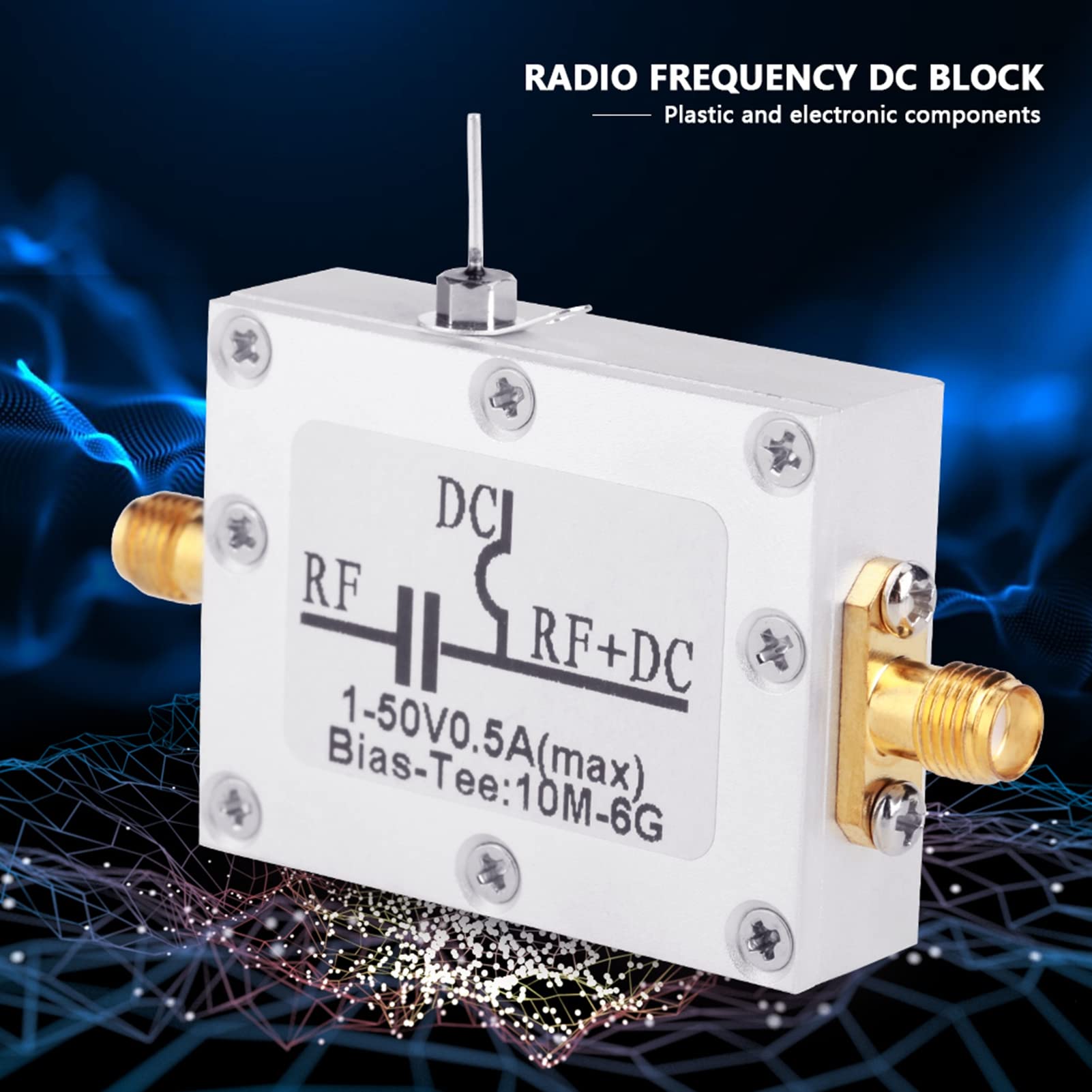

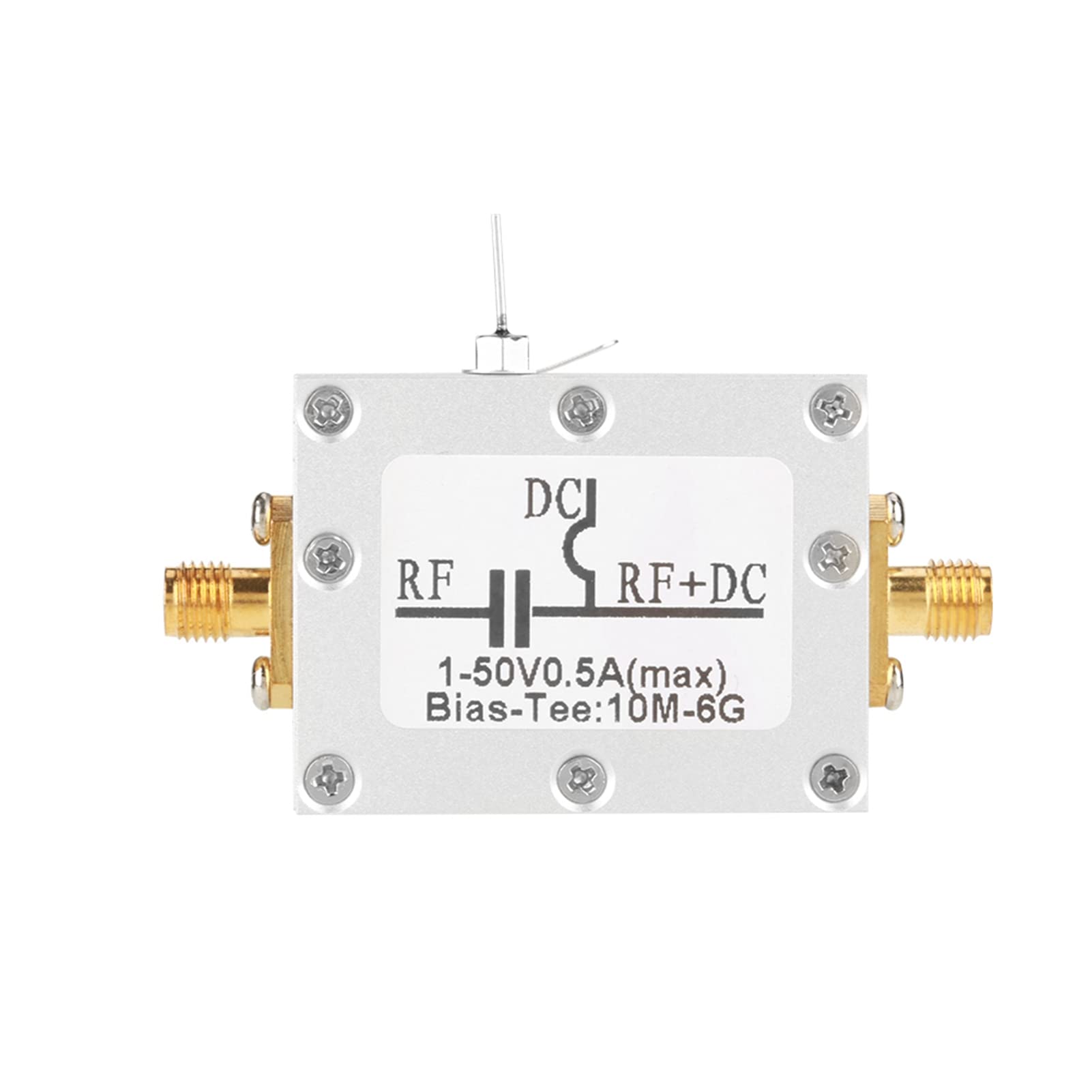

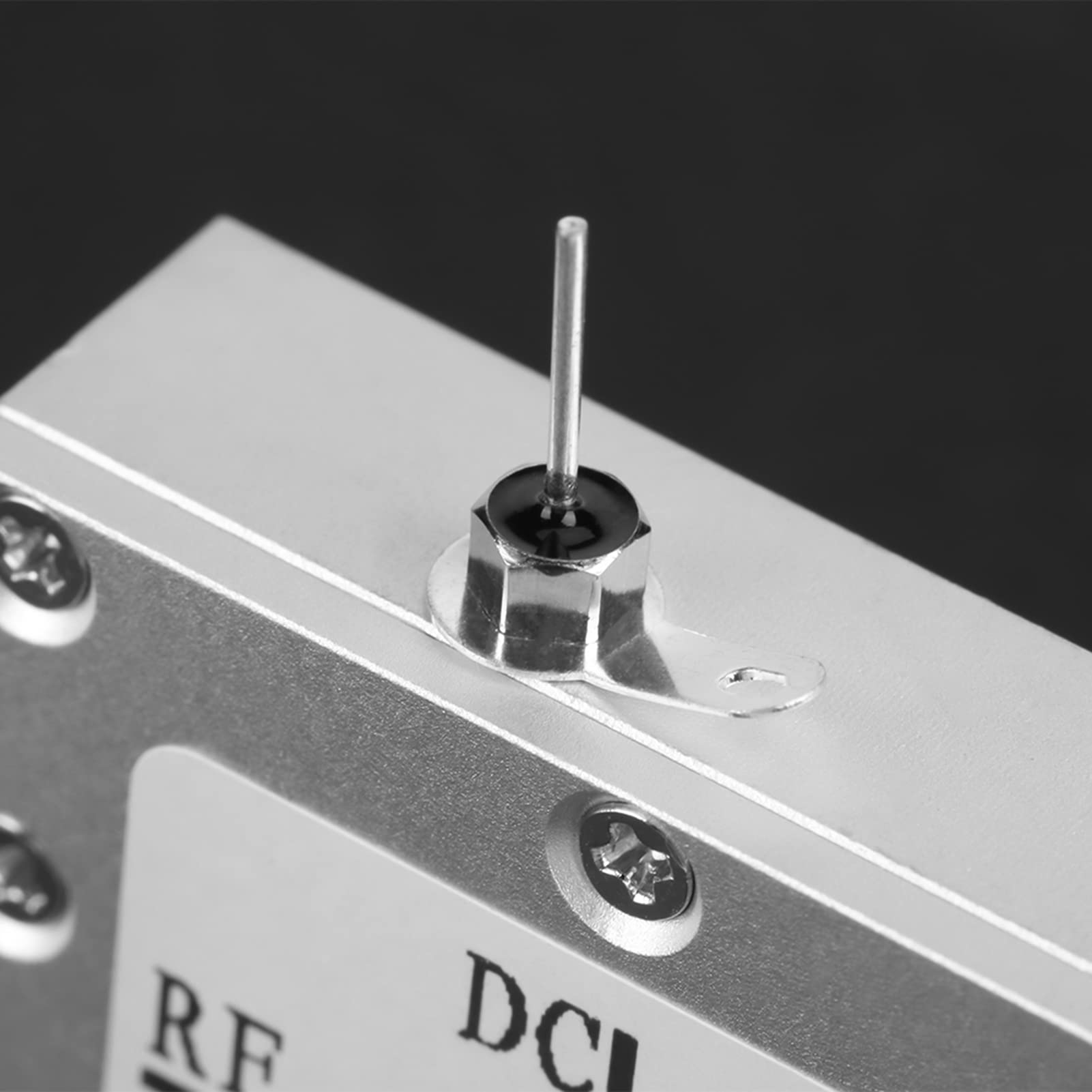

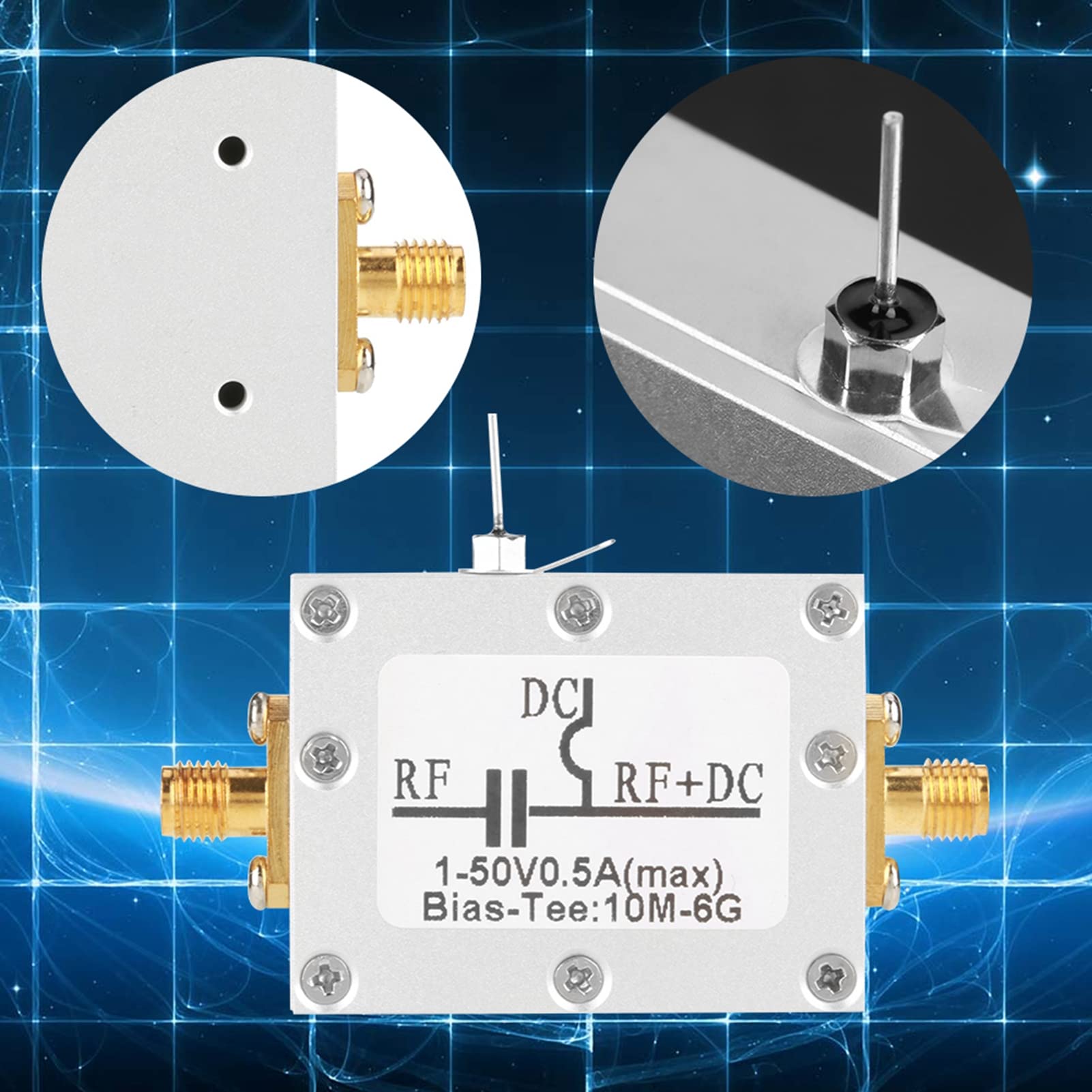

Garsent 10MHz-6GHz Bias Tee Broadband Radio Frequency Microwave Coaxial Bias Low Noise Amplifier Module

• Application: Broadband amplifier, optical fiber communication, optical modulation drive, other test and measurement applications
• High frequency inductance: isolate ac information to prevent high frequency signals from leaking into the power supply system.
• It consists of high frequency inductors and capacitors with ultra-broadband, near idealization and no resonant point.
• Isolating capacitance: isolating dc to prevent dc voltage from leaking to subsequent circuits or test instruments;
• brand new and high quality. Higher gain, lower noise figure, lower power consumption

Specifications: Working frequency: 10MHZ-6GHz Insertion loss <1.2 dB Operating Voltage: DC1-50V Normal working current: <0.5A Size: 7 x 3.3cm / 2.76 x 1.30in Weight: 36g Package included: 1 x Bias Tee
