10 m Lumonic 1 m FLRYY 4-Core Vehicle Cable I Vehicle Cable with Cable Section 4 x 1.5 mm² I Trailer Cable 4-Pole Multi-Core Trailer Cable

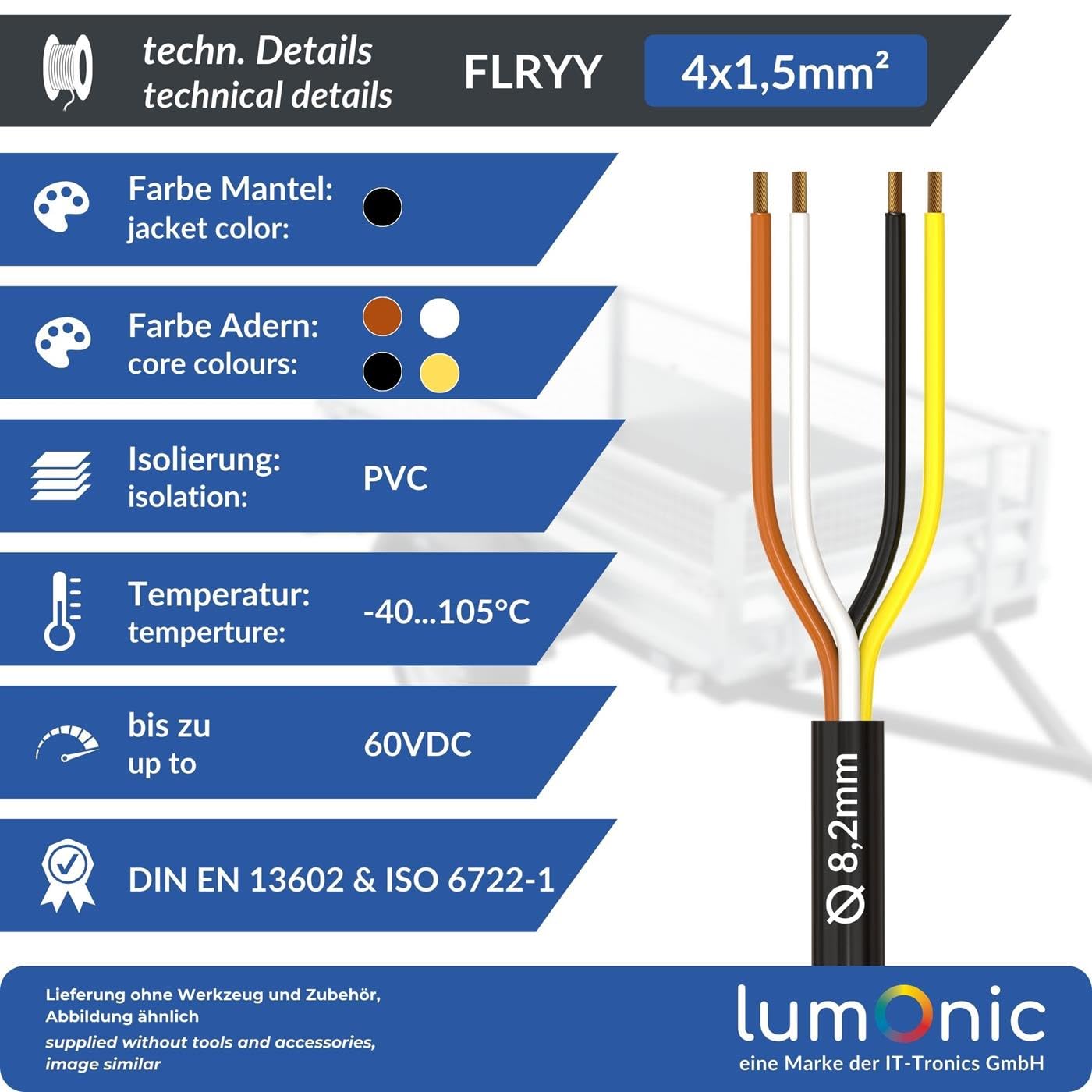

• DIMENSIONS - cable diameter: 8.2 mm, internal conductor structure: 4x 30x0.25mm, temperature range: -40...+105°C (3000h)
• Colour: the vehicle cable consists of 4 wires: white, black, brown, yellow, cable cross-section: 4 x 1.5 mm².

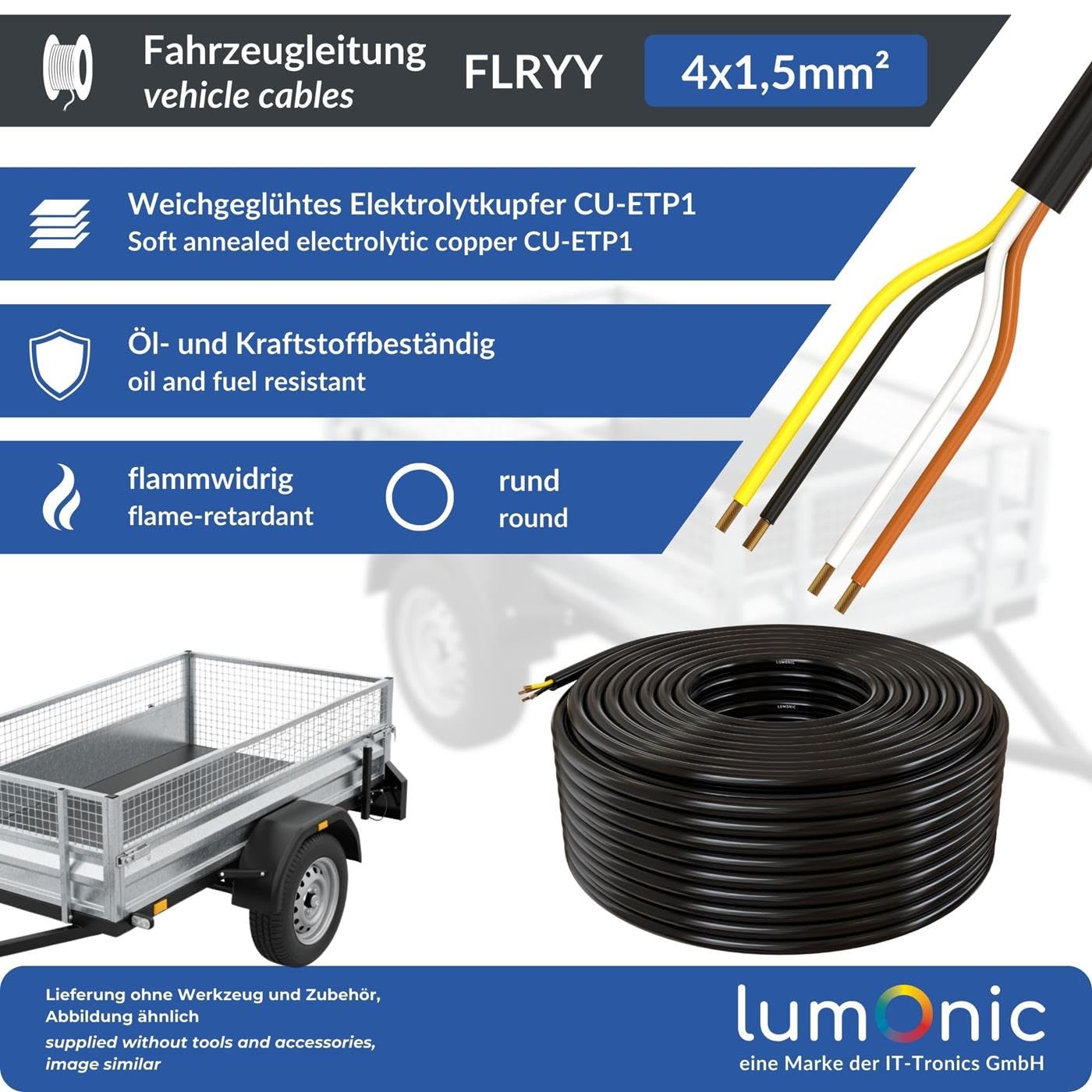

• CONDUCT MATERIAL - Soft annealed electrolytic copper CU-ETP1 according to DIN EN 13602, conductor structure: according to DIN 72551 B
• INSULATION - both for single conductors and sheath: flexible PVC according to ISO 6722-1, class A - Shore A, flame resistance: according to ISO 6722-1 / DIN EN 60428
• Resistance: waterproof + oil and fuel resistance, radius of curvature approx. 8x cable diameter

✔ Conductive material: cold annealed electrolytic copper CU-ETP1 according to DIN EN 13602 ✔ Conductor structure: according to DIN 72551 B and ISO 6722-1. ✔ Insulation: Flexible PVC according to ISO 6722-1, Class A - Shore A ✔ Flame retardation: according to ISO 6722-1/DIN EN 60332. ✔ Waterproof + Oil and fuel resistant according to ISO 6722-1 ✔ Bend radius: approximately 8 x cable diameter. Delivery quantity: 1 m Cable type: Vehicle cable Cable specification: FLRYY Length: 10 m Cable section: 4x 1.5mm² Max. Operating voltage: 60 V DC. Color Cores: White Black Brown Yellow Coating Color: Black Diameter: 8.2 mm Internal conductor material: Copper Internal conductor structure: 4x 30x0.25mm Temperature range: -40...+105°C (3000h) Insulation Cores: PVC Insulation Coating: PVC
