10Gtek® SFF-8087 to 4x Sata 1-Meter(3.3-ft), 6G Internal Mini SAS to SATA Cable, 36pin (SFF-8087) Male (Host) to 4x SATA (Target) 7pin Female Fan-out Cable

• Internal SAS SFF-8087 to 4x SATA Cable, 1-Meter(3.3-ft)
• AWG30 Twinaxial 8-pair high-bandwidth low-skew wire
• Impedance = 100 Ohms
• Up to 6Gbps data rates per channel

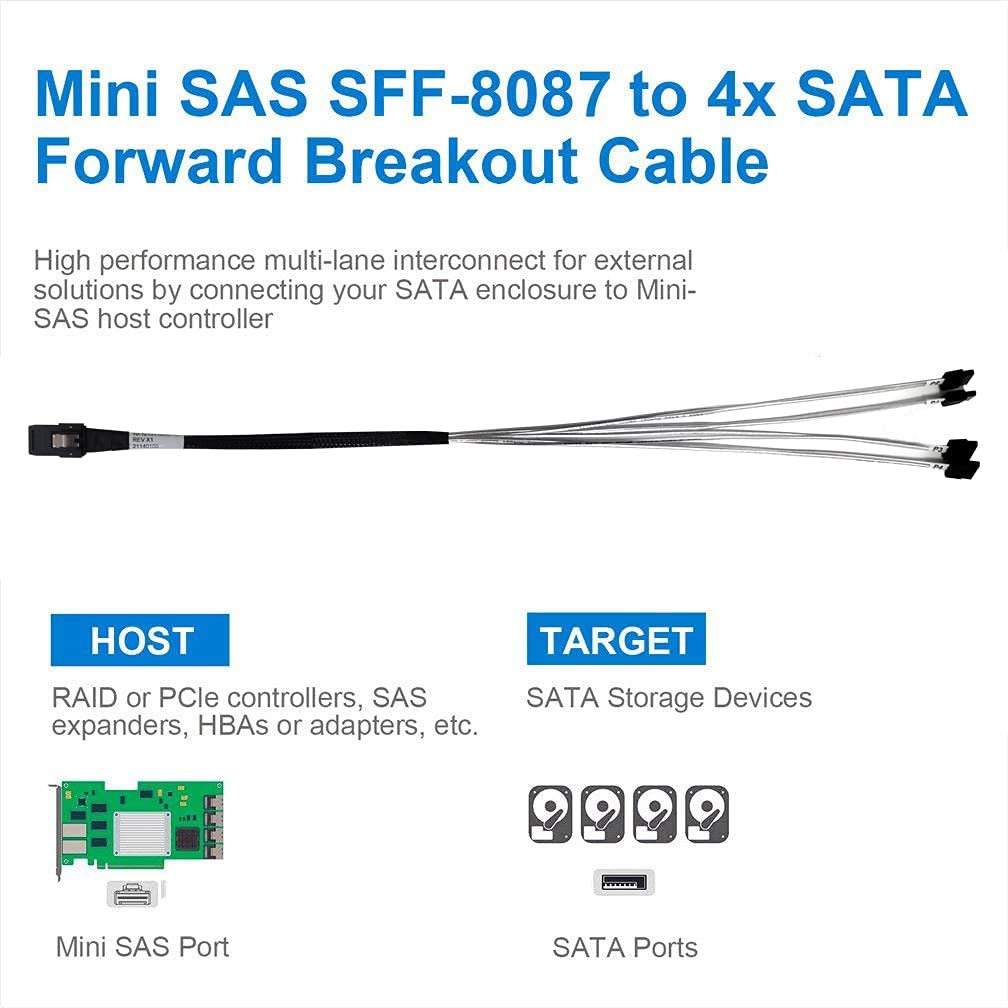

• This Mini SAS to SATA cable provides reliable internal connectivity between a Serial attached SCSI controller card in a computer system and direct attached storage devices with a SATA connector, allowing you to connect four SATA drives to an SAS controller. This is a Forward Breakout cable, meaning that it is intended to connect to a host/controller on the SAS end and to drives on the SATA end.

Product Description: Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access. Intended primarily for data storage centers, the SAS interface is backwards compatible with SATA. This allows the user to mix more expensive, lower-capacity SAS drives for applications that require faster data access and higher reliability, with lower-cost, higher-capacity SATA drives for applications with lower access speed requirements. Features: Connector A: 1 x 36 pin 4i Mini MultiLane SAS (SFF-8087) - male Connector B: 4 x 7 pin Serial ATA - female SAS Lane Qty: 4-Lane Data Rate: 6Gbps per channel AWG30 Twinaxial 8-pair high-bandwidth low-skew wire Impedance = 100 Ohms Crossover wiring High performance 8 pair wire construction Exceeds SAS 1.1 and SAS 2 SpecificationApplications: DATA Center Servers, Storage racks, RAID systems External Storage Systems SAS/SATA HBA interfaces Direct-attached storage (DAS) Switches
