10A solar panel charge controller/regulator 12V/24V for camper/caravan/boat (up to 10 amp or 160W solar input)

• Powerful 10A 12V/24V solar charge controller for any solar application: vehicles (motorhome, caravan, camper), boats, yachts, off-grid solar systems and more
• The controller uses PWM (Pulse Width Modulation) technology which increases charge acceptance, prolongs battery life and can recover some lost battery capacity. Various types of batteries supported: sealed, gel, flooded, user-defined (Default is sealed. Other battery types can only be selected using one of the communication methods listed below in the description)
• Multiple connectivity options (remote meter and PC software - see below) enable the user to monitor and program charging parameters, personalise load settings and access exclusive settings
• Full set of electronic protection functions such as reverse current, over charging, discharge, overheating, short circuit etc
• Can be used with solar panels up to 160W (12V battery ) or 320W (24V battery). Scroll down to Product Description for more information about this product

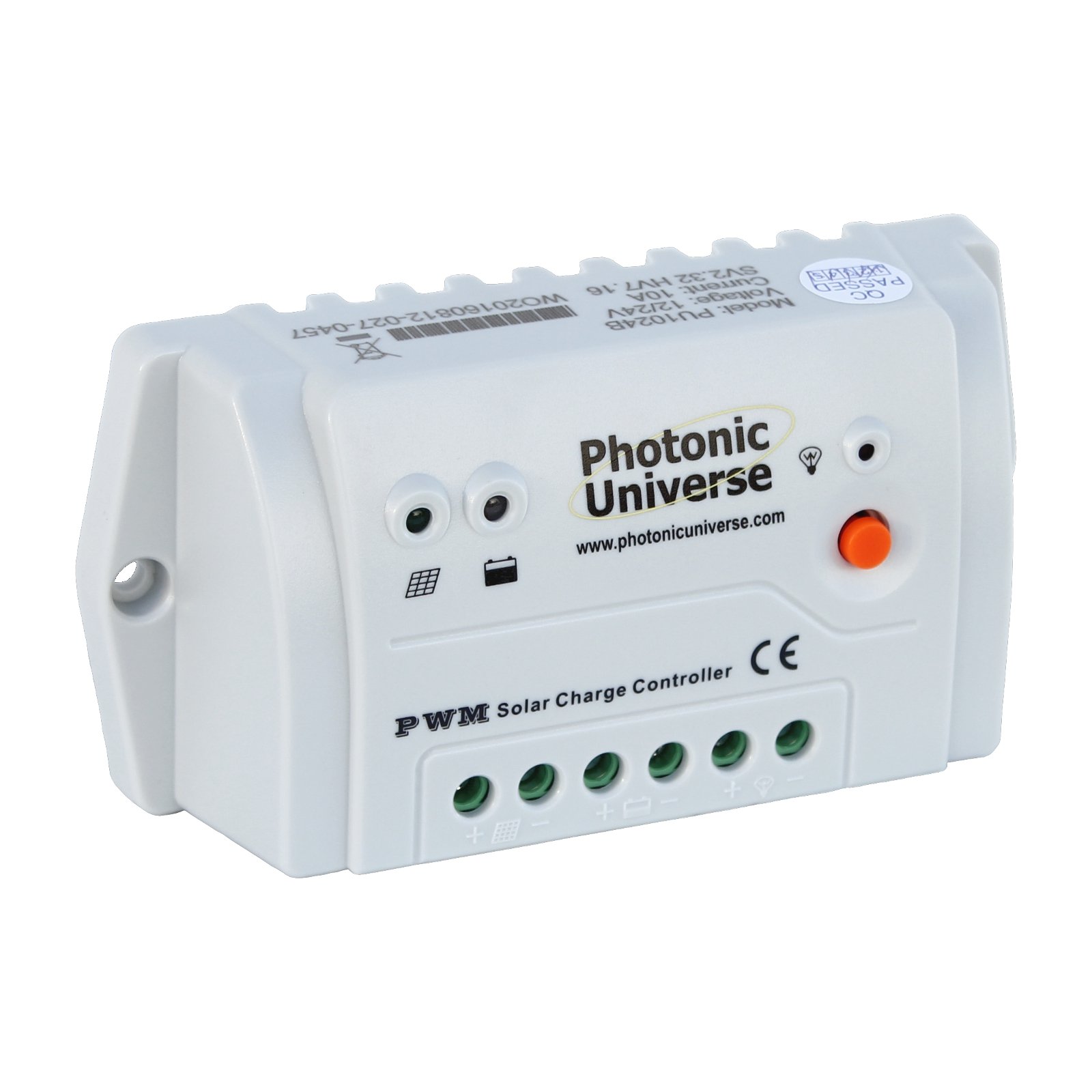

This high quality, brand new powerful 10A 12V/24V solar charge controller is designed to protect batteries while charging them, having automatic cut off to prevent over-charging and deep discharge. The controller uses PWM (Pulse Width Modulation) technology which increases charge acceptance and prolongs the life of your battery. Often PWM technology can recover some lost battery capacity.Features of this controller include LED indicators, temperature sensor, battery type switch and load "on/off" button. One of the benefits is also its compact size. This controller has a wide solar input voltage range up to 50V so it can work not only with off-grid but also on-grid solar panels.In addition, the unit can work with sealed, gel and flooded batteries compared to simpler controllers which can only work with a certain battery type. The controller can handle up to 160W solar panels, which makes it a perfect choice for small stand alone solar PV systems with a battery and load such as in a camper van or boat. Controller features: - Fully automated operation and auto 12/24V selection. - 3 pairs of terminals (input, battery, output) - LEDs to indicate charging, battery and charge. - Temperature sensor for automatic compensation (-30mV/C/12V). - Enhanced electronic protection (reverse current, over charging, discharge, over load, short circuit, polarity, overheating) - Self-consumption: 6mA max. - Working temperature: -35C to +55C. - Terminals for wire up to 6mm2. - Size: 14 x 6.5 x 3.5 cm. - Weight: 140 g. - Multiple mounting holes for ease of installation. The item is packaged in the original colour factory box and comes with a user manual.This product is covered by 1 year warranty.Please contact us if you need our free advice regarding this item.Brought to you by the UK specialist solar company Photonic Universe Ltd.
