Loops 10A Outdoor Rated Wall Mounted Photocell -IP55- Dusk Till Dawn Automatic Light Sensor Switch & Adjustable Timer – Garden/Garage/Warehouse External Daylight Detector Relay For Lights

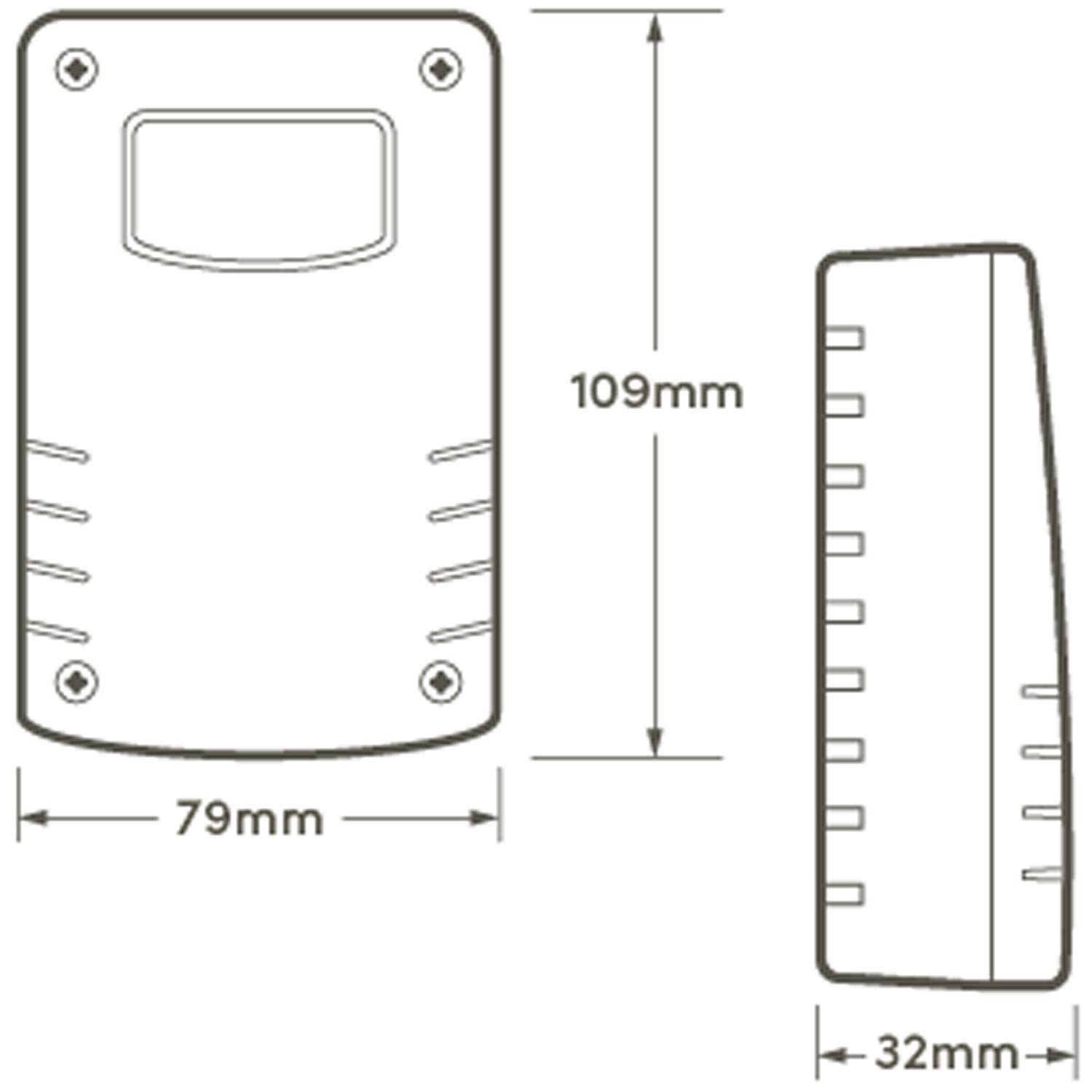

• Lux Settings – 3 Lux to 500 Lux | Maximum Load – 400W LED | Dimensions – 79mm (W) x 109mm (H) x 32mm (D)
• IP Rating – IP44 – Suitable protection against weather & water sprays from any direction

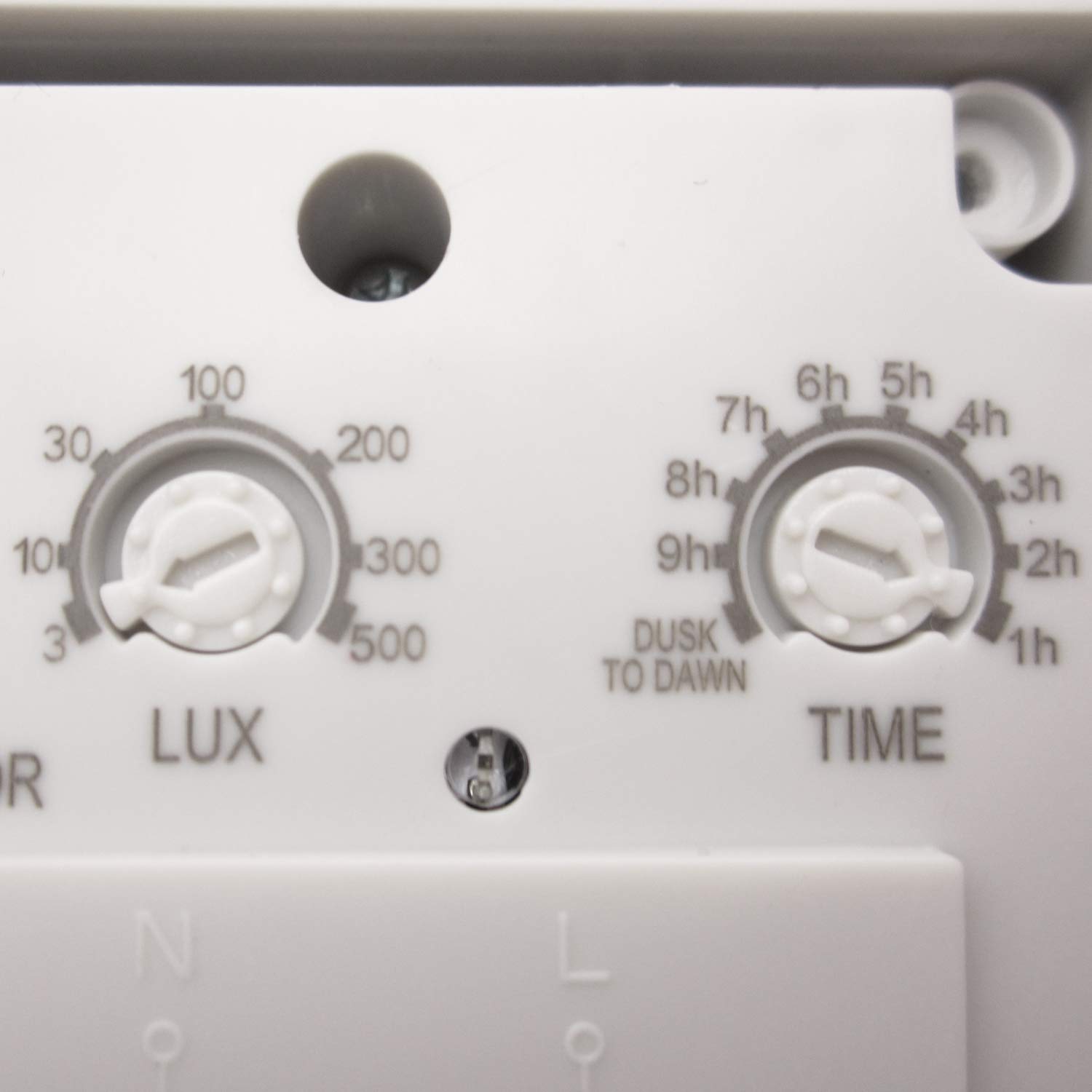

• Lux – This is the level of light that will trigger the photocell to switch on your lights. You can adjust the lux levels so that your lights come on earlier or later.
• Timer – When the switch is triggered, it will keep your lights on for a certain period of time. This switch has the following timer settings: 1h, 2h, 3h, 4h, 5h, 6h, 7h, 8h, 9h & a dusk till dawn setting. This will turn off the lights as the sun rises and lux levels rise above your selected lux setting.

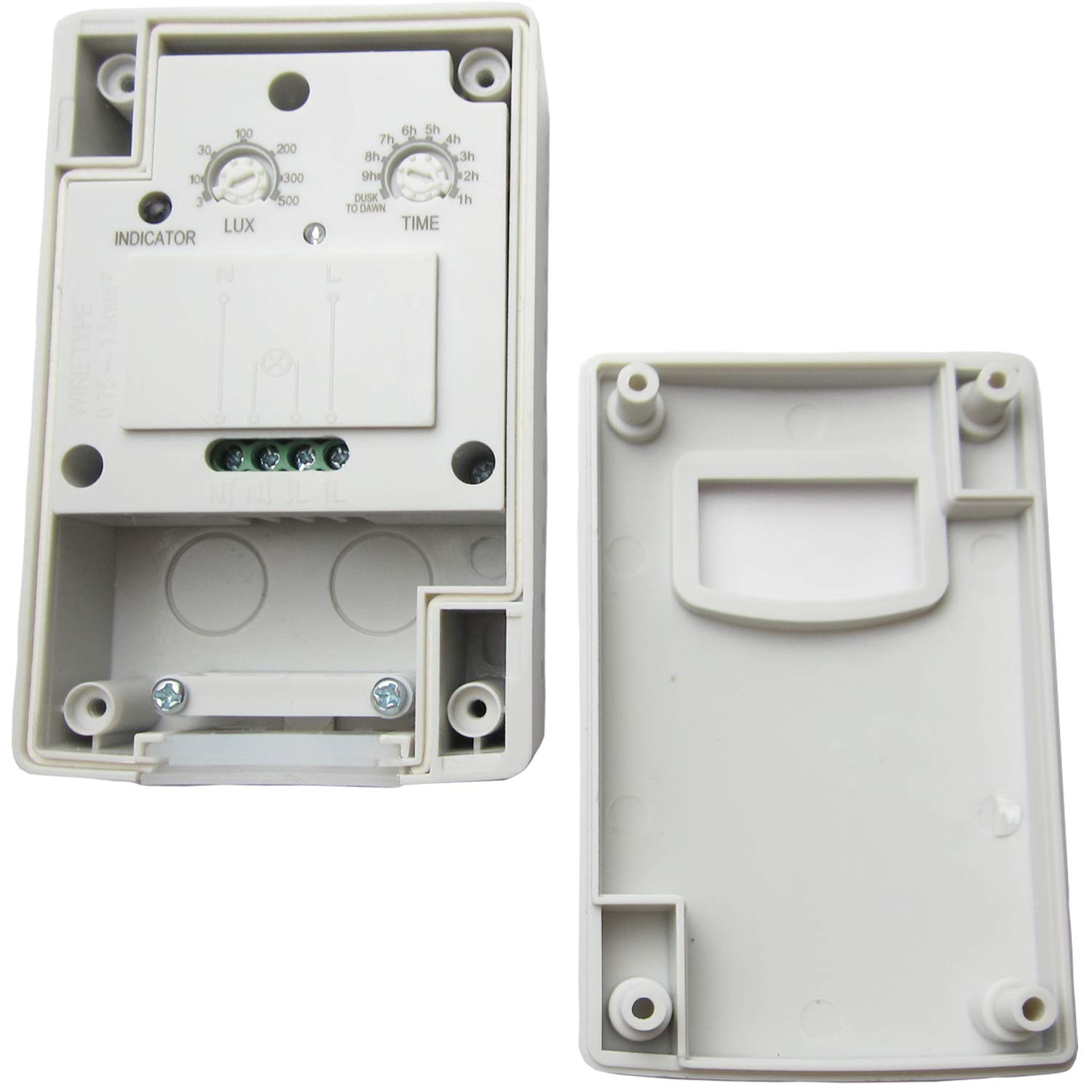

• This kit is supplied with wall mounting screws. There are 2 blowout holes on the back of the unit and there is a weatherproof cable entry point on the bottom of the unit so that you have multiple options for wiring this up. Easy access screw terminals also make for quick & safe installation of power cables.

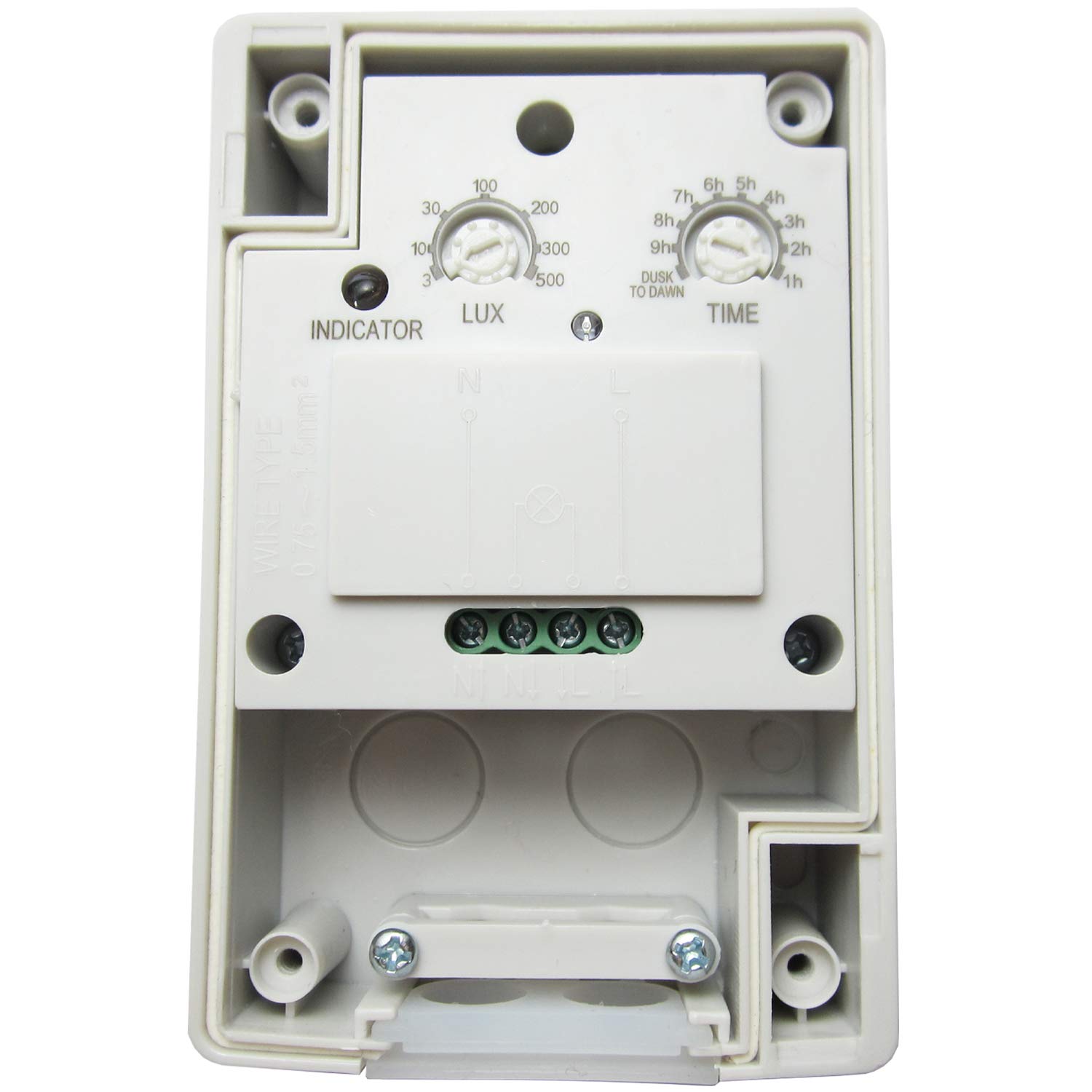

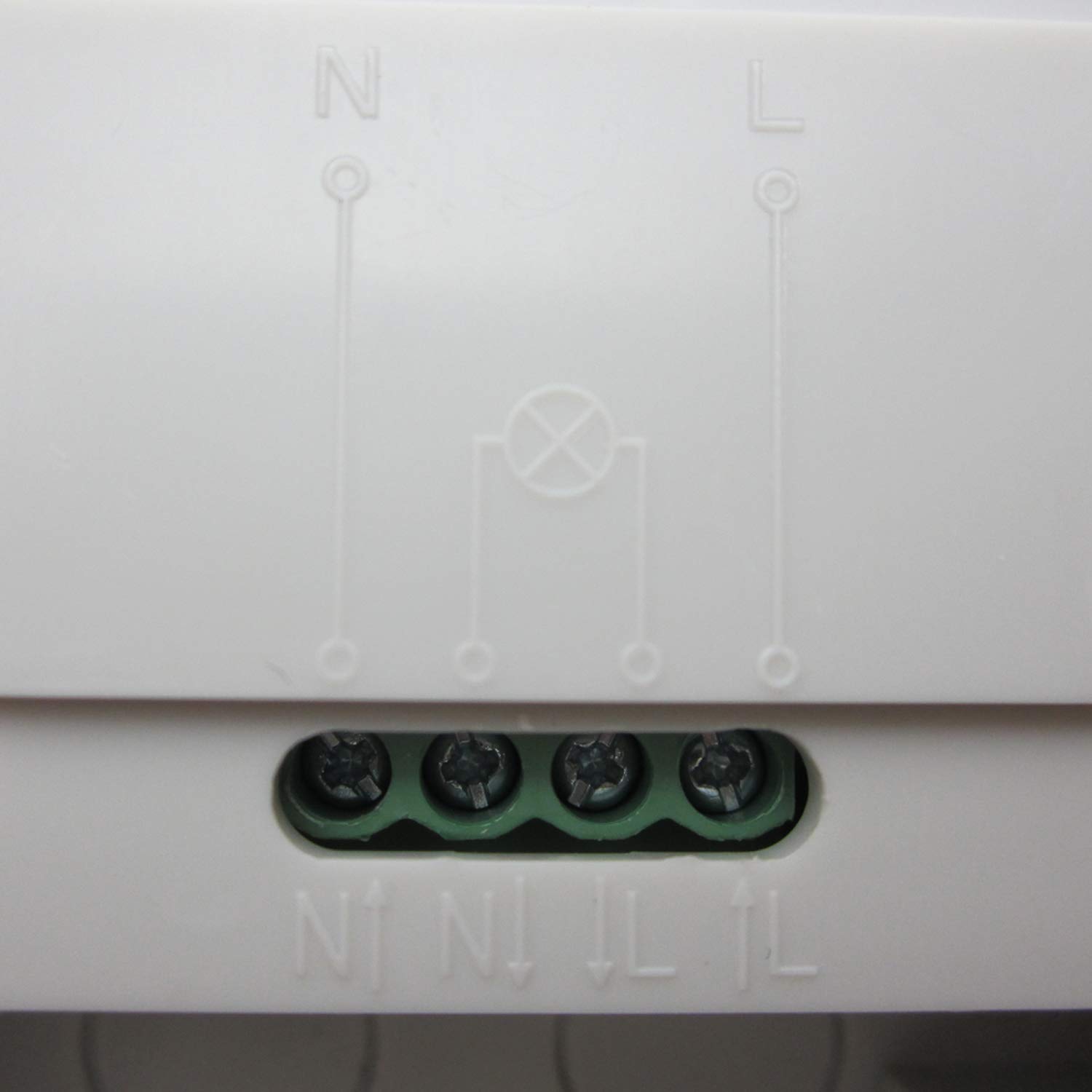

10A Outdoor Rated Wall Mounted Photocell Auto Dusk/Dawn Light Switch & Timer Please note 4 Terminals on back - Load in, Load out, Neutral in & Neutral out (Neutrals must always be connected). Overview This photocell switch is ideal for areas where lights are only required when an area falls below a certain daylight level (dusk for example). You can install this outdoors safely thanks to the unit being weatherproof IP44. Simply set your Lux & Timer setting to suit your requirements: Lux This is the level of light that will trigger the photocell to switch on your lights. You can adjust the lux levels so that your lights come on earlier or later. Timer When the switch is triggered, it will keep your lights on for a certain period of time. This switch has the following timer settings: 1h, 2h, 3h, 4h, 5h, 6h, 7h, 8h, 9h & a dusk till dawn setting. This will turn off the lights as the sun rises and lux levels rise above your selected lux setting. This light switch can be used as a replacement or new switch with a 250V rated consumer unit (fuse box) as found in most UK houses. This kit is supplied with wall mounting screws. There are 2 blowout holes on the back of the unit and there is a weatherproof cable entry point on the bottom of the unit so that you have multiple options for wiring this up. Easy access screw terminals also make for quick & safe installation of power cables. Specification: Lux Settings 3 Lux to 500 Lux Timer Settings 1h, 2h, 3h, 4h, 5h, 6h, 7h, 8h, 9h & dusk till dawn Time Delays 15 Seconds Maximum Load 400W LED IP Rating IP44 Suitable protection against weather & water sprays from any direction Power Source 220-240V AC Power Frequency 50Hz Rated Current 10A Guarantee 2 Years Dimensions 79mm (W) x 109mm (H) x 32mm (D)
