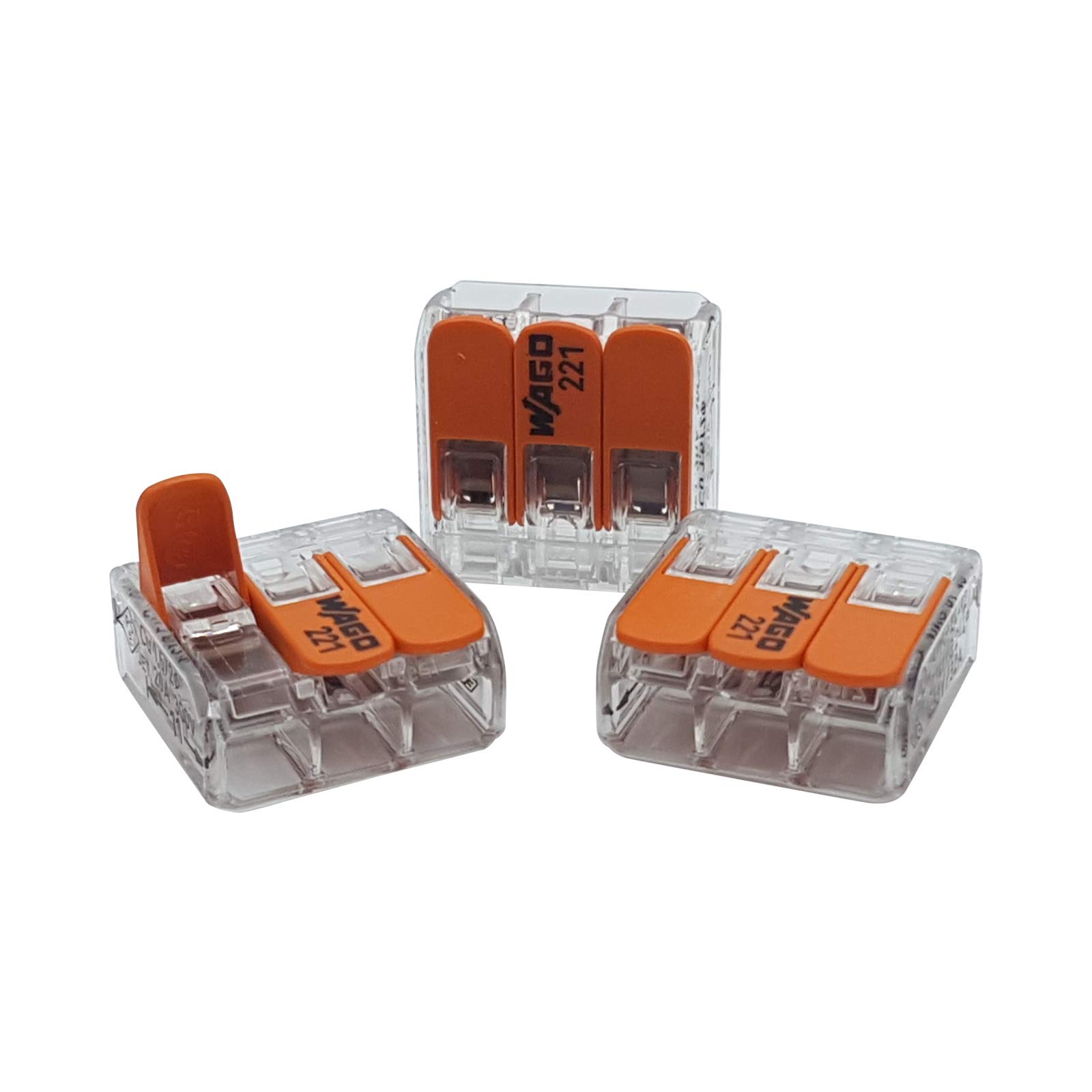

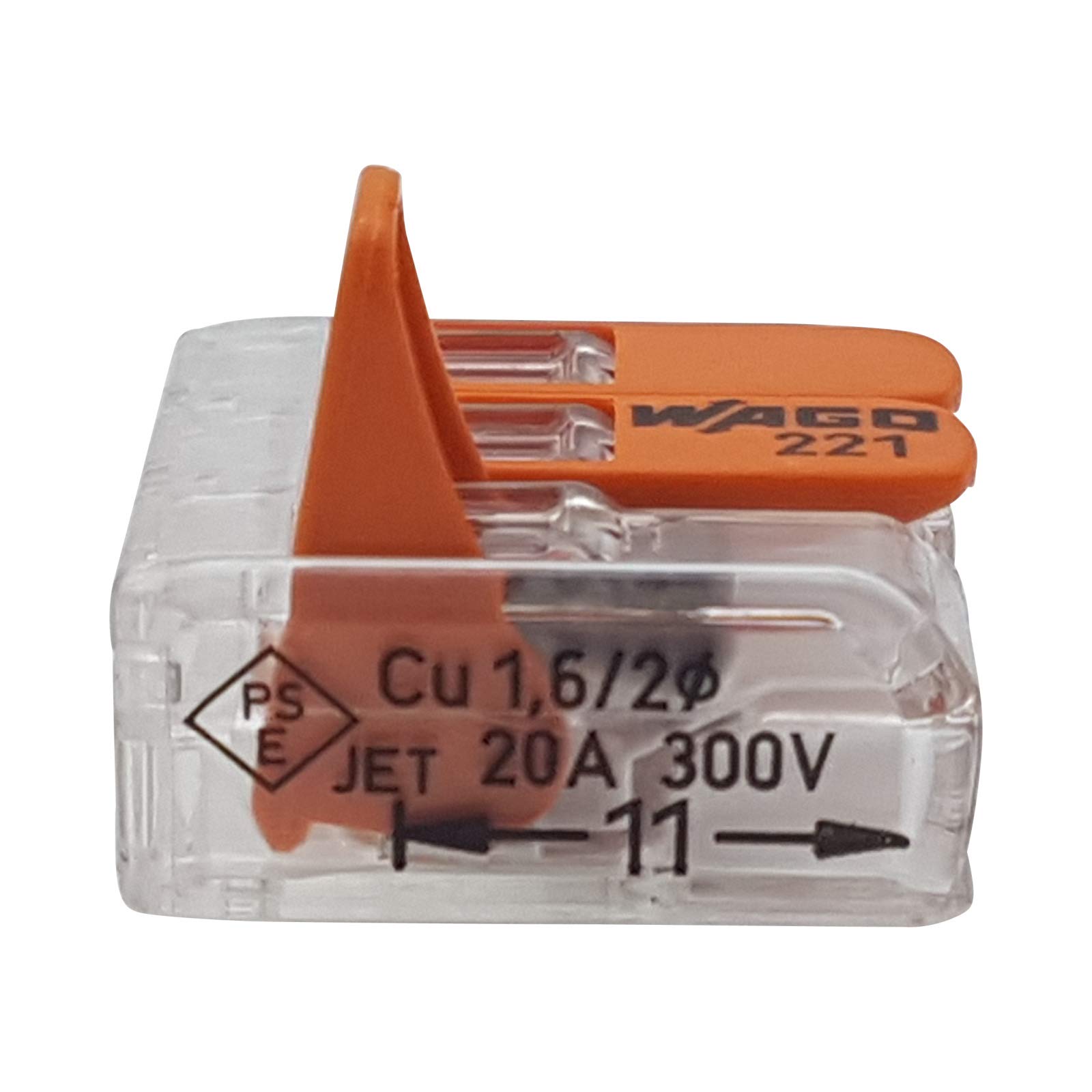

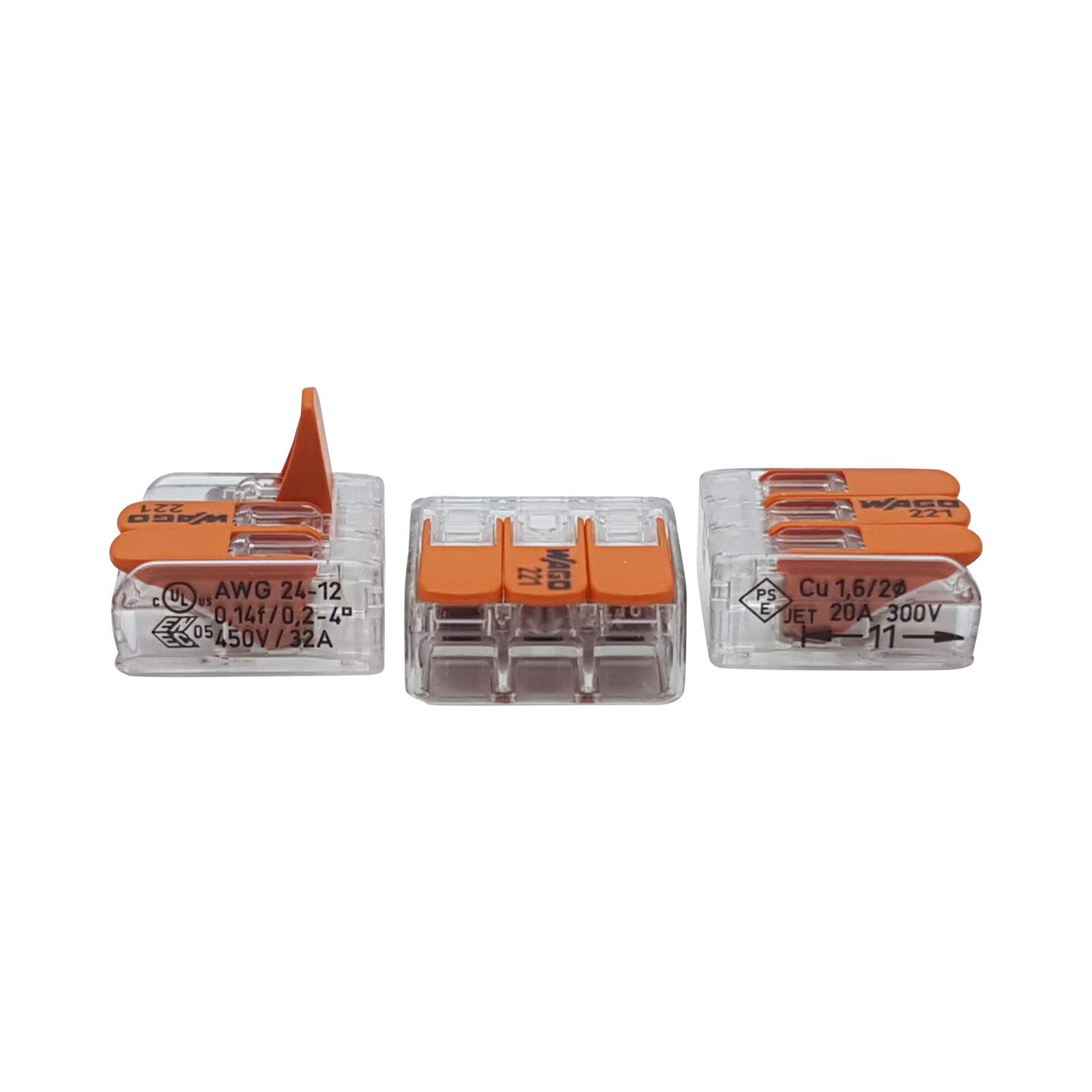

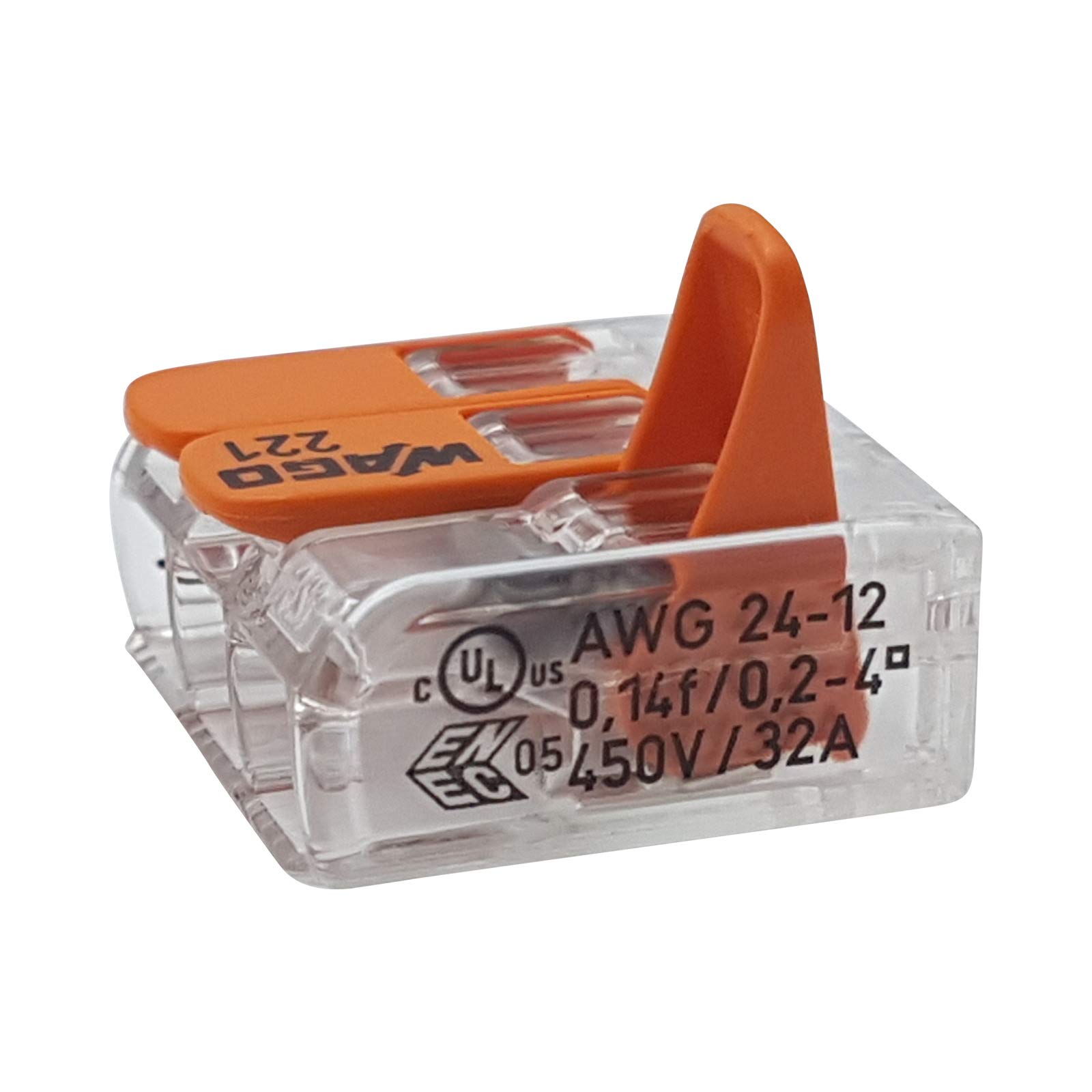

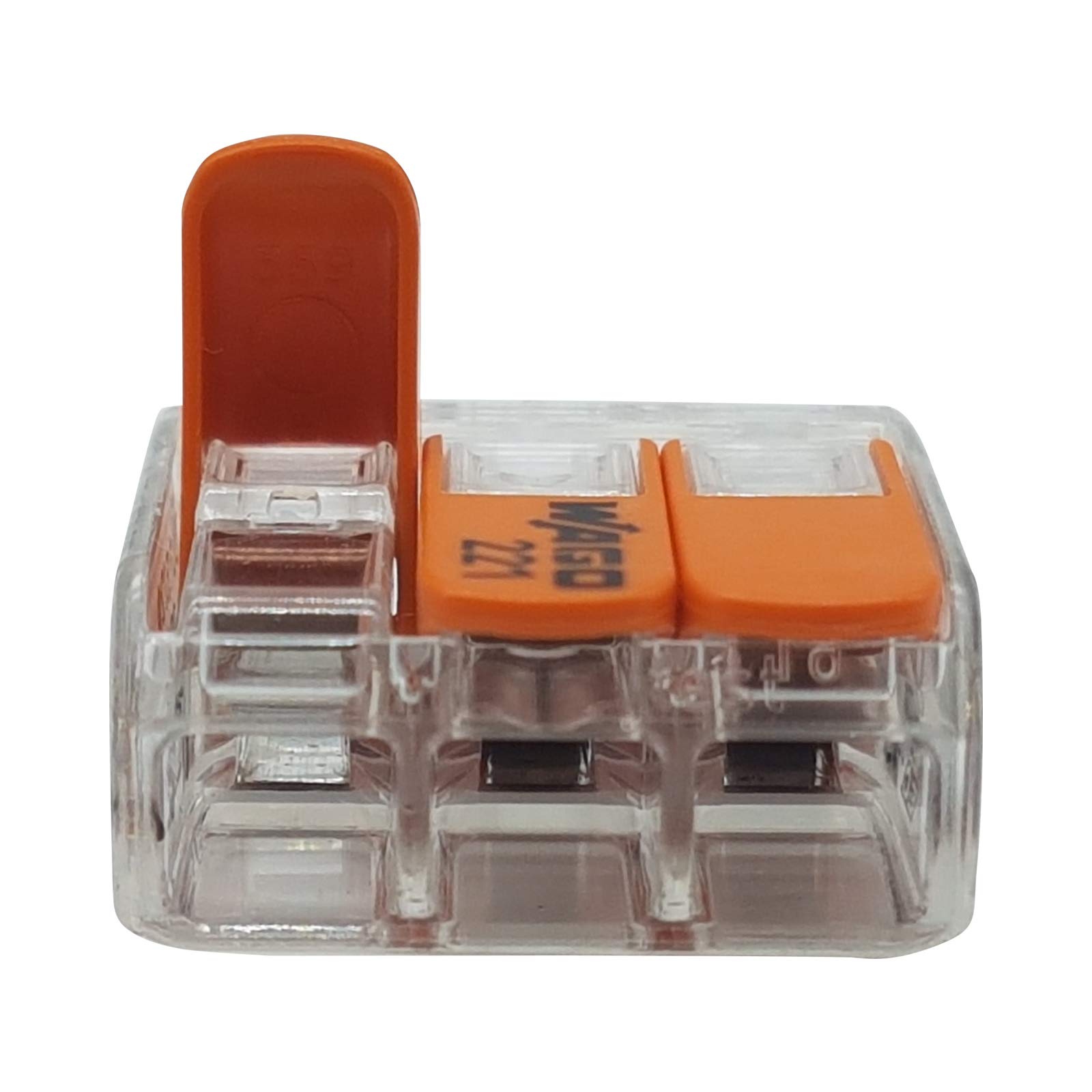

100 Pieces Wago 221-413 Connection Terminal 3 Wires with Lever 0,2-4 qmm Small Design, Transparent

• Comfortable conductor connection from 0.2 to 4 mm²
• Installation of single, fine and multi-stranded conductors
• Lever on, ladder in, close lever
• For all types of conductors
• 32 A / 450 V

Electrical data: Rated data according to IEC/EN 60664-1. Rated voltage (II/2): 450 V Rated surge voltage (II/2): 4 kV Rated Current: 32A Connection data: Connection technology: CAGE CLAMP Actuation type: lever Connectable conductor materials: copper Nominal cross section: 4 mm² Solid conductor: 0.2 - 4mm² / 24 - 12AWG Multi-wire conductor: 0.2 - 4mm² / 24 - 12AWG Fine wire conductor: 0.14 - 4mm² / 24 - 12AWG Stripping length: 11 mm / 0.43 inch Total number of clamping points: 3 Total number of potentials: 1 Wiring type: side wiring Single-wire conductor cross-sections: 0.2 mm² Geometric data: Width: 18.7 mm / 0.736 inch Height: 8.3 mm / 0.327 inch Depth: 18.6 mm / 0.732 inch Material data: Colour: transparent. UL 94 flammability class V2 Fire Load: 0 MJ Weight: 2527 g Environmental conditions: Operating ambient temperature: 85°C Continuous operating temperature: 105°C T-mark according to EN 60998: T85
