Salice 10 x Concealed Cup Hinge 200 Series Full Overlay Mounting 110° Drilling Pattern T45 Nickel Matt Steel Modern 3D Adjustment Hinge

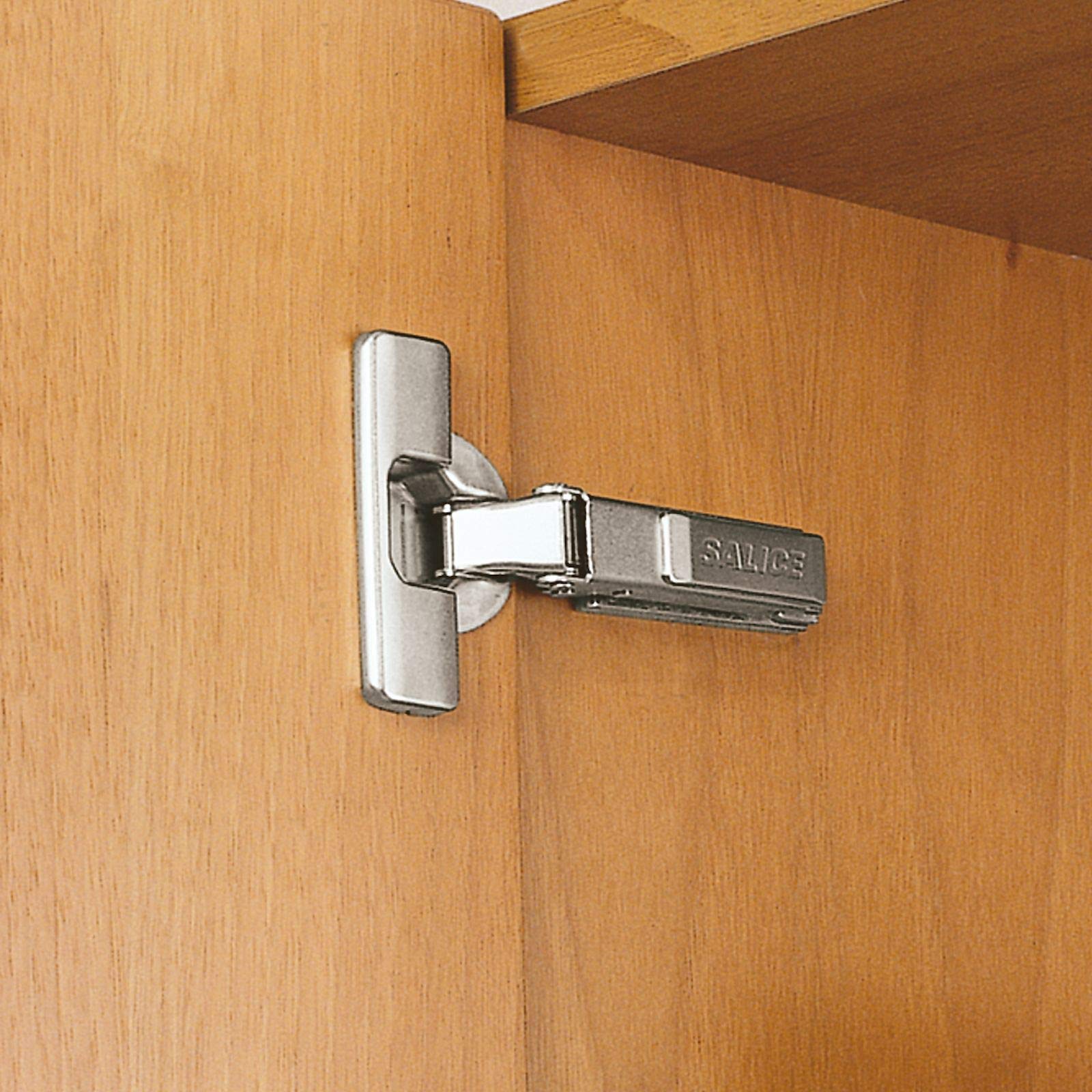

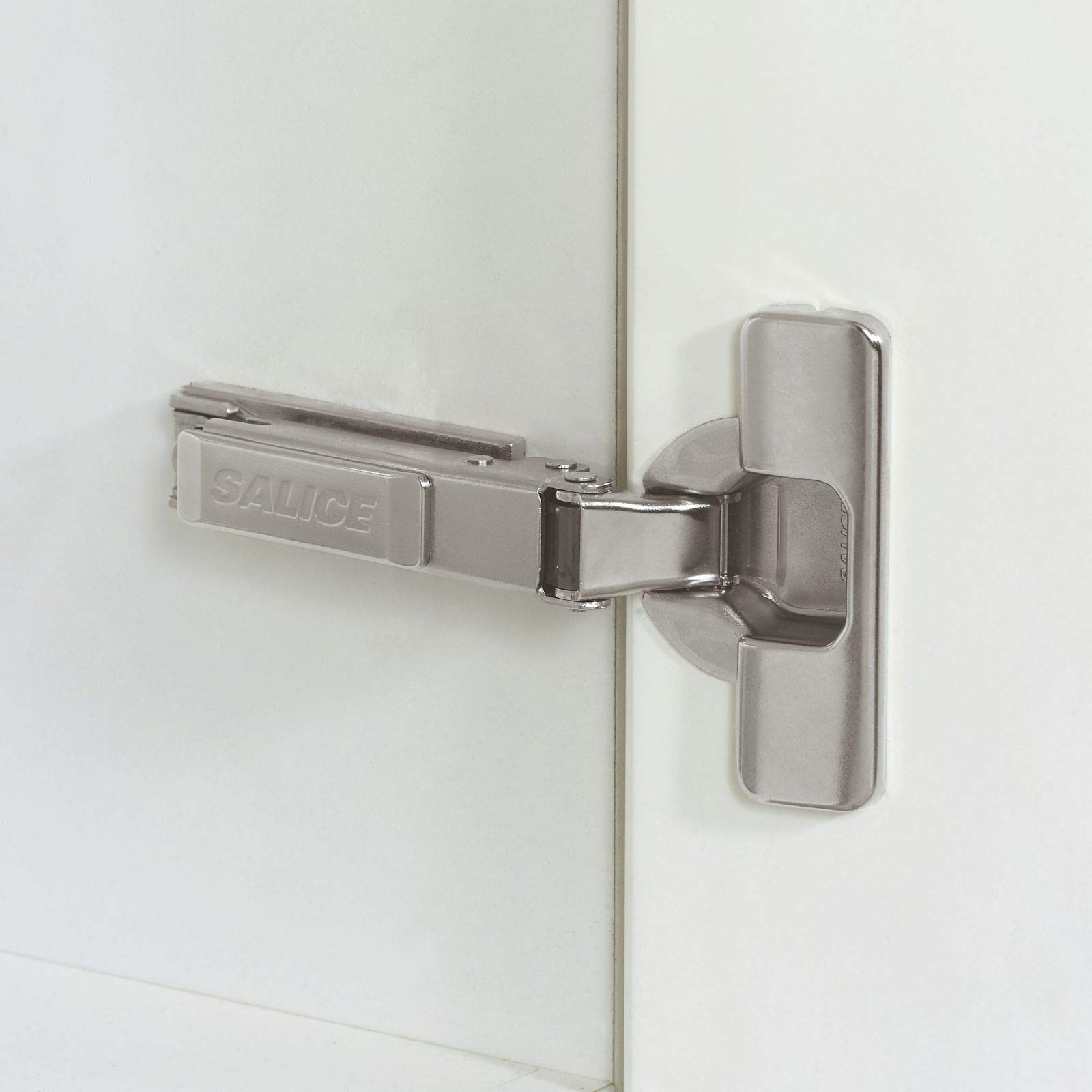

• 10-piece set Salice 200 Series concealed cup hinges 110° with self-closing feature. These hinges are a system of hinges and mounting plates that can solve any construction problem.

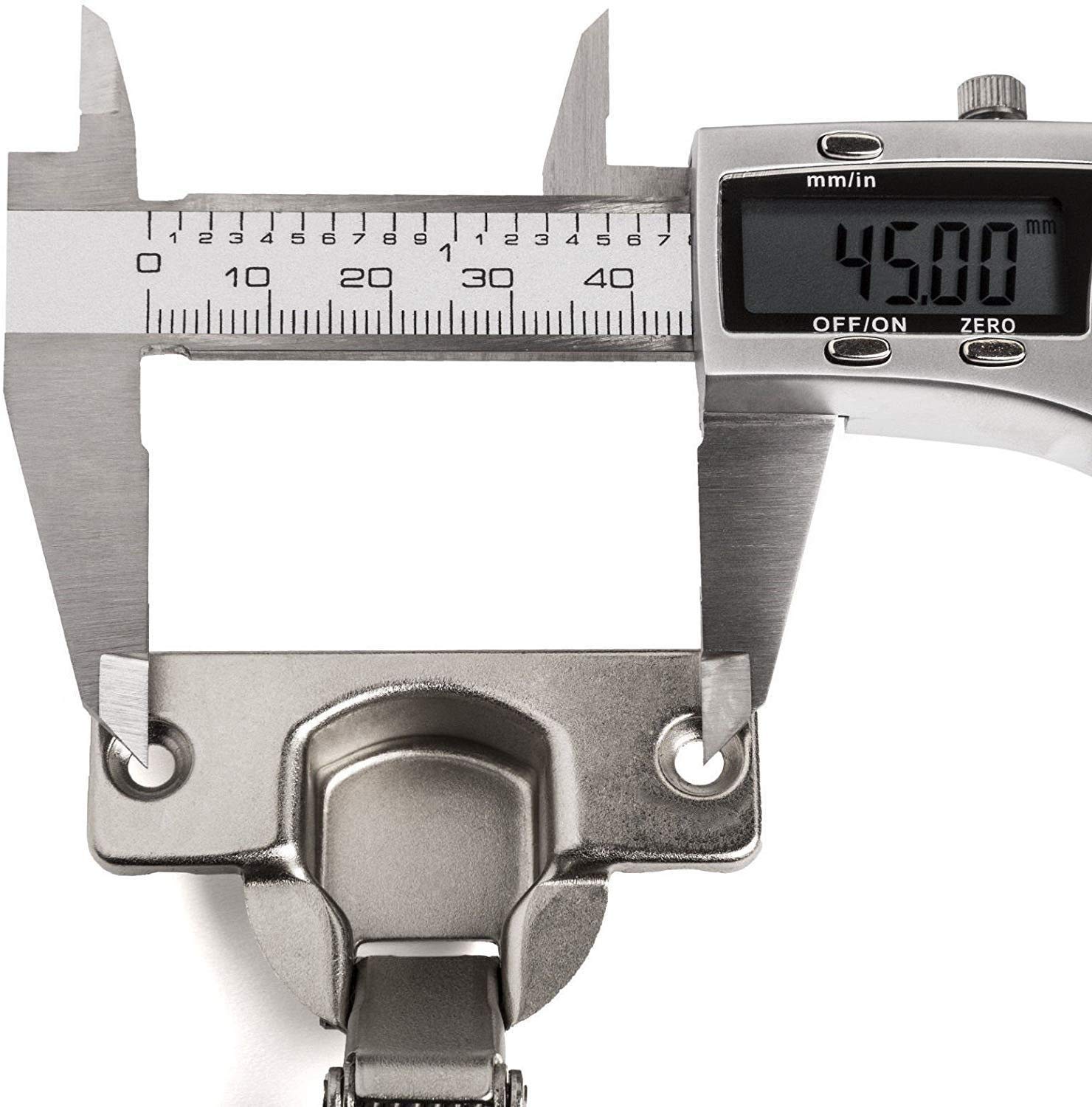

• Crank: 0 mm - Full overlay mounting / Cup drilling distance: 45 mm (like Blum) / Opening angle: 110°

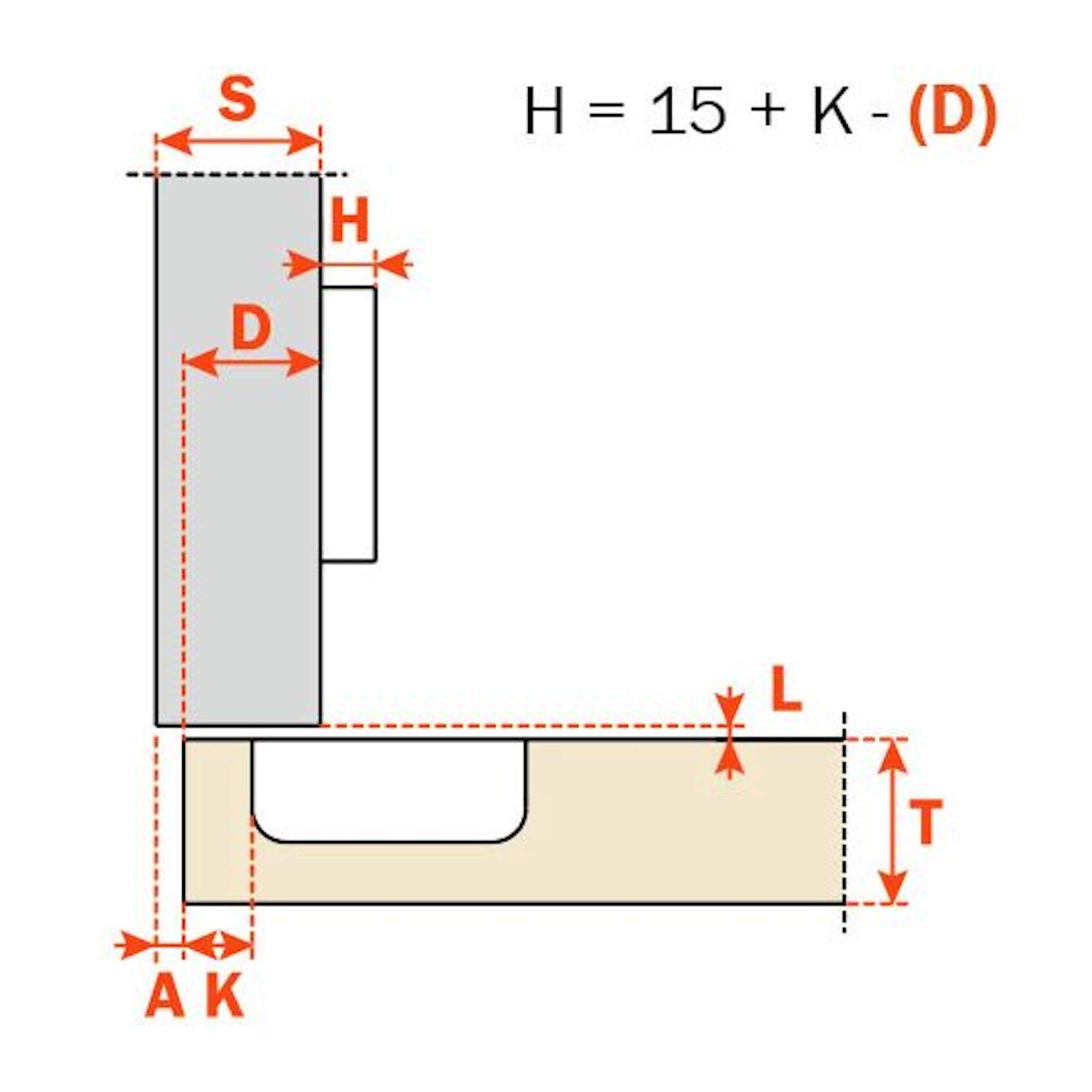

• Hinge arm: steel / Hinge cup: steel / Surface: nickel matt / For doors with minimum thickness of 16 mm / Cup distance (K): from 3 to 6 mm mm / Cup diameter: 35 mm / Cup depth: 11 mm / For wood threaded screws (not included in scope of supply)
• Modern 3D adjustment / Side adjustment: -1.5 mm/ +4.5 mm / Height adjustment: ± 2 mm / Anti-skid safety lock
• Scope of supply: 10× concealed cup hinges

10-piece set SALICE 200 Series concealed cup hinges The hinges of the 200 series are a system of hinges and mounting plates that can solve any construction problem. Features: Opening angle: 110° Crank: 0 mm – Full overlay mountingb> For doors with minimium thickness of 16 mm For wood threaded screws (not included in scope of supply) Cup distance (K): from 3 to 6 mm Suitable for Salice mounting plates 200 series (Slide-On technology) and all Salice Domi Blitz (Click-System) mounting plates Cup diameter: 35 mm Cup depth: 11 mm Cup drilling distance: 45 mm Hinge arm: steel Hinge cup: steel Surface: nickel matt Modern 3D adjustment Side adjustment: -1.5 mm/ +4.5 mm Height adjustment: ± 2 mm Anti-skid safety lock Scope of supply: 10× concealed hinges
