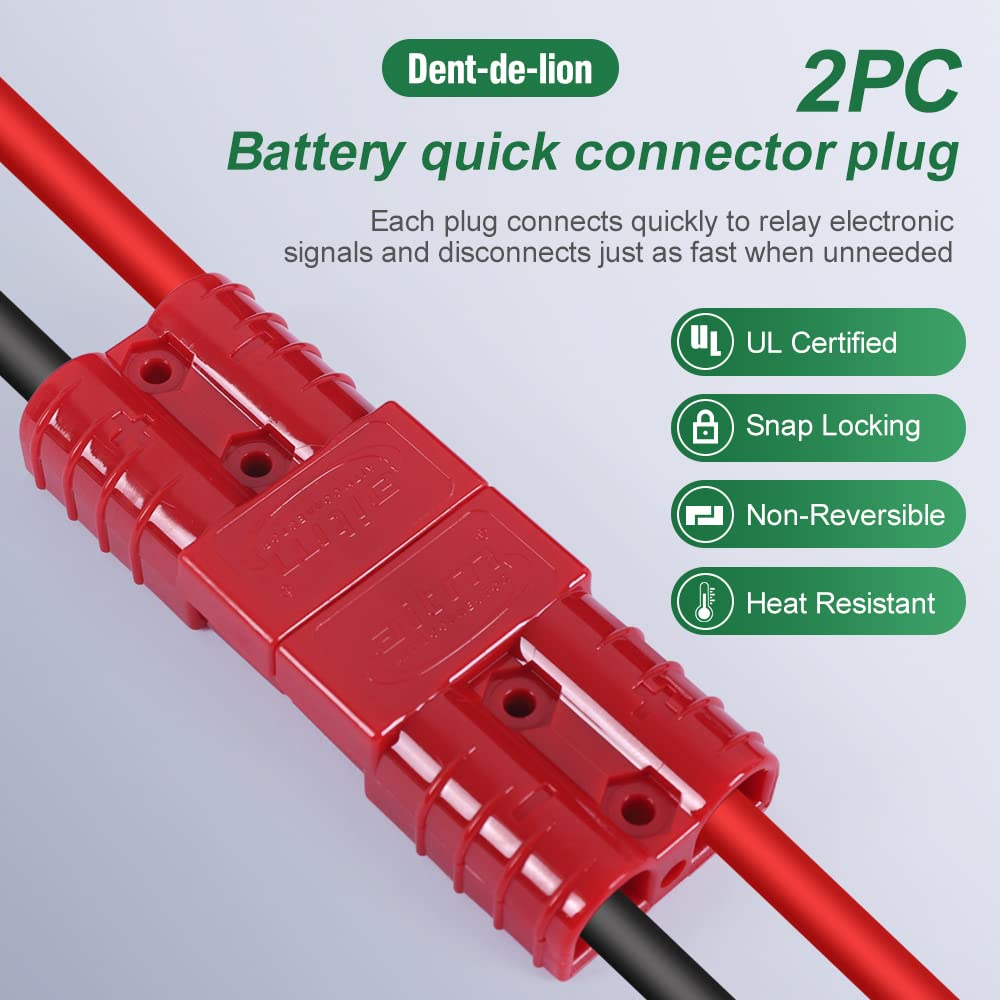

10 x 600V 50A Battery Connector Quick Connector Plug for Car Van Motorcycle Modes

• 100% brand new and good quality. Contact barrel wire size [AWG]: 6/10 / 12AWG (1 3.3 mm² - 5.3 / 3.3 mm²). Medium contact resistance (micro ohm):200.Insulation resistant to test voltage (Volts AC/DC):2200 V. Contact retention force (lbf):50lbf.
• No load (contact / disconnection cycles): at 10 000.Under load (hot plug 250 cycles @ 120 V). Average insertion force (books): 15 lbf. Operating temperature ° C: -20 °to 105 °.Flammability class of the case material: UL 94-V0.Good material: the product is made from good materials, the continuity is perfect, the resistance to the wrong environment.
• Self-erasing makes the surface of the thrust needle clean, the low contact resistance is reliable. The connector can be used in a powerful shock environment and with the quick action function in a large electric current.
• The stainless steel shrapnel can ensure constant contact stress and compensates for intermittent overload in case of frequent splicing and interruption.

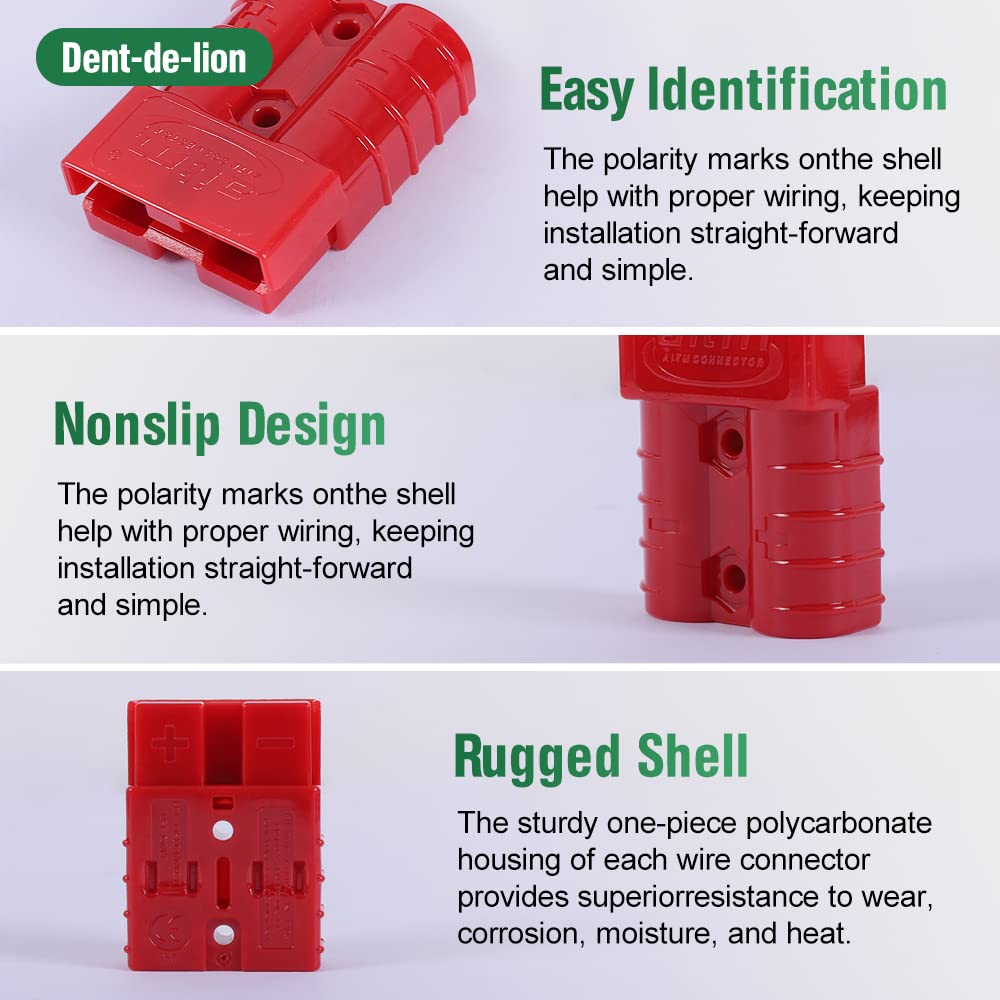

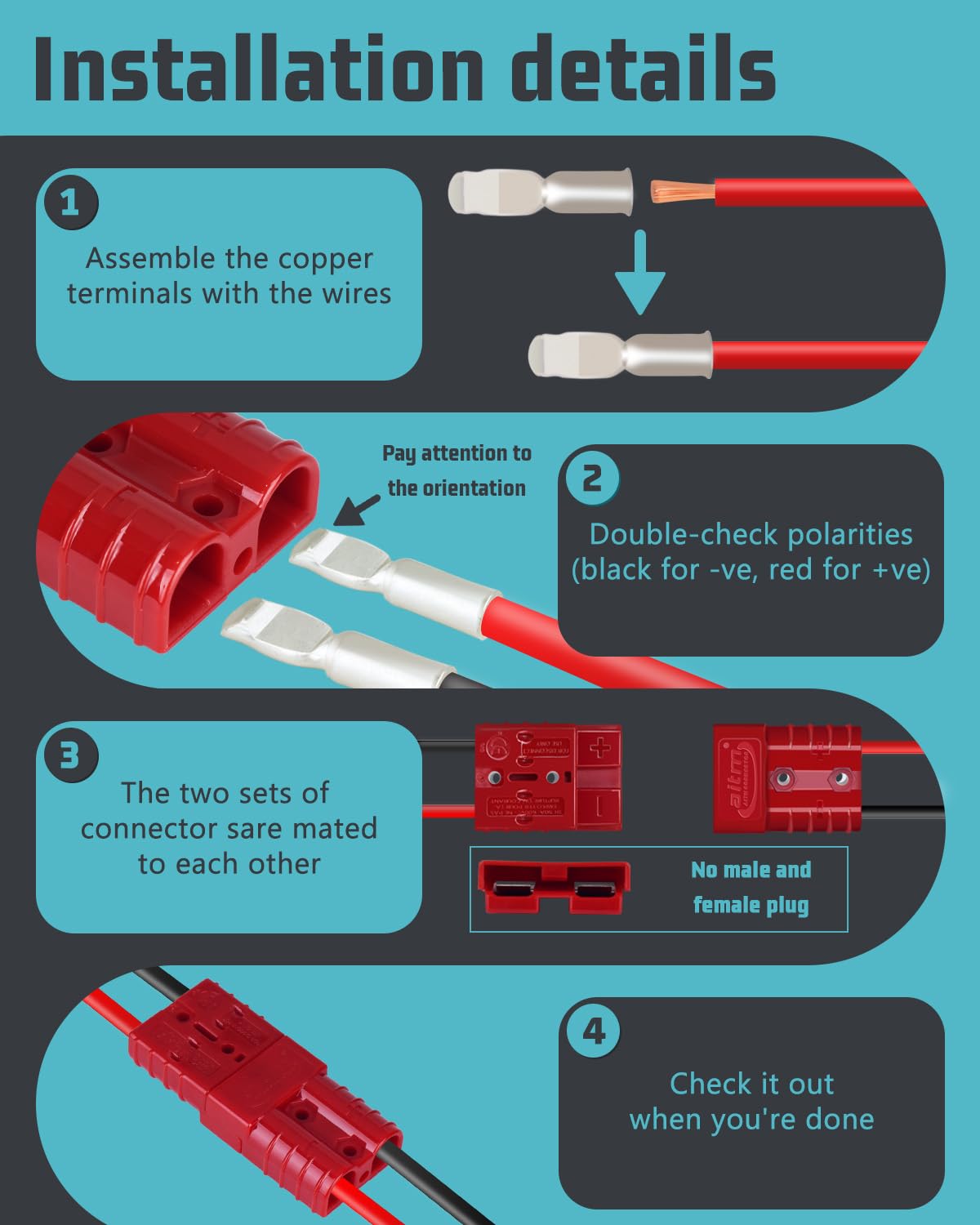

• Easy to use: Regardless of the plug or plug, insertion in the same colour is a pair, easy and quick to splice and interrupt.

Application: it is suitable for electric vehicle, power supply of communication power from UPS, electric machine, electric forklift, power equipment, etc.
