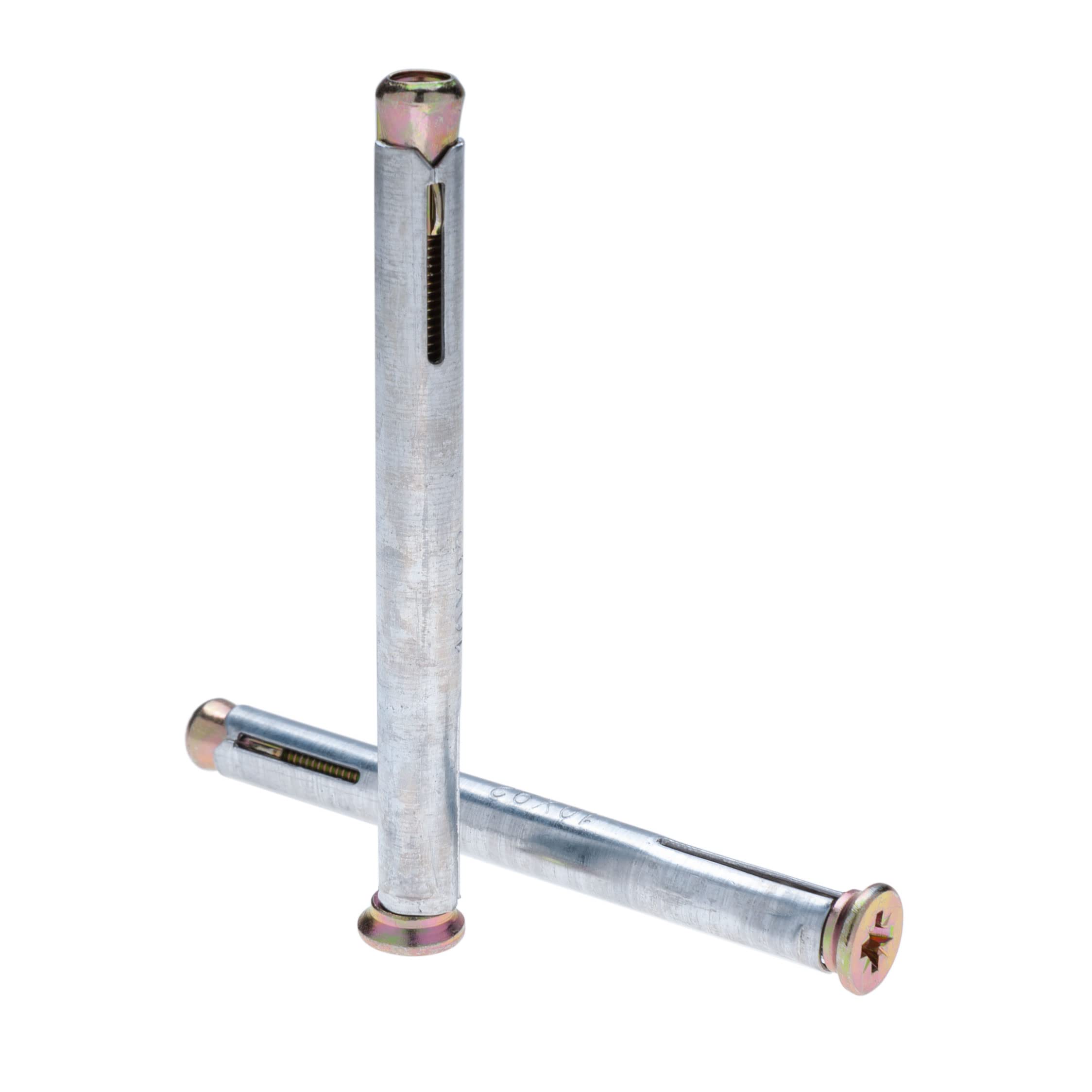

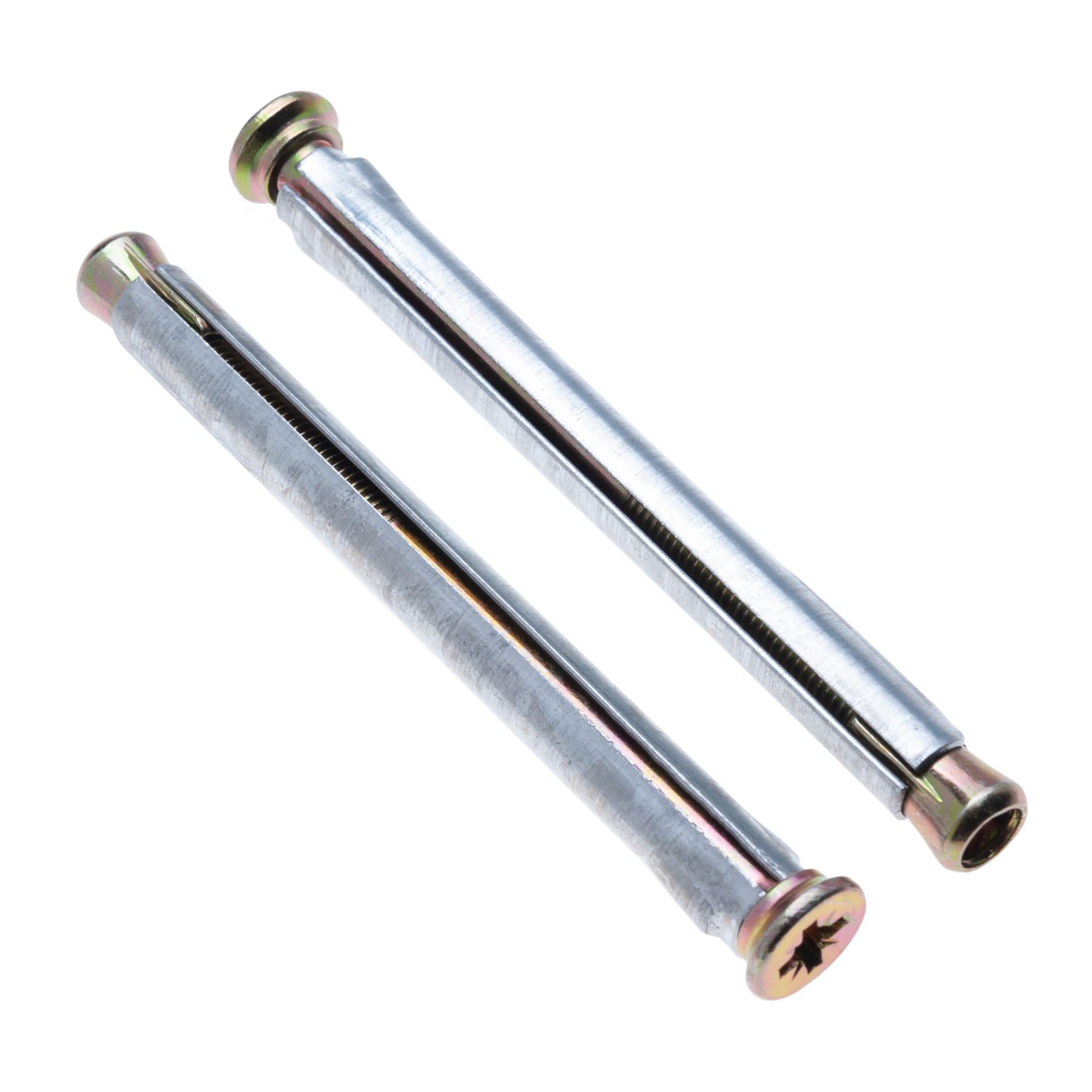

10 mm x 132 mm Metal Frame Anchor Sleeve, Concrete Anchorage Fixing Pozi Drive Screw with Metal Expancion Wall Plug for Metal, Plastic, Wooden Windows and Doors Instalation (10 pcs)

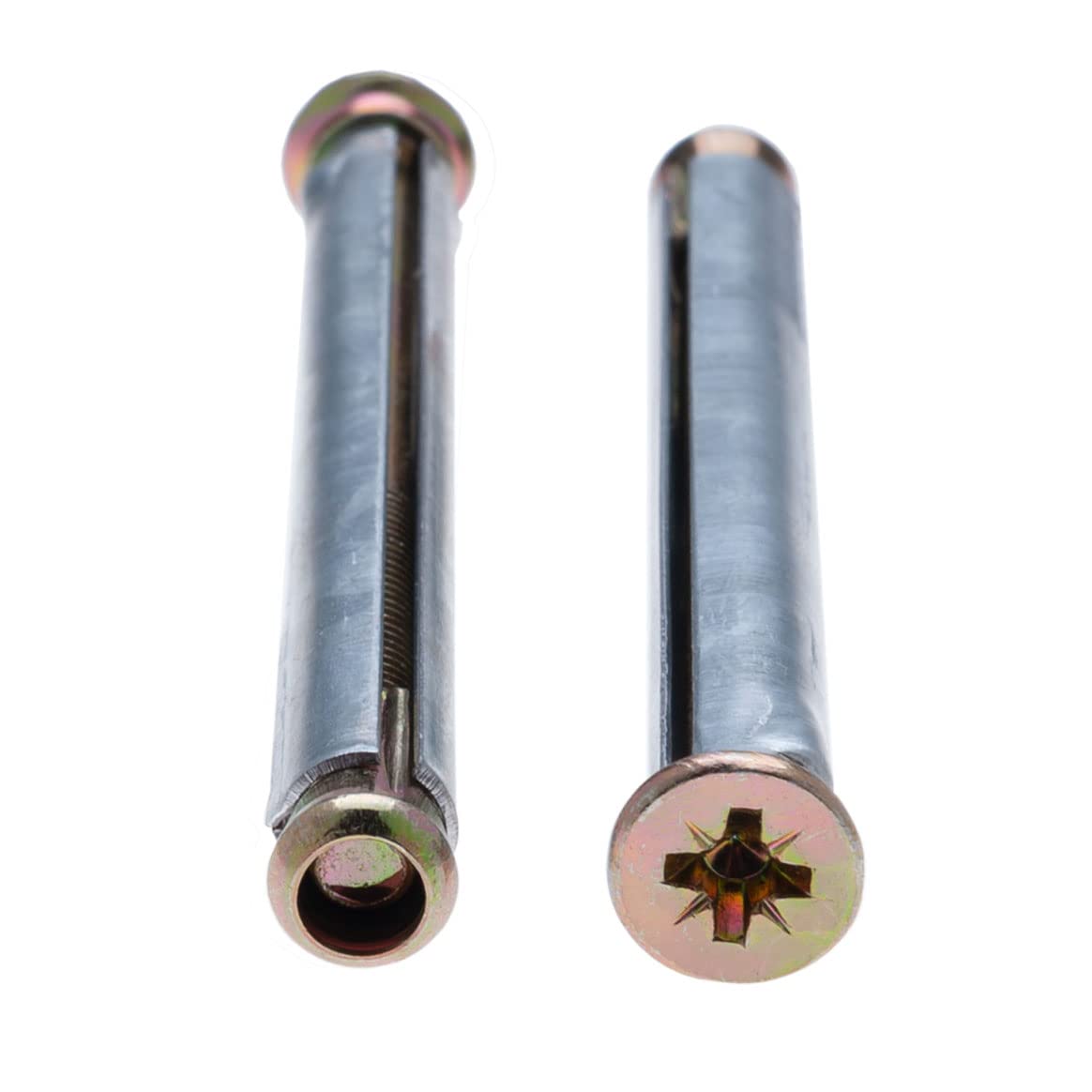

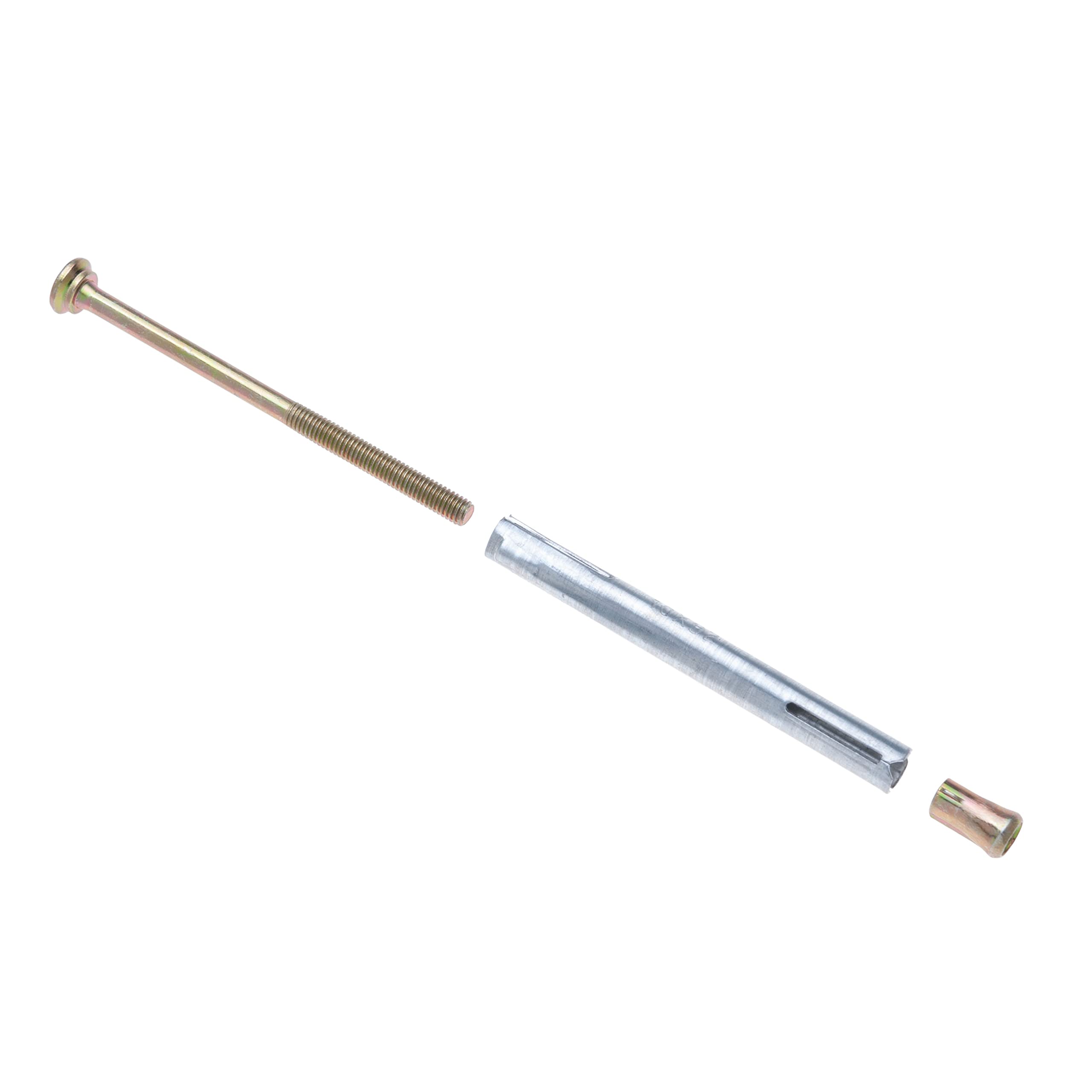

• Metal Frame Anchors: Allso known as door frame dowel are pre-assembled single units that are used in pre-drilled holes. They comprise of a threaded stud with a flared cone shaped end, expandable metal sleeve and countersunk pozi head.
• KEY FEATURES: One piece, preassembled, threaded sleeve anchor diameter equals drilled hole size. Simple installation through object to be fastened. Variety of diameters & lengths to suit different applications. Low costs on supply and installatio
• INSTALLATION: 1) Drill hole in base material. 2) Clean out dust and drilling fragments .3) Insert anchor directly through the frame into hole and drive until screw flush with the material surface. 4) Set anchor by tightening to specified torque.

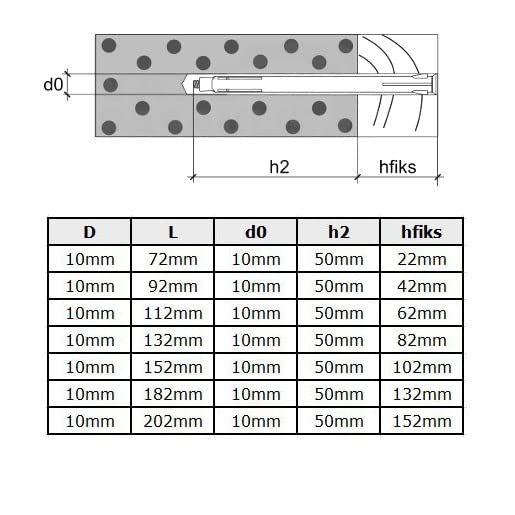

• DIMENSIONS: Diameter 10mm hole diameter 10mm, length 132mm, thread length 50mm, fixing thickness 82mm
• WIDE APPLICATION: Ideally used in applications that requires a medium-duty anchor for fixing into concrete, solid masonry and brick. Typically used by contractors in the building, plumbing, electrical & carpentry trades. Commonly used for securing shelving, racking, brackets, hand rails, door frames, window frames, signage, satellite dishes, garage doors, ductwork, piping, electrical cabinets, timber & metal fixing to walls, floors etc.

Metal Frame Anchor Metal frame dowel is a special dowel for stress-free and permanent spaced installation of window and door frames as well as squared timber. This consists of a metal sleeve and a screw made of galvanized steel. Easy to instal set in push-through assembly to save time. When the screw is tightened, the cone is pulled into the anchor sleeve, expands and braces itself against the borehole wall. This guarantees a tensile and pressure-resistant attachment and thus a secure hold in solid and perforated building materials. The Frame dowel offers safety for fire protection-related applications. Used for securing both door and window frames to most building materials. Package contains: 5 pcs metal frame screws
