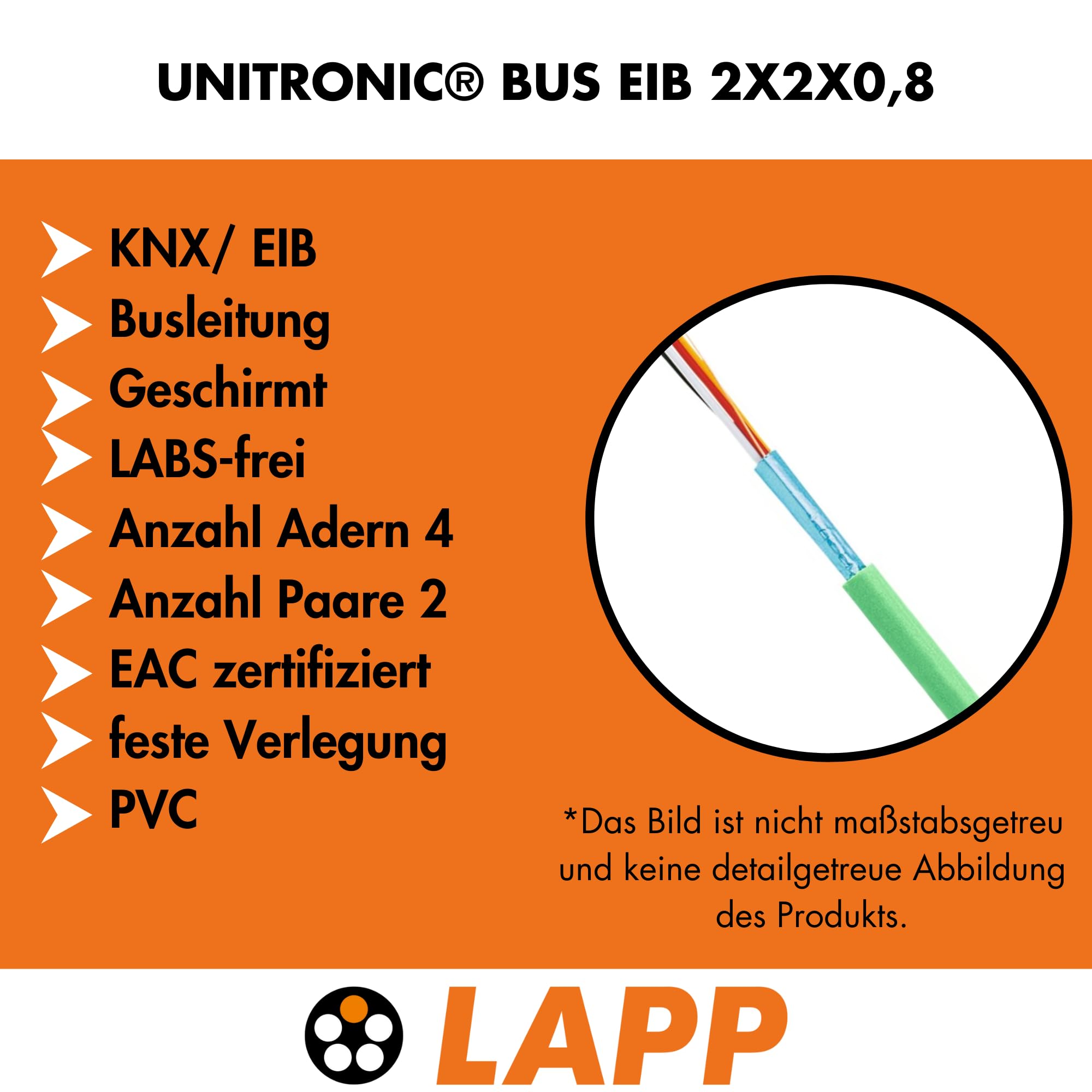

10 m Lapp 2170240 Unitronic BUS EIB Bus Cable 2 x 2 x 0.8 Shielded Green I KNX Bus Cable I Data Cable 4 Core I PVC Data Bus Cable I Data Bus Cable I Fixed Installation I Bus Cable KNX

• Our cable is supplied in 10 metre pieces, i.e. if you order 2 pieces, you will receive 10 metres twice and not 20 metres in one piece.
• Flexible installation - The cable can be laid on, in and under plaster, in pipes, cable ducts as well as in dry, damp and wet rooms.
• High quality technology - EIB (European Installation Bus) installation allows the control of sensors and actuators for efficient building systems technology.
• KNX technology - Based on the technical fusion of EIB, EHS and Batibus, for precise and reliable control.
• Flame-retardant and shielded - The bus cable is flame retardant and shielded for increased safety and interference-free.

Data line construction: Valid fieldbus or Ethernet system: KNX / EIB. Number of cores: 4. Number of pairs: 2. Shielded:Yes Nominal outer diameter: 6.6 mm. Cable shape: round. Base material of wire insulation: polyvinyl chloride (PVC). Base material of outer sheath: PVC Wire marking: pair 1: red/black, pair 2: white/yellow. Stranding: 4 wires stranded to star quad. Product features: Areas of application: fixed installation. Minimum bending radius, fixed 5 x outer diameter Minimum bending radius in mm, fixed 33 mm. Temperature, fixed installation -30 °C to 70 °C. UV Resistant: No Halogen-free: no. Oil Resistant: No Fast Connect (FC) Cable: No Certifications and standards: CE marked: yes. UKCA marked: Yes EAC certified: yes. VDE certified: no
