3/4" Cold Water Filtration in-Line Purify System Housing + Whole Filter Set

• 5 micron polypropylene filter cartridges included.
• Dimensions: 120 x 315 mm. Maximum pressure: 6 bar. Maximum water temperature: +23°C.
• Filter cartridge measures 2 1/2 x 9.9 inches.
• Clear bowl, brass inserts, NSF and WRAS certified, high quality product.
• Made in the EU.

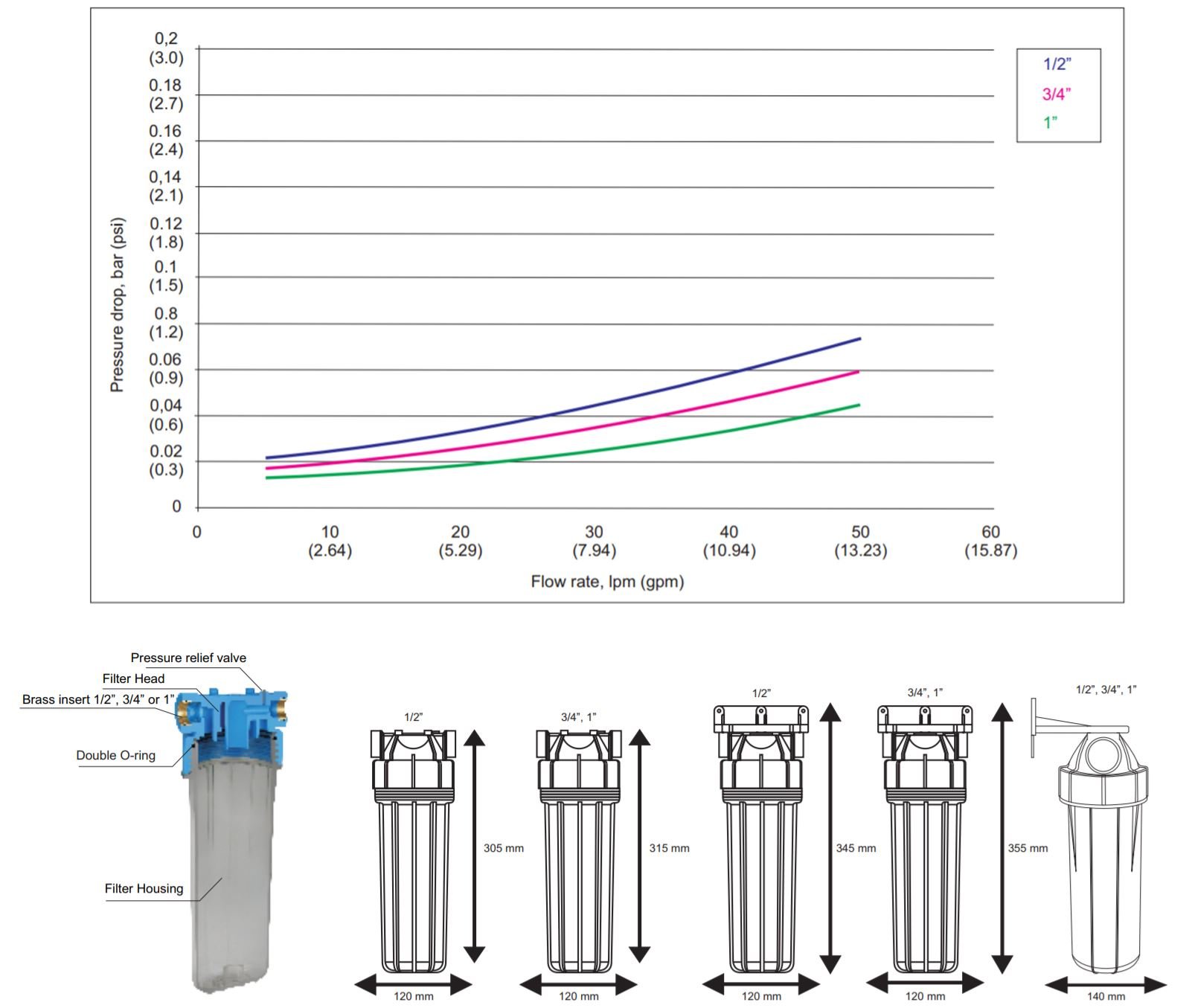

AQUAFILTER H10B series housings - 10"-type filter housings offer the versatility to meet all customer filtration needs. They are all dedicated for cold water on residencial and commercial applications. H10B series housings are compatible with a broad range of 2 1/2" x 10" type cartridges widely available on the market. Heads are equipped with a pressure relief valve (providing ability to release air pressure collected during cartridge replacement procedure). Features: - High quality; - NSF certified for structural integrity and material requirements; - WRAS certificate; - FDA CFR title 21 Compliance; - Two O-rings for maximum leak proof protection; - Ideal for POE or POU use; - Maintenance free - saves money, time and labor; - Easy to connect to cold water inlet; - Easy to install, no electricity, no drain required; - Full flow 3/4" ports; - Made in EU with high performance components. Applications: - Domestic istallations; - Pre-filtration systems; - Food industry; - Industry laboratories. Set include: - 10" filter housing; - Polypropylene filter cartridge (removes sediments such as sand, silt, rust and suspended solids); - Mounting bracket with screws; - Wrench; - Instruction; - Color box; - Antibacterial and antimicrobial filter cartridge centralizing ring. Specifications: - Clear Housing (sump): poly(ethylene terephtalate) (PET); - Cap: polypropylene; - Inserts: brass; - Pressure relief valve: brass; - O-ring: NBR; - Number of orings: 2; - Thread: 3/4" BSP; - Operating pressure: 6 bar (90 psi); - Minimum working temperature: 2C (35F); - Maximum working temperature: 45C (113F) (Tested and certified by WRAS for 23C only); - Dimensions without bracket (H x OD): 315 x 120 (mm); - Dimensions with bracket (H x W x L)1: 355 x 120 x 140 (mm).
