1 To 2 Singlemode Fiber SC Optical Splitter Cable with SC-SC Connector FTTX (FTTP, FTTH, FTTN, FTTC), Education Network Boardbrand, Intelligent System, Community Network Construction

• Carrier class, Low insertion loss, good stability and good channel-to-channel uniformity, low polarization dependent loss.

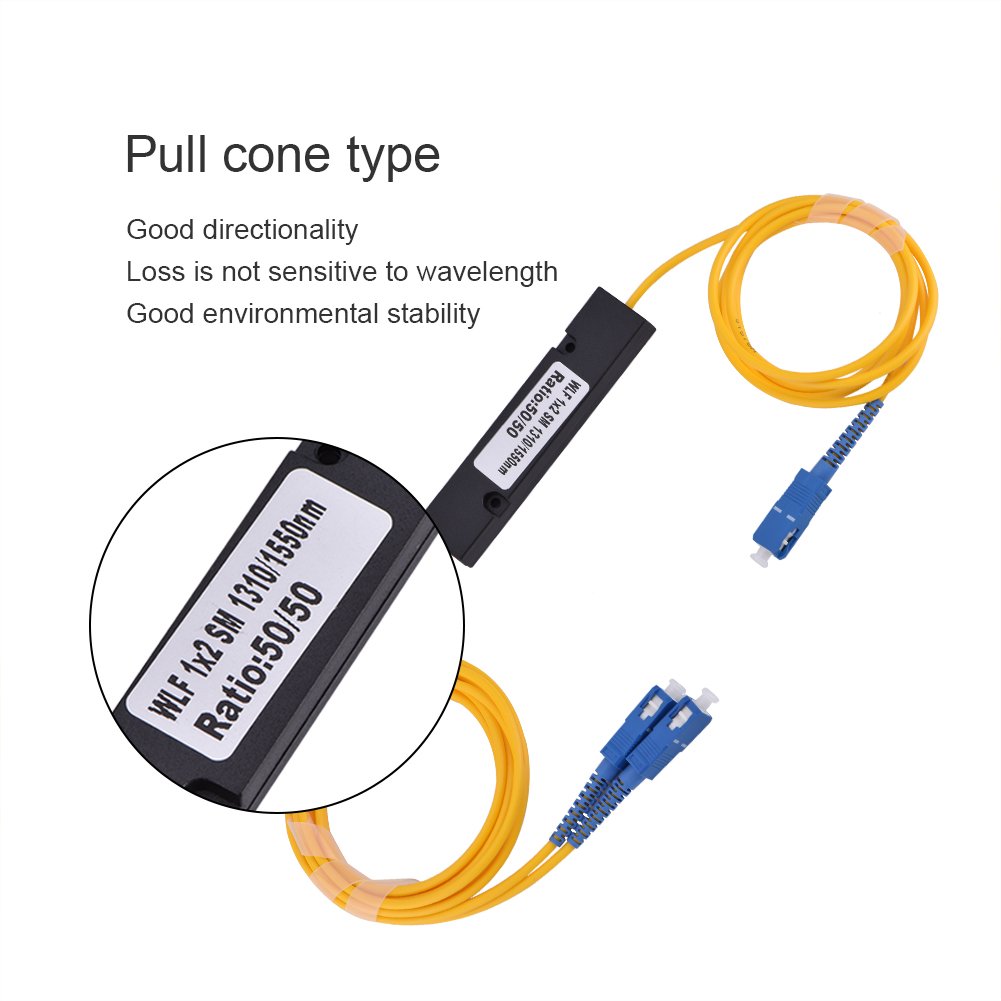

• Tapered Optical Splitter, good directivity, good environmental stability, not sensitive to wavelength loss.
• Compact design, lightweight, only occupy a little space.
• Convenient, fast and practical, can be installed directly in a variety of fiber optical exchange box

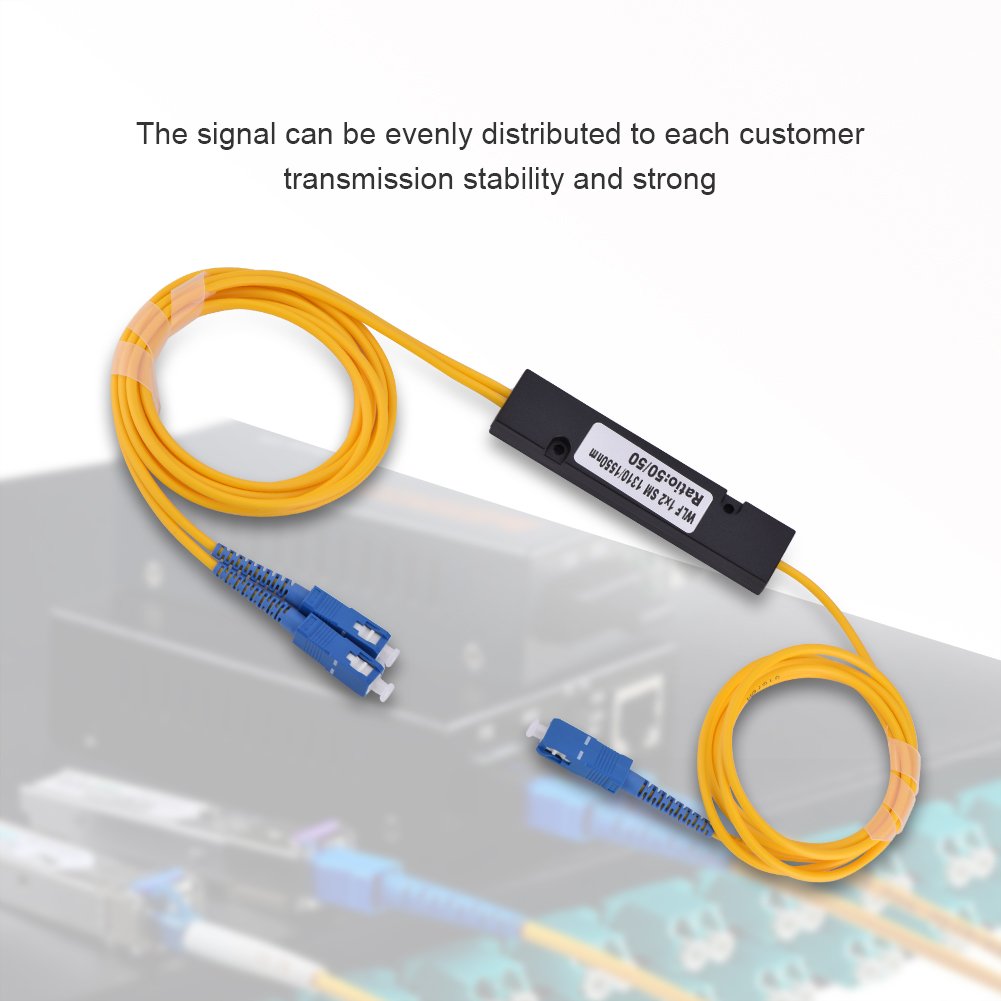

• Can distribute the signal evenly to each customer with strong transmission stability.

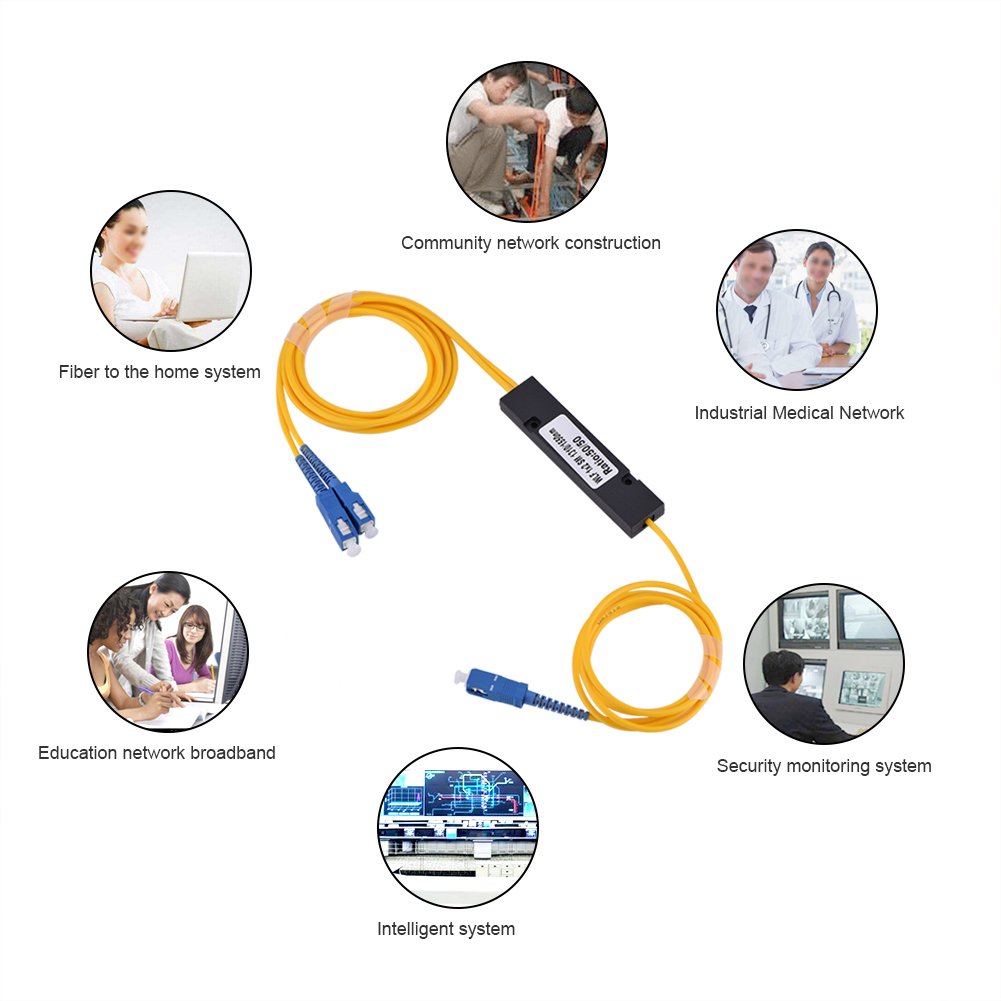

Description: Optical fiber splitter is a type of shunt or combiner about light wave energy. This Splitters is branching devices that is used to distribute optical signals to two locations for processing. The extremely low excess loss greatly increases the splitter's liability and long-term stability. You deserve it! Specifications: Name: 1 * 2 SC Optical Fiber Splitter Working Wavelength: 1310nm-1550nm Insertion Loss: dB (max) 3.6 7.2 10.2 13.5 16.2 20.5 3.8 7.5 10.7 14.17 Uniformity: (dB) 0.4 0.6 0.8 1 1.2 1.8 0.6 1 1.2 1.5 1.8 Directivity: (dB) 55 Return Loss: (dB) 55 Polarization Dependent Loss: (dB) 0.2 0.2 0.3 0.3 0.4 0.2 0.2 0.3 0.3 Wave Dependent Loss: (dB) 0.2 Operating Temperature: -40 ~ 85℃ Storage Temperature: -40 ~ 85℃ Package Weight: 84g Application: FTTX (FTTP, FTTH, FTTN, FTTC), education network boardbrand, industrial medical network, intelligent system, community network construction, security prevention monitoring system. Package List: 1 x 1 To 2 SC Optical Fiber Splitter
