1" Stainless Steel Electric Solenoid Valve 220V AC G Thread Normally Closed VITON from U.S. SOLID

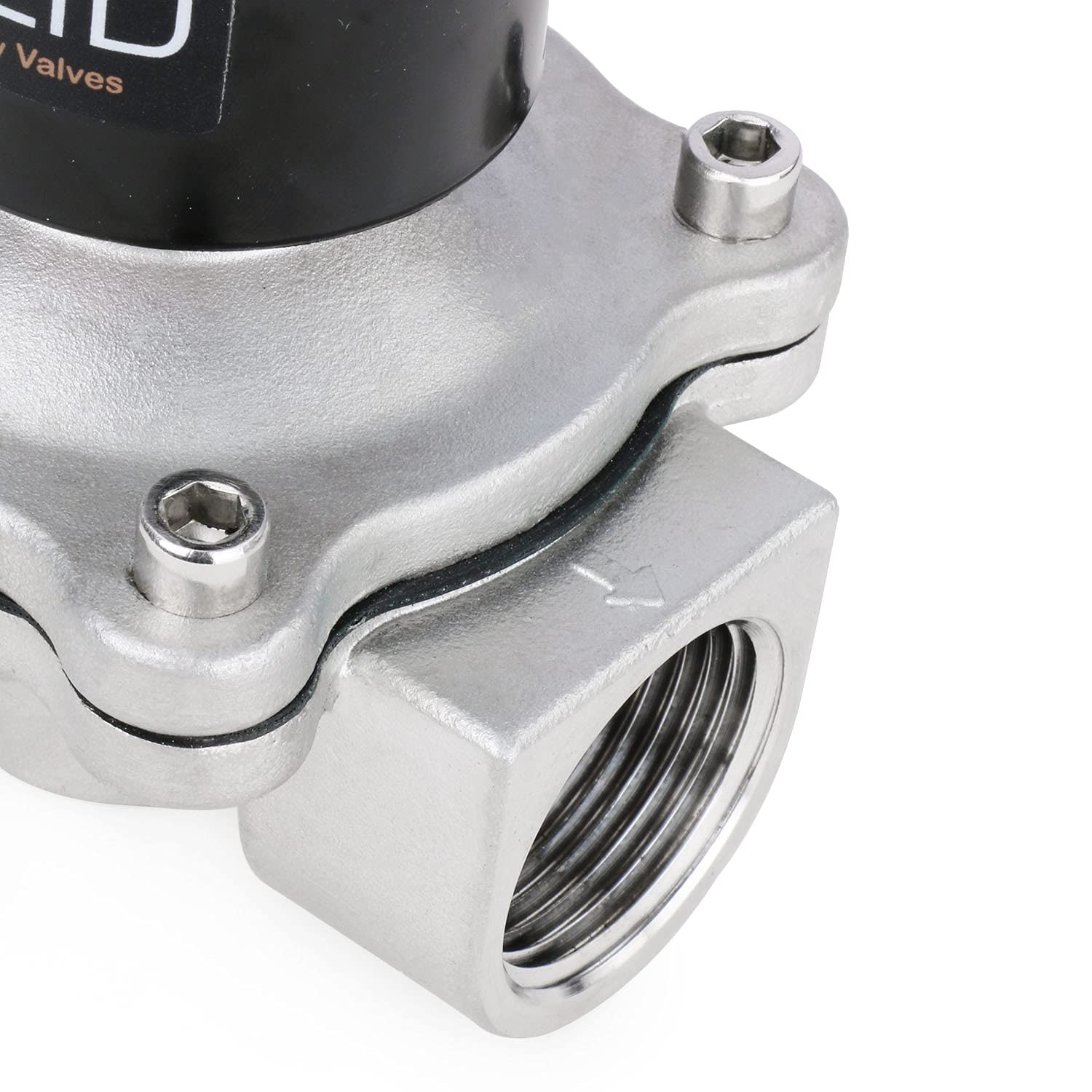

• 1" G Thread, Solid Stainless Steel body, AC 220V. The arrow indicates the flow direction (horizontal mounting please).
• Constructed with industrial grade stainless steel, this valve is very durable and resilient, leak resistant, and optimal for higher pressure and temperature projects. It can be used with drinking water or other water projects, gasoline, diesel fuel, kerosene oil, natural gas, air etc.
• This valve was manufactured with a VITON seal. VITON is the most durable and high performance rubber material with the ability to resist high temperatures and corrosive chemicals and other fluids like gasoline, diesel fuel, oils, and lubricants.
• This highly responsive valve will open and close in less than 1 second when actuated; meaning it will open or close the flow instantaneously when energized or de-energized. Also, our U.S. SOLID engineers have determined that the life cycle of this valve is well over a million cycles with proper operating conditions and maintenance.
• PLEASE NOTE: This valve is NOT a continuous duty valve and should NOT be in continuous use for more than 8 hours in a single cycle; to do so will shorten the life of the valve and may cause the core of the valve to burn out. If you need a continuous duty valve for your project please search for our U.S. SOLID Motorized Ball Valves.

U.S. Solid normally closed (N/C) electric solenoid valve is constructed with a Stainless Steel body, 1" female threaded (G) connections, and strong VITON gasket. The solenoid valves have a rating of IP65, which means they can withstand spray from water. However, if permanently installed outdoors, it is recommended that you enclose the valves in some protective housing; not for use underwater. Suitable for use with hot or cold water, natural gas, air, very low viscosity fluids (<20 cst) and gasoline or other petroleum based liquids. Customers chose this general purpose valve for supplemental gas tanks, sprinkler systems, and more. This solenoid valve is not to be used continuously for more than 8 hours. It can result in the valve overheating. Brand: U.S. Solid Model: USS2-00090 + Size: 1" Flow Aperture: 25 mm Body Material: Stainless Steel Gasket / Diaphragm / Seal: VITON Rated voltage: AC 220V, ± 10% Current: 0.1 A Power rating: 22 VA Operation Type: Semi-direct Lift Valve Operation Mode: Normally Closed Operational pressure range: 0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil) Flow capacity: 12 gallons per minute (GPM) of water at 60oF with a pressure drop of 1 PSI Flow value: 12 Cv Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius) Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius) Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc. OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 80℃. It is fully complied with national standard: JB/T7352-2010. If energized continuously for more than 8h the coil may burn.
