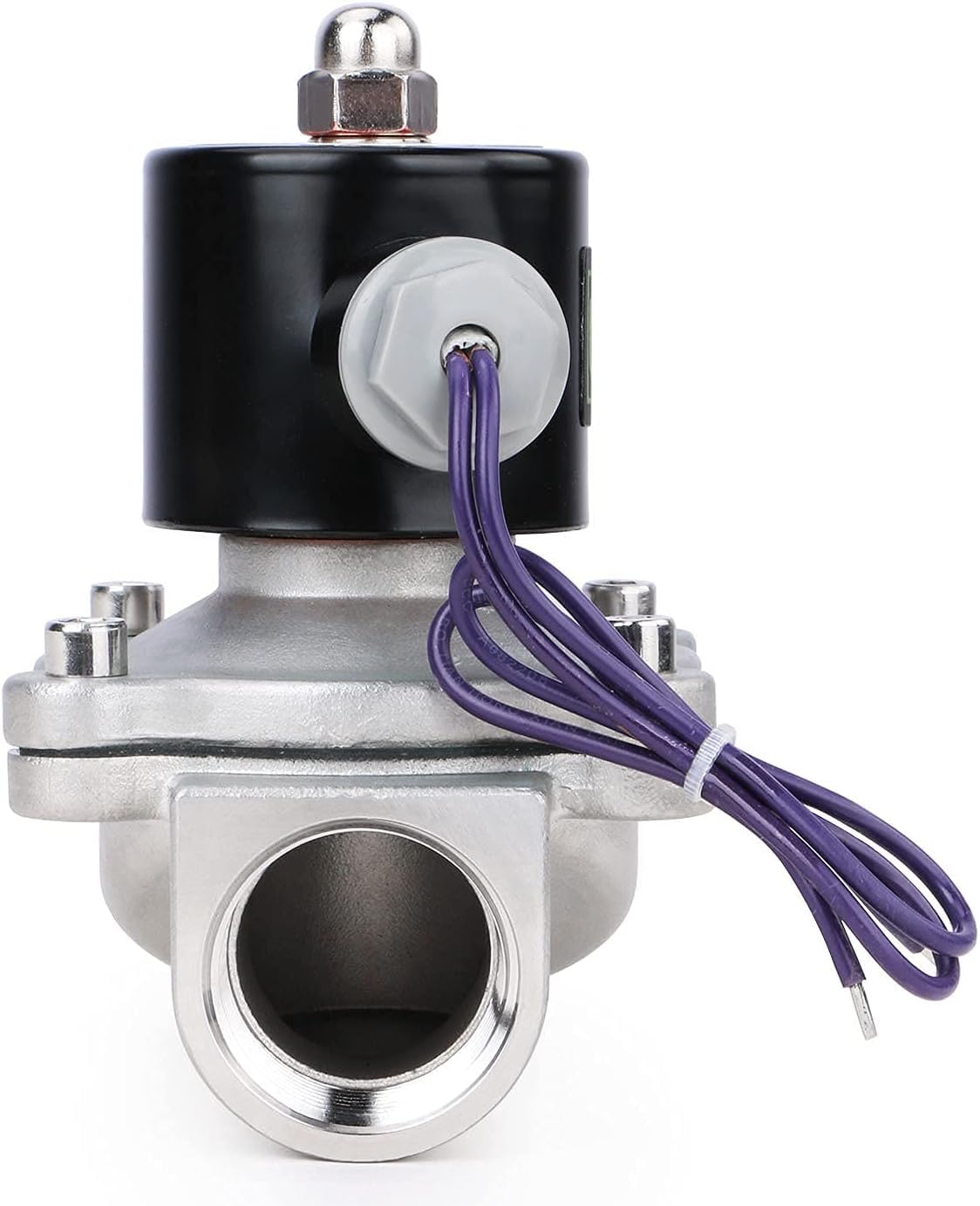

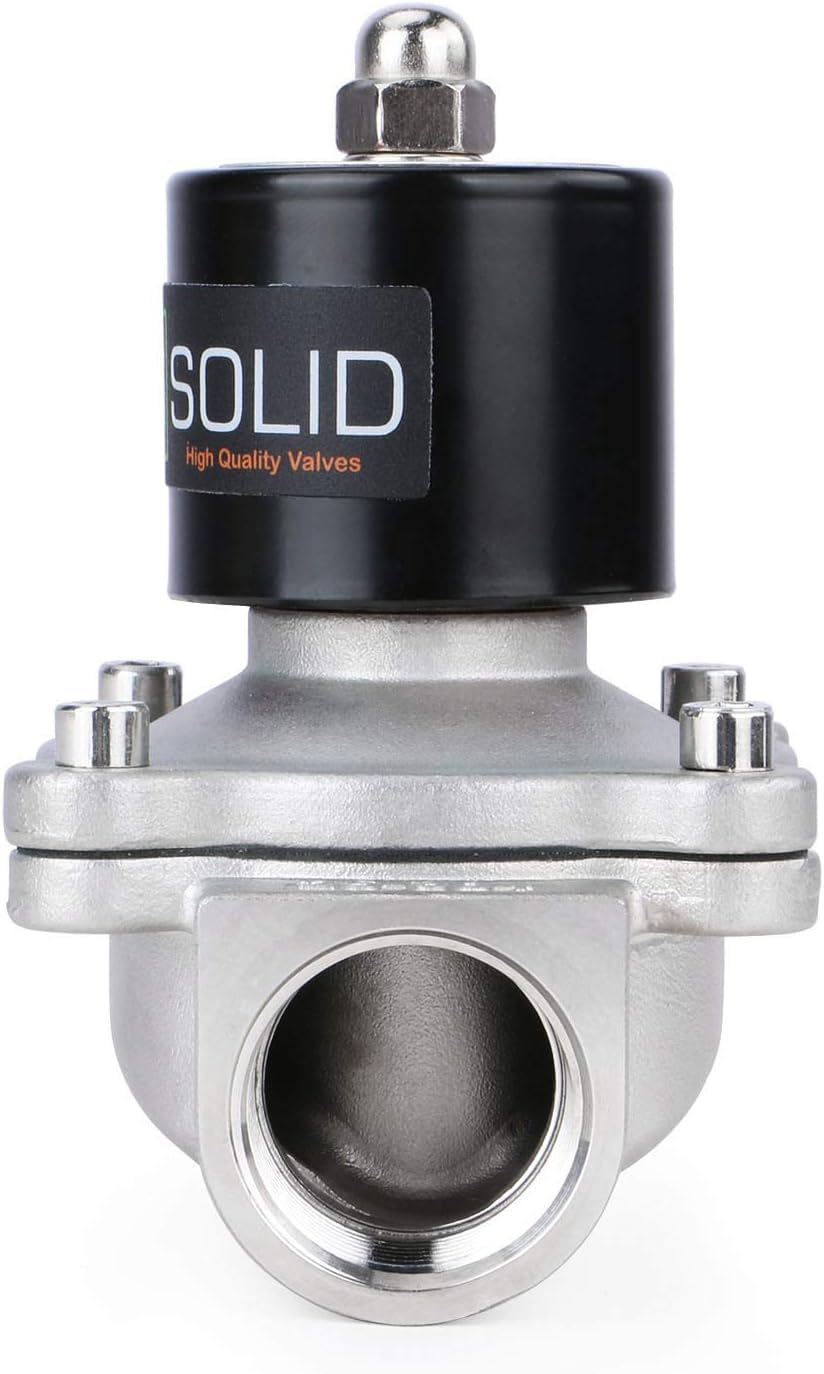

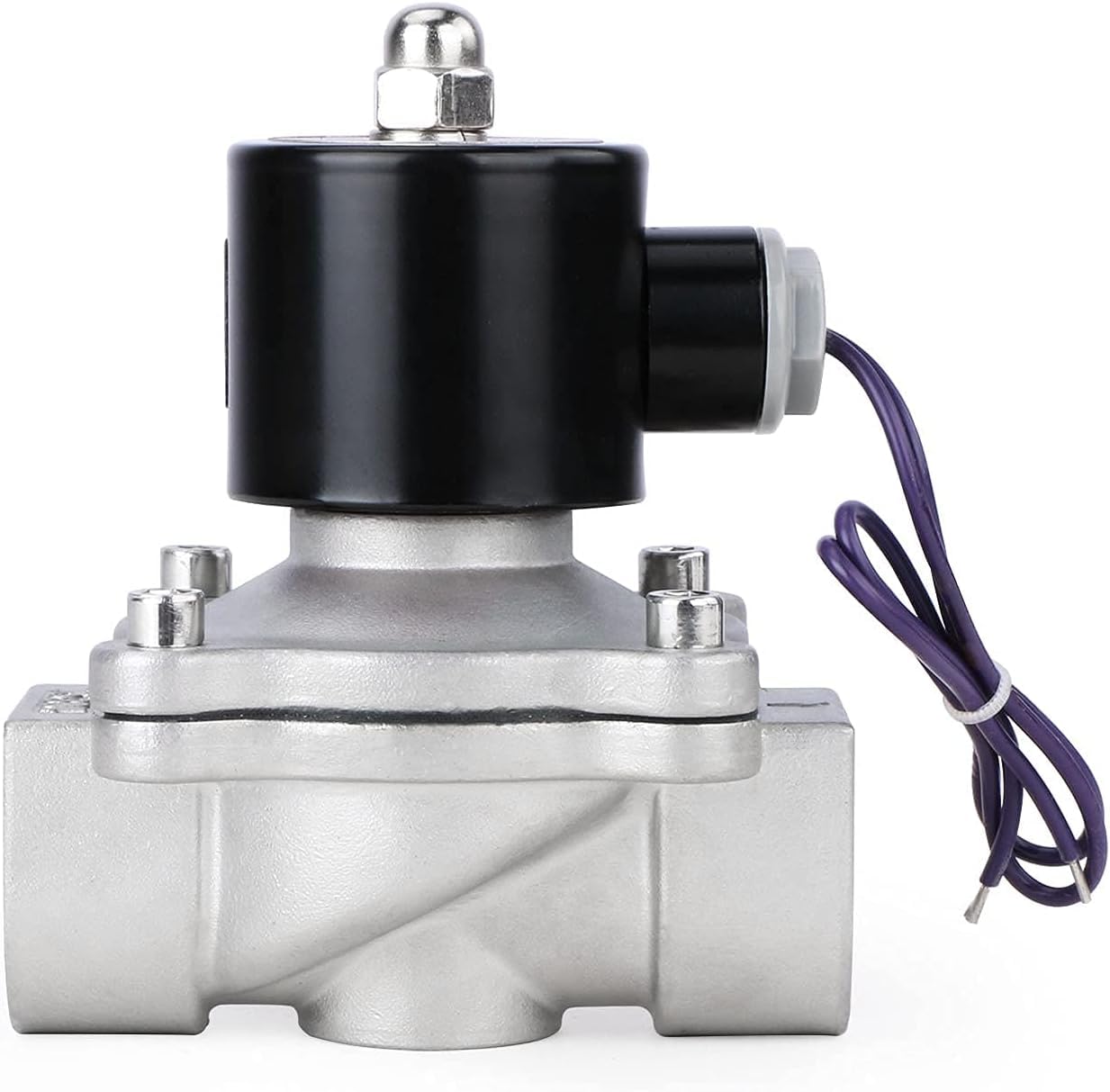

1" Stainless Steel Electric Solenoid Valve 12V DC G Thread N.C. Air Water Fuel VITON

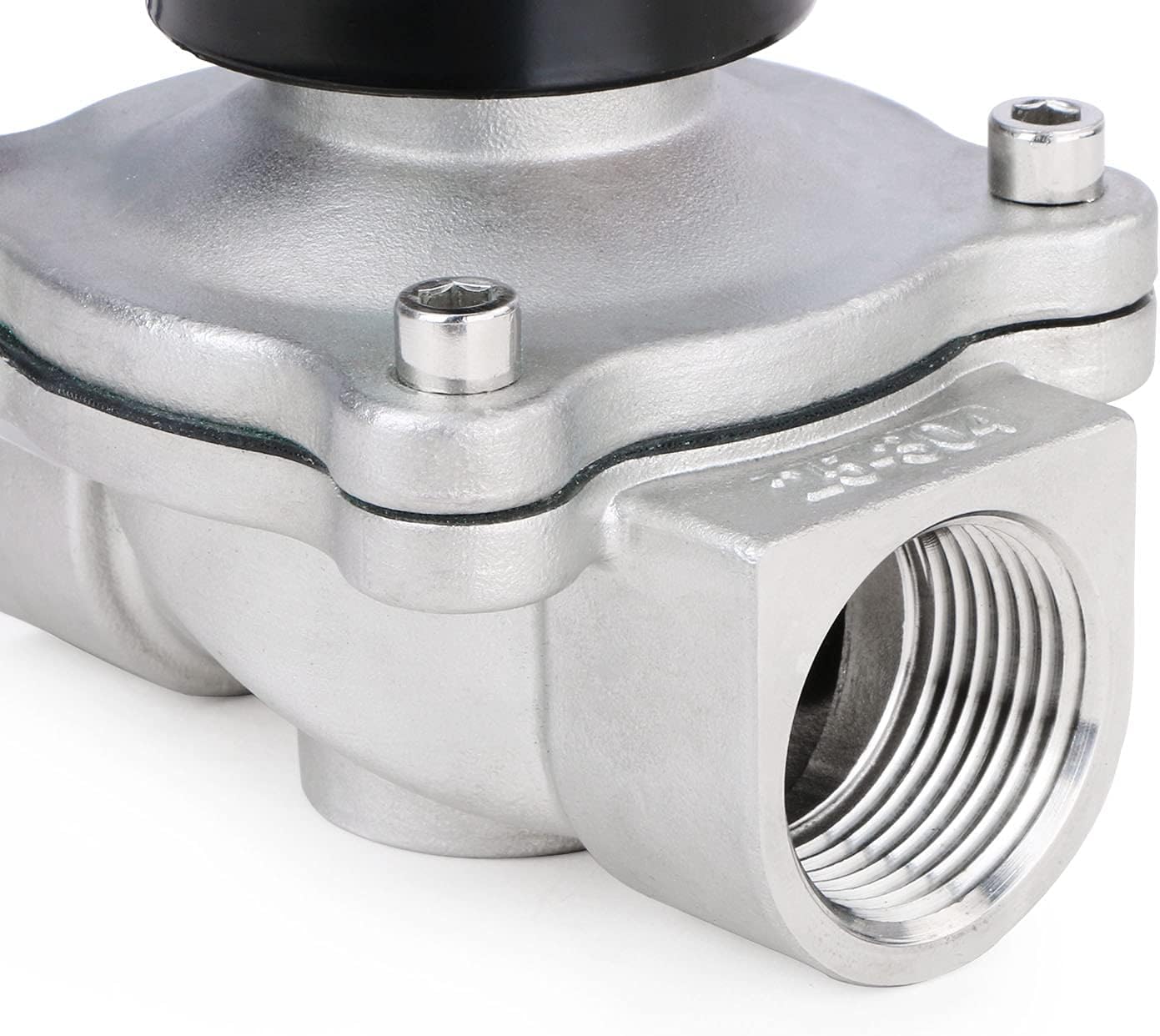

• 1" G Thread, Solid Stainless Steel body, DC 12V
• The solenoid with directly move the plunger and close the orifice for any fluid or gas flow. Only open while energized.
• Can not be used in strong acid, strong base, waste water, industrial gas and other media containing many impurities.

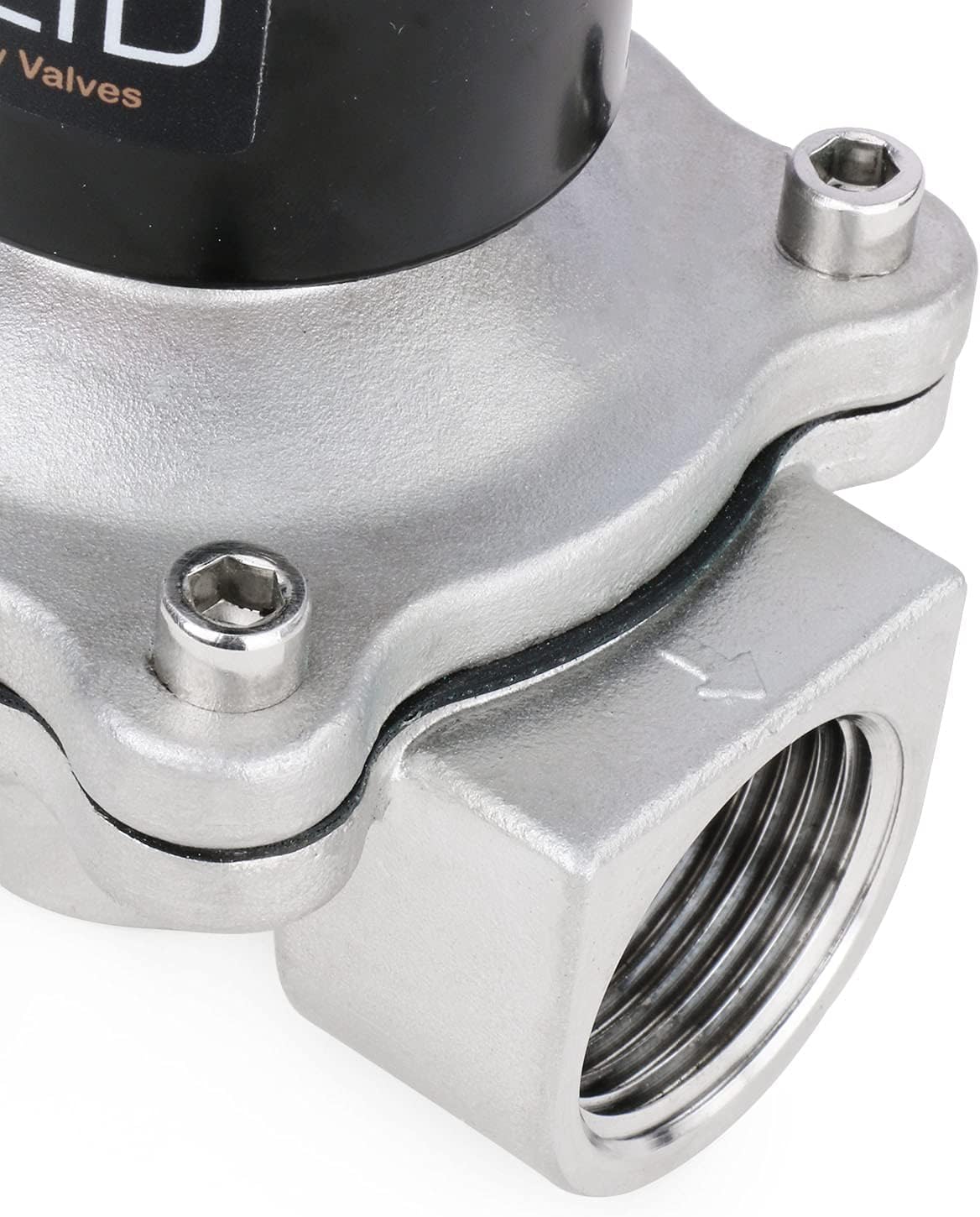

• The arrow indicates the flow direction (horizontal mounting please).
• VITON GASKET- Viton is space age material that is very chemically inert. As such it is commonly used with gasoline, kerosine and other organic solvents. Some companies sell solenoid valves with NBR gasket and advertise gasoline use. DO NOT USE NBR gasket for gasoline (it will corrode the gasket and can cause serious gasoline leak and accident).

Product Description The USS2-00076 solenoid valve is a direct and de-energized solenoid valve, with an internal wire inlet with G 1" and Viton seal (heat and oil resistant). Suitable for hot or cold water, oils, very low viscous liquids (<20 cst), petrol, kerosene or diesel fuel, etc. suitable for outdoor use Not suitable for underwater use The body is made of stainless steel No pressure pressure or minimum differential required. Customers chose this all-purpose valve for additional gas containers, sprinkler systems and much more. This solenoid valve should not be used continuously for more than eight hours. It can lead to overheating of the valve. Specification Model: USS2-00076 Body Material: Stainless Steel Thread size: G 1" female inner Hole: 25 mm. Type: Normally Closed "NC", Direct Solenoid Valve Oil seal material: Viton Rated voltage: 12 V DC, ± 10%. Rated power: 20 W Current: 1.667 A Protection class: IP65. Operating pressure: 0 - 7 bar (0 - 101 psi) (For Water, Air, Gas); 0-5 bar (0 - 72 psi) (for Oil) Operating temperature: -10°C to +120°C Flow rate: 12 gallon per minute (GPM) of water at 60℉ with a pressure drop of 1 psi (12 HP). OVERHEATING WARNING Not designed for continuous operation (not a 100% work cycle). Under normal operating conditions, the solenoid valve will be HOT when powered on. The coil will reach a maximum temperature of about 80°C. It fully complies with the national standard: JB/T7352-2010. If it is continuously powered for more than 8 hours, the coil may burn. Legal Disclaimer Attention California Residents: “WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.”
