GINTOOYUN 1.8Inch Micro Sata SSD HDD To 2.5Inch Sata Adapter Card With Case Micro SATA 16 Pin Female to SATA 22 Pin Male Laptop Notebook Adapter

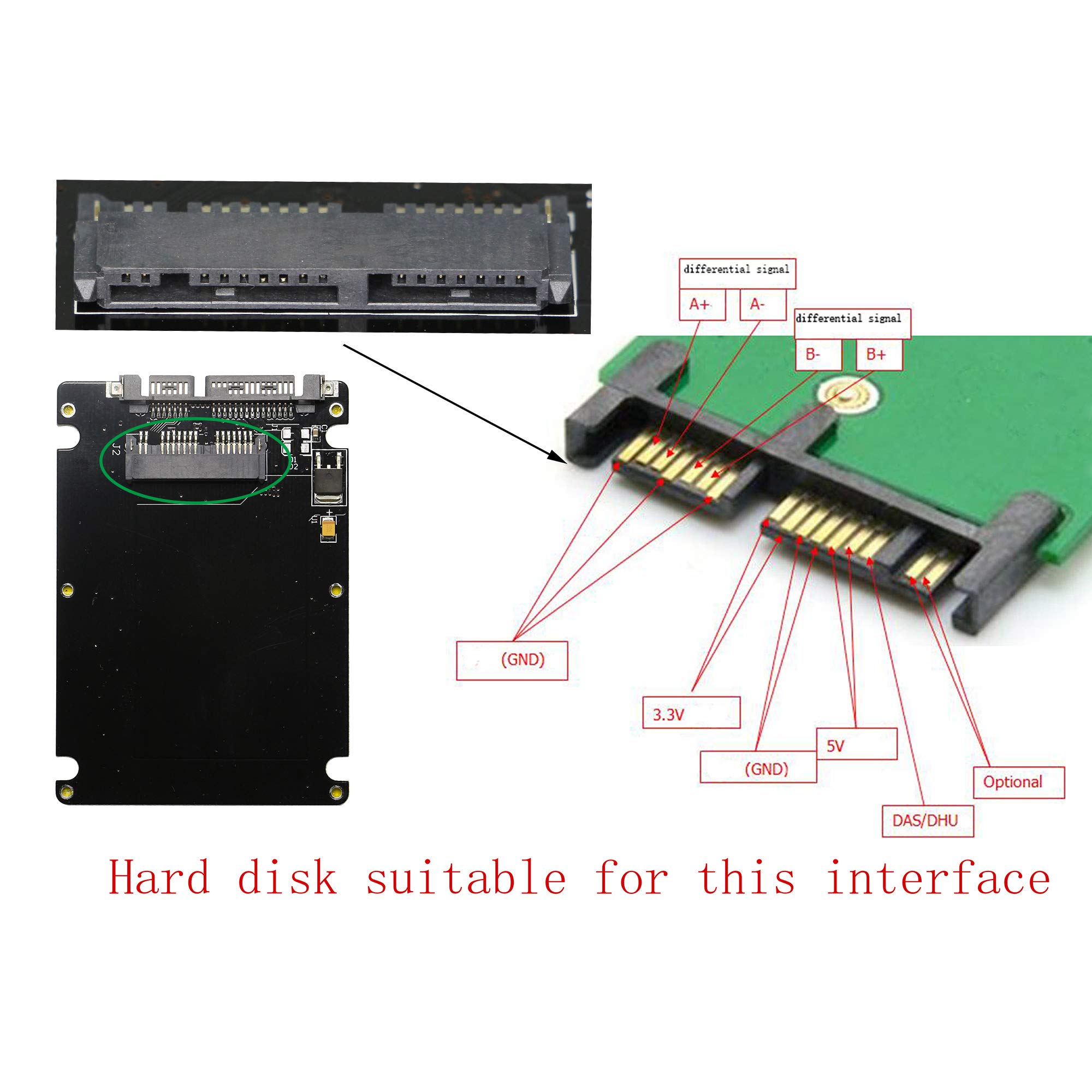

• 1.8"micro SATA 16 ( 7+7+2,connected to Micro SATA device) to SATA22 (7+15,connected to SATA data cable), of which 15pin is used for power supply and 7pin is used for data transmission.You can put the 1.8" Micro SATA SSD to the case

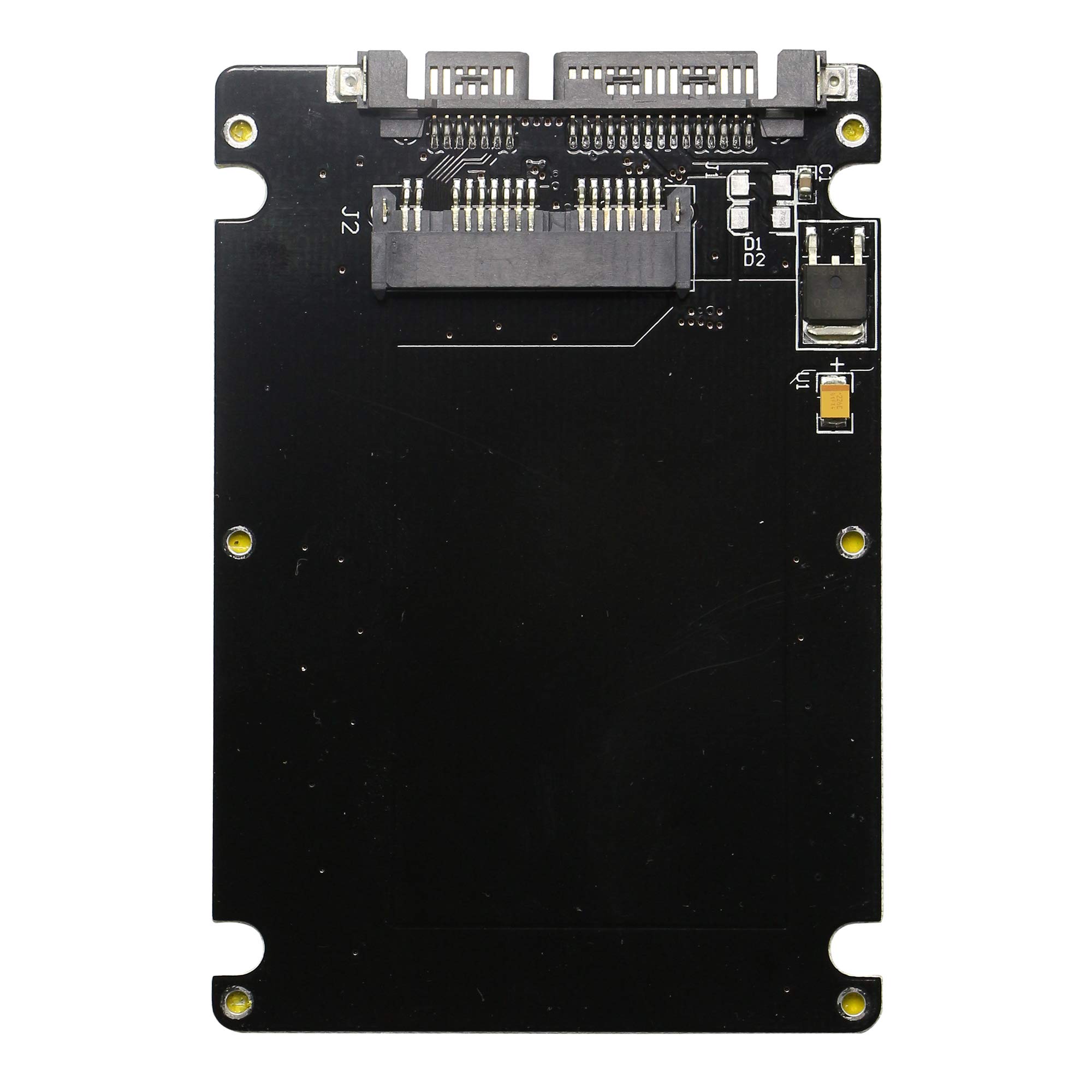

• 16 pin female micro SATA to 22 pin SATA male adapter. It is used to convert 1.8" 3.3v micro SATA HDD/SSD to 2.5" SATA 5v HDD/SSD.

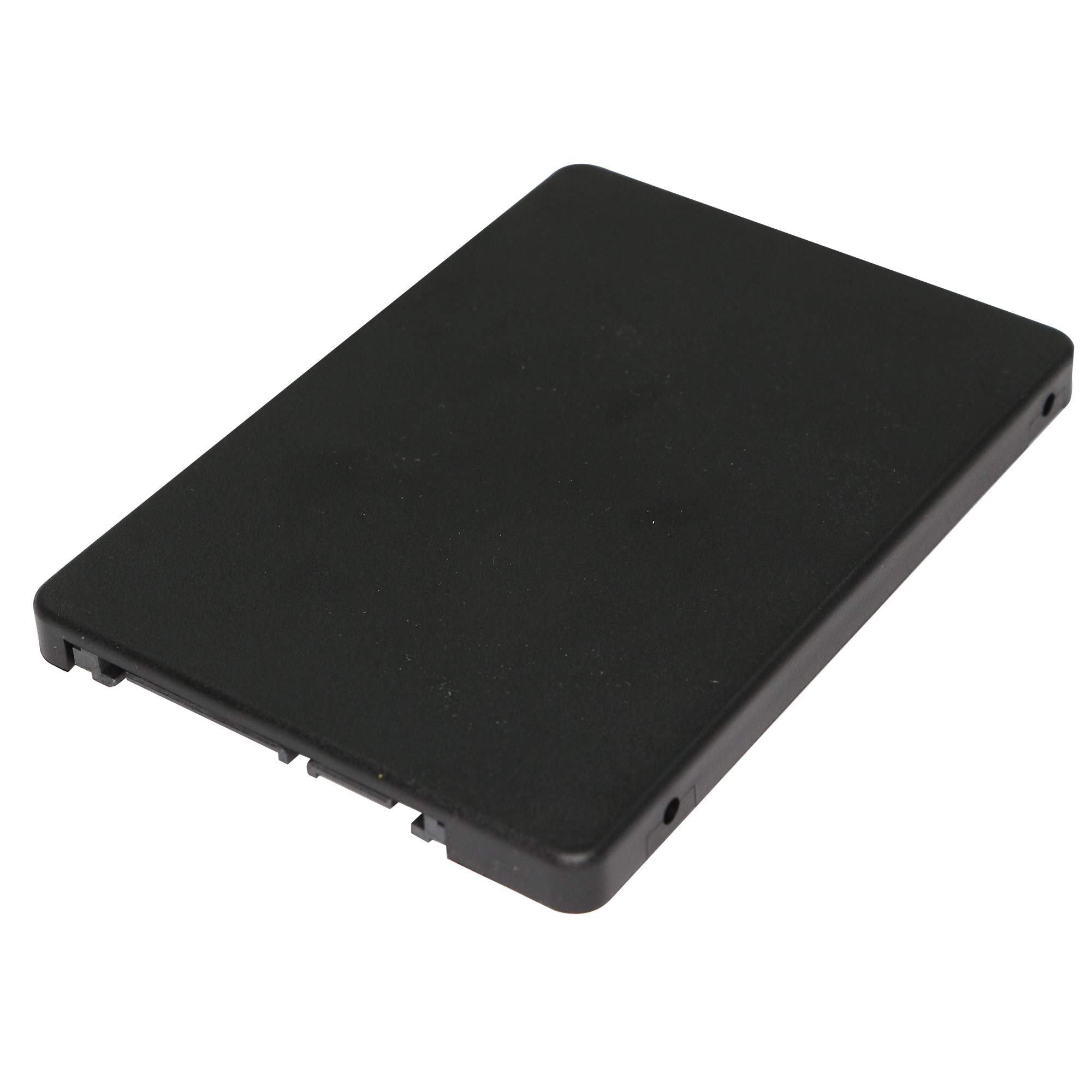

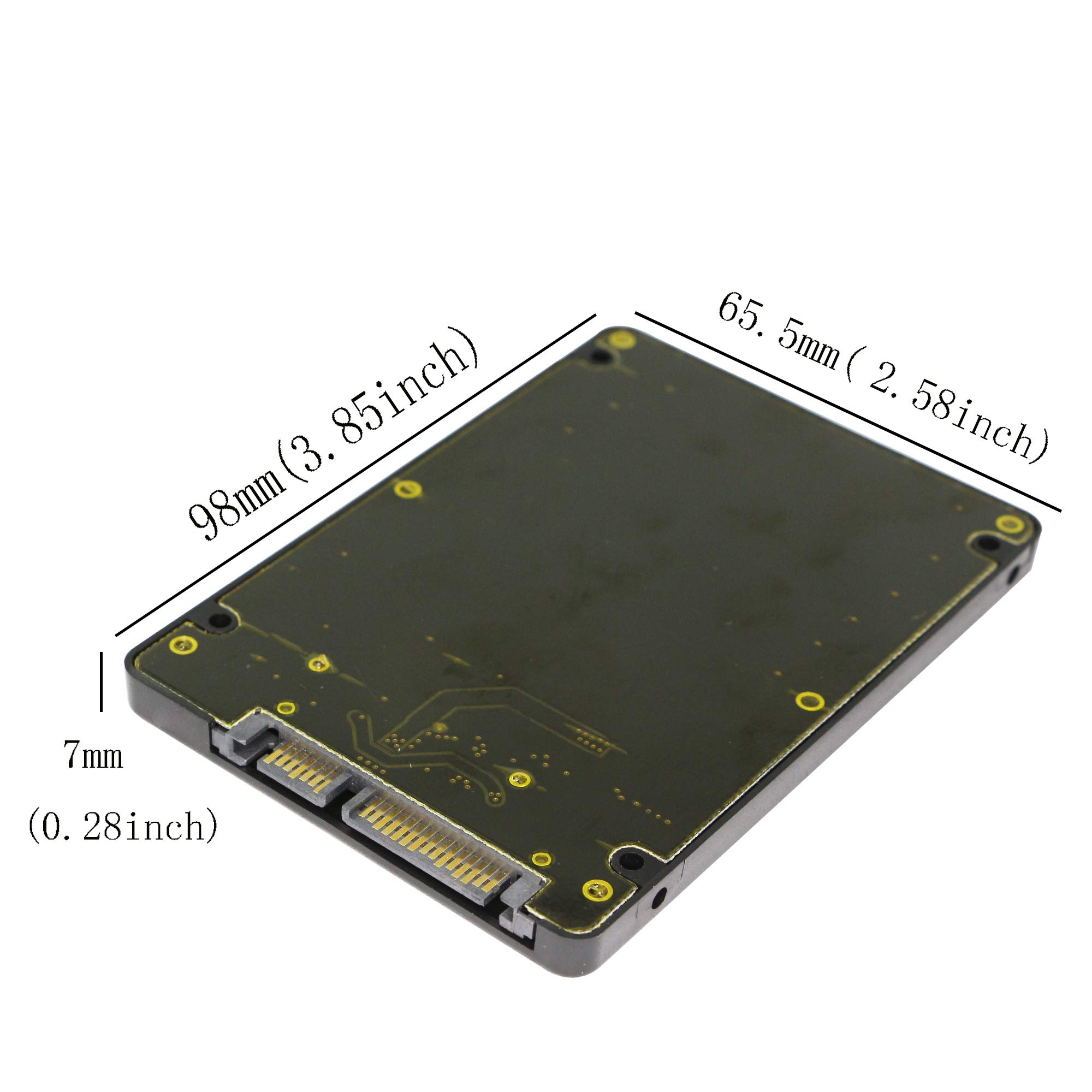

• The hard disk case it only 7mm height, it is slim 2.5" hard disk case, not standard 9.5mm or 12mm;There is no hard disk included at the case.
• Adapter has built-in support for both 3.3v and 5v。There is a chip inside to automatically adjust the voltage.
• Quick and Easy installation. No need extra power adapter and any drivers

1.8Inch Micro Sata SSD HDD To 2.5Inch Sata Adapter Card With Case Feature: 100% brand new and high quality. Quantity: Excellent performance shows all the HDD SSD speed. 1.8" Micro SATA 16pin SSD to 7mm 2.5" SATA 22pin hard disk case with Black Enclosure. You can put the 1.8" Micro SATA SSD to the case. Adapter has built-in support for both 3.3v and 5v The hard disk case is only 7mm height, it is slim 2.5" hard disk case, not standard 9.5mm or 12mm. Quick and Easy installation No need extra power adapter and any drivers Parameters: Model:Micro SATA 16Pin SSD To 2.5" SATA 22Pin Types:(7+9) pin To (7+15)pin Height:7mm Package Content: 1X Mini pcie mSATA SSD To 2.5Inch SATA3 Adapter Card With Case 1XAccessories 1Bag Screws(NO Retail Box. Packed Safely in Bubble Bag)
