1.8" 3.3V Micro SATA 16(7+7+2) PIN Female to 2.5" 5V 22(7+15) PIN Male SSD Adapter Converter Card

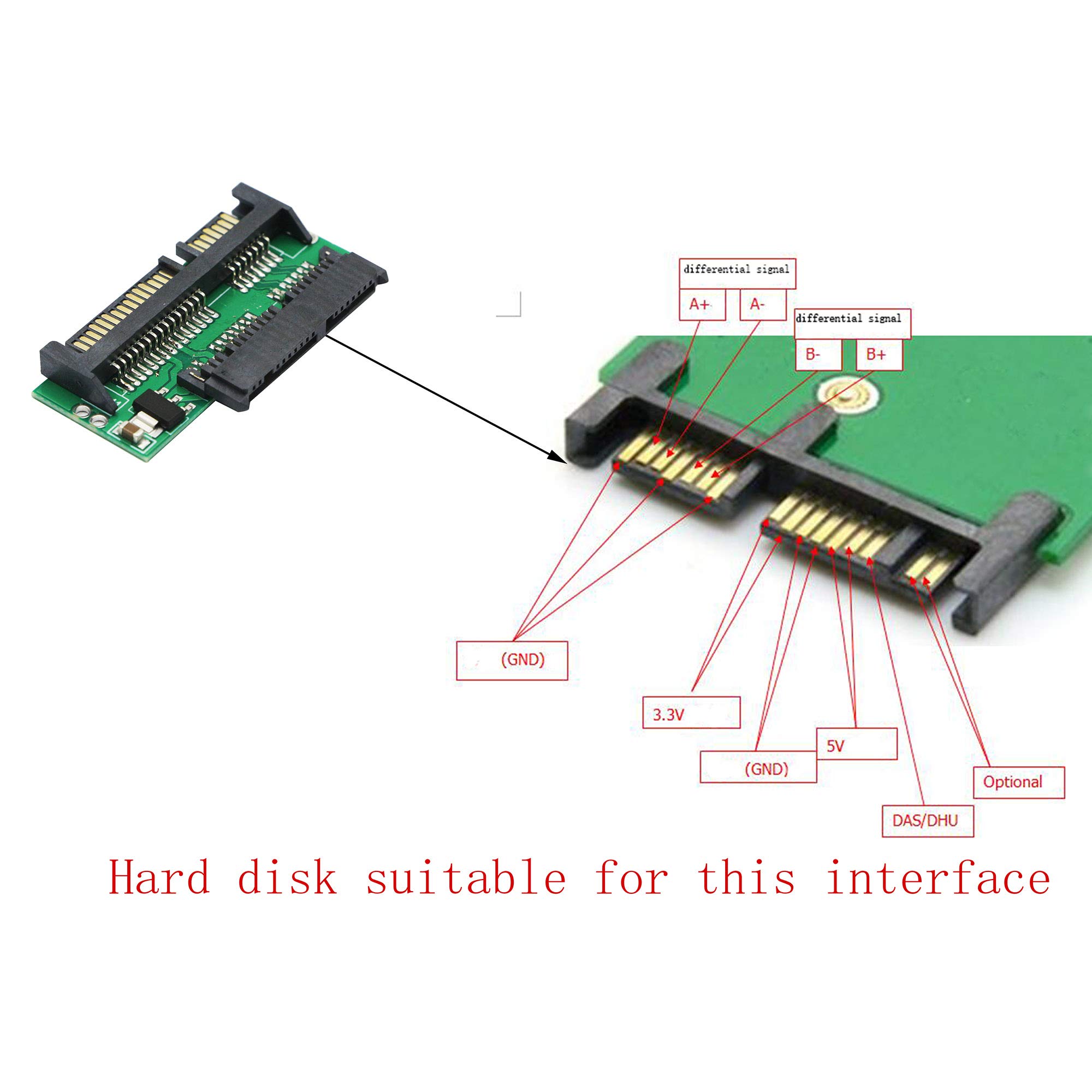

• 1.8"micro SATA16 ( 7+7+2,connected to Micro SATA device) to SATA22 (7+15,connected to SATA data cable), of which 15pin is used for power supply and 7pin is used for data transmission.It's used for 1.8" Micro SATA SSD install into SATA Plug in notebook. Adapter Card only, other accessories demo in the picture is not included!
• Compact size 16 pin female micro SATA to 22 pin SATA male adapter. It is used to convert 1.8" 3.3v micro SATA HDD/SSD to 2.5" SATA 5v HDD/SSD.
• It's used for 1.8" micro SATA install into 2.5"SATA plug in notebook. There is a chip inside to automatically adjust the voltage.
• The data and power adapter supplies a 3.3V power source and supports 5V Drives ,has dual function.it is the same size as a 2.5" drive when paired with a micro SATA 1.8"drive.

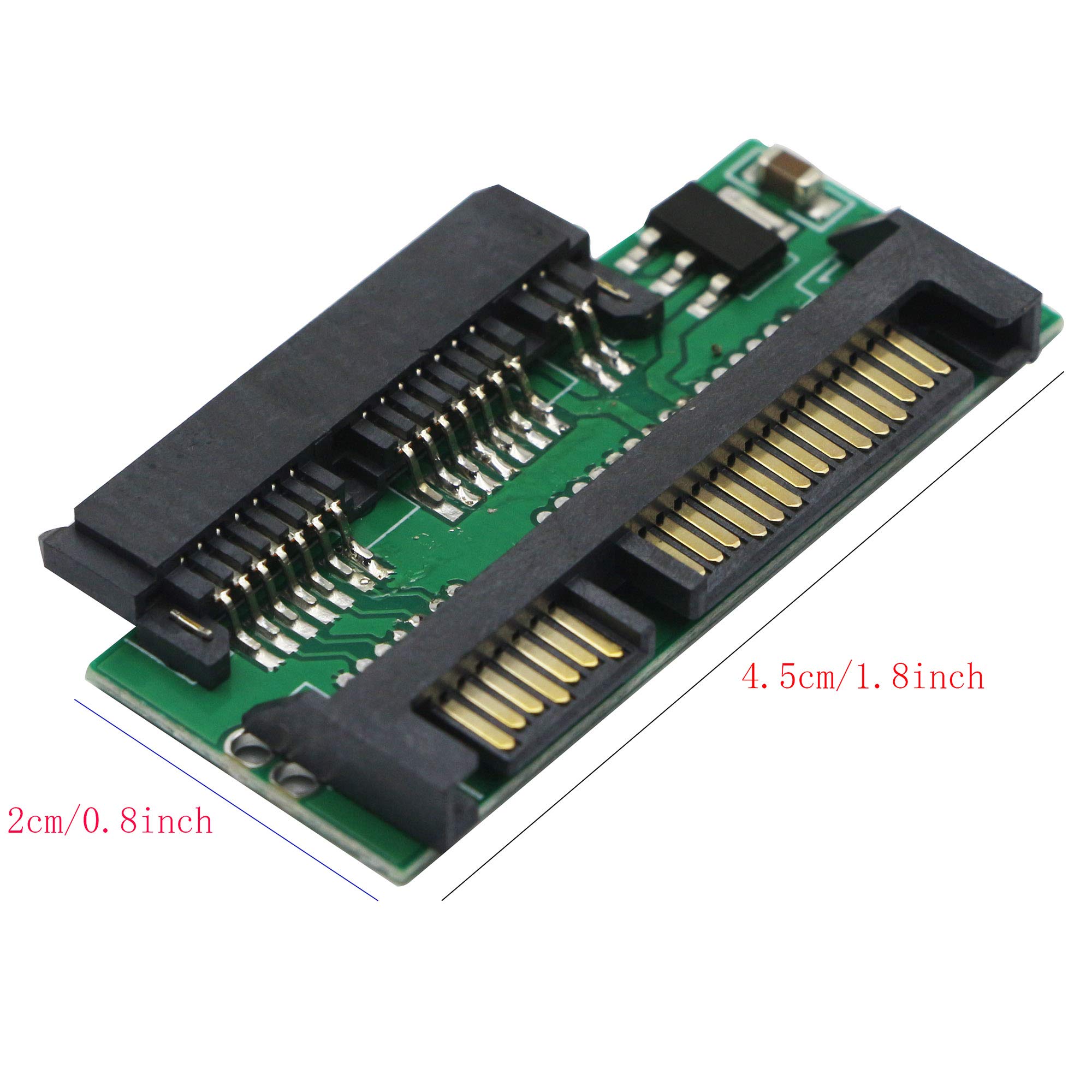

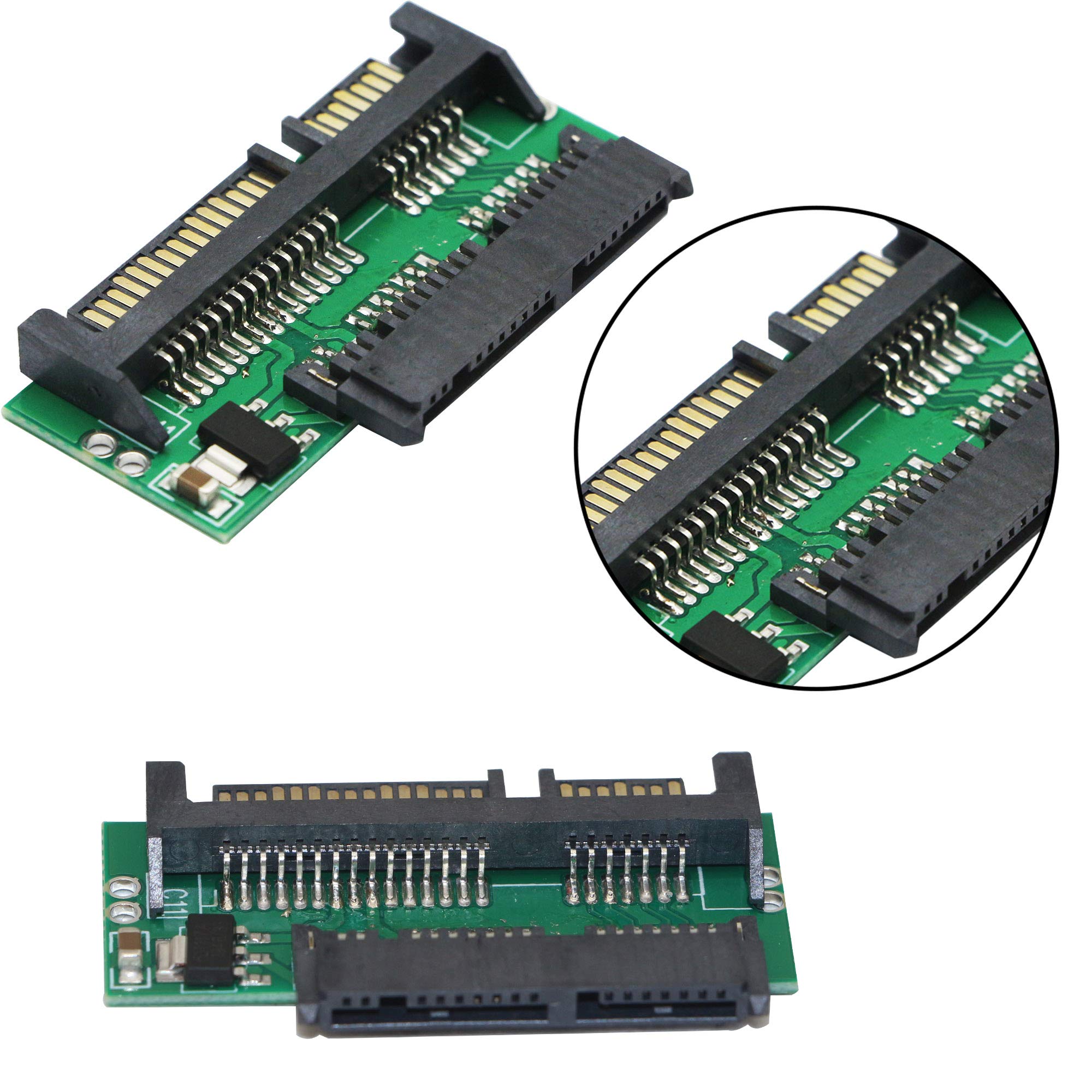

• Printed circuit board,without shell,compact size.When matched with a Micro SATA 1.8 Inch drive it is the same size a 2.5 Inch drive.

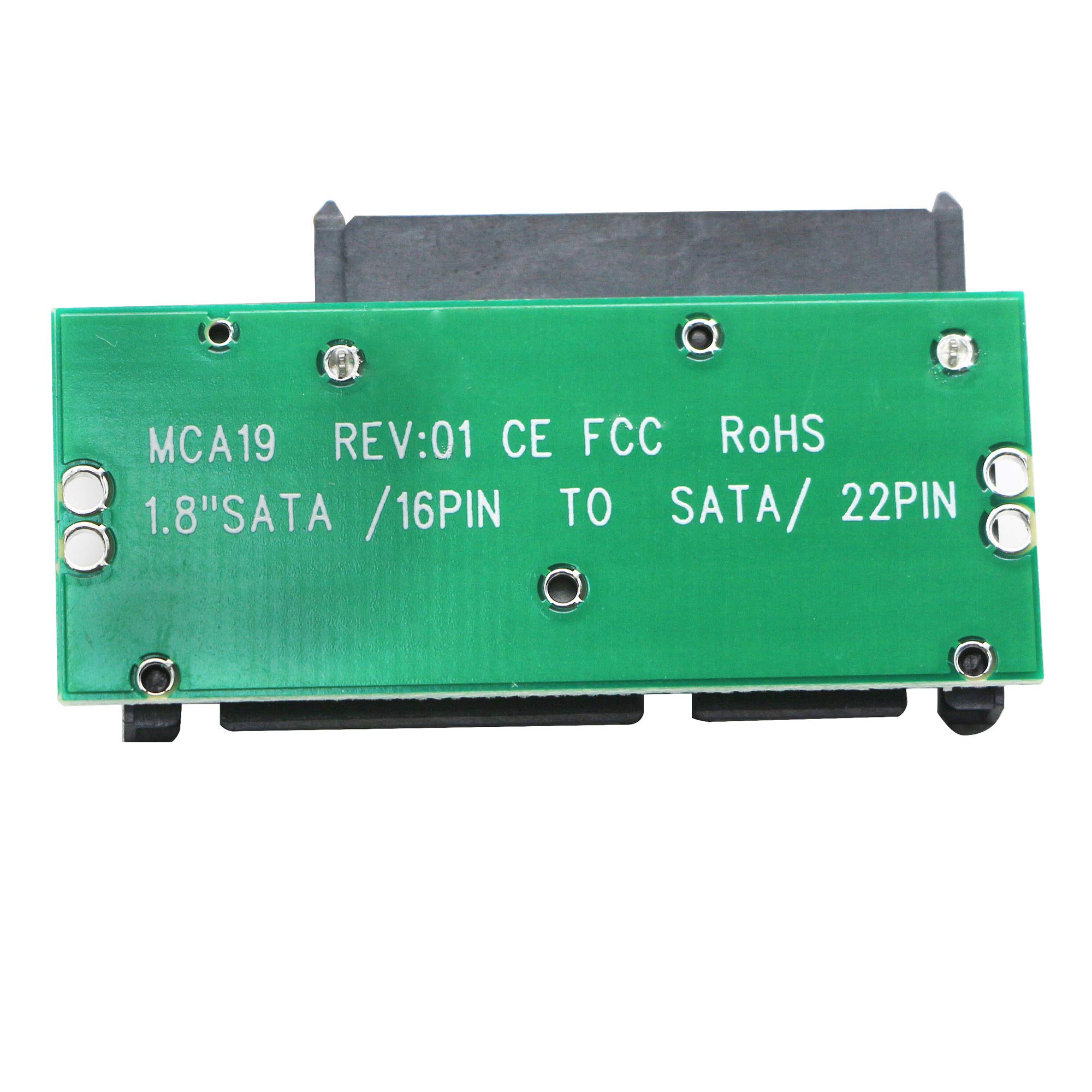

This adapter board is a mini design,1.8"micro SATA16 ( 7+7+2, female, connected to Micro SATA device) to SATA22 (7+15, male, connected to SATA data cable),It is used to convert 1.8" 3.3v micro SATA HDD/SSD to 2.5" SATA 5v HDD/SSD. It's used for 1.8" micro SATA install into 2.5"SATA plug in notebook. There is a chip inside to automatically adjust the voltage.The data and power adapter supplies a 3.3V power source and supports 5V Drives ,has dual function...it is the same size as a 2.5" drive when paired with a micro SATA 1.8"drive.It is a green printed circuit board without shell.
