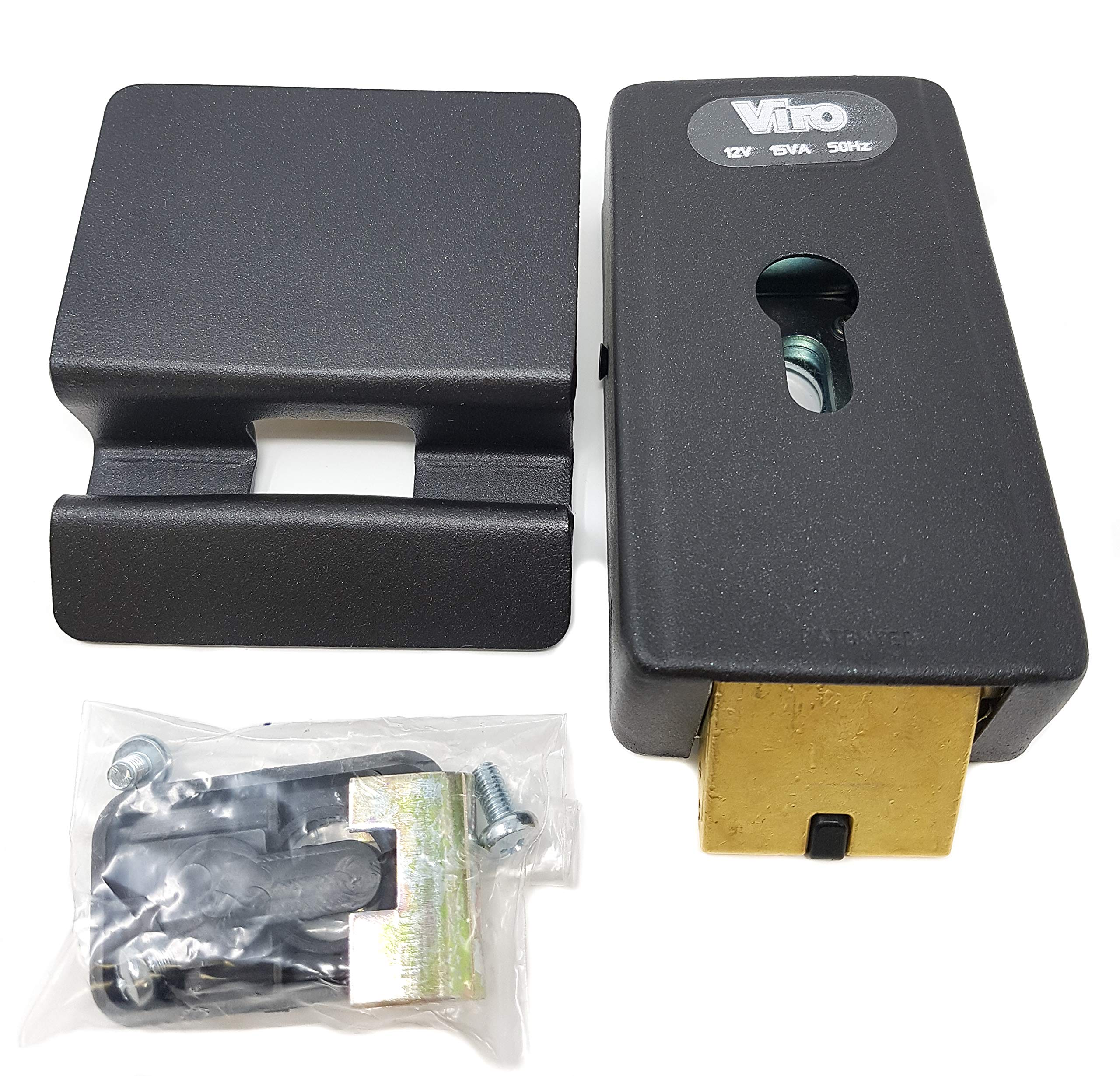

1.7918.V.469 Viro V06 Electric Lock (Vertical Mounting) Anthracite

• Housing: one-piece galvanised steel.
• Coating: galvanised steel
• Voltage: Standard AC 12V
• Suitable for doors, gates or driveways. Manual or automated.
• Axle: 70 mm

The V06 electric lock is suitable for manual or automatic doors, as well as pedestrian or passenger gates and is interchangeable with V96 electric locks. It is provided with the service function and, by simply removing an internal part, can get the security function. Its small size and supplied floor strike make it ideal for vertical installation on narrow frames, but it can also be mounted horizontally, using an optional strike. Installation: vertical or horizontal. Axle: 70 mm. Functions: Service (standard): the lock opens with the electric impulse and resets only once the door is opened and then closed. It is therefore suitable for use with door closers and/or all types of automation systems. Safety (selected by manually removing an internal part): The lock only opens when the electric pulse and manual or automatic pressure are applied simultaneously. It is therefore not recommended to use it with improper door closers and/or automation systems. Replaceable Dual Spool: which distributes the load evenly and ensures a long service life. Voltage: Standard 12V AC (on request 12V DC; 24V AC or DC) Case: One-piece galvanised steel. Cover: Galvanised steel. Rotary deadbolt. Solid brass, with nylon insert makes locking quieter.
