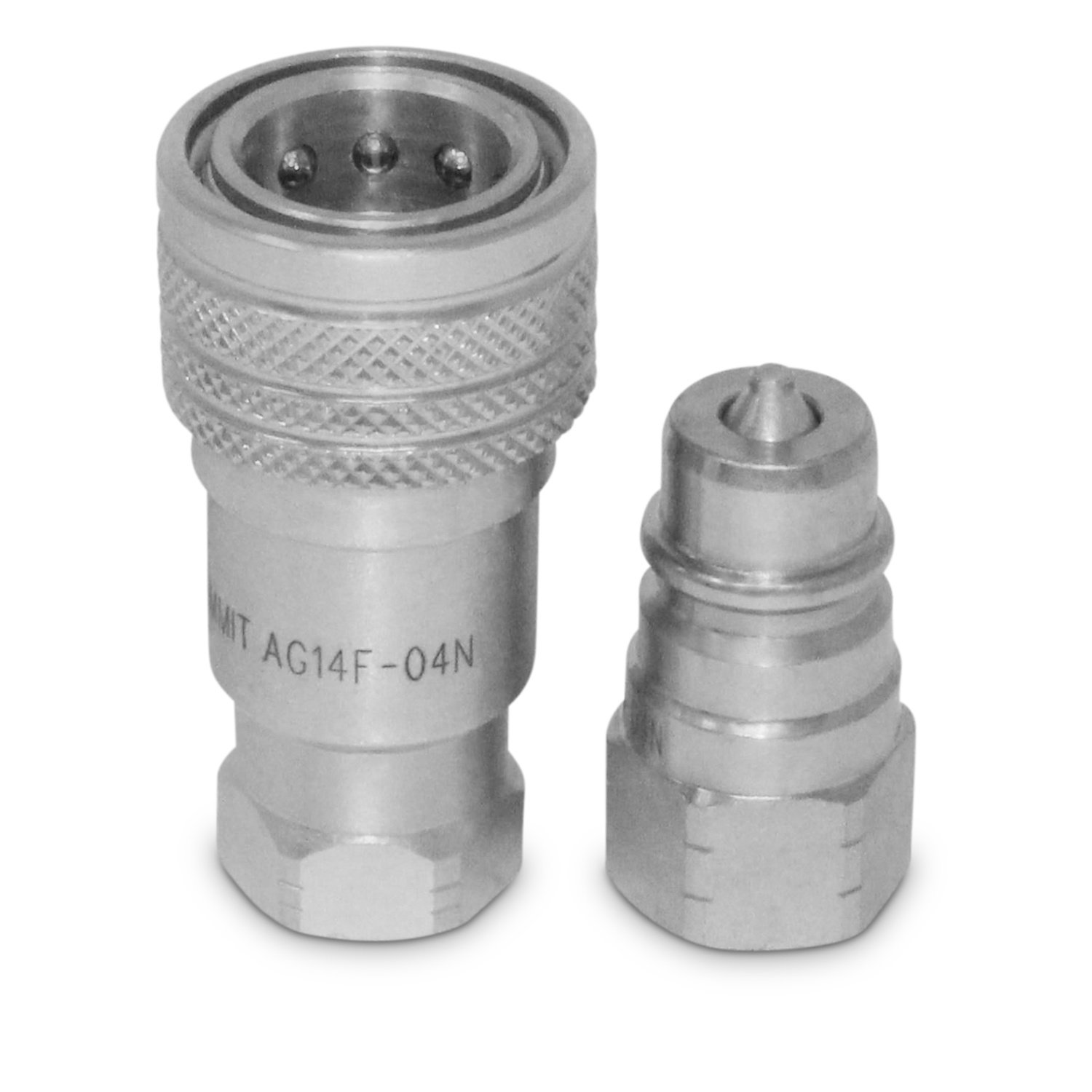

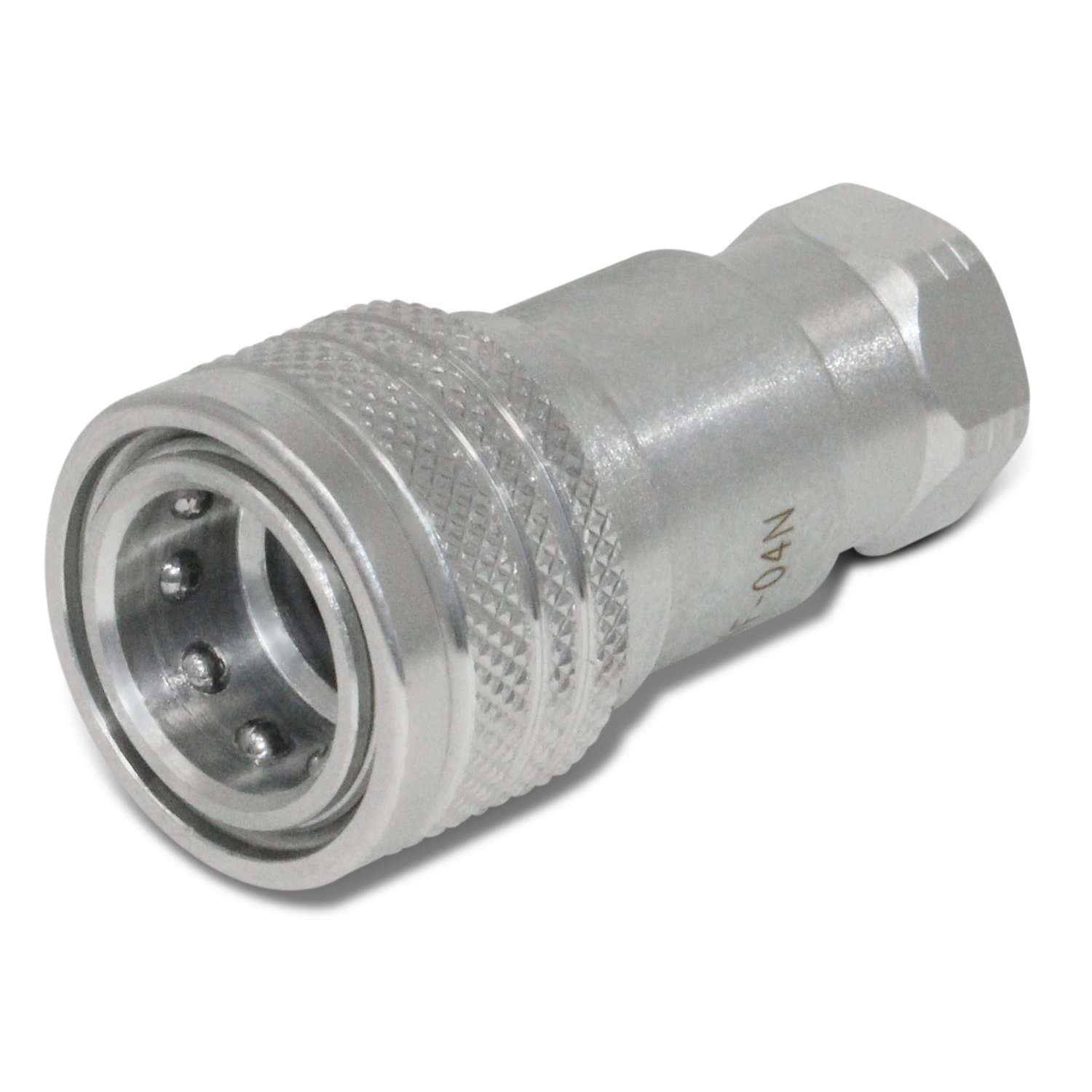

1/4” Ag ISO 5675 Hydraulic Quick Connect Pioneer Style Couplers, 1/4” NPT Thread, 2 Sets

• 2 Sets, 1/4" ISO Body Size, 1/4" NPT Thread, Poppet Valve
• Most common couplers used in the agriculture, construction and logging industries
• Harden Steel with 5100 PSI Rating
• 6.34 GPM Max Flow
• Interchangeable with all ISO 5675 series including ball seat valve and poppet seal couplings

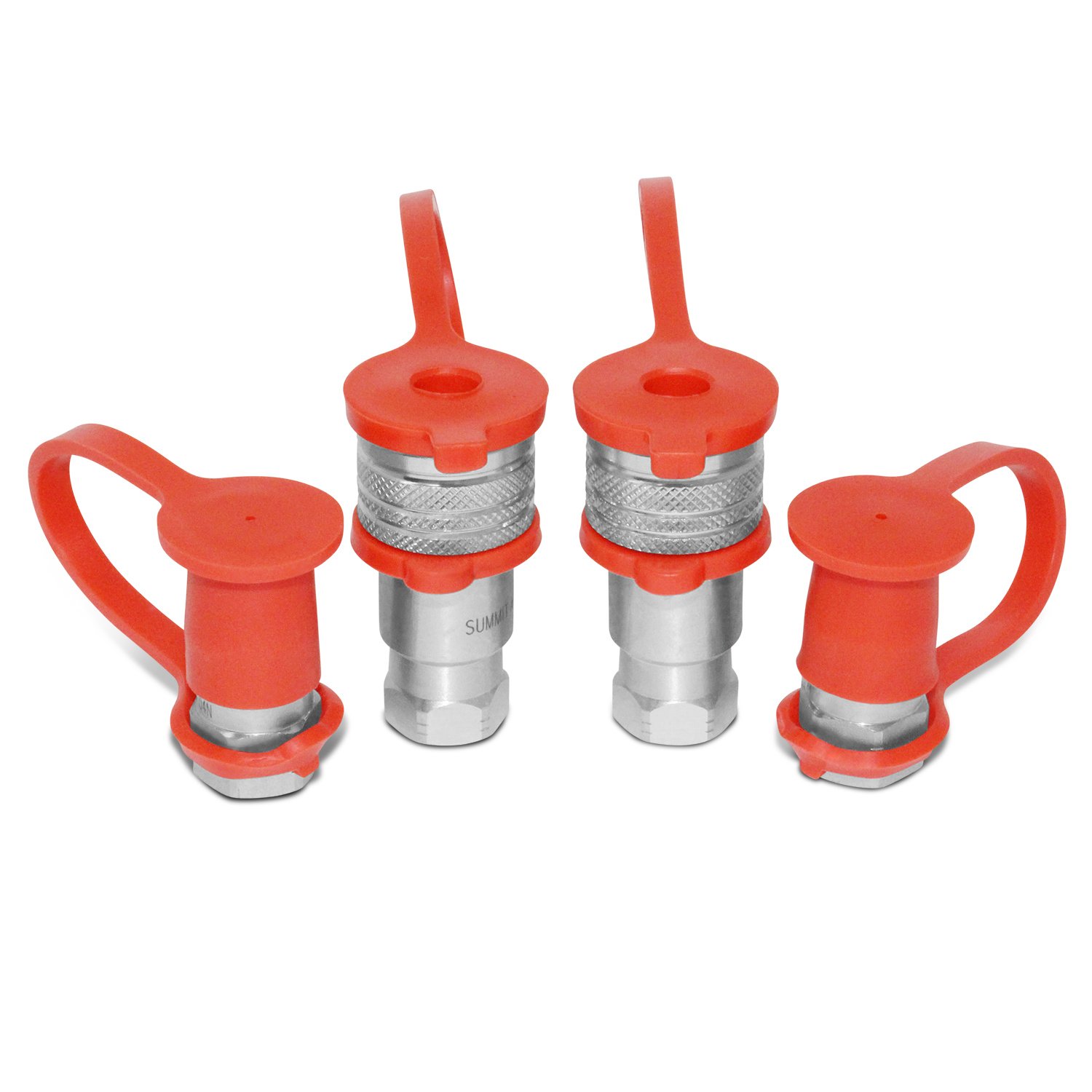

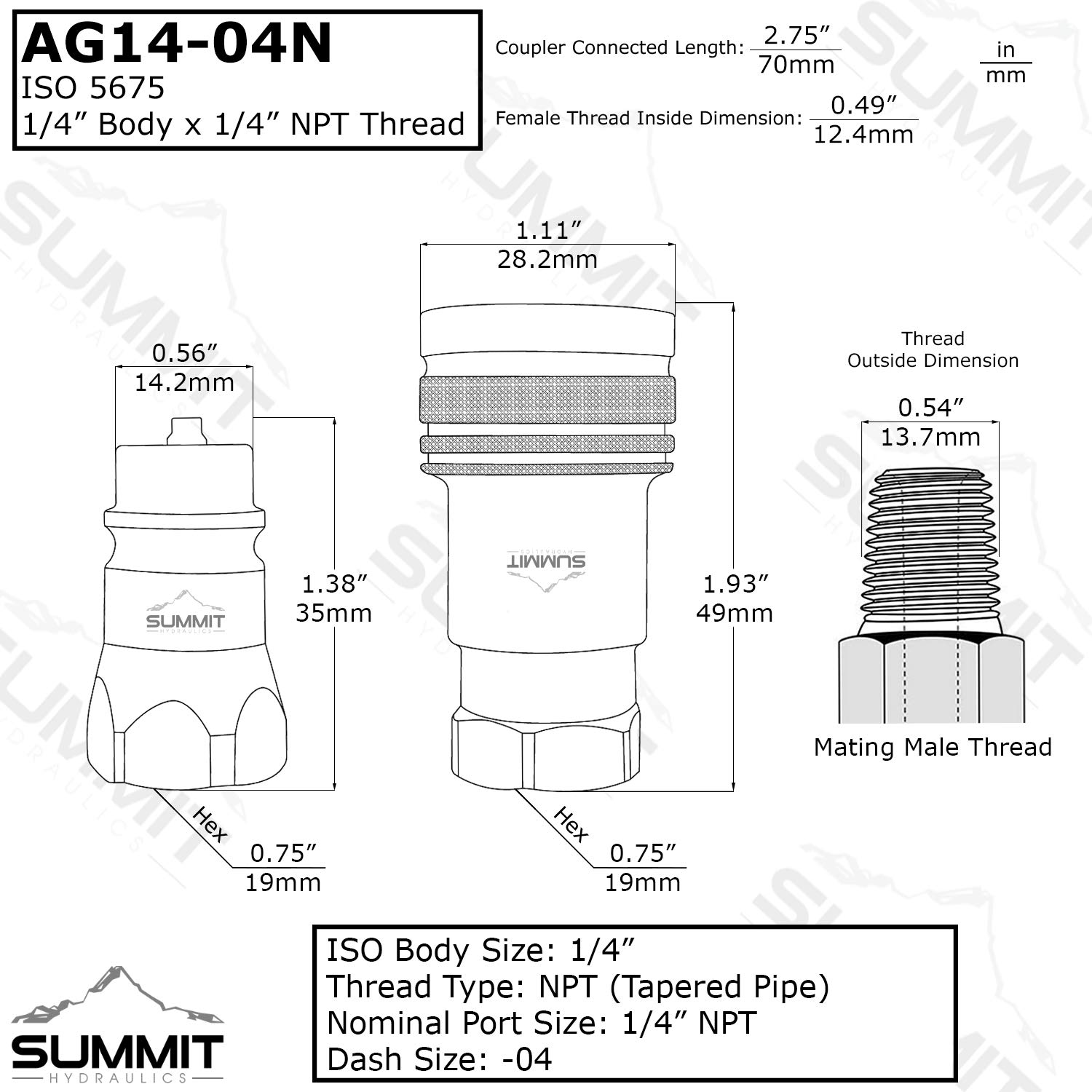

2 Sets This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries. They are interchangeable with all ISO 5675 series including ball seat valve, poppet seal, push-pull couplings. ISO Body Size: 1/4” Port Thread: 1/4” NPT Features: 5100 PSI Rating 6.34 GPM Max Flow Hardened Steel Plugs Buna-N Seals with Teflon backup ring can operate up to 250° F Poppet Valve Female Length: 1.931” Male Length: 1.380” Coupled Length: 2.75” Hex: 0.751” Interchangeable with: Parker 4000 Series Male: 4010-2P Female: 4050-2P Safeway S20 Series Male: S41-2P Female: S25A-2P Faster NV/NS Series Male: NV 14 NPT M Female: NV 14 NPT F Snap-Tite 60/ 21 Male: 60C4-4M Female: 60C4-4F Stucchi IRV Series Male: 800101001 / M IR14V NPT Female: 800101000 / F IR14V NPT Dixon AG Series Male: AG2F2-PV Female: 2AGF2-PV Eaton/Aeroquip FD42 Male: FD42–1002–04–04 Female: FD42–1001–04–04 Included: 1 – Male Couplers 1 – Female Couplers 1 – Male Dust Caps 1 – Female Dust Caps
