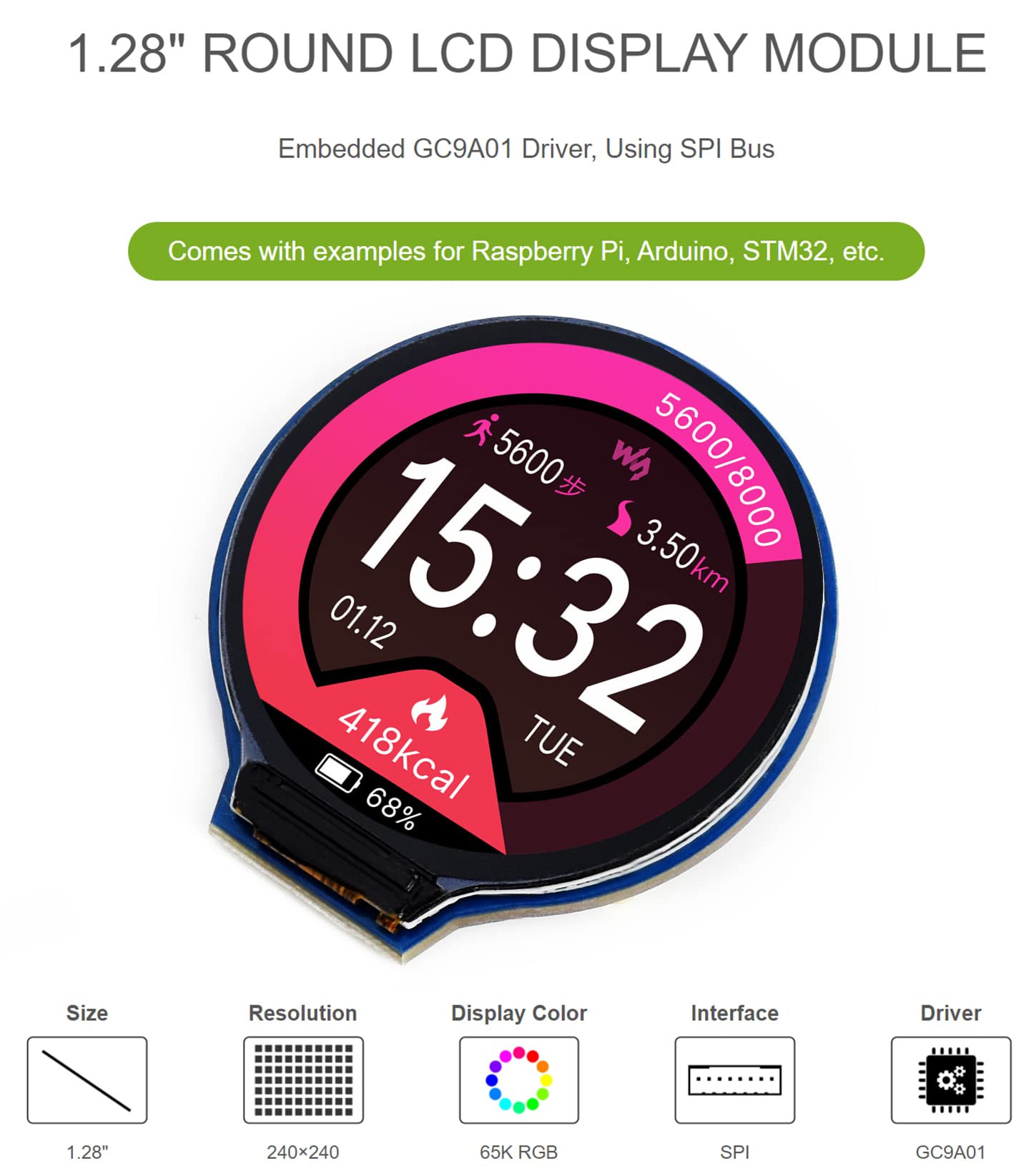

1.28 inch Round LCD Display for Raspberry Pi/Arduino/Jetson Nano, 240×240 Resolution IPS Screen 65K RGB Colors Monitor, Embedded GC9A01 Driver, Using SPI Bus

• 1.28inch round LCD 240×240 high-definition screen display module for Raspberry Pi/Jetson Nano/Arduino/STM32
• 65K RGB colors monitor IPS screen, clear and colorful displaying effect

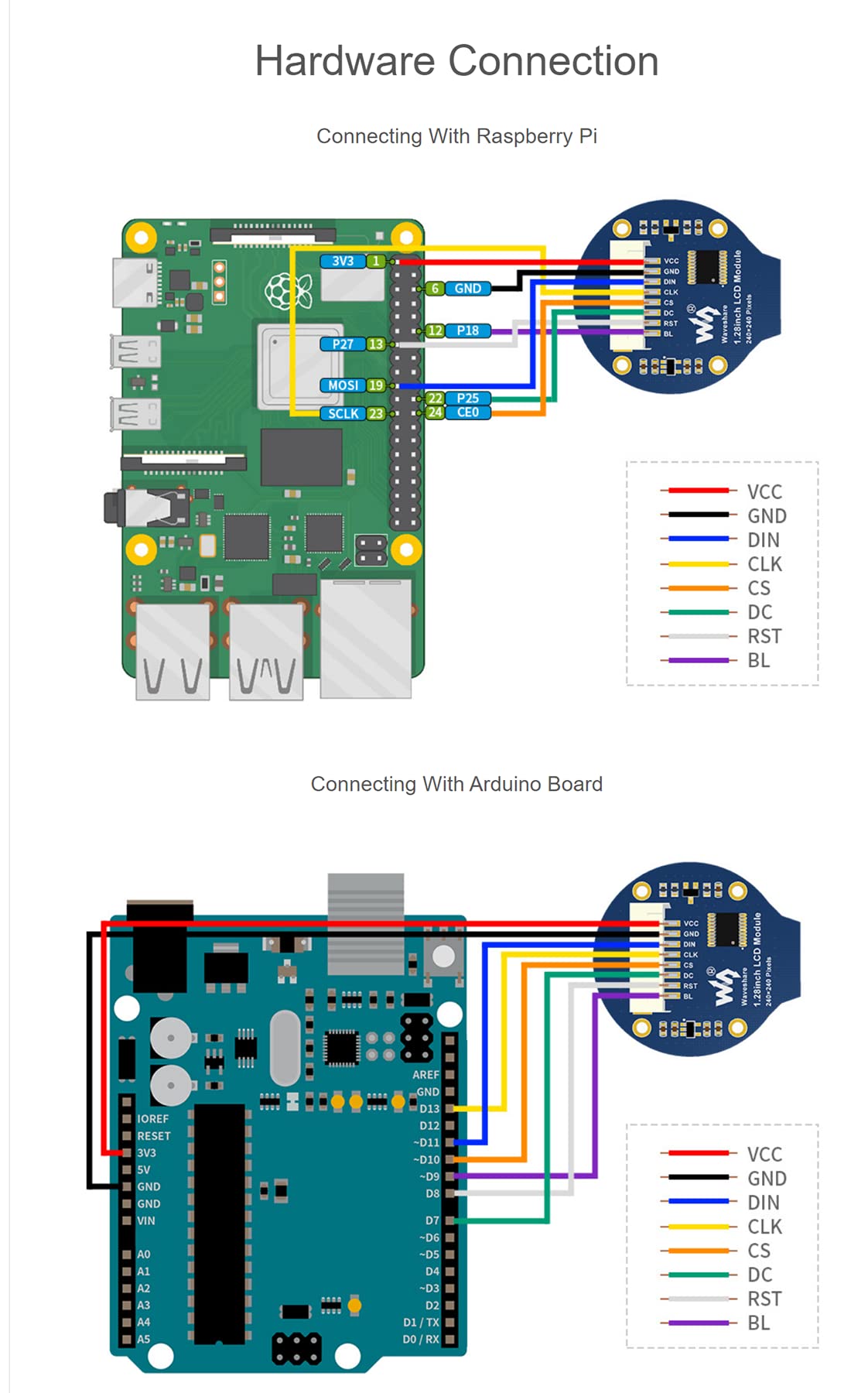

• Controlled via 4-wire SPI Bus, minimizes required IO pins, embedded GC9A01 driver, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32

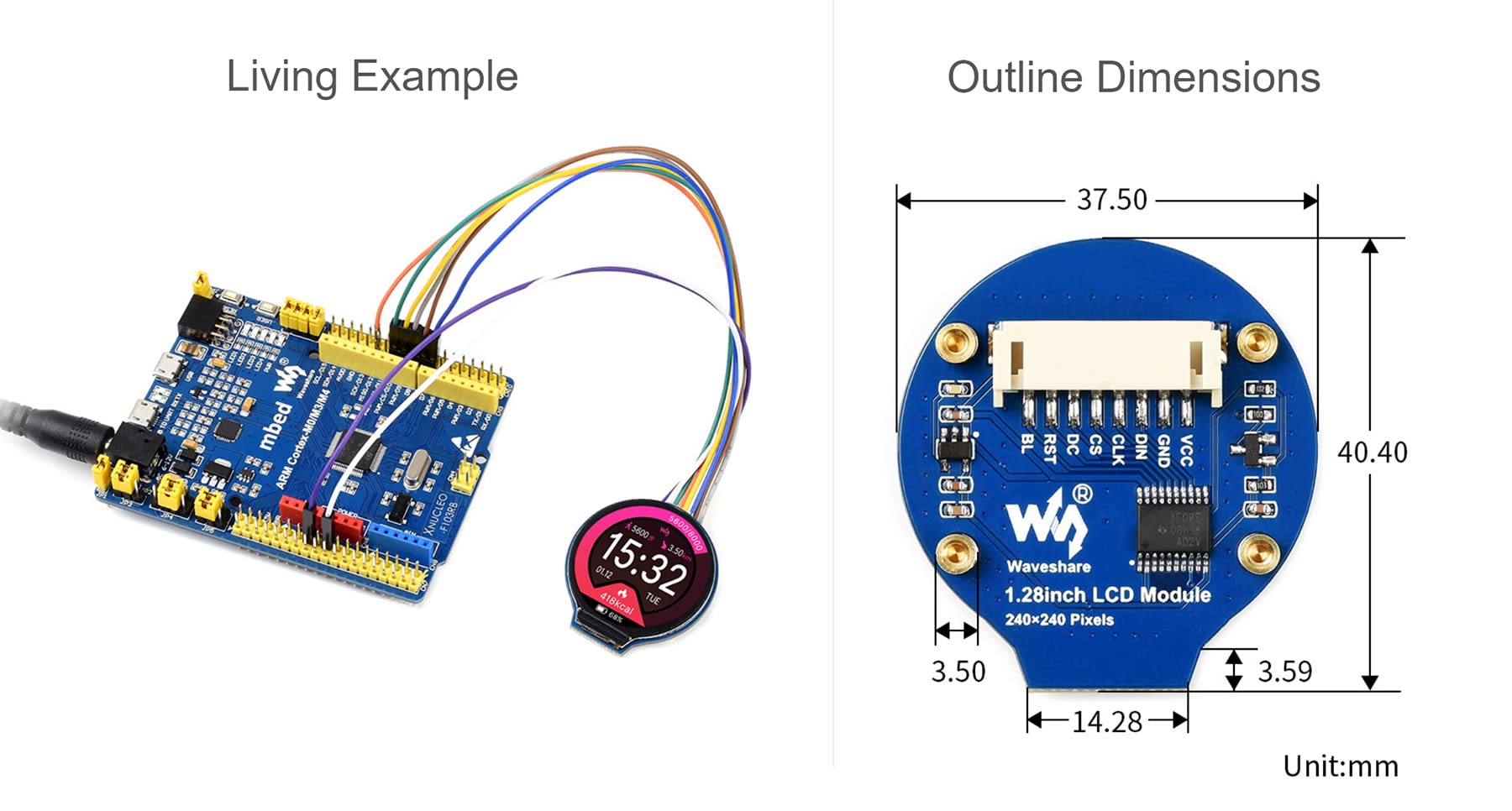

• Operating voltage: 3.3V/5V, Dimension: 40.4×37.5(mm) Φ37.5(mm)
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Overview 1.28 inch Round LCD Display Module, embedded GC9A01 driver, using SPI bus, 240×240 resolution, IPS screen, 65K RGB colors, comes with examples for Raspberry Pi, Arduino, STM32, etc. Features 1. 240×240 resolution, 65K RGB colors, clear and colorful displaying effect 2. This 1.28 inch Round LCD Display uses a 4-line SPI interface for reducing GPIO and fast speed, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32. 3. The driver used in this LCD is GC9A01, with a resolution of 240RGB×240 dots and 129600 bytes of GRAM inside. This LCD supports 12-bits/16-bits/18-bits data bus by MCU interface, which are RGB444, RGB565, RGB666. 4. Comes with development resources (examples for Raspberry Pi/Arduino/STM32) Specification Operating voltage: 3.3V/5V Interface: 4-wire SPI Display Panel: IPS Driver: GC9A01 Resolution: 240(H)RGB x 240(V) Display size: Φ32.4mm Pixel size: 0.135（H）x0.135（V）mm Dimension: 40.4×37.5(mm)Φ37.5(mm) Development Resources https://www.waveshare.com/wiki/1.28inch_LCD_Module?Amazon Package Content 1.28inch LCD Module x1 20cm cable x1
