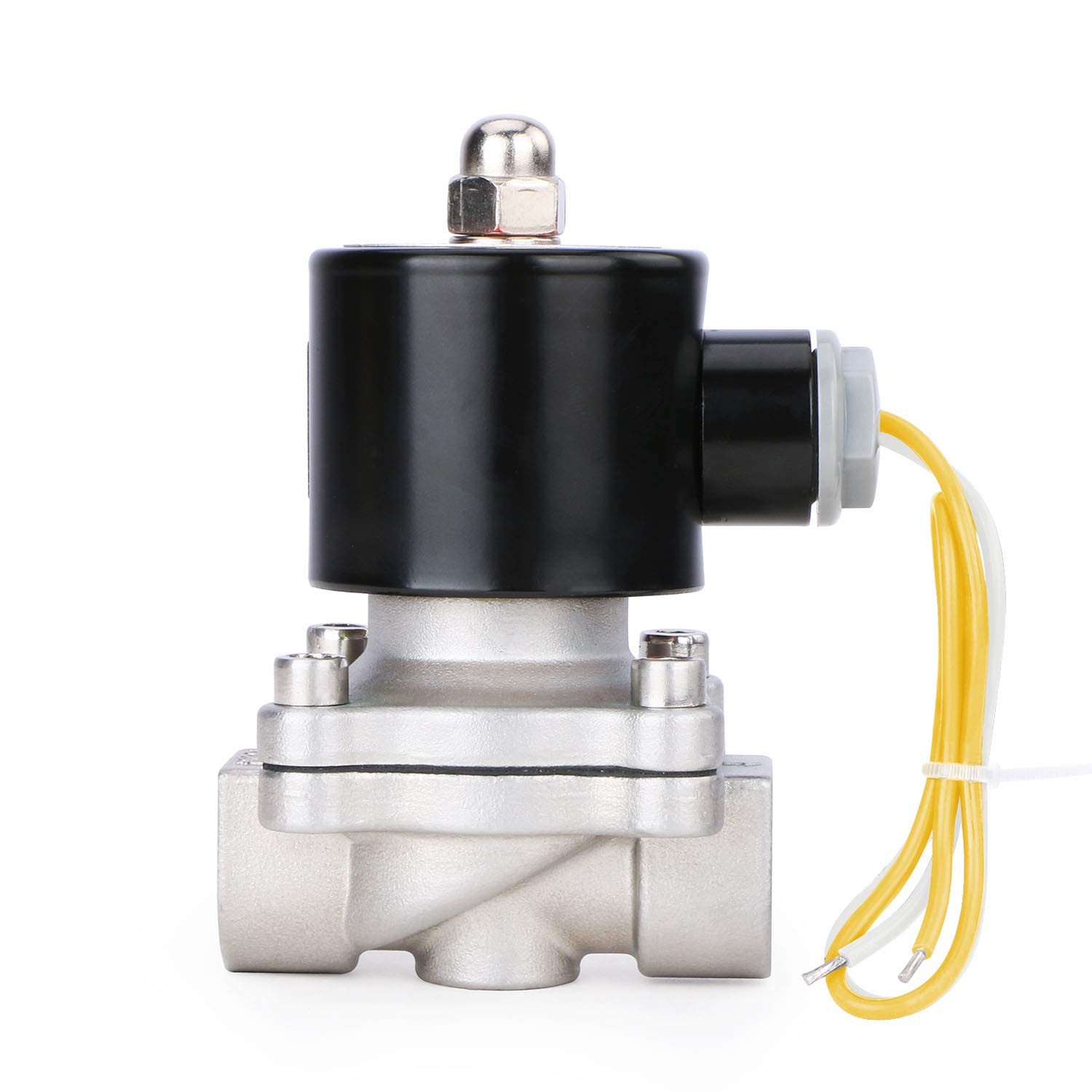

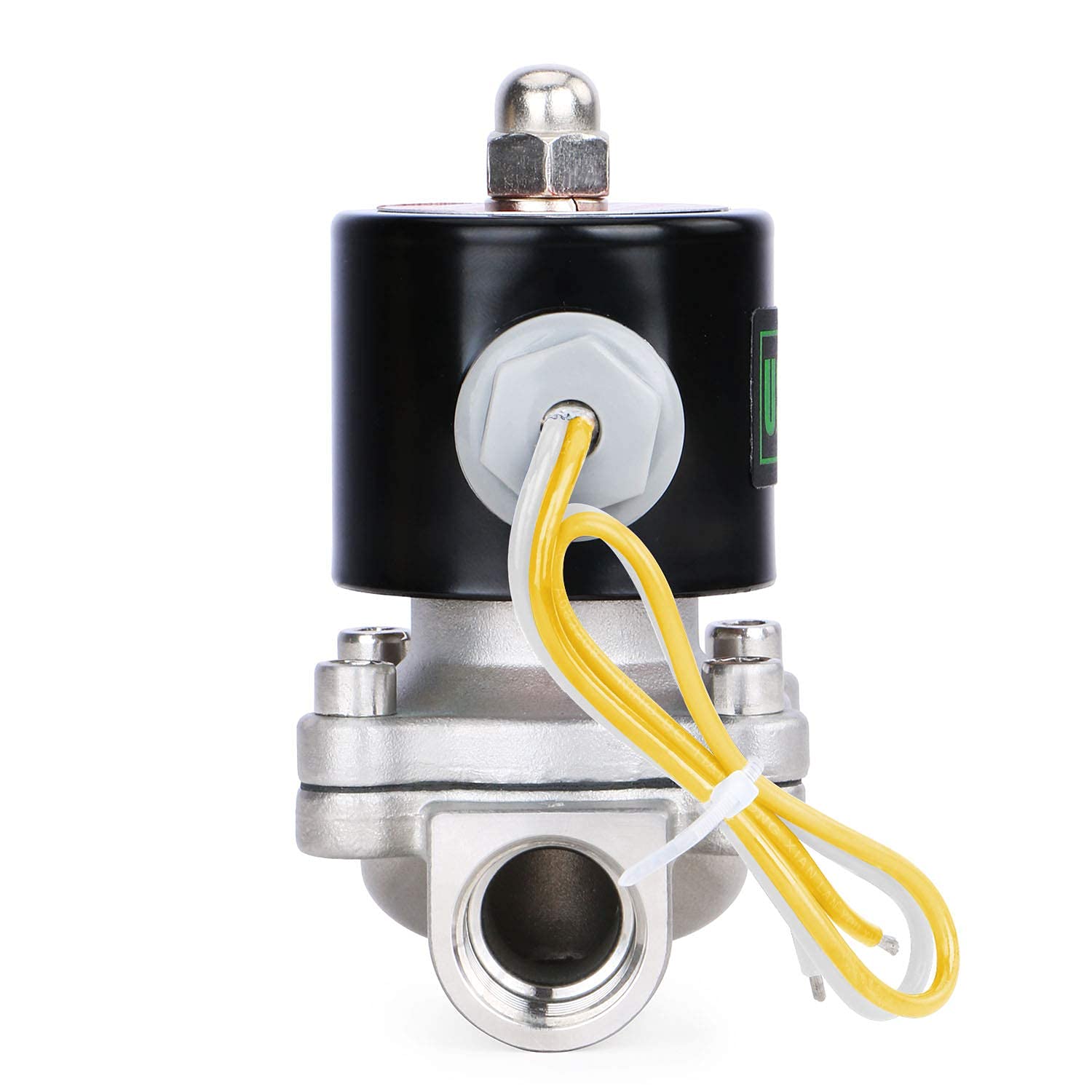

1/2" Stainless Steel Electric Solenoid Valve 220V AC G Thread Normally Closed VITON from U.S. SOLID

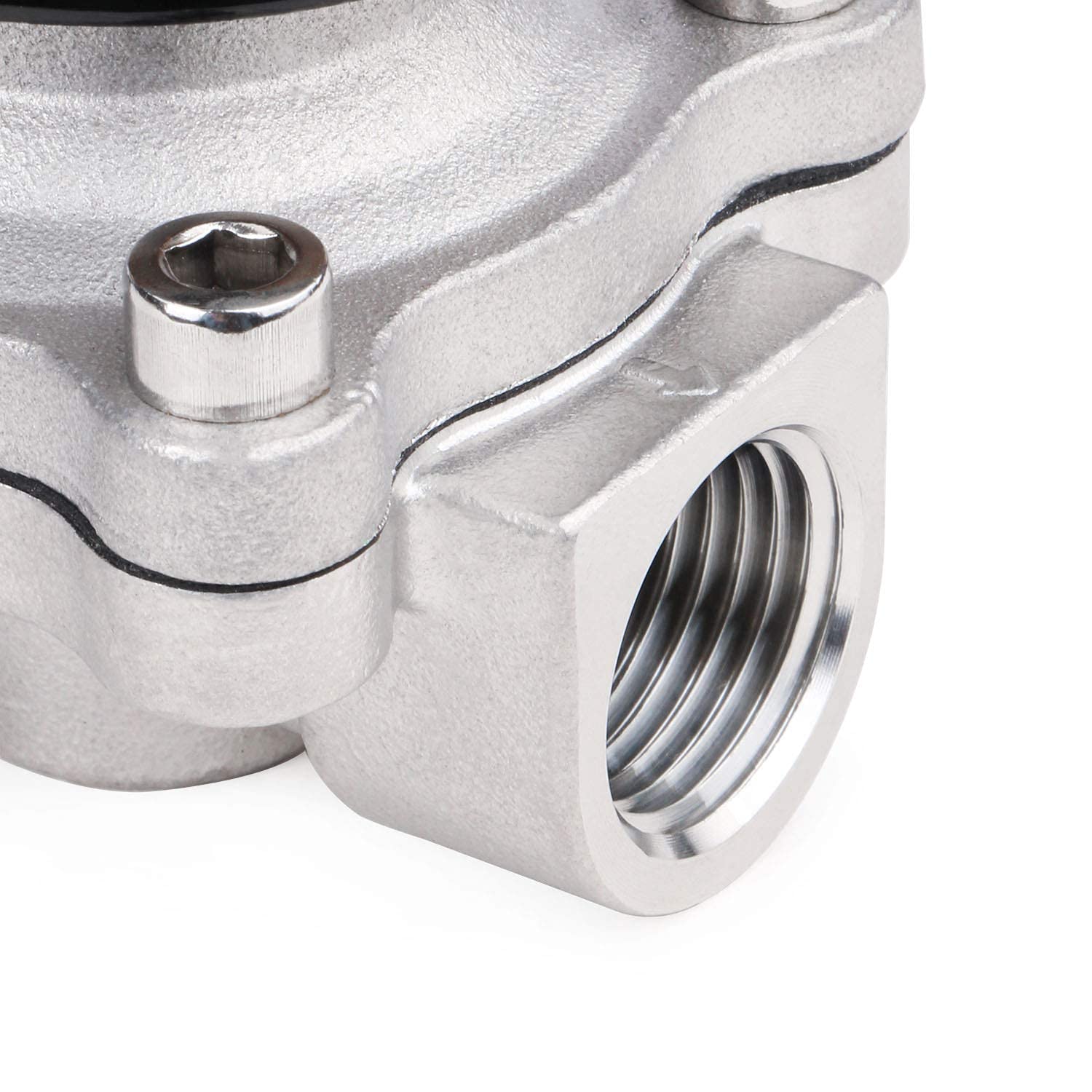

• 1/2" G Thread, Solid Stainless Steel body, AC 220V. The arrow indicates the flow direction (horizontal mounting please).
• Constructed with industrial grade stainless steel, this valve is very durable and resilient, leak resistant, and optimal for higher pressure and temperature projects. It can be used with drinking water or other water projects, gasoline, diesel fuel, kerosene oil, natural gas, air etc.
• This valve was manufactured with a VITON seal. VITON is the most durable and high performance rubber material with the ability to resist high temperatures and corrosive chemicals and other fluids like gasoline, diesel fuel, oils, and lubricants.
• This highly responsive valve will open and close in less than 1 second when actuated; meaning it will open or close the flow instantaneously when energized or de-energized. Also, our U.S. SOLID engineers have determined that the life cycle of this valve is well over a million cycles with proper operating conditions and maintenance.
• PLEASE NOTE: This valve is NOT a continuous duty valve and should NOT be in continuous use for more than 8 hours in a single cycle; to do so will shorten the life of the valve and may cause the core of the valve to burn out. If you need a continuous duty valve for your project please search for our U.S. SOLID Motorized Ball Valves.

The USS2-00091 solenoid valve is a direct and de-energized solenoid valve, with an internal wire inlet with G 1/2" seal and Viton (heat and oil resistant). Suitable for hot or cold water, oils, very low viscous liquids (<20cst), petrol, kerosene or diesel fuel, etc. Solenoid valves have an IP65 protection rating, which means they can withstand splashing water. However, in case of permanent installation outdoors, it is recommended to place the valves in a protective case. Not suitable for underwater use No minimum pressure or differential pressure required. Customers chose this all-purpose valve for additional gas containers, sprinkler systems and much more. Specification Model: USS2-00091 Body Material: Stainless Steel Thread size: G 1/2" female inner Hole: 16 mm. Type: Normally Closed "NC", Direct Solenoid Valve Oil seal material: Viton Rated voltage: 220 V AC, ± 10%. Rated power: 22 VA Current: 0.1 A Protection class: IP65. Operating pressure: 0 - 7 bar (0 - 101 psi) (For Water, Air, Gas); 0-5 bar (0 - 72 psi) (for Oil) Operating temperature: -10°C to +120°C Flow rate: 4.8 gallon per minute (GPM) of water at 60℉ with a pressure drop of 1 psi (4.8 HP). OVERHEATING WARNING Not designed for continuous operation (not a 100% work cycle). Under normal operating conditions, the solenoid valve will be HOT when powered on. The coil will reach a maximum temperature of about 80°C. It fully complies with the national standard: JB/T7352-2010. If it is continuously powered for more than 8 hours, the coil may burn.
