1/2" Digital Torque Gauge Adapter, 10.2-340Nm, 1/4" & 3/8", ±2% Accuracy

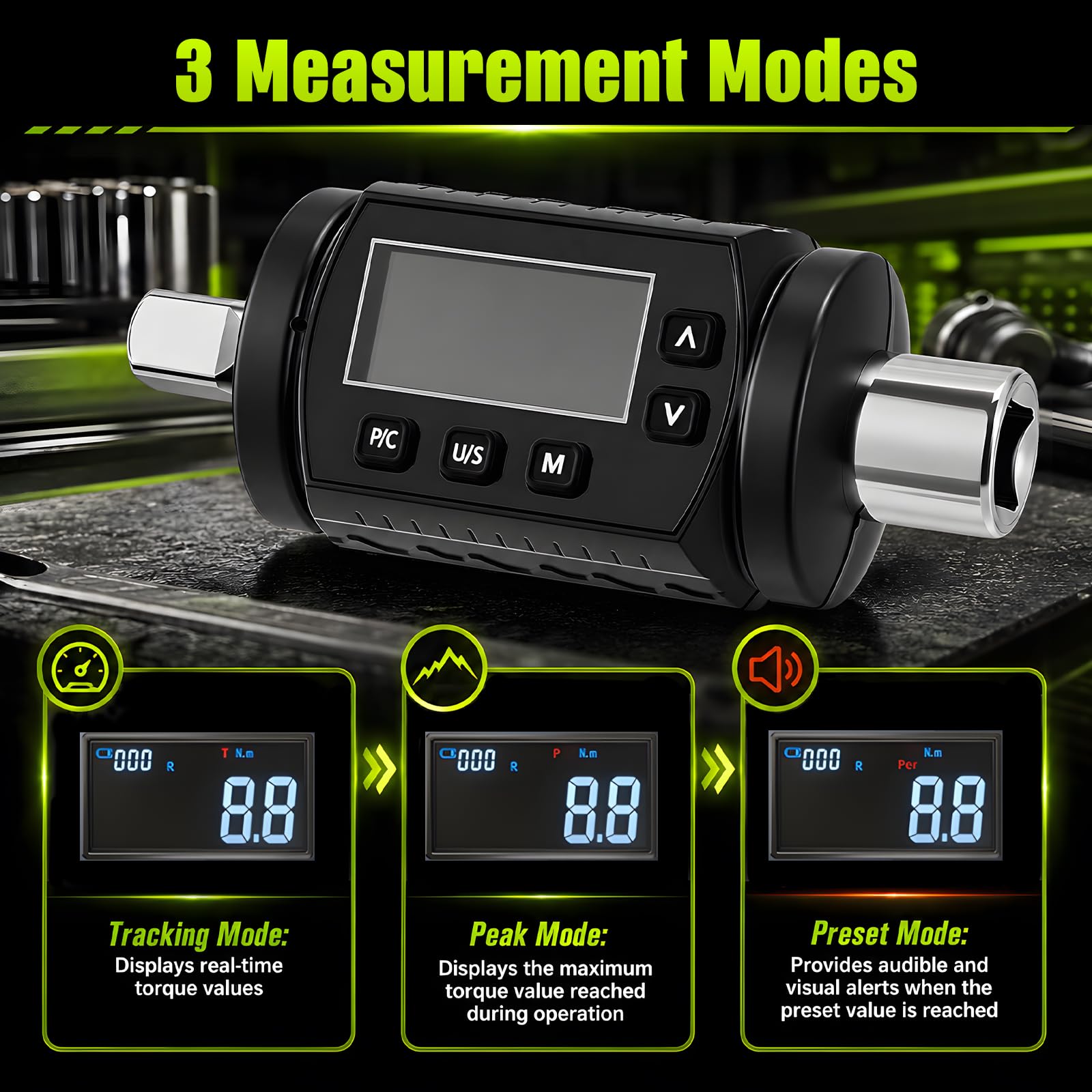

• 【Precision & 3 Measurement Modes】Operates with ±2% CW and ±2.5% CCW accuracy for strict quality control. Instantly switch between Track (real-time), Peak (maximum reached), and Preset modes to suit any fastening task.
• 【Smart Audio-Visual Overload Alarm】Never strip a bolt again. At 80% of your preset torque, a red LED flashes with an intermittent buzzer. At 100%, the light remains steady with a continuous tone, ensuring perfect tension.

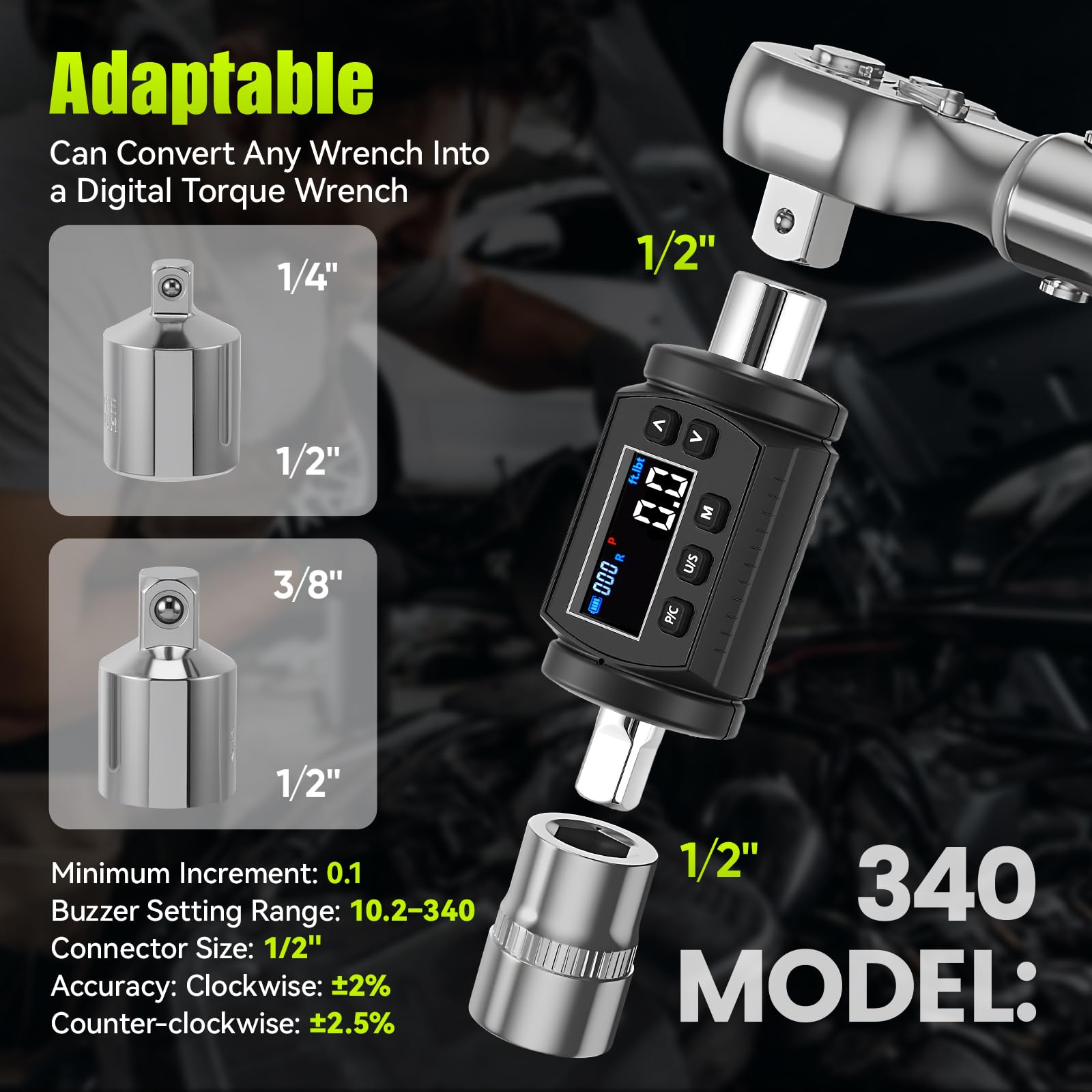

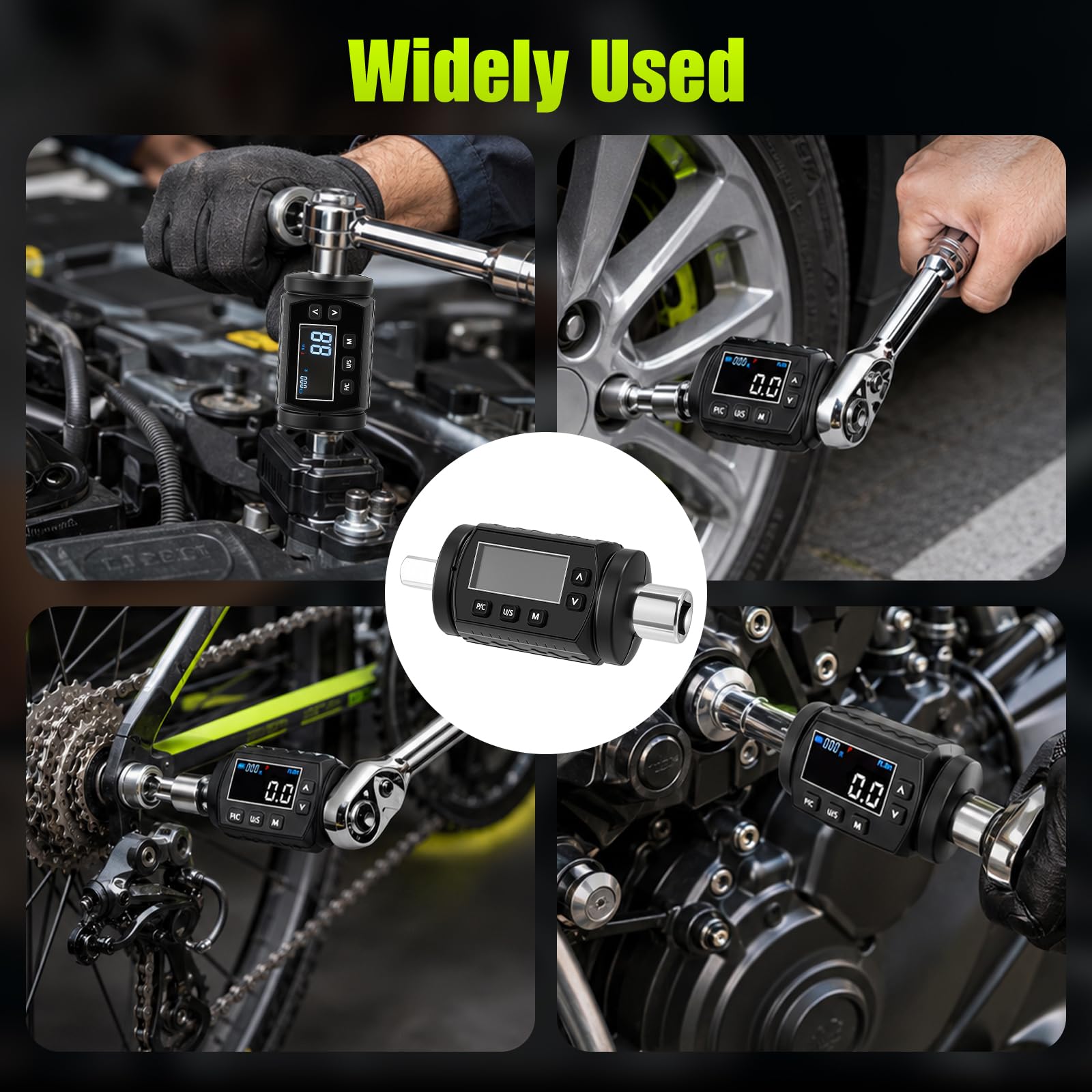

• 【Universal Ratchet Conversion】Transform any standard manual handle into a highly accurate digital tool. Includes a 1/2" main drive with 1/4" and 3/8" Chrome Vanadium socket adapters, perfect for automotive, bike, or HVAC repairs.

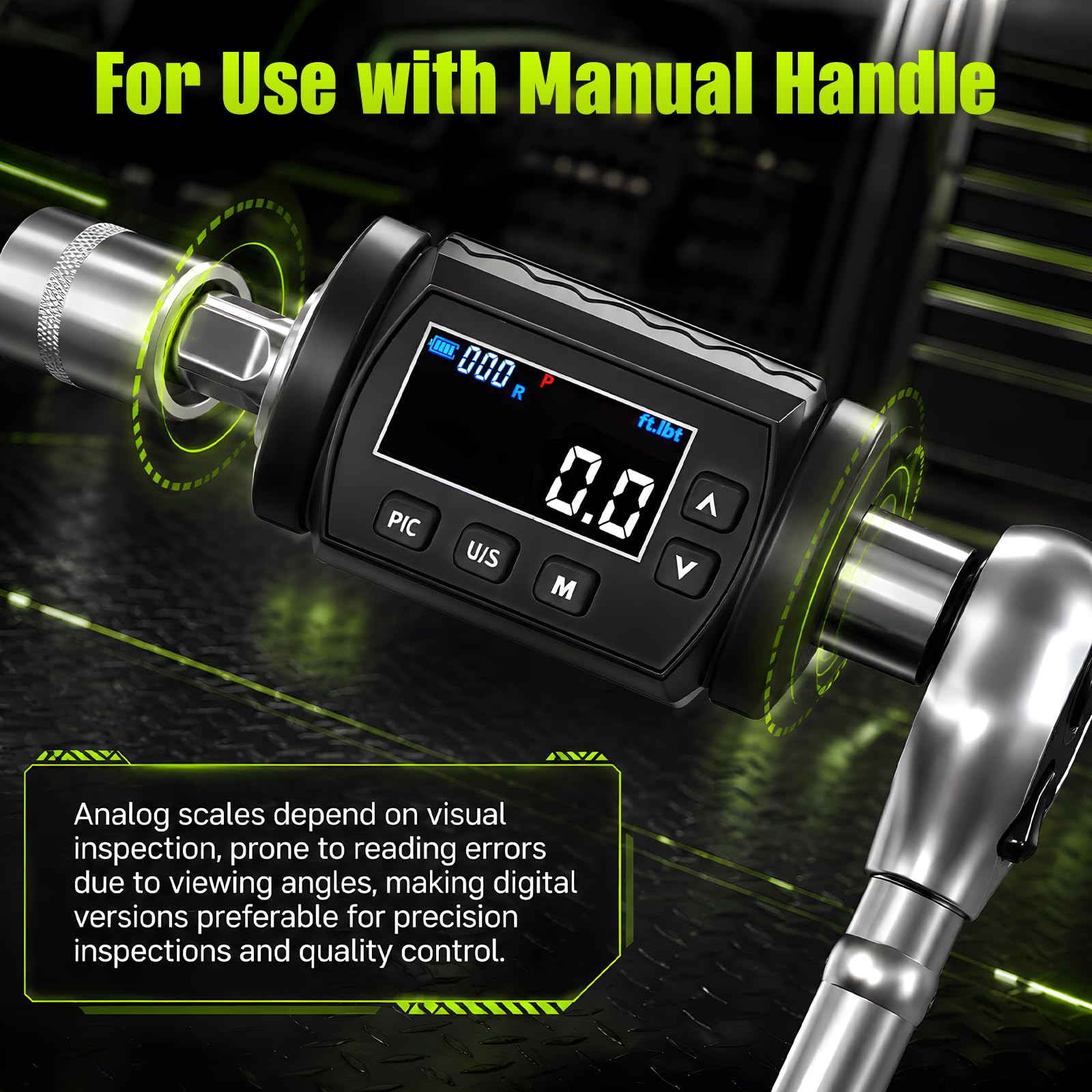

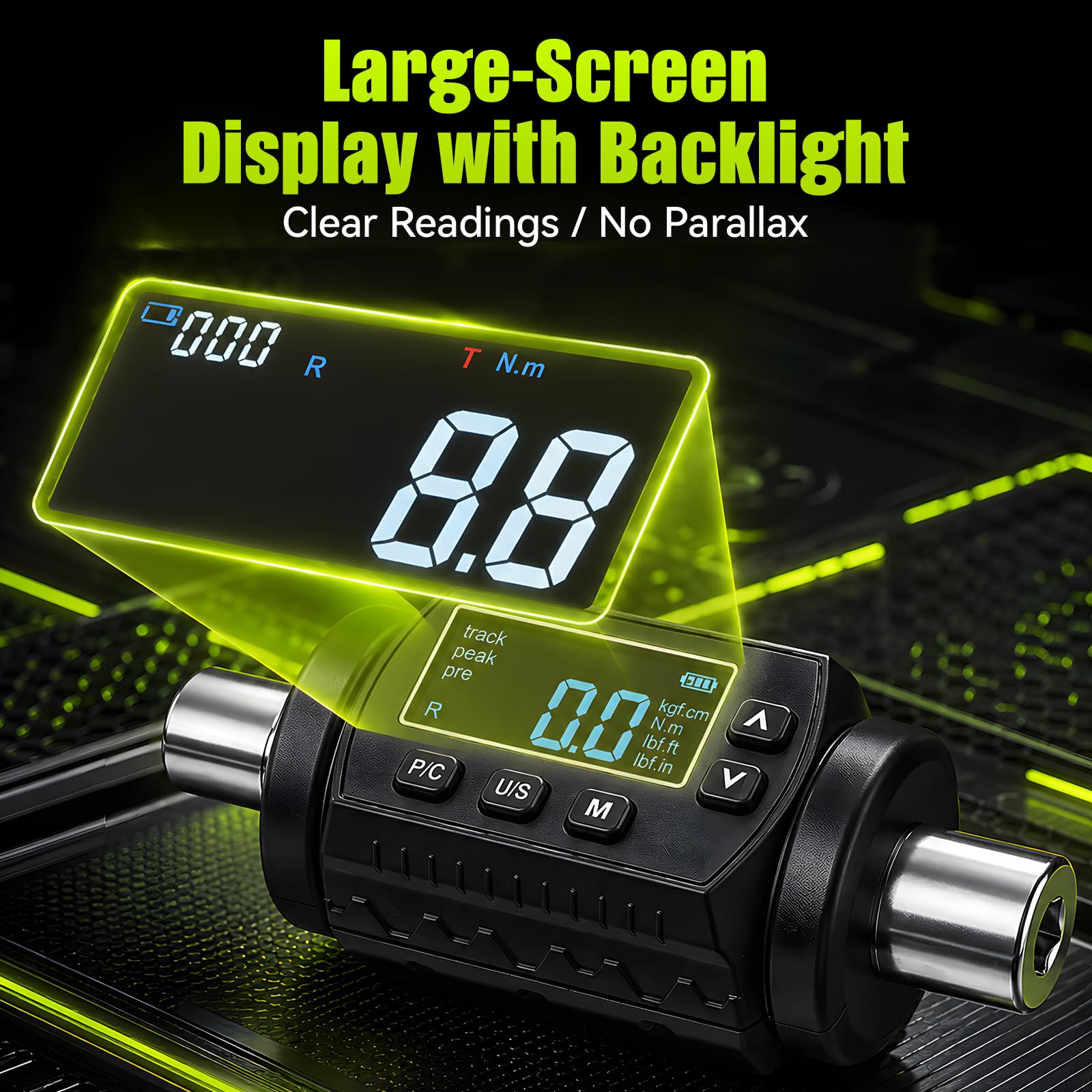

• 【Anti-Parallax Backlit LCD】 Engineered to eliminate visual reading errors common in analog scales. The bright, large-screen display guarantees clear readings from any viewing angle, even when working in dark, tight engine bays.

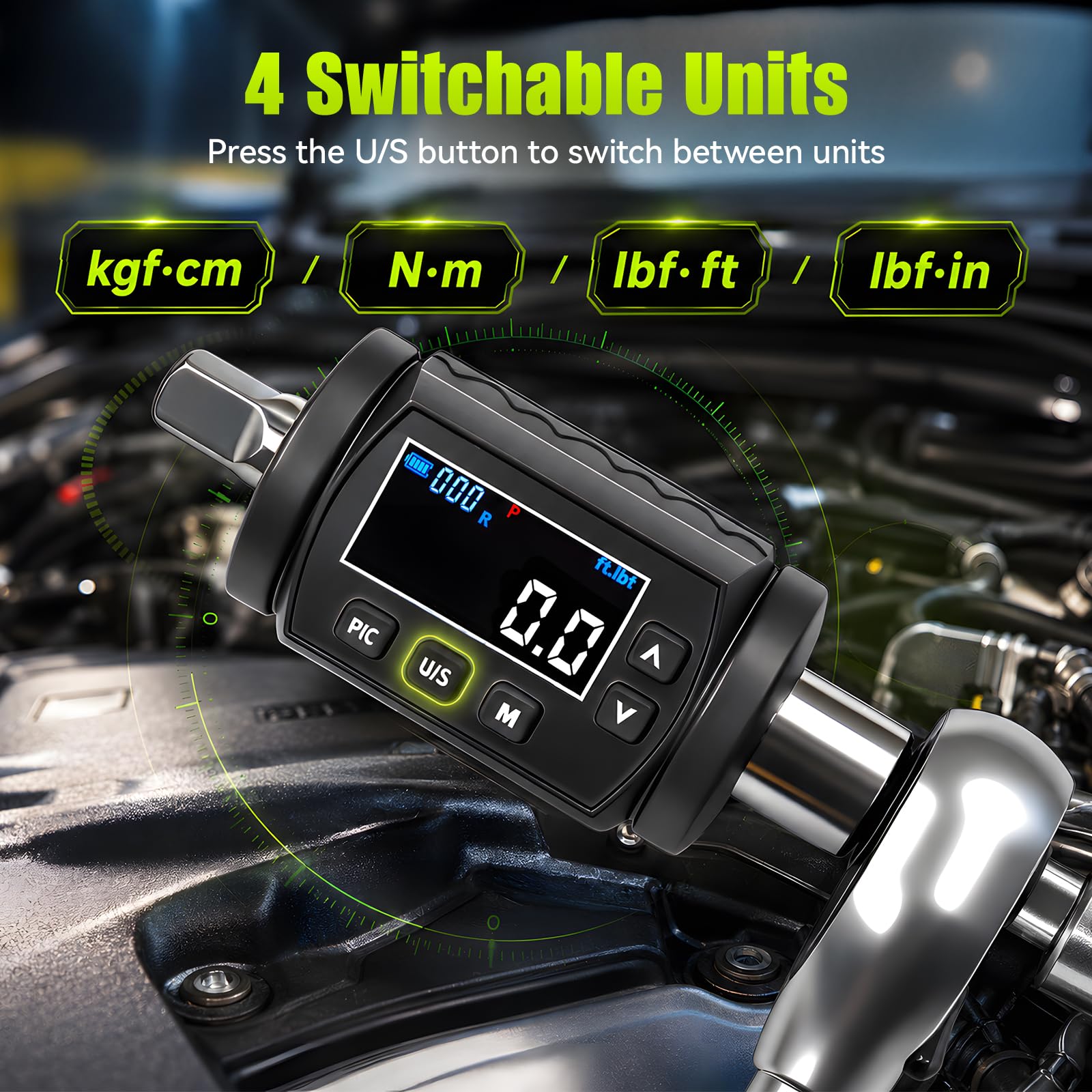

• 【4 Switchable Units & Ready to Use】Press the U/S button to seamlessly toggle between kgf·cm, N·m, lbf·ft, and lbf·in. Comes complete with a rugged storage case and a mini screwdriver for quick, hassle-free battery installation.

Specifications: Product Name: Digital Torque Gauge Model: 340 Model Connector Size: 1/2" Buzzer Setting Range: 10.2 - 340.0 Minimum Increment: 0.1 Accuracy: Clockwise ±2%, Counter-clockwise ±2.5% Switchable Units: kgf·cm / N·m / lbf·ft / lbf·in Measurement Modes: Tracking Mode / Peak Mode / Preset Mode Screen Type: Large-Screen LCD Display with Backlight (No Parallax) Alarm System: LED Visual Warning + Audio Buzzer What's in the Box: 1 x Digital Torque Gauge 1 x 1/2" to 1/4" Chrome Vanadium Socket Adapter 1 x 1/2" to 3/8" Chrome Vanadium Socket Adapter 1 x Mini Phillips Screwdriver (for battery installation) 1 x Storage Case How to Use: Assemble and Connect: Use the included mini screwdriver to open the back battery compartment and install the batteries. Depending on your socket or manual ratchet wrench size, connect it directly to the 1/2" drive or attach the included 1/4" or 3/8" adapter first. Select Unit and Mode: Press the "U/S" button to seamlessly toggle between kgf·cm, N·m, lbf·ft, and lbf·in. Next, press the "M" button to select your desired measurement mode (the "Preset Mode" is highly recommended for everyday precision fastening). Set Target Torque: In Preset Mode, use the "∧" and "∨" buttons on the right side of the screen (short press or long press) to adjust the target torque value to your required specification. The value can be adjusted with a precise minimum increment of 0.1. Apply Force and Stop upon Alert: Hold your manual wrench and apply force smoothly. When the applied torque reaches 80% of your preset value, the red LED warning light will flash accompanied by an intermittent buzzer. Once 100% of the preset value is reached, the red light will remain steadily lit and the buzzer will sound continuously—stop applying force immediately to finish the fastening job. Important Precautions: Never Overload: The final applied torque must never exceed the maximum range of the gauge (340.0). Exceeding this limit will cause irreversible, permanent damage to the high-precision internal sensor. Apply Force Smoothly: Always apply force at a steady, even pace. Do not jerk, yank, or apply sudden impact forces to the wrench, as this can cause reading lags or damage internal components. Handle with Care: This is a high-precision electronic measuring instrument, not a standard striking tool. After use, always store it safely in the provided hard storage case to prevent damage from drops, moisture, or exposure to strong magnetic fields. Battery Maintenance: When the battery icon in the top right corner shows low power, replace the batteries immediately to maintain the ±2% measurement accuracy. If the tool will not be used for an extended period, please remove the batteries to prevent leakage and circuit board corrosion.
